Vincent

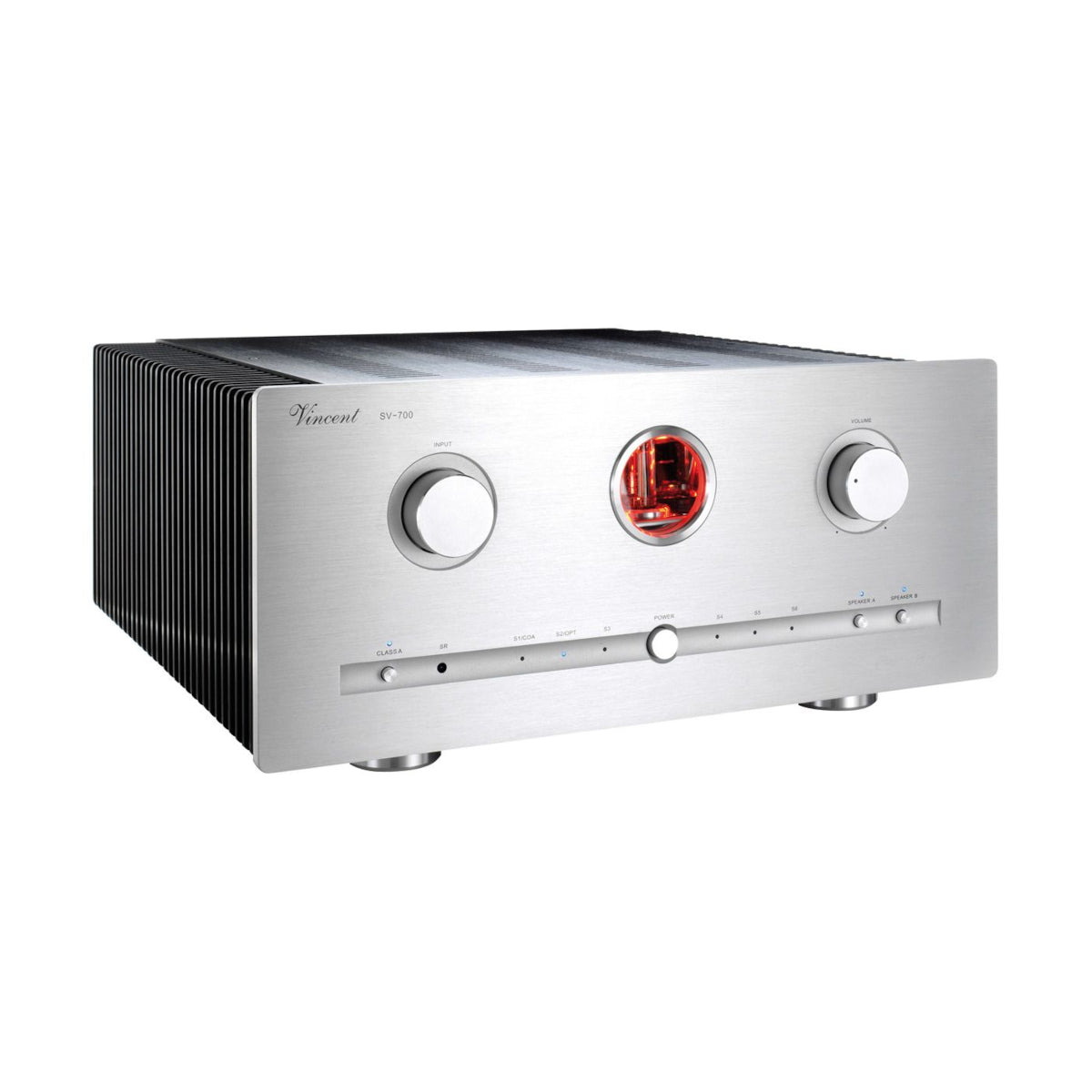

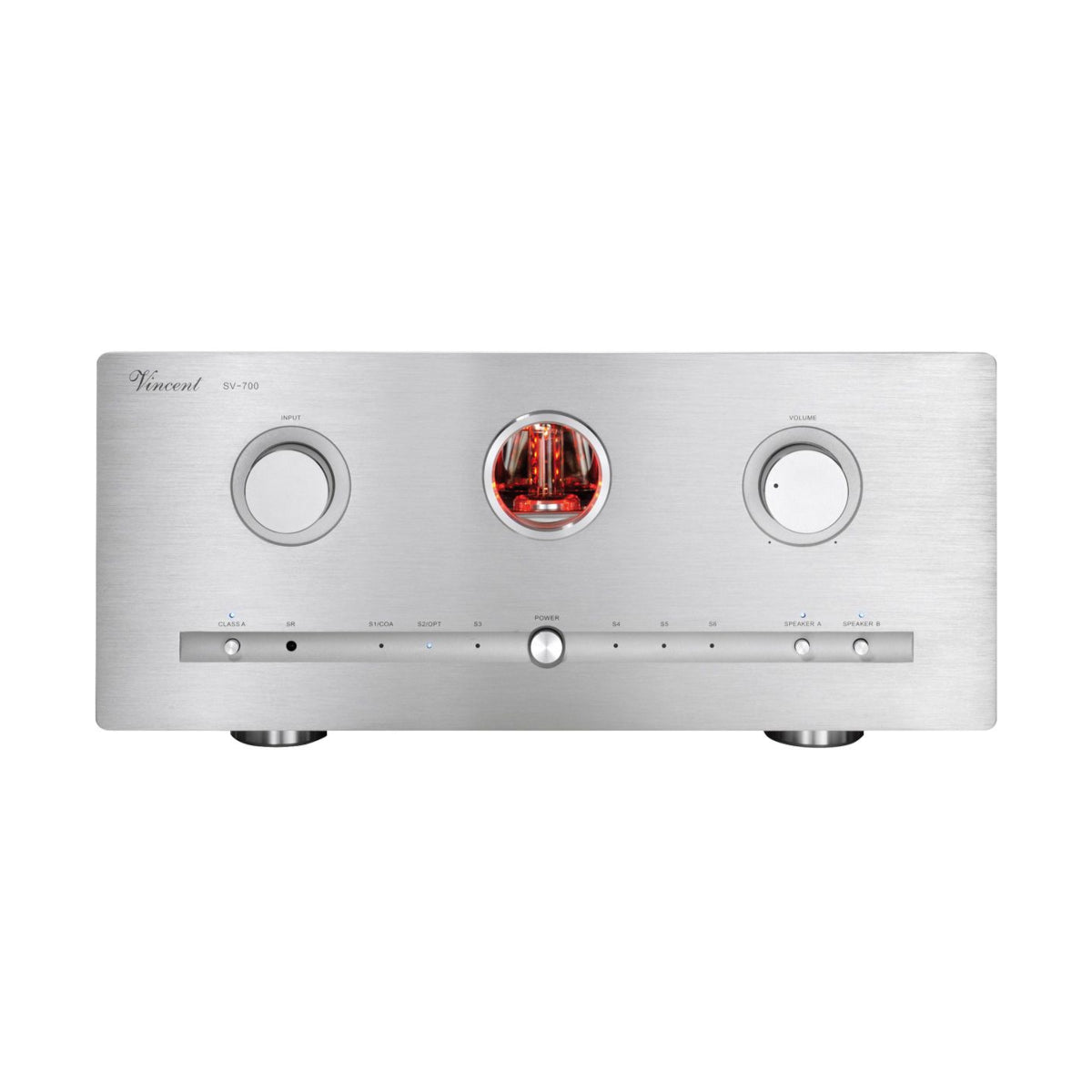

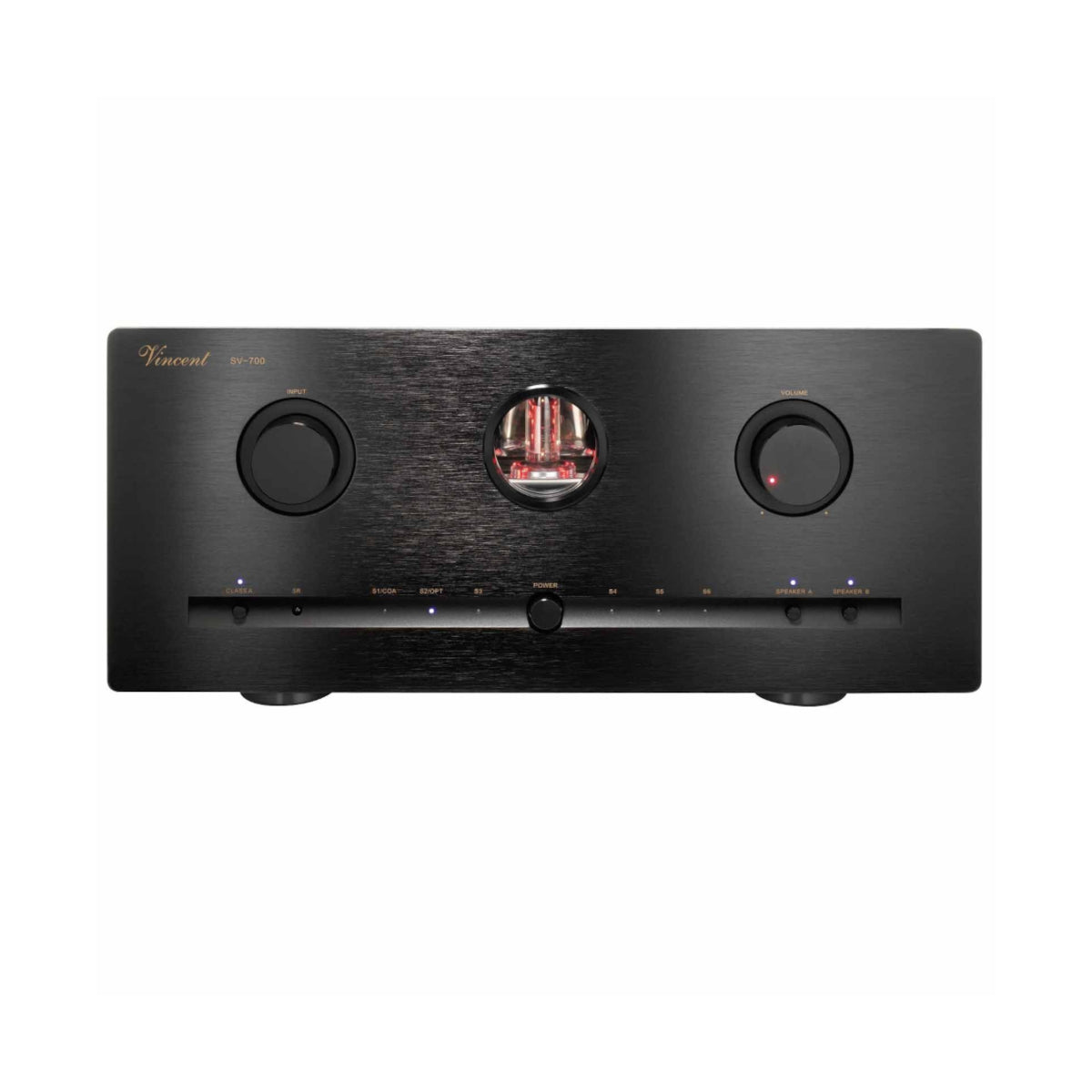

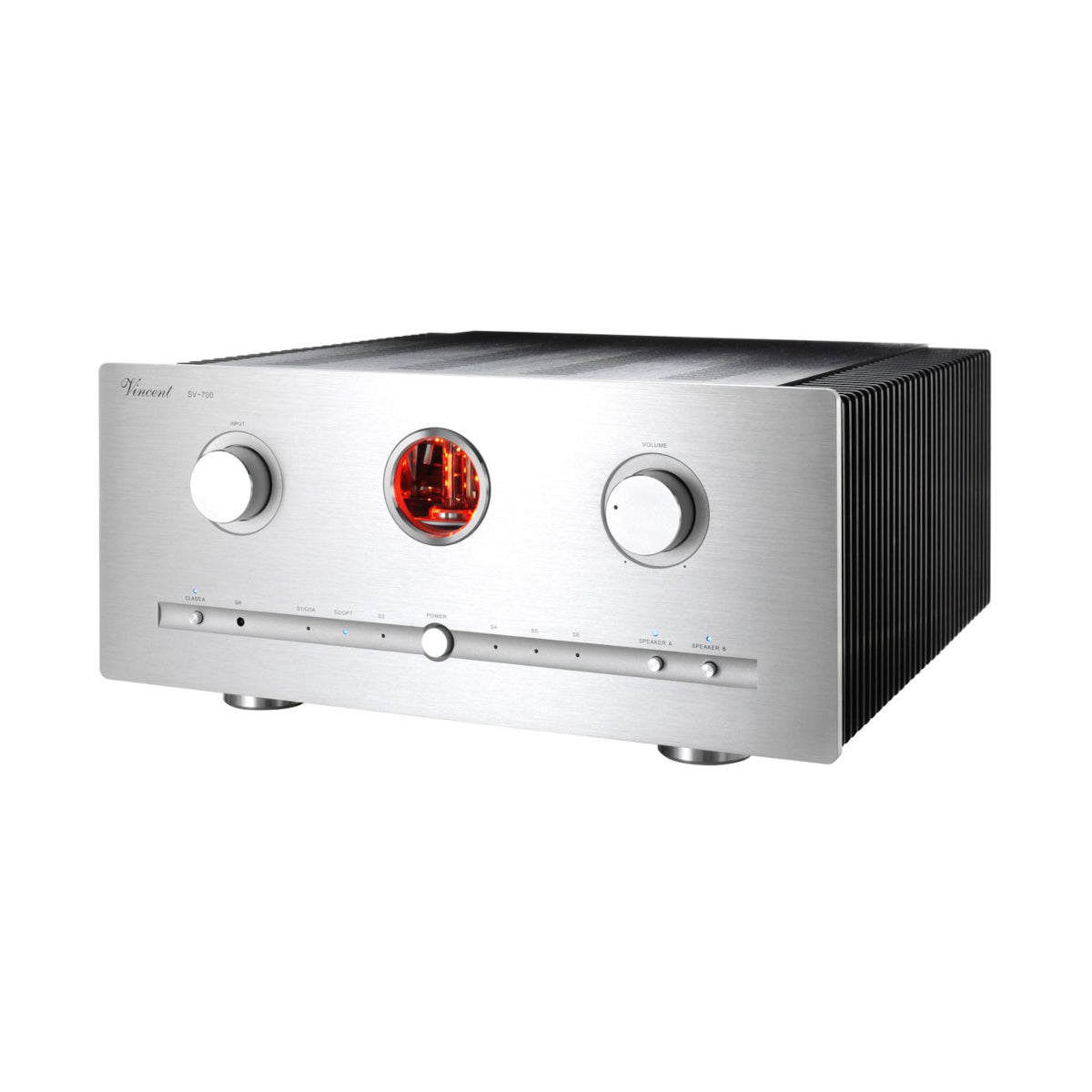

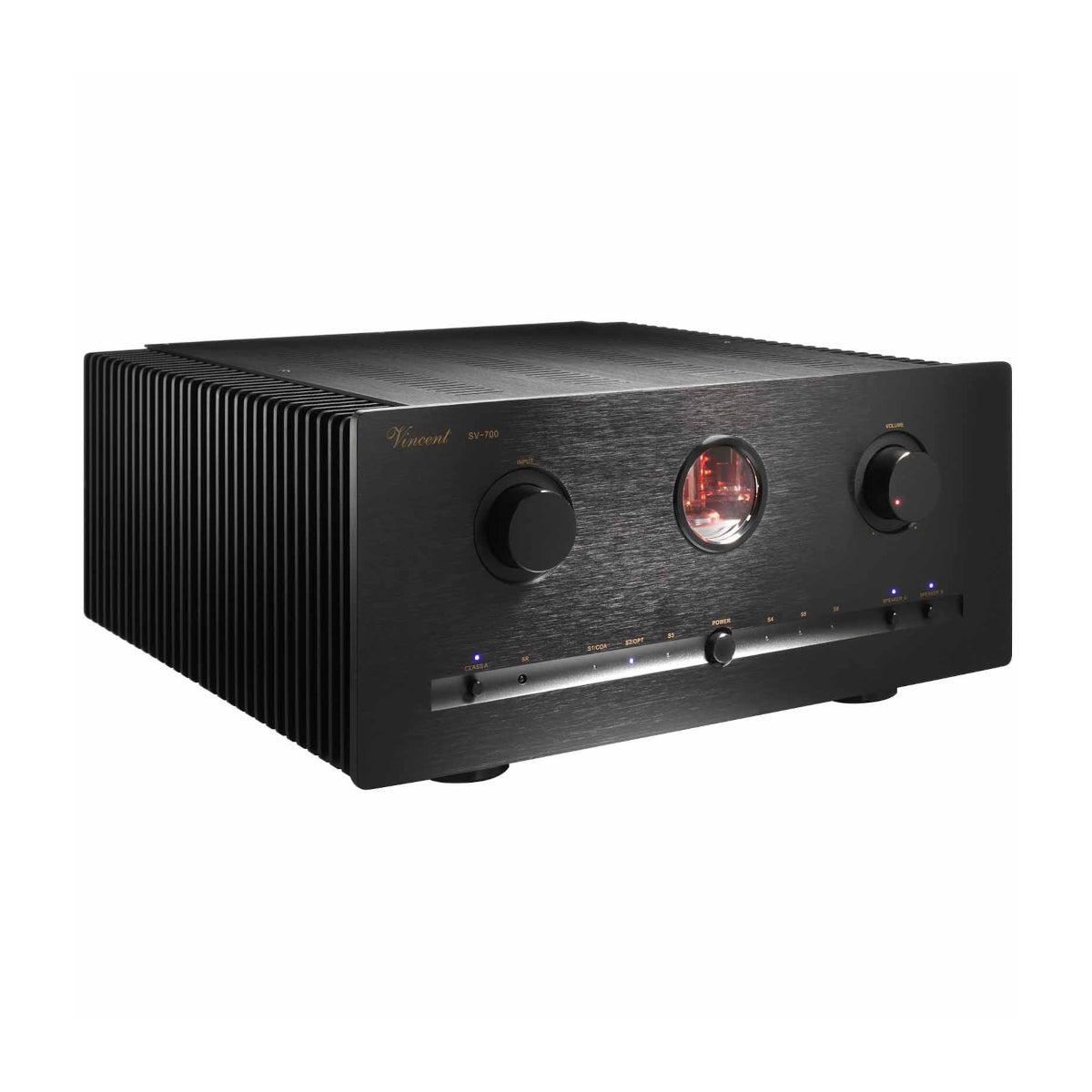

Vincent SV-700 Integrated Amplifier Class A

$5,699.00 AUD

Sale Sold out

Shipping calculated at checkout.

Color: Silver

Quantity

Class-A Hybrid Integrated Amplifier

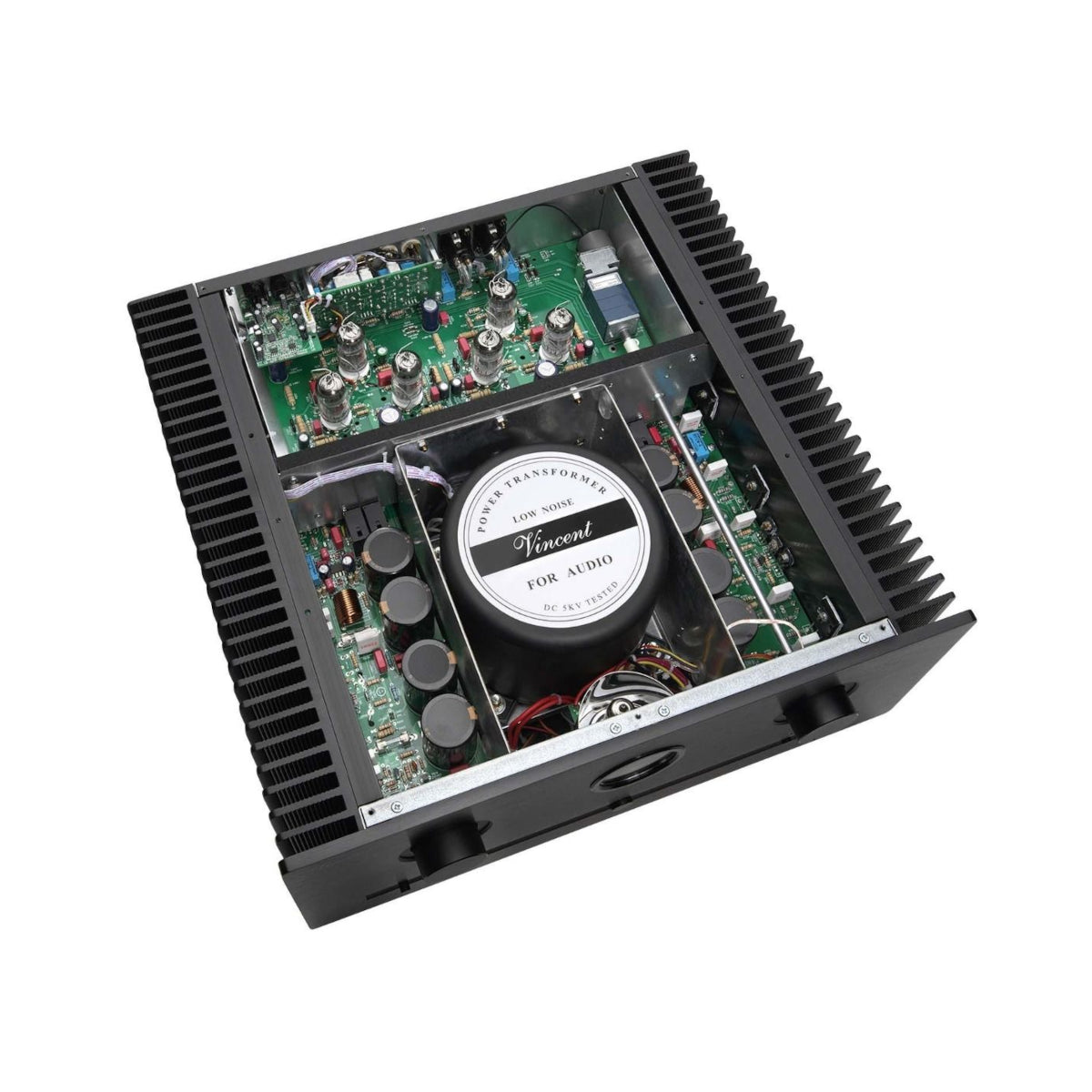

We decided on a consistent symmetrical design to minimise cross-feed and achieve a better distortion factor. In the pre-amp, 3 tubes per side work with the Shunt Regulater Push-Pull concept to process the sound signals. This ensures more precise bass reproduction and a better performance in the mid and high level sound range.

Features

Hybrid Tube & Solid State Amplification
Symmetrical Design
Superior Power Reserves.
4 x High-Quality Dual Speaker Binding Posts
Beautiful Sound & Deep Basses

Specifications

Frequency Response: 20 Hz – 20 kHz +/-0.5 dB, 20 Hz - 50 kHz +/- 2 dB
Nominal Output Power RMS / 8 Ohm: 2 x 100 Watt
Nominal Output Power RMS / 4 Ohm: 2 x 160 Watt
Nominal Output Power Class A / 8 Ohm: 2 x 50 Watt
Harmonic Distortion: < 0.1% (1 kHz, 1 Watt)
Input Sensitivity: 350 mV
Signal-Noise Ratio: > 90 dB
Input Impedance: 47 kOhm
Max. Power Consumption: 533 Watt

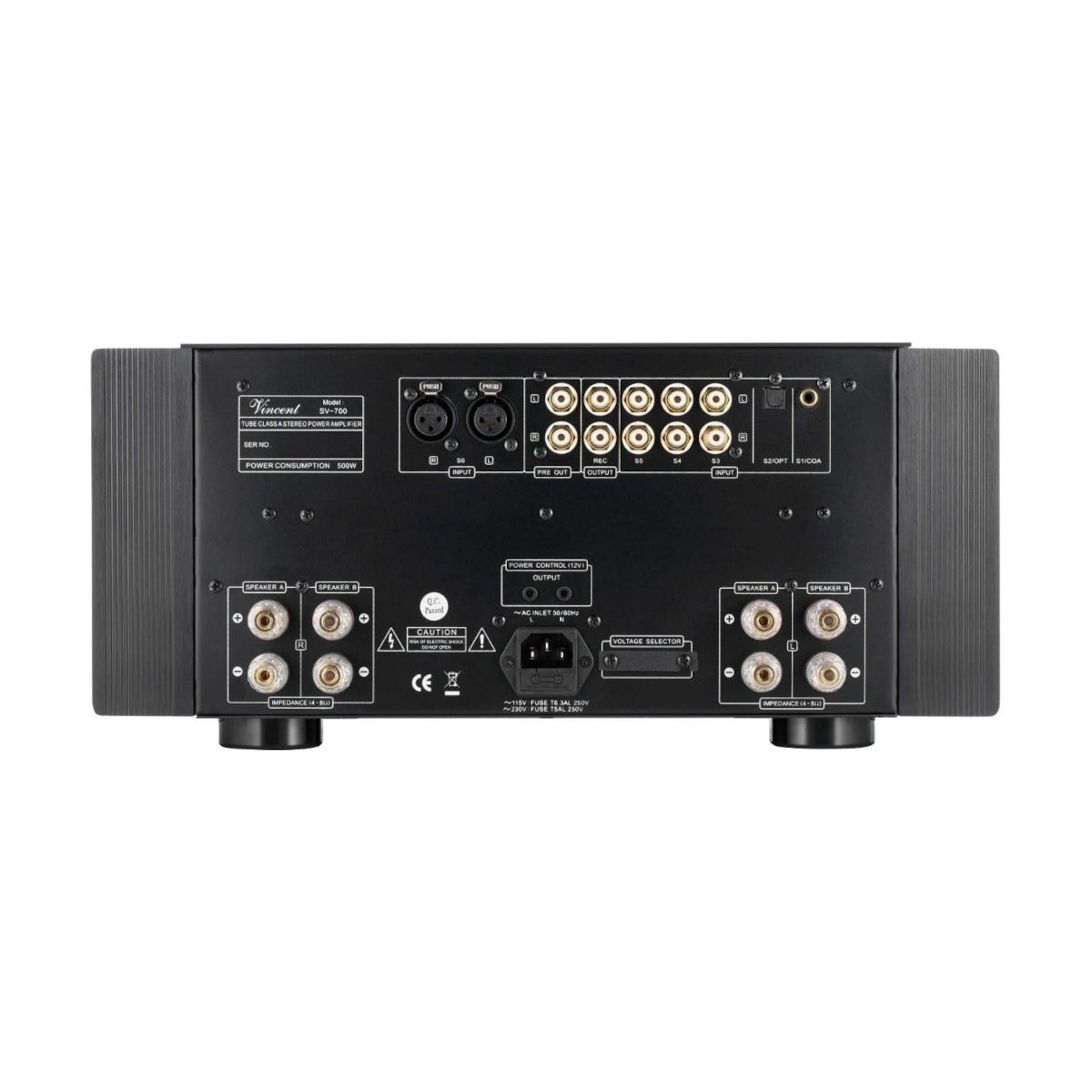

Inputs: 3 x Stereo RCA, 1 x Stereo XLR, 1 x Optical, 1 x Coaxial
Outputs: 1 x Stereo Pre Out, 1 x Stereo Rec Out, 4 x 2 Speaker Terminal, 2 x 3.5 mm Jack (Power Control)
Tubes: 1 x 6Z4, 2 x 12AX7, 4 x 12AU7
Playable Formats: WAV, FLAC, APE, LPCM, MP3, ACC, AC3, WMA
Colour: Black / Silver
Weight: 24.2 kg
Dimensions (WxHxD): 430 x 192 x 430 mm
