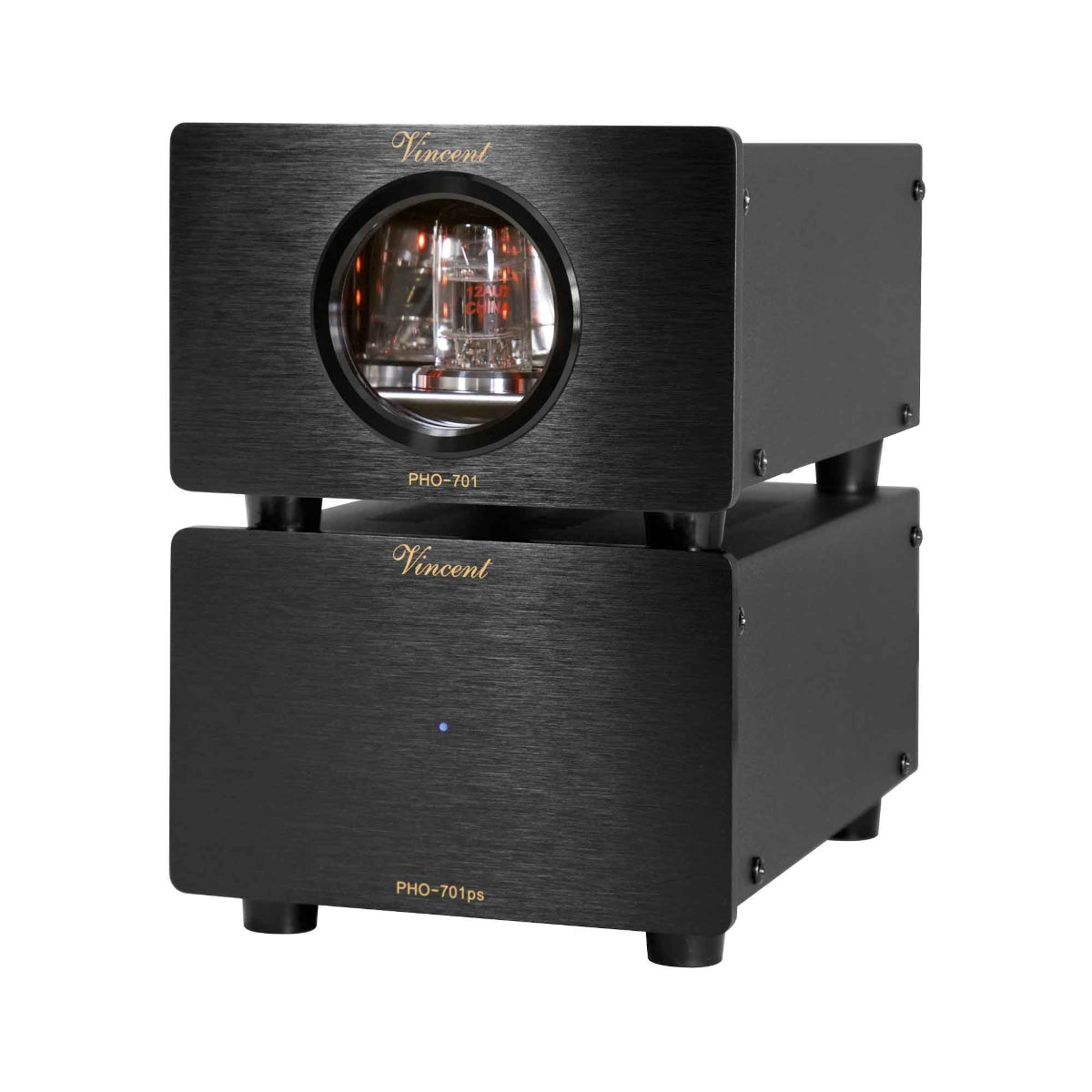

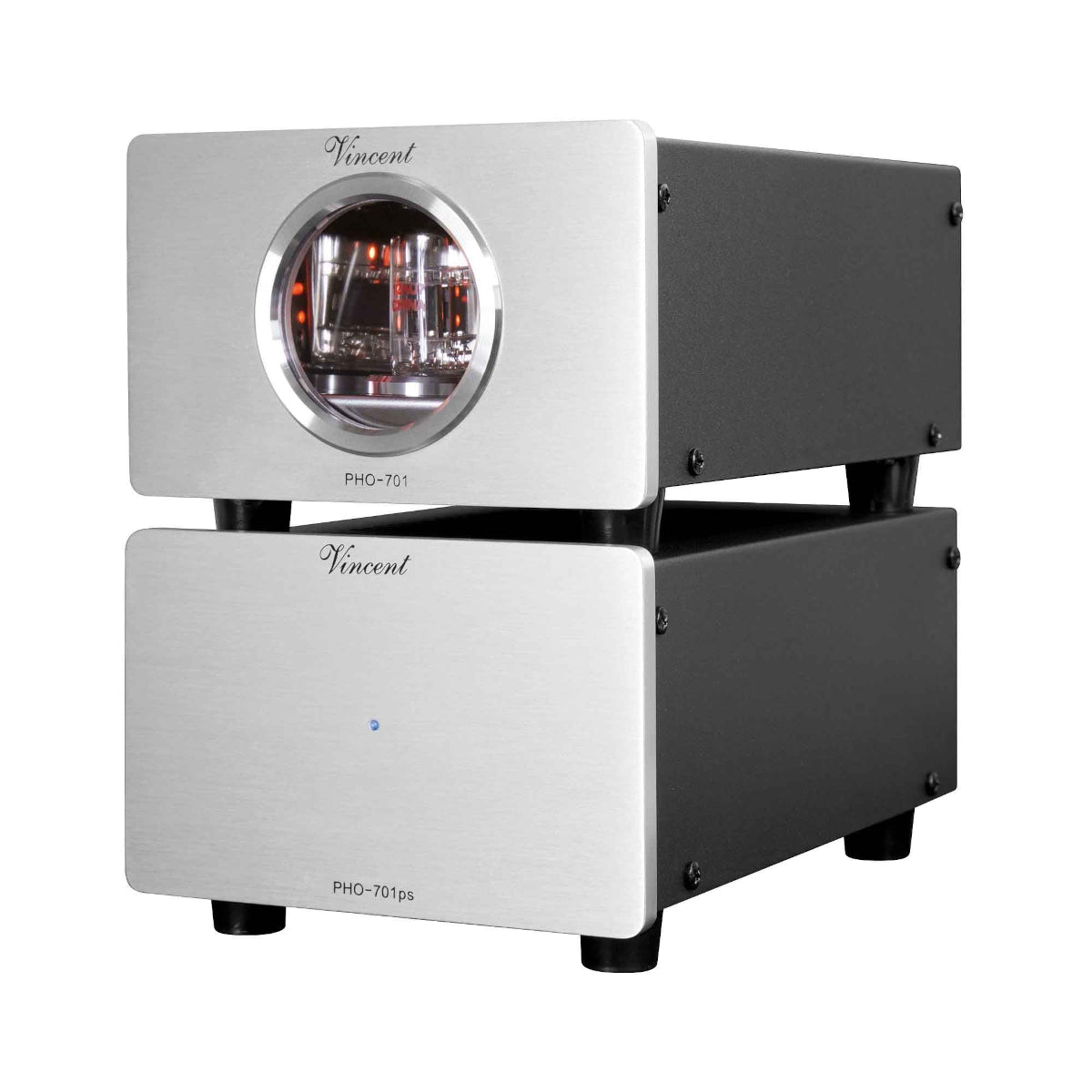

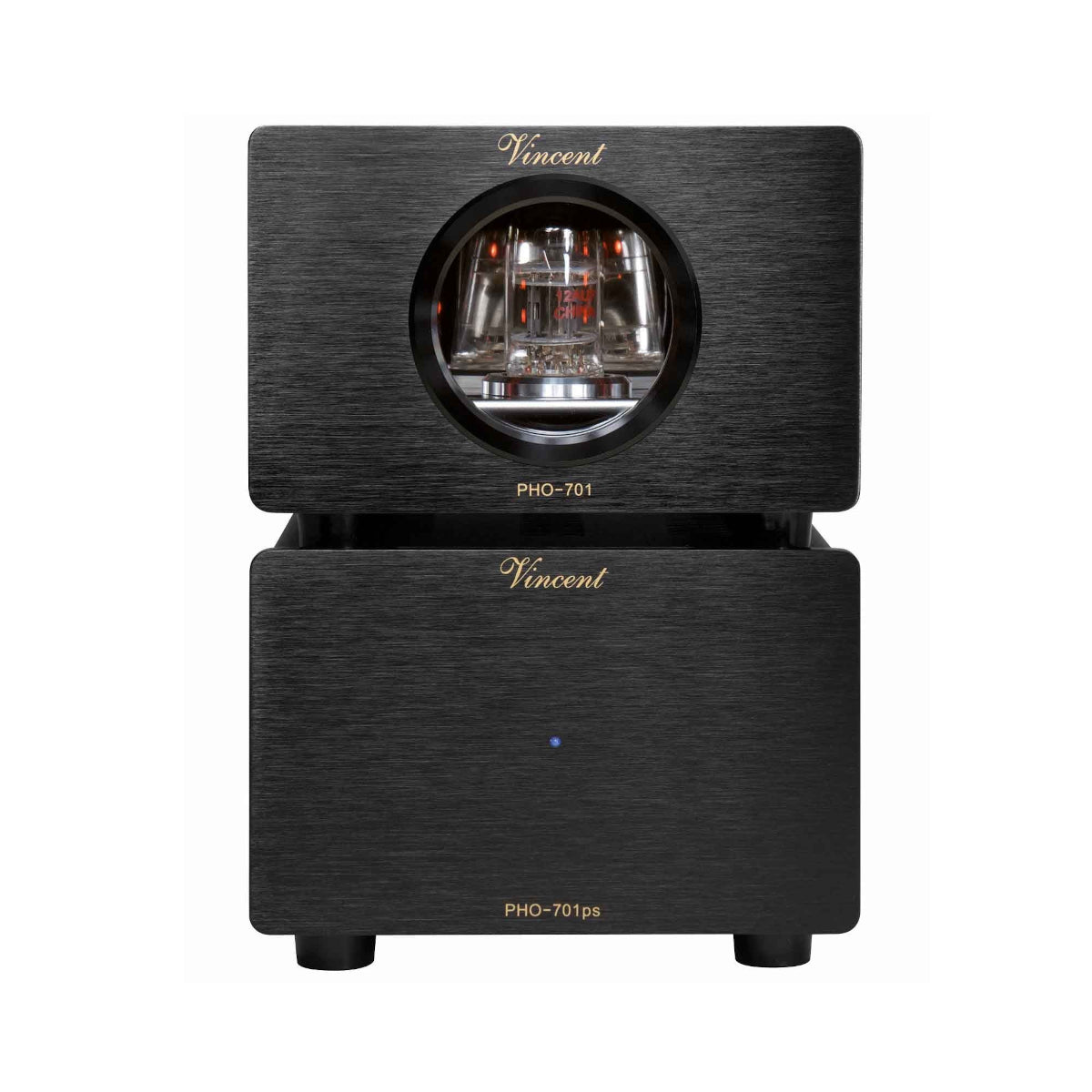

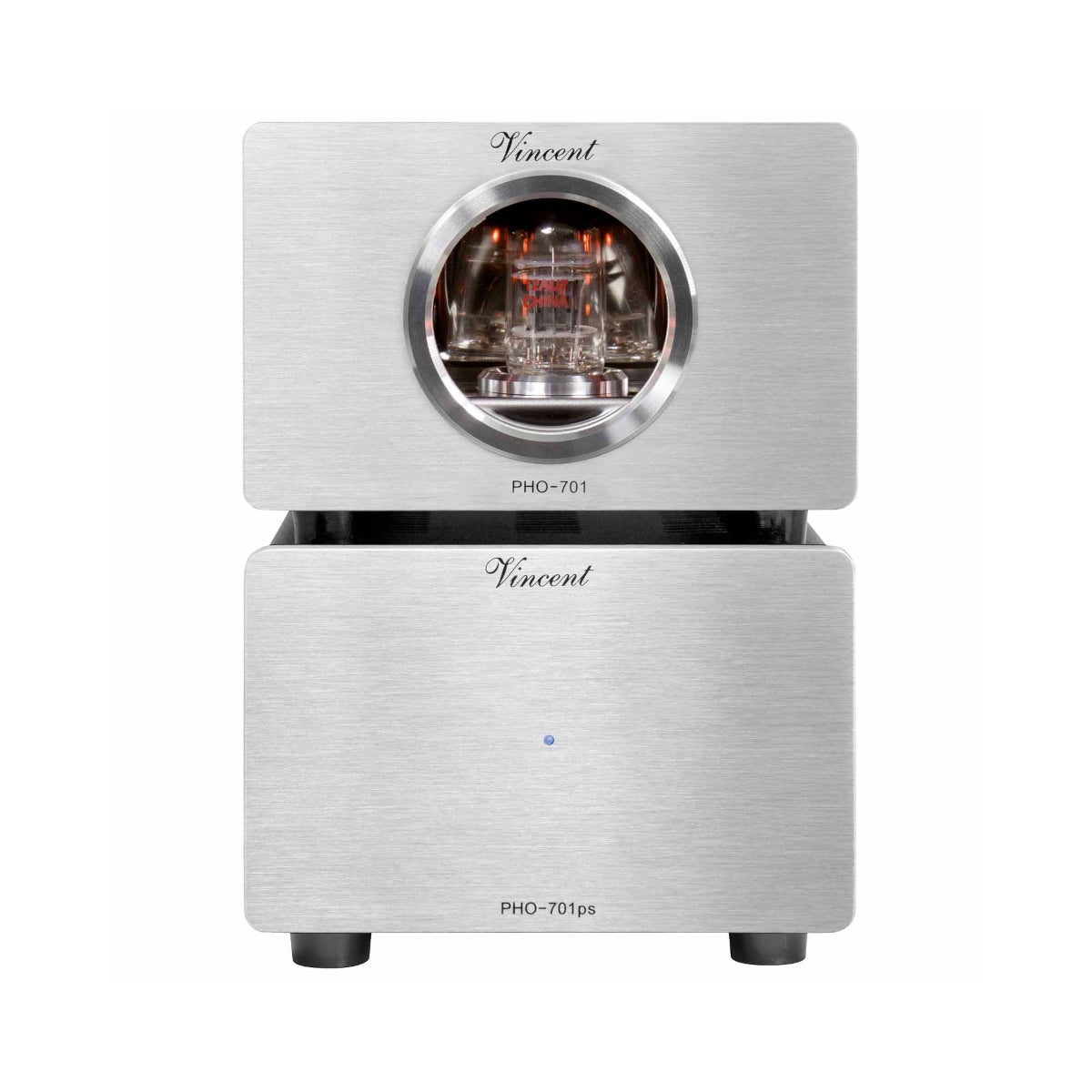

Vincent PHO-701 Phono Preamplifier (220-240V Version)
Vincent PHO-701 Phono Preamplifier (220-240V Version)
Couldn't load pickup availability
A successor to the incredibly popular PHO-700, the PHO-701 is Vincent's new tube phono preamp from the tubeLine range.

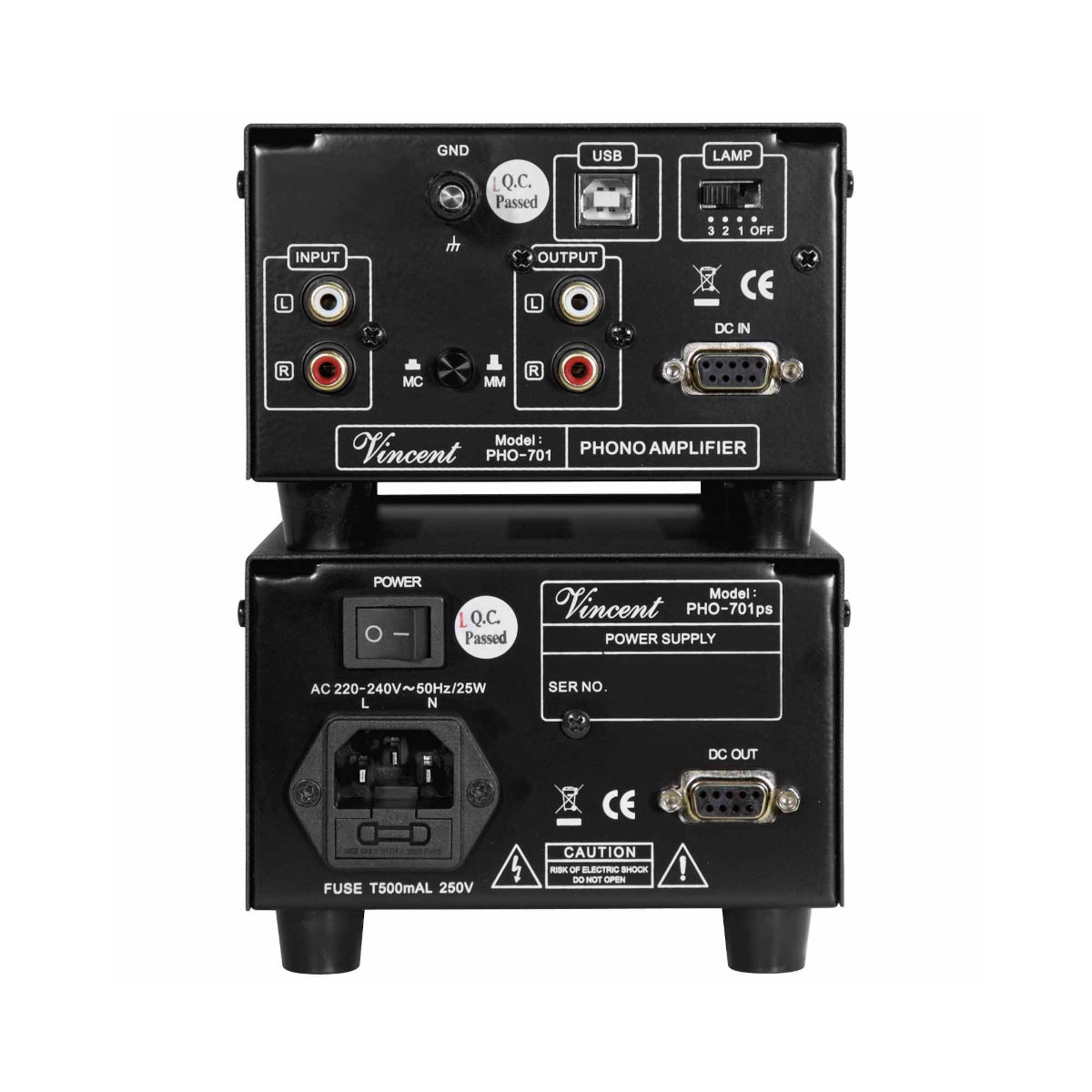

The PHO-701 is designed to suit almost every commercially available pick-up system. The switch on the back selects either Moving Magnet (MM) and Moving Coil (MC) mode, to suit the cartridge of your turntable.
By means of DIP switches on the bottom of the device, it is now possible to make precise adjustments to the impedance and capacity. A seemingly small feature, but clearly noticeable in the sound and identifiable to the sharp-eared music lover.
Note :
We supply the 220-240V 50HZ version suitable for use in UK, Australia. New Zealand and commonwealth countries with the same power supply.
To use the Vincent PHO-701 phono preamplifier in the US (110-120V), you must ensure you have the 120V version of the unit, as it is designed with a separate power supply.
Features
Features
- Suits MM & MC cartridges
- USB port for digitizing records
- Warm tube amplification sound
- Impedance & Capacity switches
- Switchable lamp
- Isolated power supply
Specifications
Specifications
- Frequency Response: 10 Hz – 20 kHz
- T.H.D.: <0.05% (20 Hz - 20 kHz)
- Input sensitivity: MM: 58 mV, MC: 6,8 mV
- Signal-to-noise Ratio: MM: >81dB, MC: >69 dB
- Power consumption: 15 Watt
- Input impedance: MM: 47 kOhm, MC: 99 - 1000 Ohm (einstellbar)
- Output impedance: 250 Ohm
- Amplification factor: MM: 40 dB, MC: 60 dB
- Tubes: 12AU7
- Inputs: 1 x RCA (stereo), USB
- Outputs: 1 x RCA (stereo)
- Dimensions (W x H x D): 130 x 82 x 225 mm
- Weight: 2,2 kg
- Colour: Black/Silver
What's in the box
What's in the box
- 1x PHO-701 Main Unit
- 1x PHO-701ps Power Supply Unit
- Power Cable
- Power Interconnect Cable
- USB Cable
- Instruction Manual
