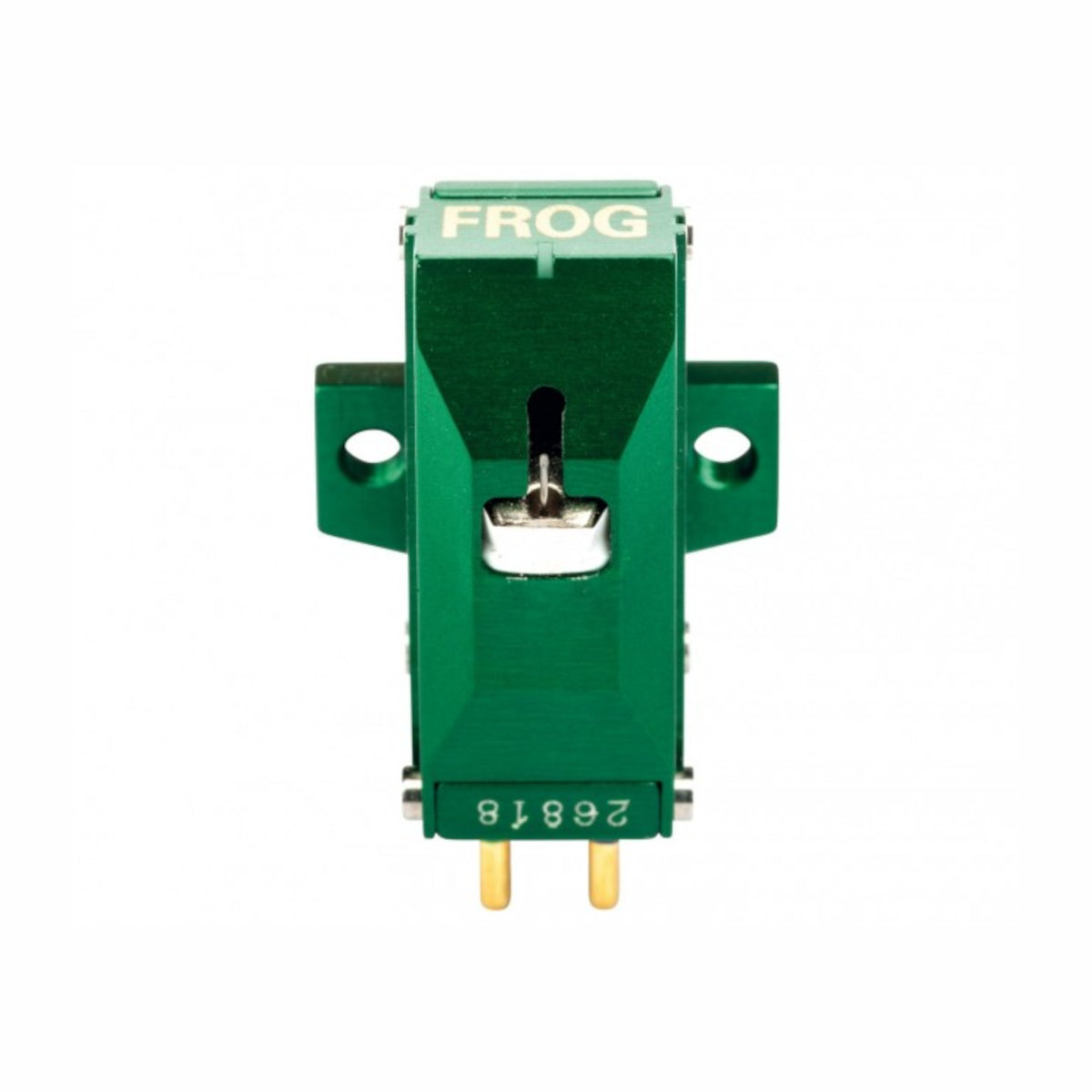

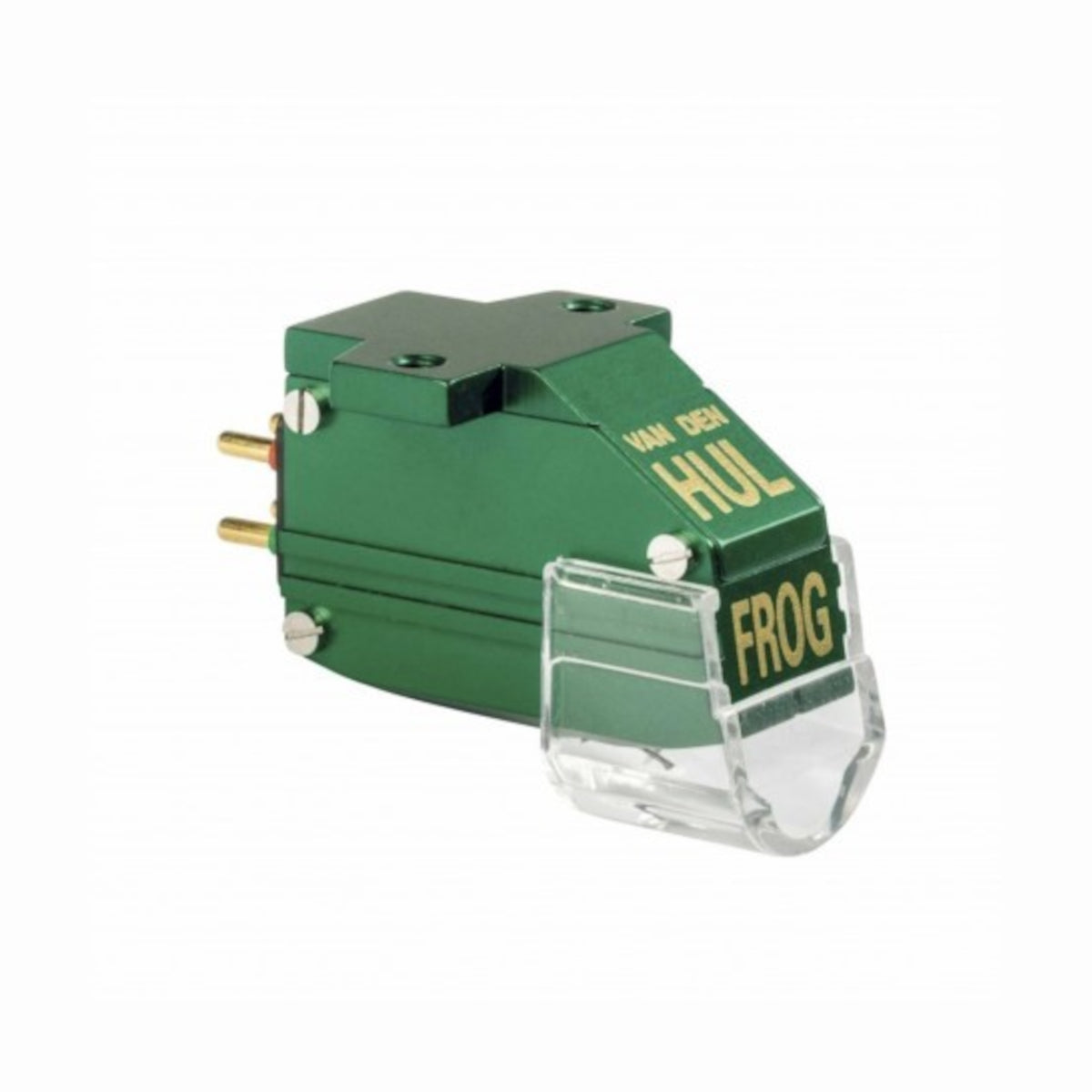

Van Den Hul The Frog Series MC Cartridge
Van Den Hul The Frog Series MC Cartridge
Couldn't load pickup availability
The Frog Series Phono Cartridges
Custom hand-built moving coil cartridges with the coil of a GRASSHOPPER III and the front-pole and suspension of the GRASSHOPPER IV: the best cartridge available for its price.
The FROG ® is available in the following versions:
Standard Version:
The base model from which later on The Colibri and The Condor were further developed. Output 0.65 mV/channel, matched crystal copper-wire coils and extra magnet modification
Gold Version:
The Van Den Hul Frog Gold MC Cartridge is a custom hand-built moving coil cartridge with matched Gold-Wire coils and a Solid Boron Cantilever making it sound even smoother and more refined than the standard Frog - the best cartridge available for the price! The Frog Gold has a 0.65 mV/channel output, matched gold-wire coils and an extra internal support magnet.
Manufacturer's Warranty: 12 months - cartridge only
See Review.
Features
Features
Specifications
Specifications
- Type: Moving coil phono cartridge
- Frequency Range: 5Hz to 55kHz
- Stylus Shape: VDH - IS
- Stylus Radii: 2 x 85 Micron
- Tracking Force: 1.2 to 1.6 grams
- Static Compliance: 35 Micron / mN
- Tracking Ability: at 15 mN at 315 Hz 70 - 80 Micron
- Output Voltage: at 1 kHz at 5.7 cm/s eff. 0.65 mV RMS
- Channel Unbalance: < 0.3 dB
- Channel Separation: at 1 kHz/10 kHz >35 / >30 dB
- Equivalent Stylus Tip Mass: 0.32 Milligram
- Vertical Tracking Angle: 22 Degrees
- Optimum Load Capacitance: non-critical
- Recommended Load Impedance: 500 (> 200) Ohm
- Recommended Eff. Tone arm Mass: 6 - 10 Gram
- Moving Coil Resistance (per channel): 21 Ohm
- System Weight: 8.2 Grams
What's in the box
What's in the box
1 unit Van Den Hul The Frog Gold Cartridge
