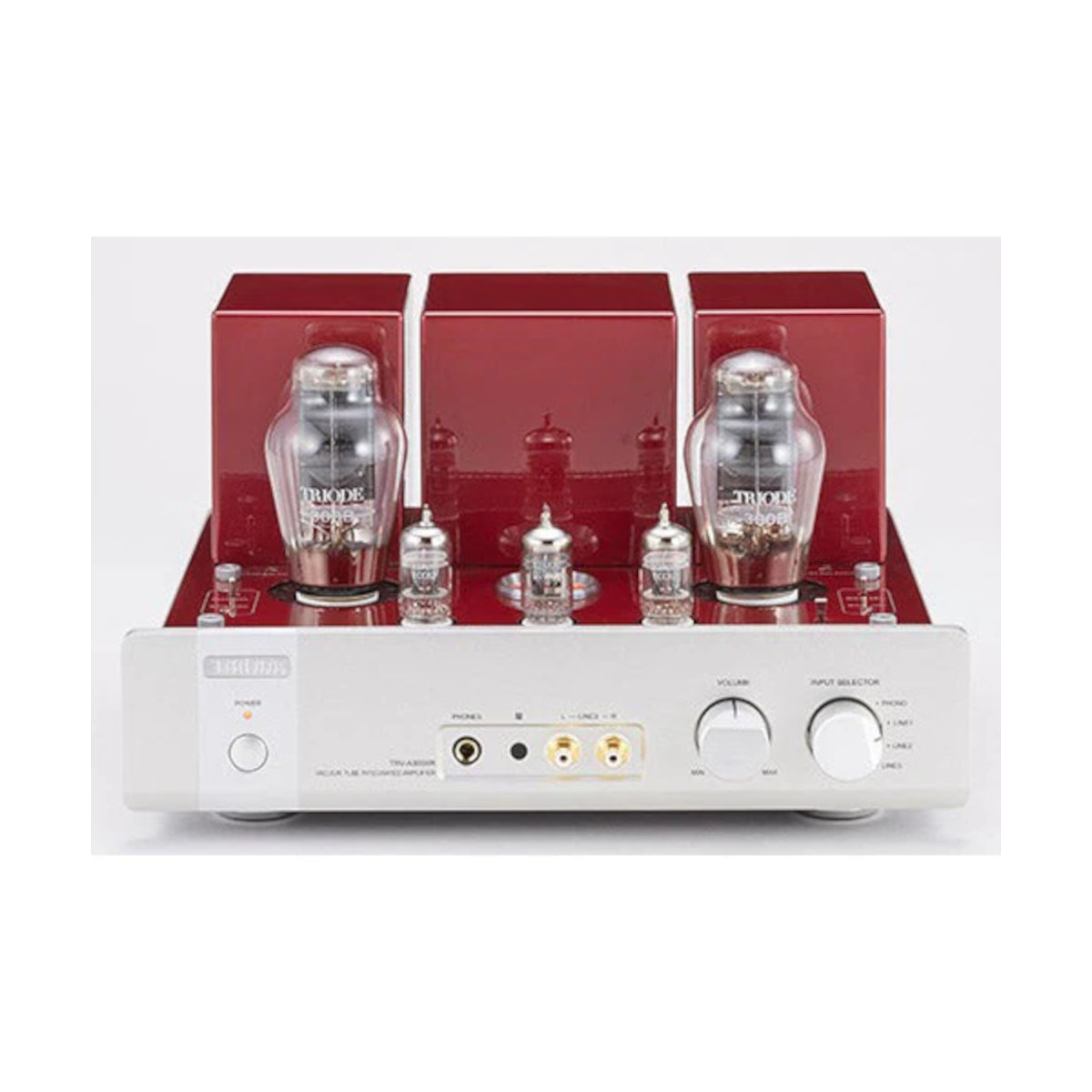

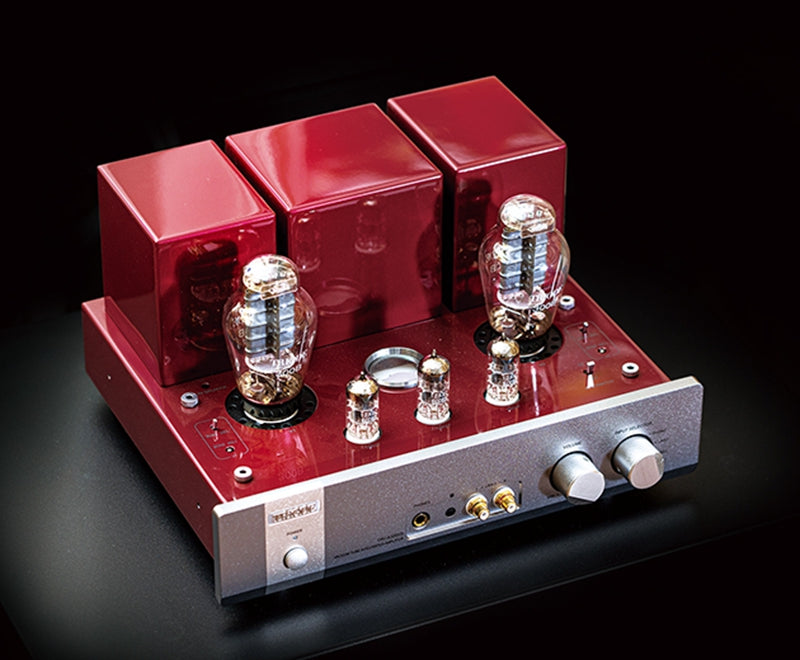

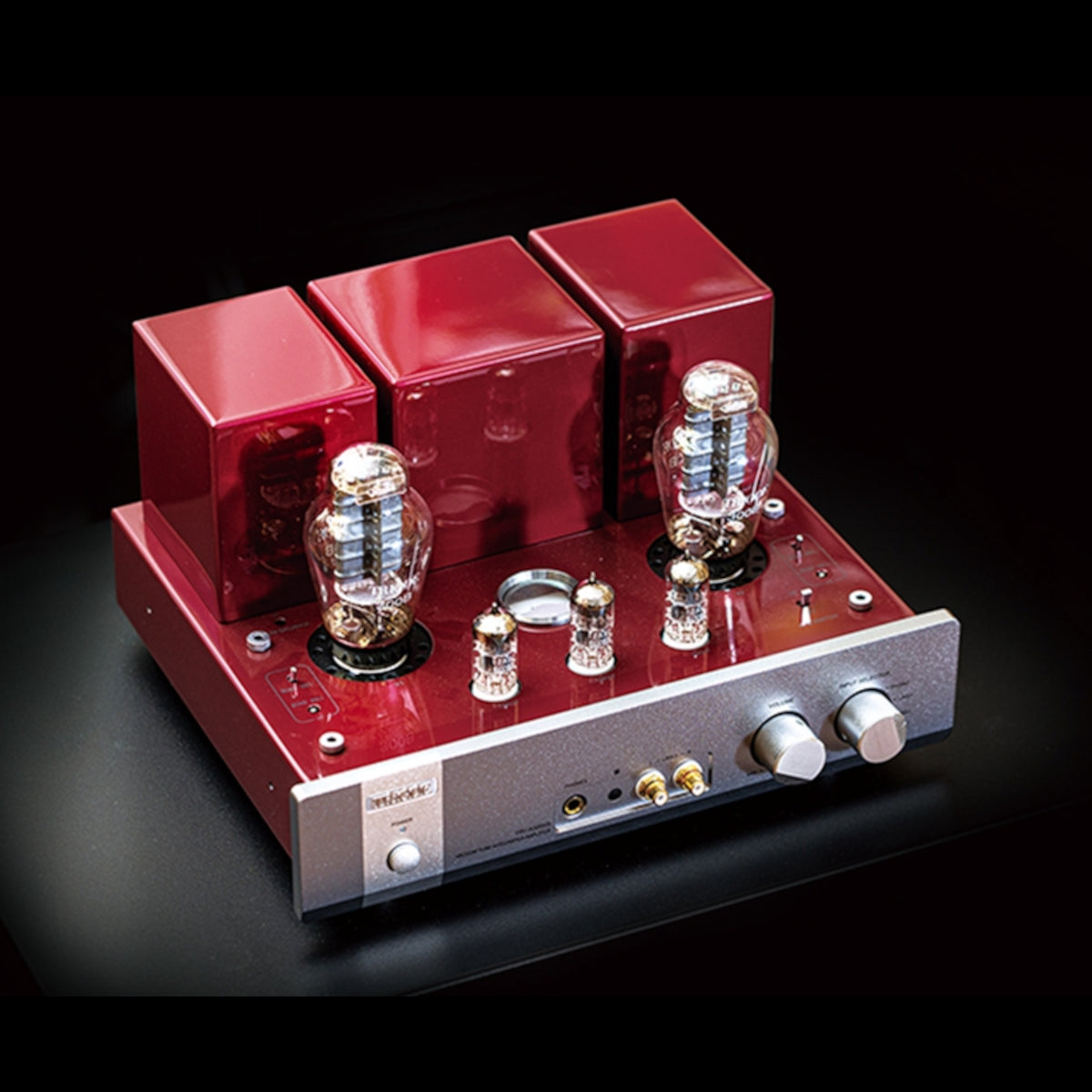

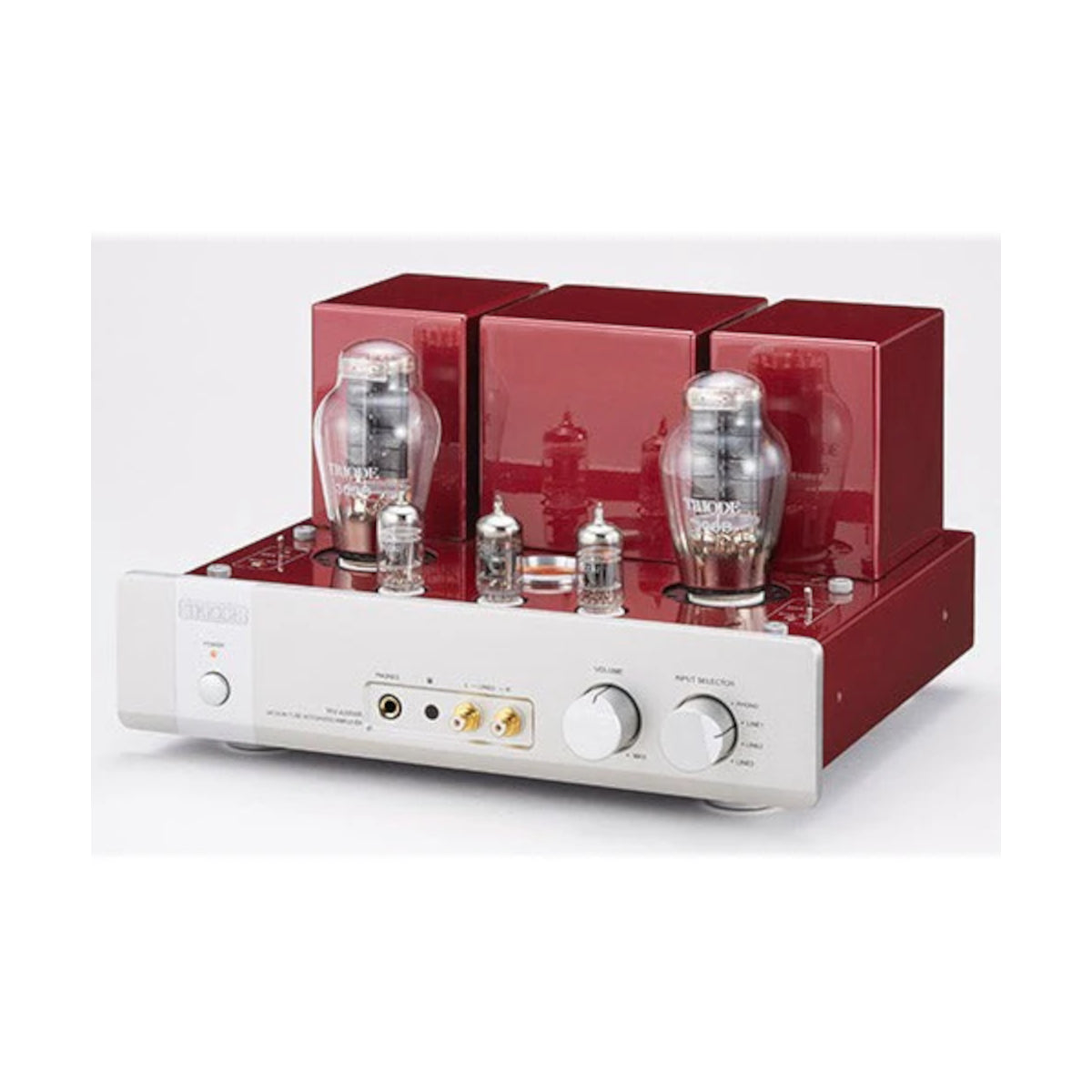

Triode TRV-A300XR 300B Class-A Single Ended Integrated Tube Amplifier
Triode TRV-A300XR 300B Class-A Single Ended Integrated Tube Amplifier
Couldn't load pickup availability
The Triode TRV-A300XR is a Single Ended 300B Class-A Integrated Amplifier With MM Phono Stage, Headphone Amp and Remote Control.
The Japanese term shokunin represents especially devoted craftspeople who spend their entire lives perfecting their art, making a living out of it and ensuring it passes to the next generation. The latest creation from Juni-ichi Yamazaki and the Triode Corporation, edifies this tradition. Displaying intricate craftsmanship with in minute detail, Yamazaki created what he recognizes as the milestone of his work, the TRV-A300XR.
FAQ
Which speakers and types of music are best suited for the Triode TRV-A300XR 300B amplifier?
Stunning for vocals & jazz
Features
Features
Specifications
Specifications
TRV-A300XR Integrated Amplifier
- Amplifier Class: A
- Circuit System: 300B A class single ended
- Tubes: 300B x 2, 12AX7 x 1, 12AU7 x 2
- Bias Type: Fixed bias
- Output Power: 8W + 8W at 8 ohms
- Frequency Response: 10Hz - 50kHz (-3dB)
- Signal-to-Noise Ratio (S/N): 90dB
- Input Sensitivity: LINE: 400mV, MM: 2.5mV
- Input Impedance: LINE: 100k ohm, MM: 47k ohm

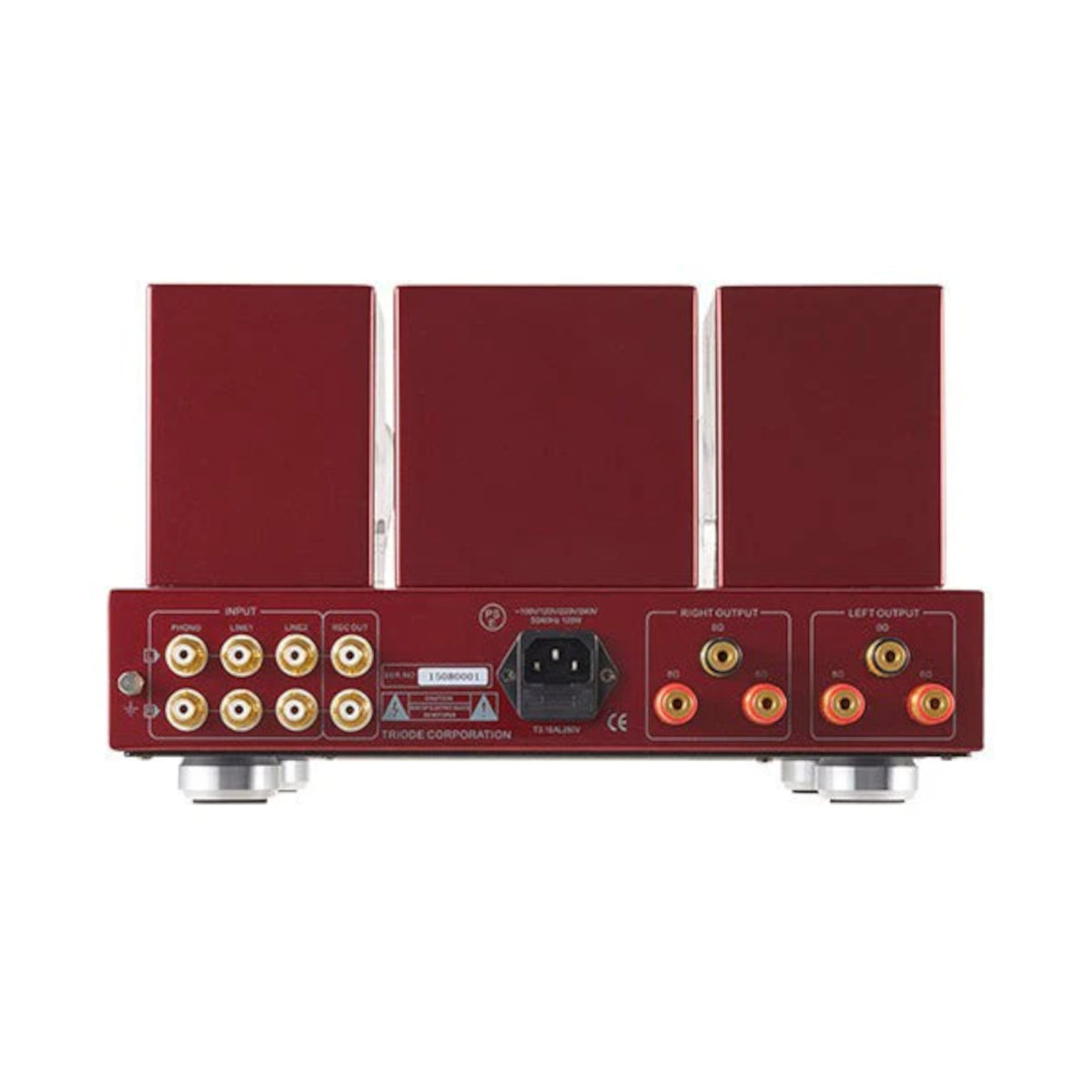

- Input Terminals: RCA unbalanced x 3 (LINE1-3), MM x 1
- Output Terminals: REC OUT x 1
- Speaker Output Impedance: 6 ohms, 8 ohms
- Headphone Output: 6.3mm stereo jack

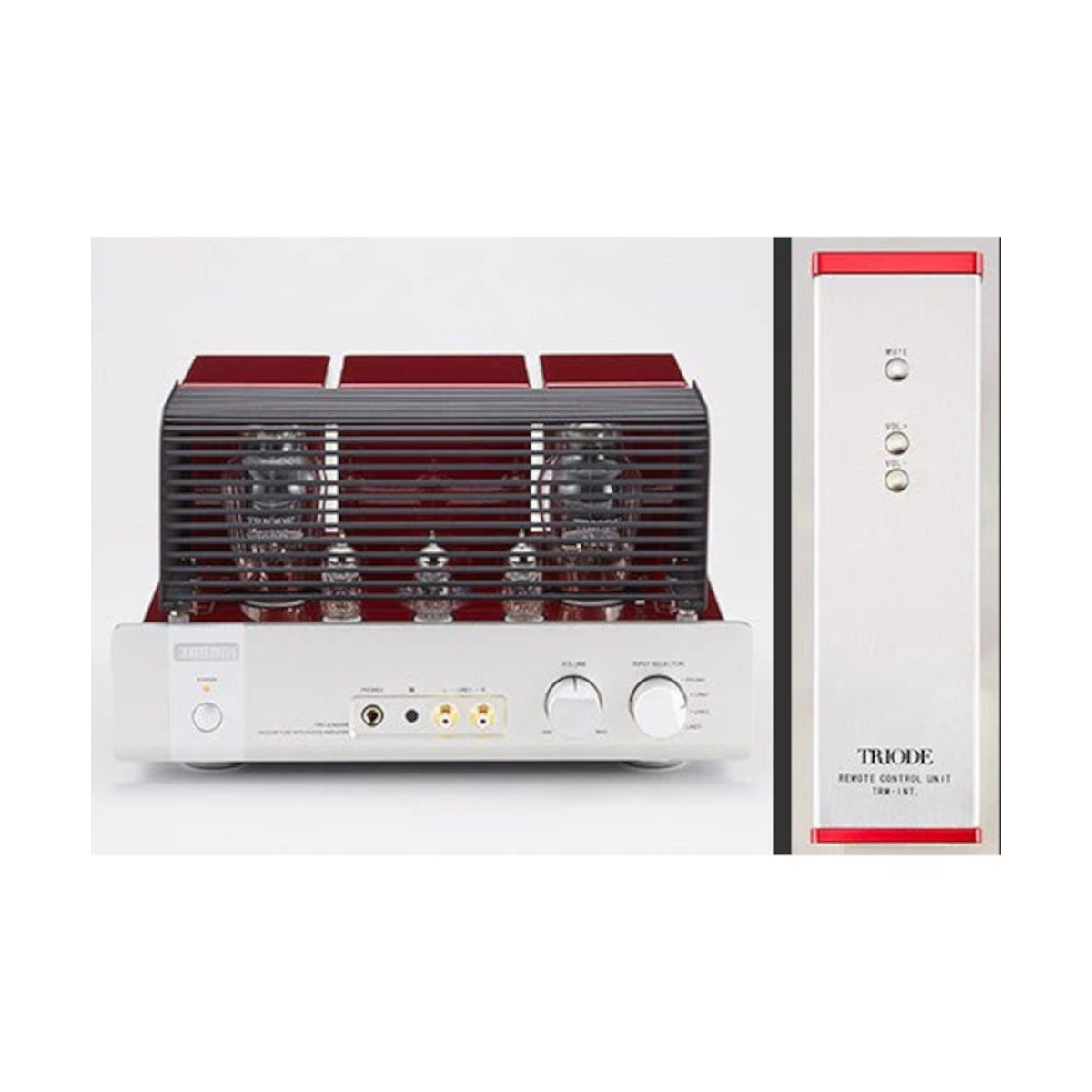

- Remote Control Functions: Volume, Mute
- Power Consumption: 120W (No signal)
- Dimensions: W345mm x D320mm x H200mm
- Weight: 17kg
- Accessories Included: Tube cover, Wooden side plates, Remote control
- Additional Features: High quality speaker terminal
