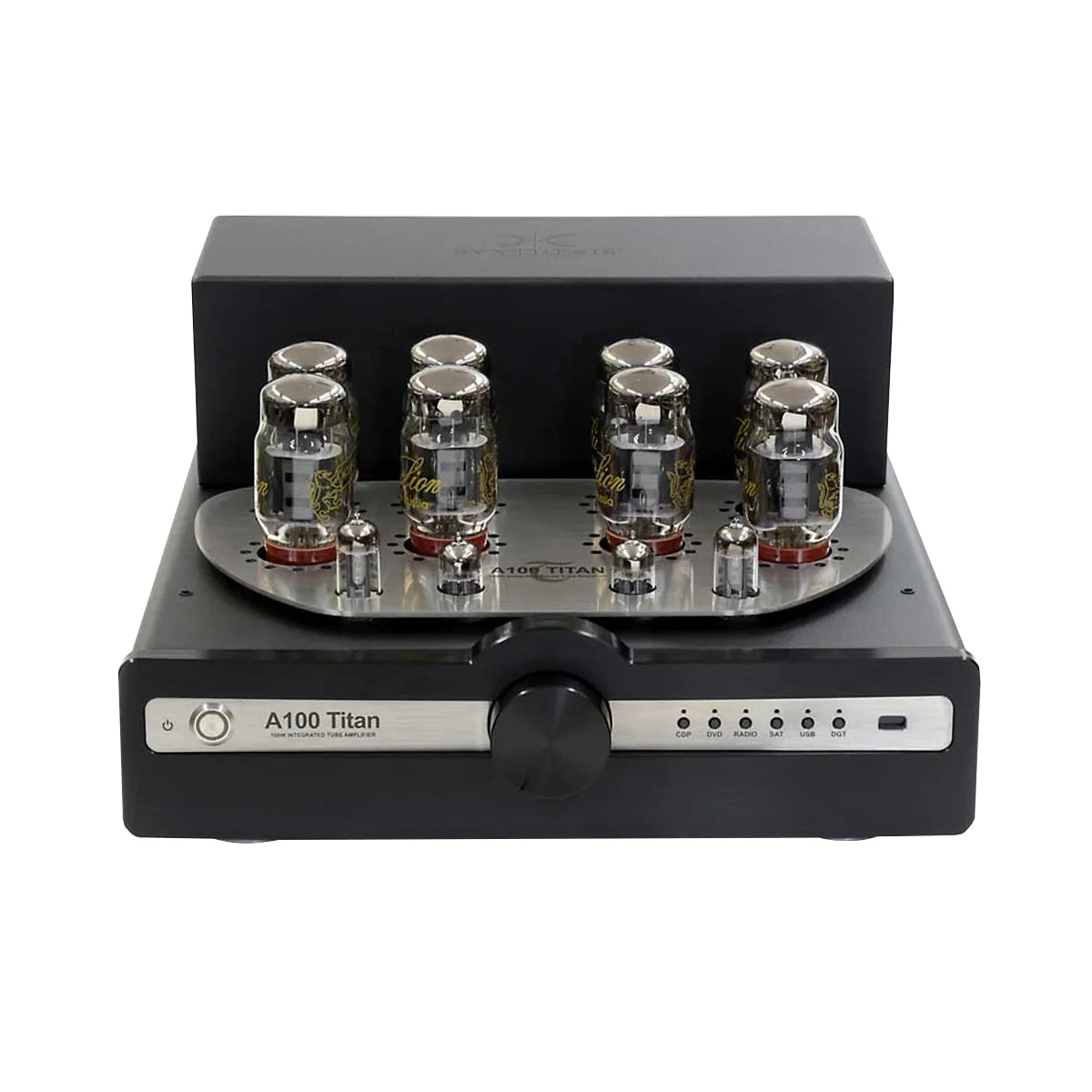

Synthesis A100 Titan Valve Integrated Amplifier Class A

Synthesis A100 Titan Valve Integrated Amplifier Class A

$14,999.00 AUD
$14,999.00 AUD
Sale Sold out
Shipping calculated at checkout.

The Synthesis A100 Titan Valve Integrated Amplifier offers 100 watts per channel, delivering powerful and detailed sound performance for audiophiles who seek both precision and warmth. Using KT66 valves, it produces a rich, dynamic audio profile with a natural, immersive quality. Designed with hand-wired circuits and premium-grade components, it ensures reliability and long-lasting performance. This amplifier features multiple analogue and digital inputs, making it compatible with a wide array of audio sources, from vinyl to digital streaming. Its bold and modern design complements luxury audio setups, blending aesthetic appeal with top-tier sound engineering.

Features

  • USB & S/PDIF input
    For the first time we include an onboard 24Bit 192KHz Wolfson DAC for an extraordinary listening experience.
  • DC Powered tube heater
    All tubes, except KT66 have DC stabilised heater circuits to reduce hum noise to a near in-audible minimum.
  • Output transformer
    The Output transformer uses a Hi-Grade Iron-Silicon for superb frequency reproduction & width. With this newly designed custom output transformer unique to the A100 Titan we are able to achieving a highly delicate & precise sound reproduction faithful to the original recording.
  • Mechanical chassis construction
    The power supply & output transformers are held by an extremely rigid "H" structure that keeps the unit free from unwanted vibrations which further helps reduce unwanted noise to the tubes.
  • Remote control
    Featuring a superb CNC machined case it has a soft button design, perfectly matching the aesthetics for the "ACTION" series.
  • Feet
    Four CNC machined aluminium feet with an insert of natural rubber. The depth & form of these rubber feet has been calculated to minimise vibrations of the amplifier in isolation from its surroundings.
  • Binding posts
    Gold plated professional binding posts for a continued oxidisation free connection further improve sound refinement.
  • Sockets
    Gold plated ceramic sockets for a continued oxidisation free connection further improve sound refinement.
  • Components
    Components for the A100 Titan have been selected with great care throughout. Only the best available components are considered & all must undergo an exhaustive analysis of their sonic influence prior to final selection.
  • Selected tubes
    All tubes used are selected after 2 stage warm up. A fully computer monitored machine controls the process & at the end of this, selects the perfect tubes which are then matched for a perfect balance.

Specifications

  • Power stage (1 ch.) : 4 X KT66
  • Input stage (1 ch.) : 1 X 12AX7/ECC83
  • Driver stage (1 ch.) : 1 X 12BH7
  • Input impedance : 50K Ohm, 75 Ohm (S/PDIF)
  • Input sensitivity : 150mV RMS
  • Output tap 4 to 8 Ohm
  • Configuration : Push-Pull Ultra linear 43% tap
  • Power output (1 ch., THD < 1%) : 100W RMS @ 6Ohm
  • Frequency response : from 20Hz to 20KHz ± 0.5dB
  • Distortion : 1% @ 1KHz (Max Power)
  • S/N ratio : >90dB “A” weighted

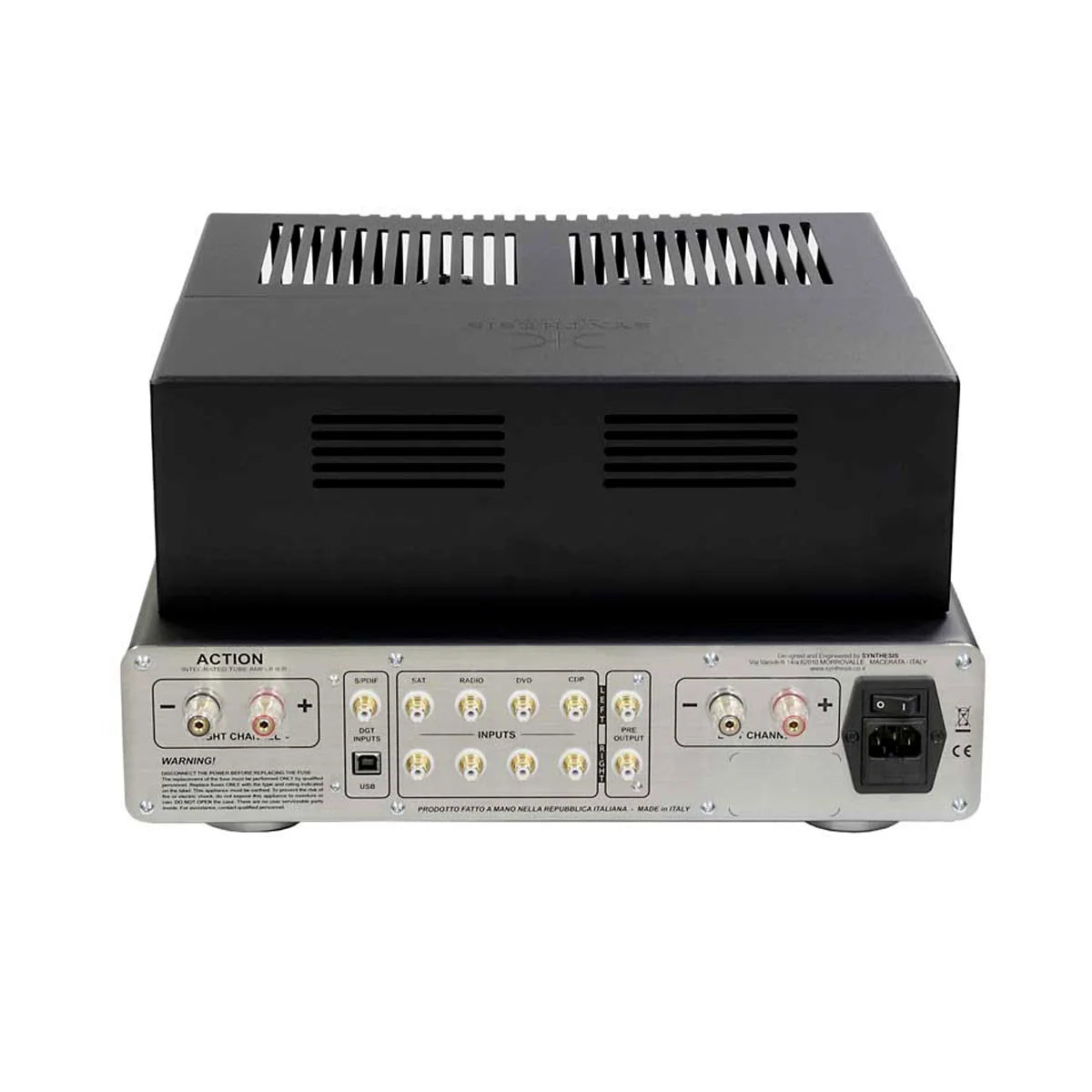

  • Inputs : 4 line inputs, 1 S/PDIF input, 1 USB input
  • D/A Converter : 2 X WM8740, dual mono configuration, 192KHz oversampling
  • S/PDIF format : PCM 32-192KHz, 16-24 bit
  • USB interface : PCM 16bit 48KHz, standard audio device, no driver required
  • Outputs : Pre out (variable level)
  • Bias setting : Manual adjustment, independent for each power tube
  • Dimensions (w,d,h) : 410x520x235mm
  • Weight : 40Kg
  • Line power : 117, 230, 245 Vac 50/60 Hz (see rear label)
  • Fuse : See rear label
  • Power consumption : 450W Max

What's in the box

  • Synthesis A100
  • Tubes
  • Remote Control
  • Manual
