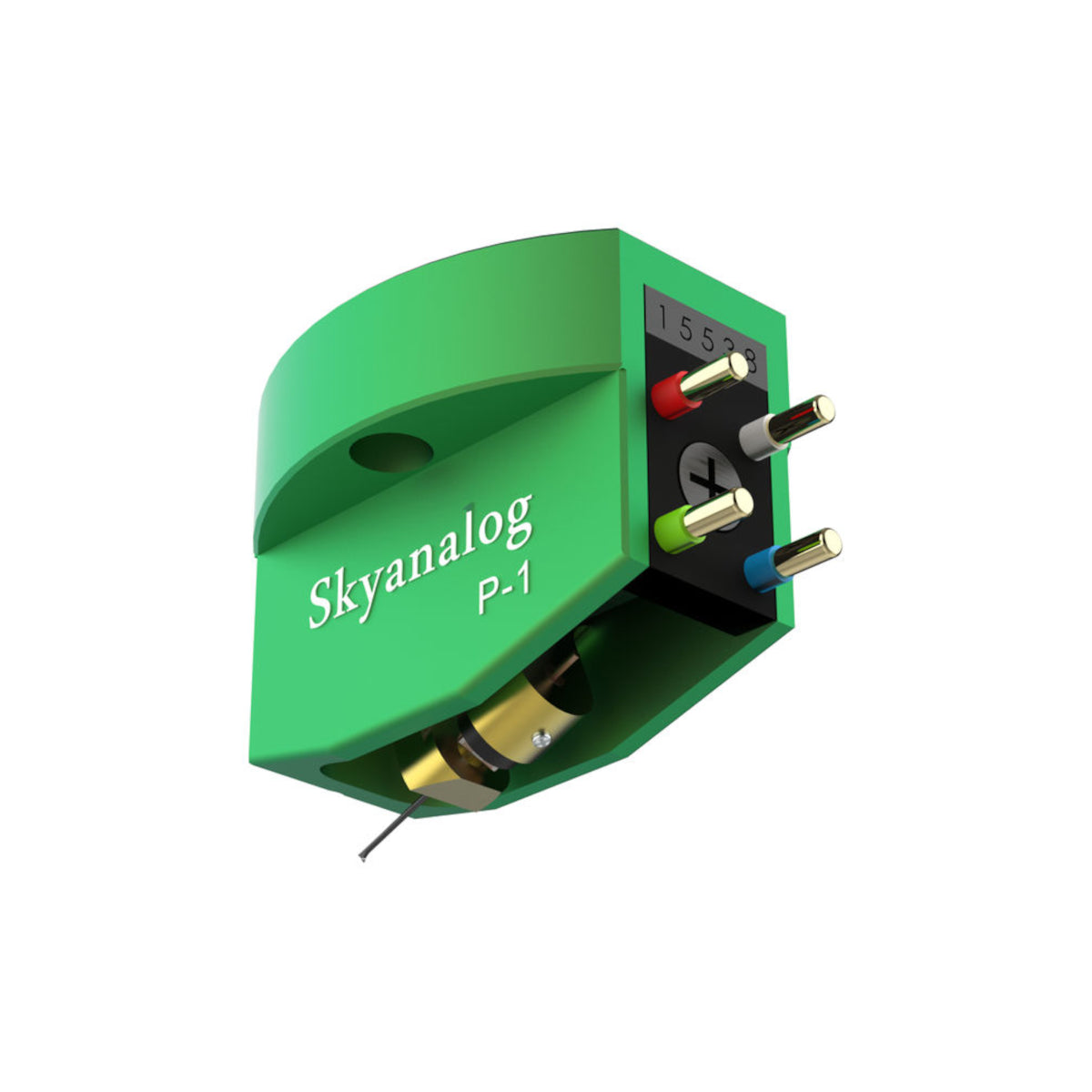

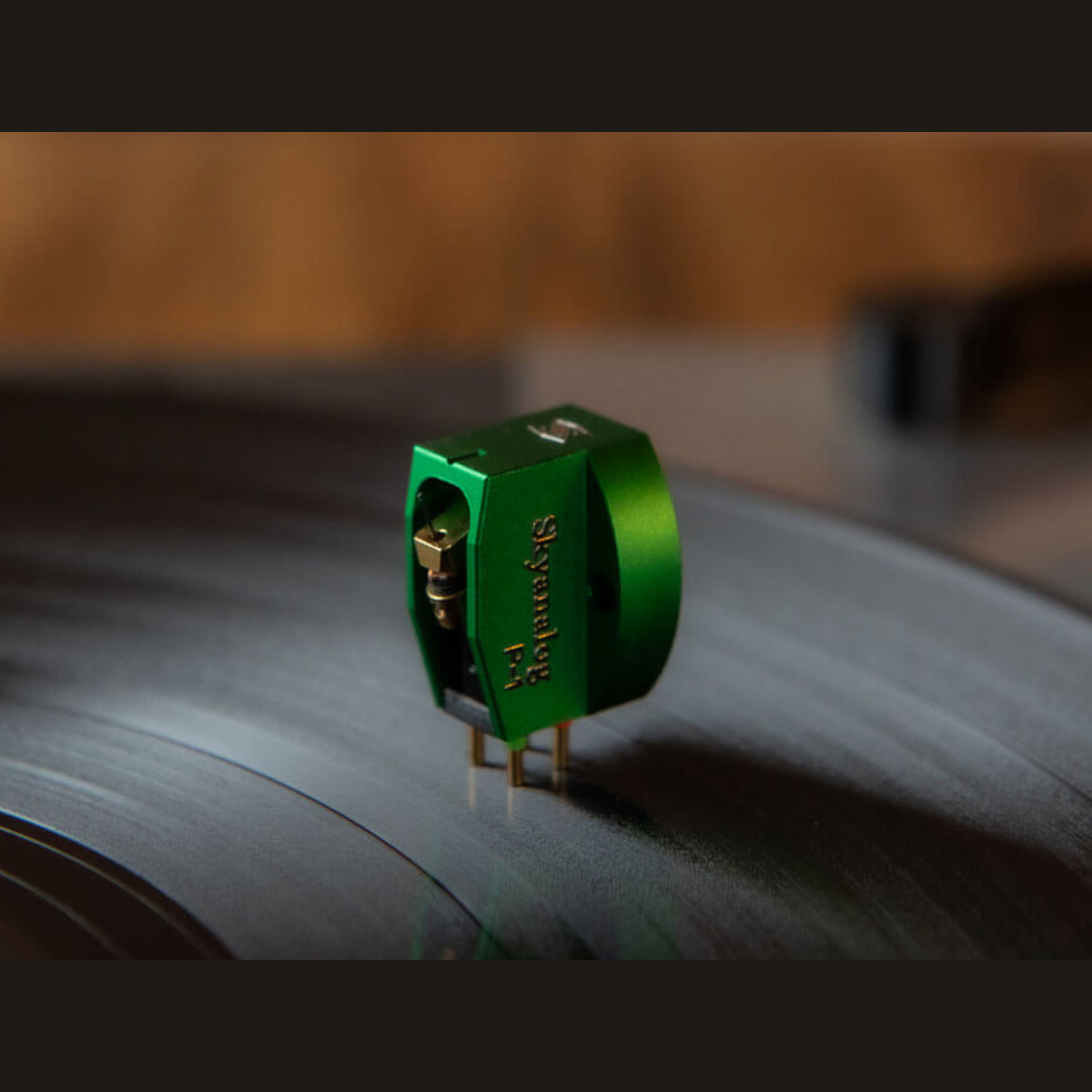

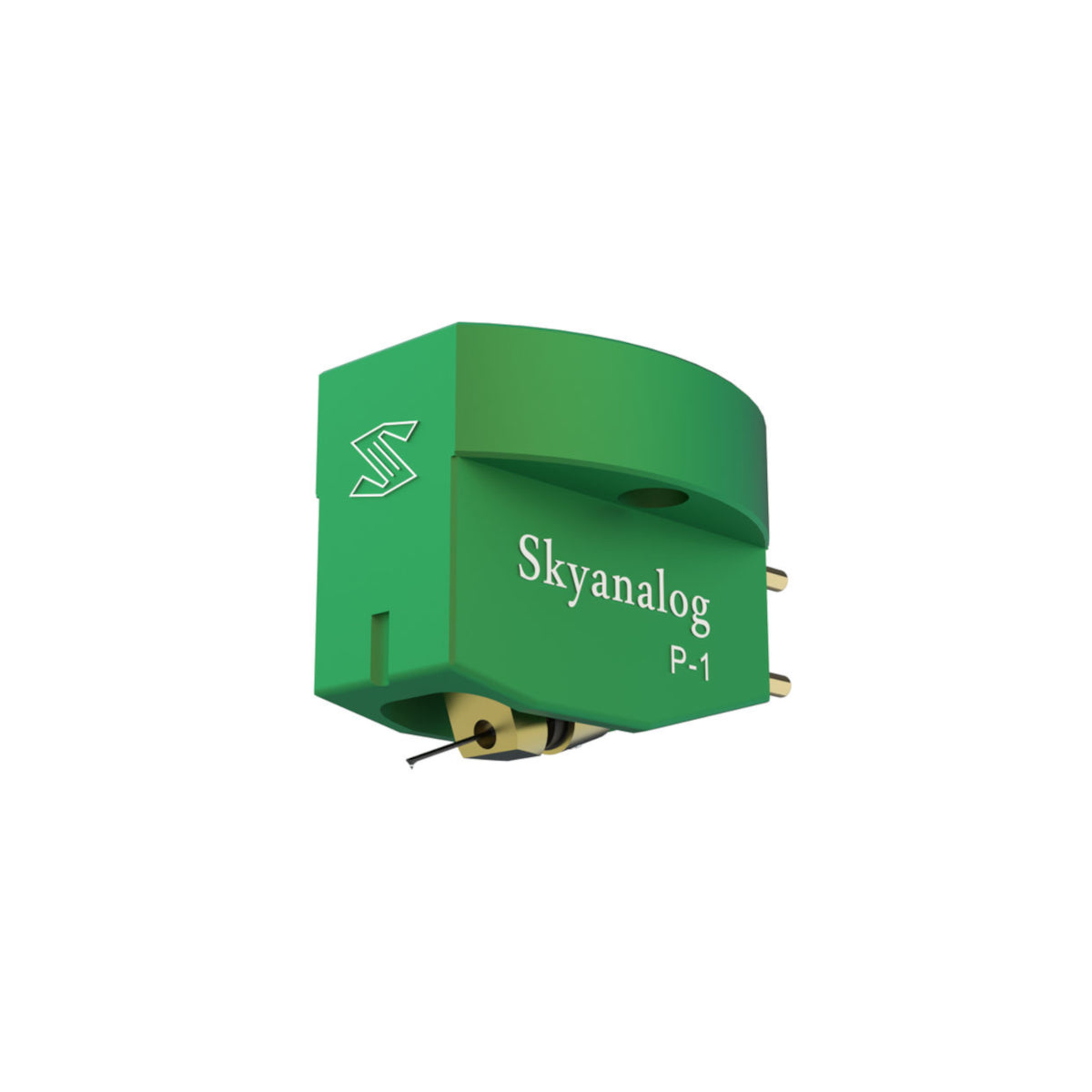

Skyanalog P-1G MC Cartridge
Skyanalog P-1G MC Cartridge
Couldn't load pickup availability
The Skyanalog P-1G MC cartridge is a high-end moving coil (MC) phono cartridge designed for audiophiles seeking exceptional sound quality.
Read reviews
The cartridge is built with a low-mass aluminum cantilever and a fine elliptical diamond stylus, allowing for excellent tracking and detailed playback of vinyl records. Its design ensures minimal distortion, offering a wide dynamic range and a natural, transparent sound signature. The P-1G delivers rich bass, smooth mids, and clear highs, making it ideal for those who value high fidelity in their analog setups.
Skyanalog is known for its craftsmanship, and the P-1G embodies their commitment to producing cartridges that combine innovative technology with audiophile-grade performance.
Features
Features
A low-mass aluminum cantilever and a fine elliptical diamond stylus
Specifications
Specifications
- Cantilever : Boron
- Stylus : Elliptical
- Stylus type : Radius 5x150uM
- VTA : 20 degrees
- Coil : Pure iron square coil
- Weight : 10 grams
- Output voltage : 0.35mV AT 3.54cm/s
- Internal impedance : 6 ohms
- Frequency response : 20-25,000Hz +/-2dB
- Channel separation : Better than 30db at 1KHz
- Channel balance : Better than 1 dB
- Tracking ability at 315 Hz at optimum tracking force
70uM
- Dynamic compliance : 12uMmN
- Recommended loading : 100-220 OHMS
- Recommended tracking force: 1.1 - 1.4 grams
- Optimum tracking force: 1.35 grams
- Recommended tonearm mass : medium
- Optimum working temperature : 23 C
- Break-in period : 30 hours
What's in the box
What's in the box
Skyanalog P-1G
