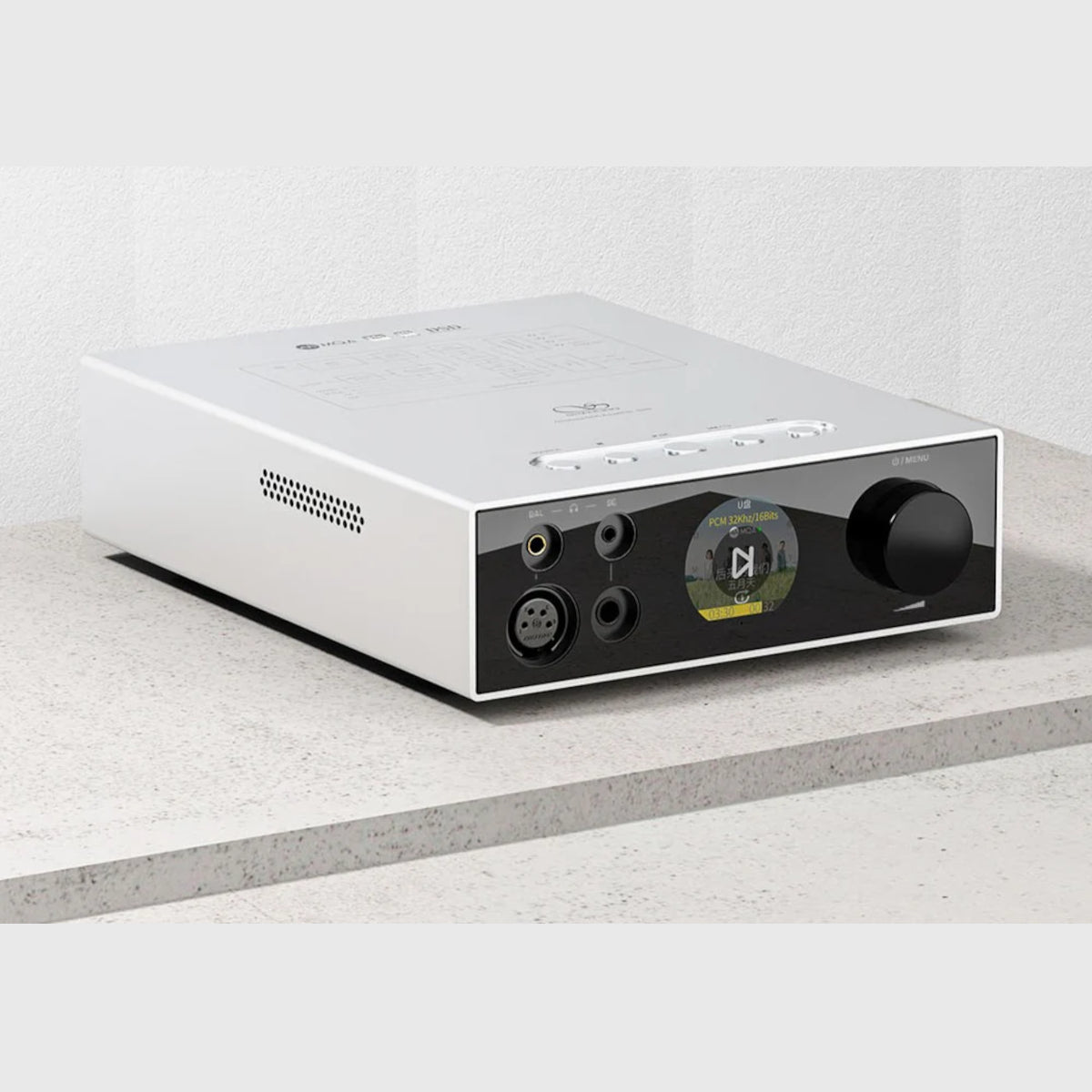

Shanling EH3 Desktop DAC Headphone Amplifier
Shanling EH3 Desktop DAC Headphone Amplifier
Couldn't load pickup availability
Multifunctional DAC & Amplifier
Offering a range of Digital inputs, including Wireless streaming over DLNA/Airplay and Bluetooth, alongside RCA and XLR outputs, makes for a versatile DAC for any Hi-Fi setup. And thanks to the analog input, EH3 can also serve as a pure top-quality headphone amplifier or pre-amp for your Vinyl rig or special DACs.
Masters of DAC
EH3 adapts the Newest Generation of ESS DAC, a special 8-channel solution that’s pushed further by Shandling's skilful Audio Engineers. All done with the aim for the most realistic and natural presentation, combined with the highly precise and detailed sound quality.
Utilizing flagship ESS ES9039SPRO 8-channel DAC with fully balanced amplifier based around four OPA1612. With in-house developed FPGA, KDS crystal oscillators and XMOS XU316 USB Chip, matching its High-End performance.
Offering up to 1 900 mW @ 32 Ohm // 205mW @ 300 Ohm in Single-Ended and 5 300 mW @ 32 Ohm // 700mW @ 300 Ohm in Balanced. EH3 is Shanling's second most powerful amplifier, right behind EM7, providing plenty of driving power even for the demanding Audiophile headphones.
Features
Features
Upgraded Japanese KDS active crystal oscillators 90.3168MHz and 98.304MHz, alongside further improved 4th generation of Shanling’s algorithm, providing better accuracy and enhanced performance when decoding PCM or DSD data.
Specifications
Specifications
- Dimensions: 23.8 X 18.8 X 5.9 cm
- Weight: 2.8 kg
- Screen: 1.6 IPS screen
- USB Drive Supported Formats: DSD, DXD, APE, FLAC, WAV, AIFF/AIF, DTS, MP3, WMA, AAC, OGG, ALAC, MP2, M4A, AC3, OPUS, TAK, etc. CUE is supported. Hi-Res Support: 32 bit / 768 kHz & DSD 512 DAC Chip: ESS ES9039PRO
- Bluetooth: Bluetooth 5.0 Receiver
- Bluetooth Codec Support: LDAC / aptX HD/ aptX / AAC / SBC

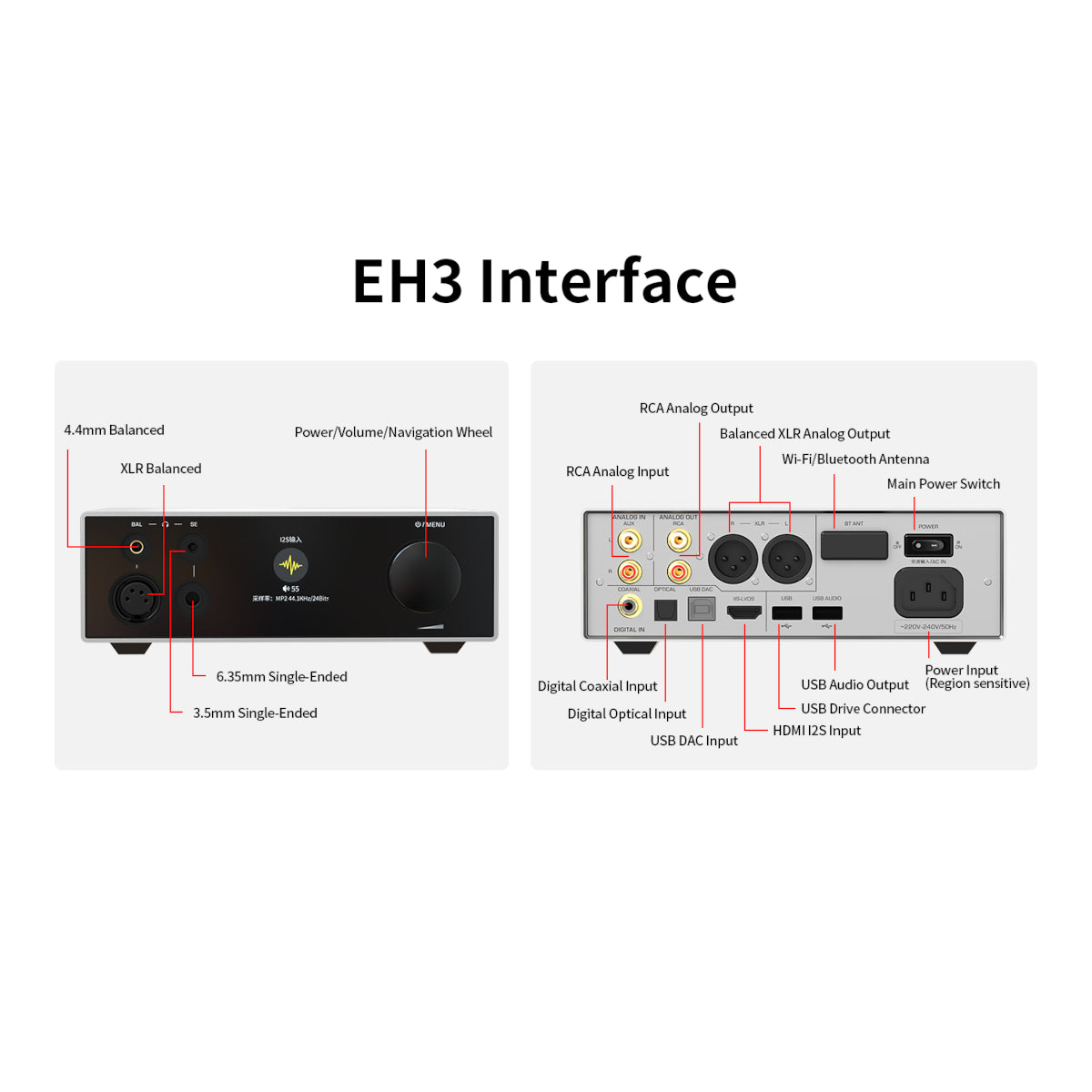

- Connectors:
[Headphone Outputs] 3.5mm/ 6.35mm/4.4mm/XLR [Digital Inputs] USB DAC / USB Drive / Coaxial / Optical / 12S [Digital Output] USB Audio Out [Analog Outputs] XLR & RCA [Analog Input] RCA
- Single-Ended Headphone Output
Output power
Low gain: 2.0V@32Ω (126mW@32Ω) (THD+N<0.0034%)
Medium Gain: 4.1V@32Ω (537mW@32Ω) (THD+N<0.0009%)
High Gain: 7.8V@32N (1900mW@32Ω) (THD+N<0.002%)
High Gain: 7.8V@300 (205mW@300Ω) (THD+N<0.002%)
Frequency Response: 20Hz-40kHz (-0.5dB) THD+N: 0.0005% @ 32Ω (A-Weight @ 2V High Gain)
Dynamic Range: 123dB @ 32Ω (A-Weight @ 2V High Gain)
Channel Separation: 73dB
Signal-to-Noise Ratio: 123dB @32Ω (A-Weight High Gain)
Noise: 113dB @32Ω (A-Weight Low Gain)
Output Impedance: 1Ω
What's in the box
What's in the box
EH3 Desktop DAC Headphone Amplifier
