Sbooster

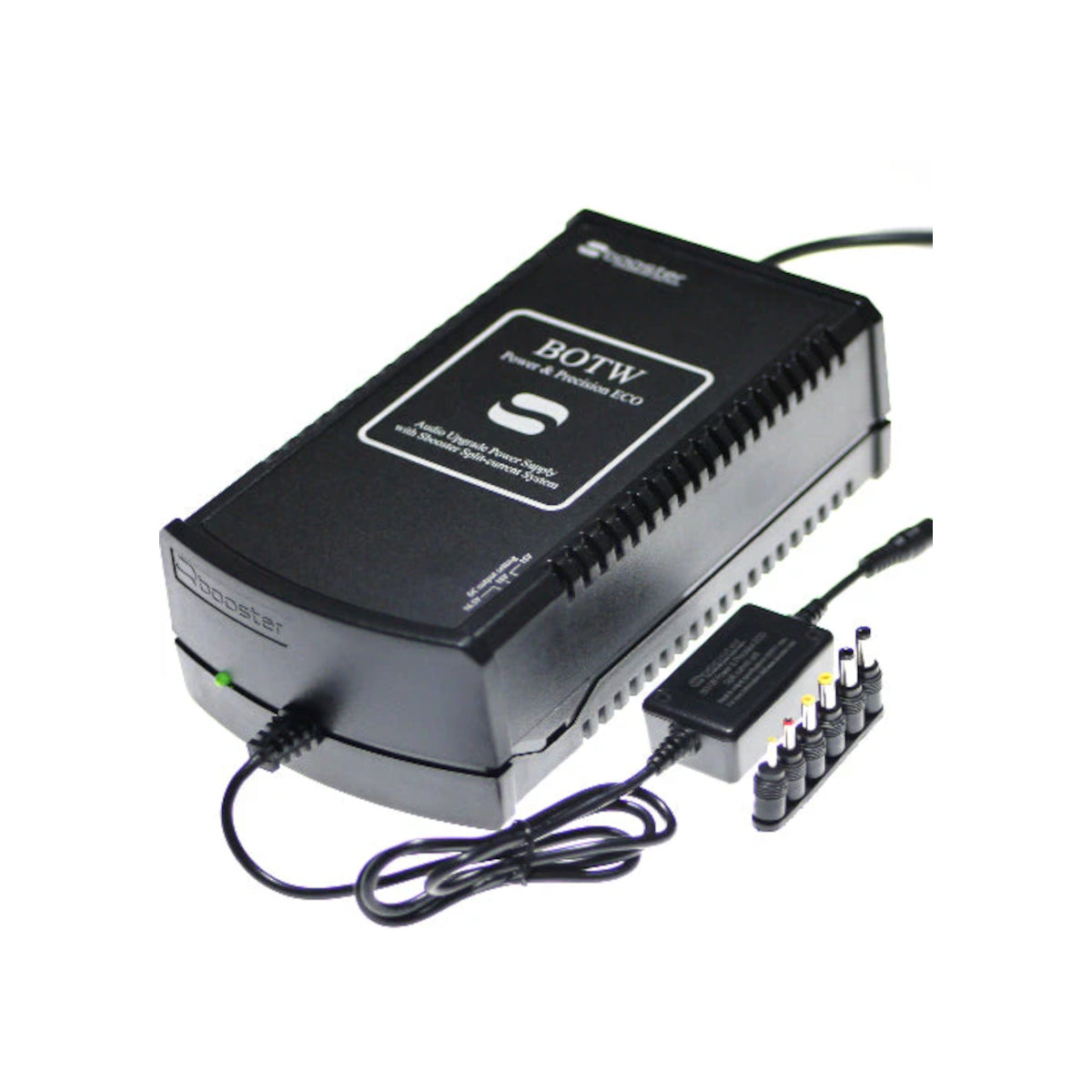

Sbooster - BOTW P&P ECO MKII - Linear Power Supply (Input 230VAC 50/60HZ) Black

$730.00 AUD

Sale Sold out

Shipping calculated at checkout.

Output Voltage DC 5-6V 9-10V 12-13V 15-16V 18-19V 24V

Quantity

Pure Energy for Unmatched Performance

Many audio devices come with a low-cost switch-mode power adapter (SMPS). While functional, these adapters are often a major source of high-frequency noise and interference that directly pollute your audio signal.

The Sbooster BOTW P&P ECO MKII tackles this problem at the source. By replacing that weak link with a pure, stable power source, you lift the "veil" from your music. The result is not just better sound, but a completely new listening experience: deeper silences, a wider soundstage, and a natural timbre that you simply have to hear to believe.

Perfecting the Audio Chain

Every audiophile knows that an audio system is a chain of components: from router to streamer, from DAC to amplifier. But the most critical link—the one that drives them all—is often overlooked: the Power Supply.

To enhance your Audio Chain, we engineered a dedicated external power supply solution. The purification process starts immediately where the polluted mains power enters the power supply and doesn't stop until pure DC power reaches your equipment.

What about vision / video upgrade ?

The quality of sound and vision of an audio and/or video system is determined by the elements that make up the system. We worry about and spend lots of money on 4K flat screens, projectors, speakers, speaker wires, spikes, amplifiers, DA converters , streamers, power cables, etc., but the power supply is considered ‘forgotten’ by many audio and video enthusiasts, while the power supply determines the performance of each device.

The quality of picture and sound is influenced by the power supply: If the power is not in sufficient, a device can not really perform well, that is what you see and hear. Lack of power manifests itself in turmoil, a flat stereo image and a “harsh” sound. Unfortunately, not all manufacturers provide their devices with a good power supply… Fortunately there is a solution: Our upgrade products!

Upgrade – or simply replace – the standard supplied external power supply of your audio and/or video device by one of the “Best of Two Worlds Power & Precision ECO” (BOTW P & P ECO) upgrade power supplies and the performance of your devices improves. The result is a better sound and vision.

Find your device to upgrade. See compatibility list click here

Features

The 4 Stages of Purification:

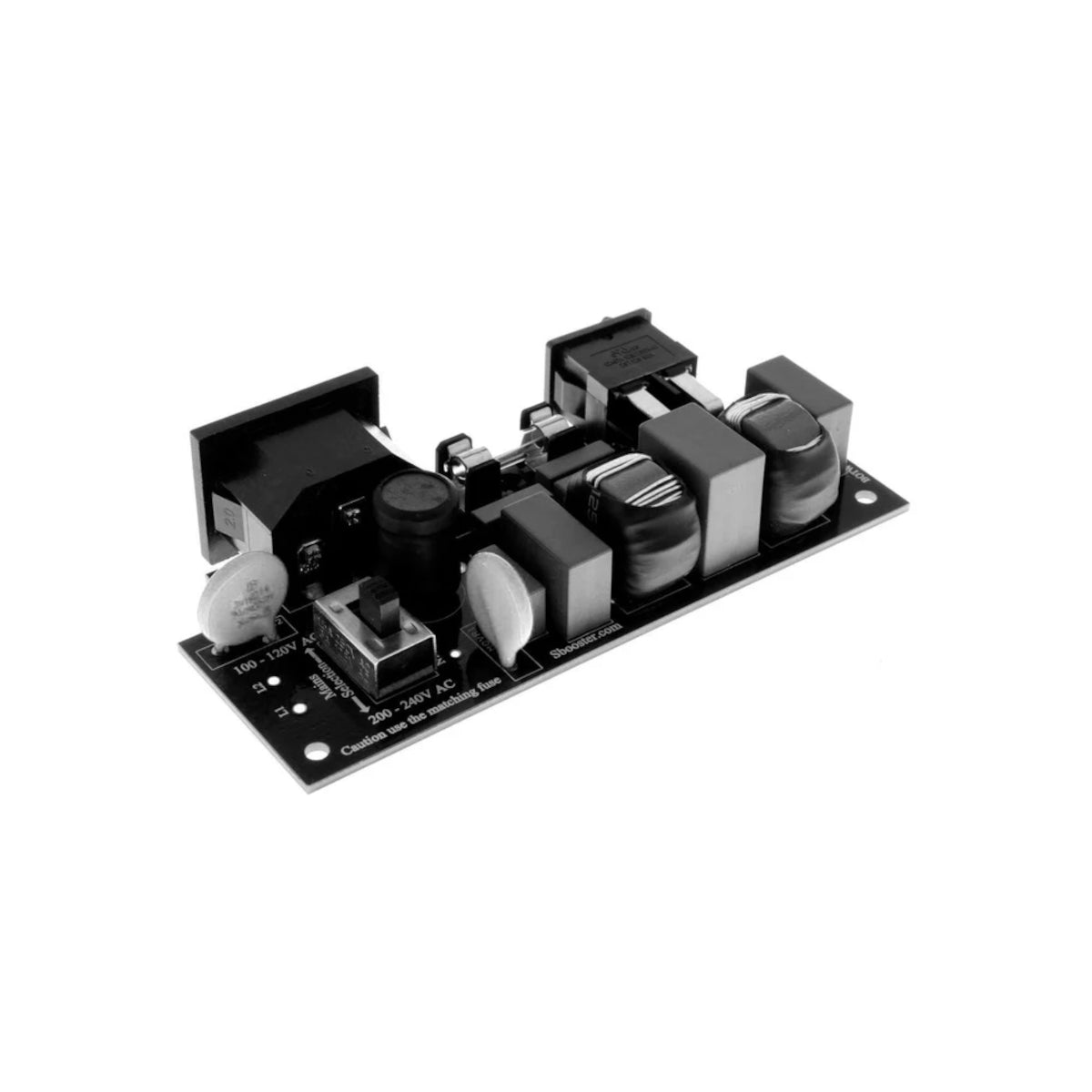

Stage 1: The Input Filter - The Shield The purification starts at the very first contact point. Before the current even reaches the transformer, our Dual-Stage Mains Filter with Earth Line Choke acts as a barrier, eliminating high-frequency pollution from the power grid instantly.

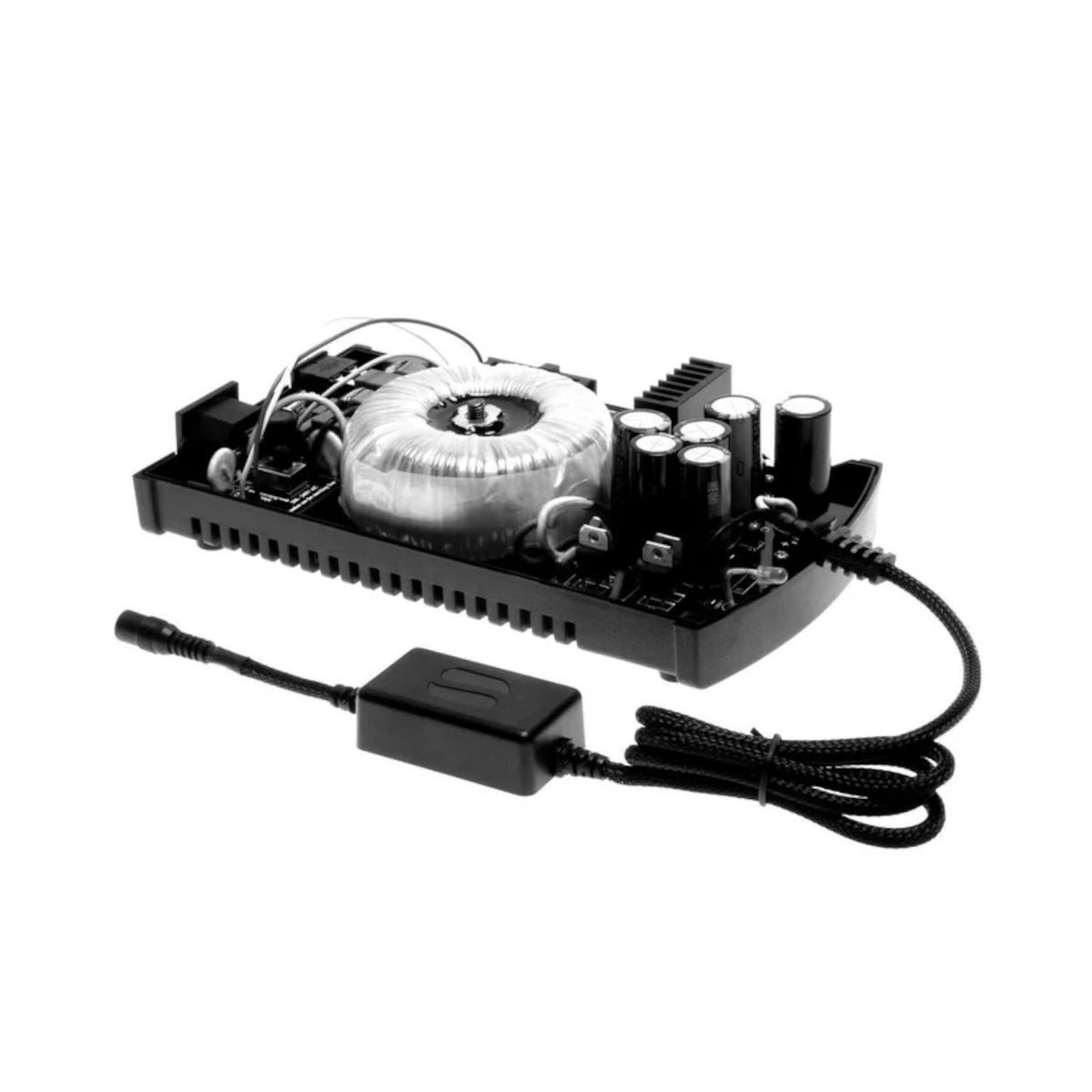

Stage 2: The Transformation - The Heart The clean power is then passed to the Audio Grade Toroidal Transformer. Electro-statically and HF-magnetically shielded, this custom-made heart ensures that the conversion from AC mains to low voltage AC happens without adding any hum or noise.

Stage 3: The Conditioning - The Foundation The low voltage AC is then rectified to DC using ultra-fast Schottky diodes to minimize switching noise. This power is stored in a bank of Low ESR bulk capacitors, creating a massive energy reserve for dynamic response. A precision shunt reference circuit with high performance regulator then locks the voltage in place, ensuring rock-solid stability before the power leaves the enclosure.

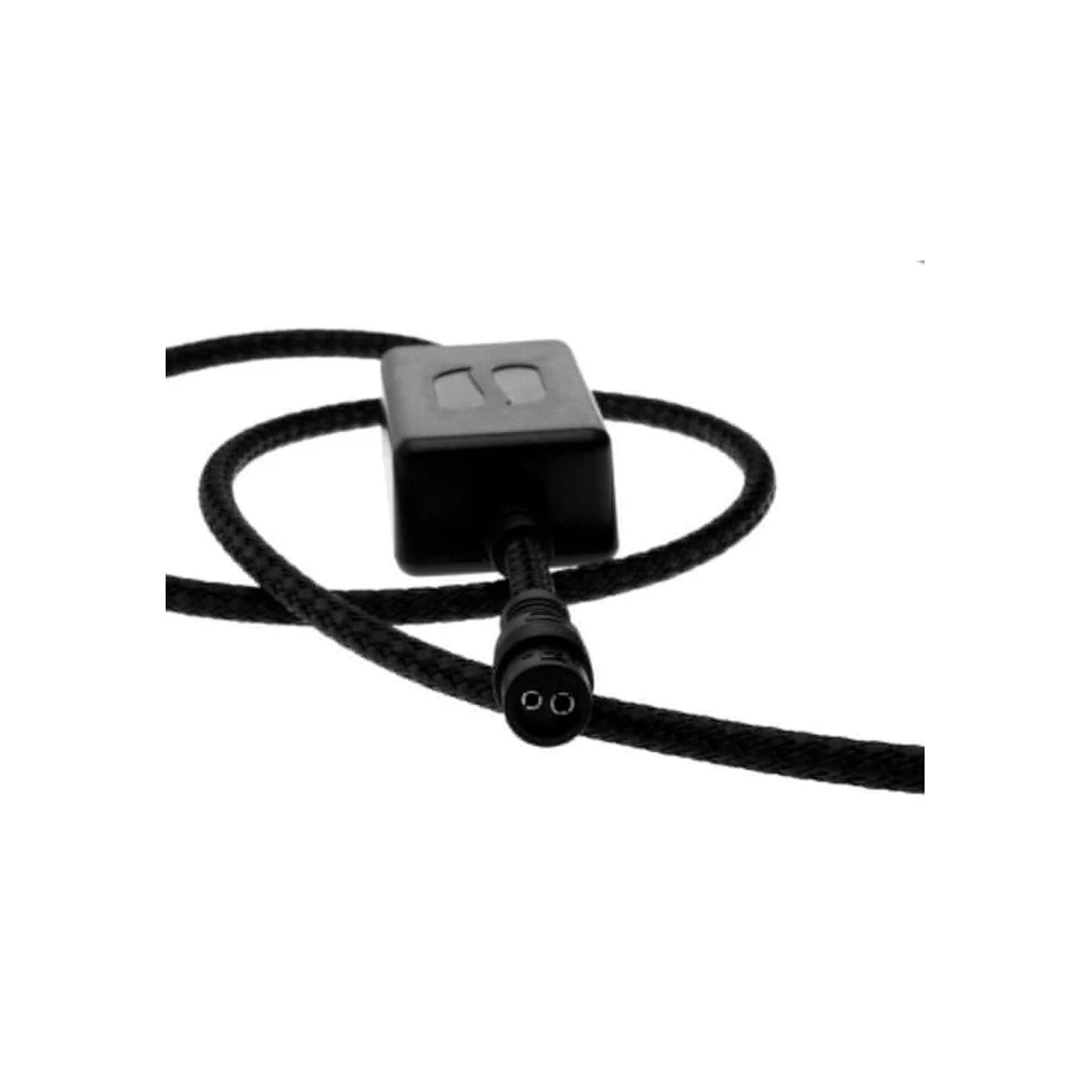

Stage 4: The Split-Current System - The Flow Finally, at the end of the chain, as close as possible to the audio device, lies our unique innovation: The Split-Current System. This system divides the power flow: one path creates a massive buffer for speed and dynamics, while the other filters the voltage and current one last time.

Specifications

Model / Output Voltage Settings / Max Current (Amps)

BOTW P&P ECO MKII 5-6V- 5V / 6V / 6.5V - 3A / 1.75A / 1.6A

BOTW P&P ECO MKII 9-10V - 9V / 10V / 10.5V - 2.3A / 1.25A / 1.1A

BOTW P&P ECO MKII 12-13V - 12V / 13V / 13.5V - 3A / 2.25A / 2.1A

BOTW P&P ECO MKII 15-16V - 15V / 16V / 16.5V - 2.5A / 1.85A / 1.65A

BOTW P&P ECO MKII 18-19V - 18V / 18.5V / 19V - 2.25A / 2.0A / 1.85A

BOTW P&P ECO MKII 24V - 24V (Fixed) - 1.1A

Electrical Engineering

Mains Voltage: 100V - 240V AC 50/60Hz (Factory specific, see label)
Transformer: Audio Grade Toroidal (Electrostatic & Magnetic Shielding)
Mains Filter: High-performance Dual Stage Filter + Earth Line Choke
Rectification: Power Schottky Barrier Rectifiers
Regulation: High-current LDO with external high-precision shunt reference circuit
Capacitors: Low Impedance High Ripple Current (Bulk) & Non-inductive Polypropylene Film (Filter)
