Quad

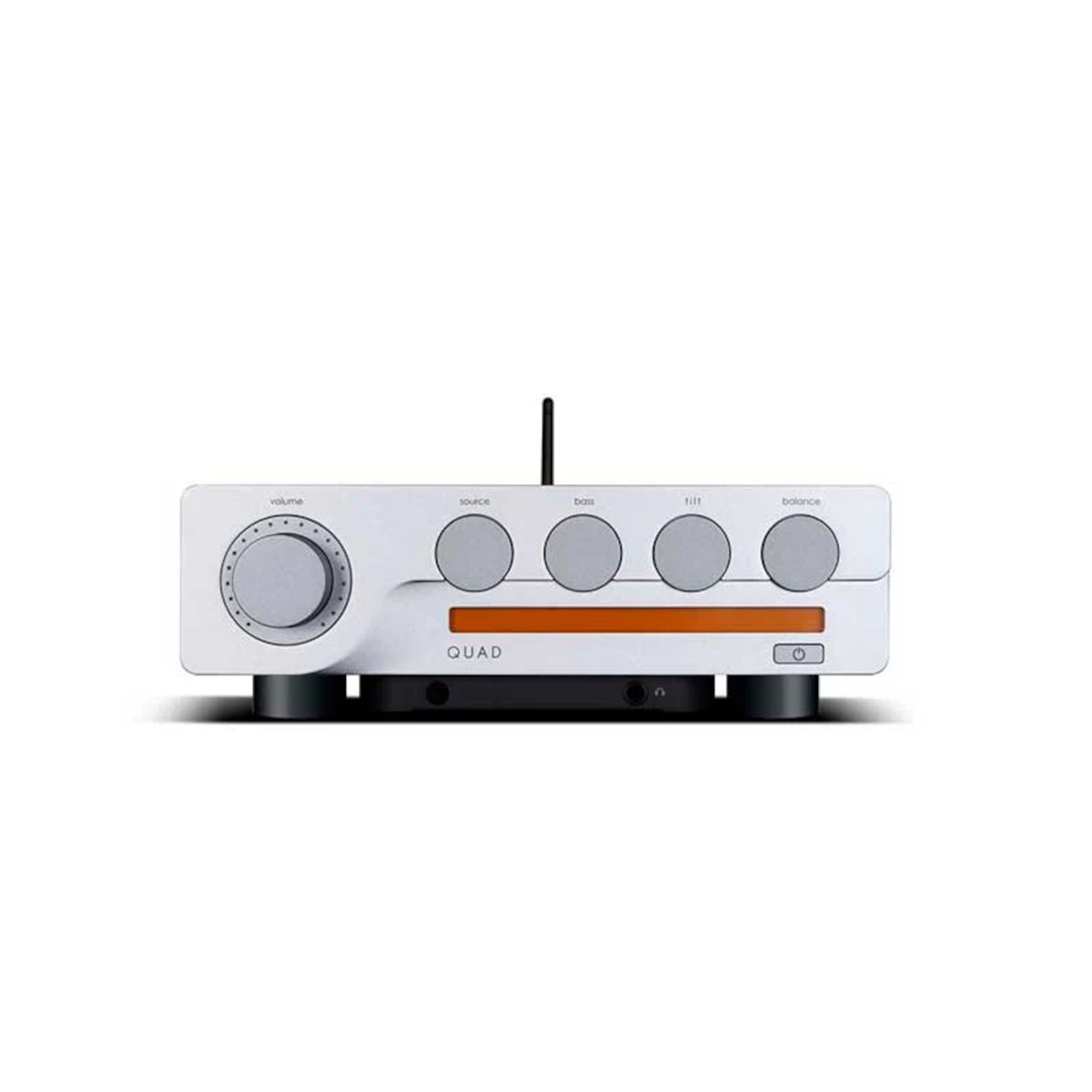

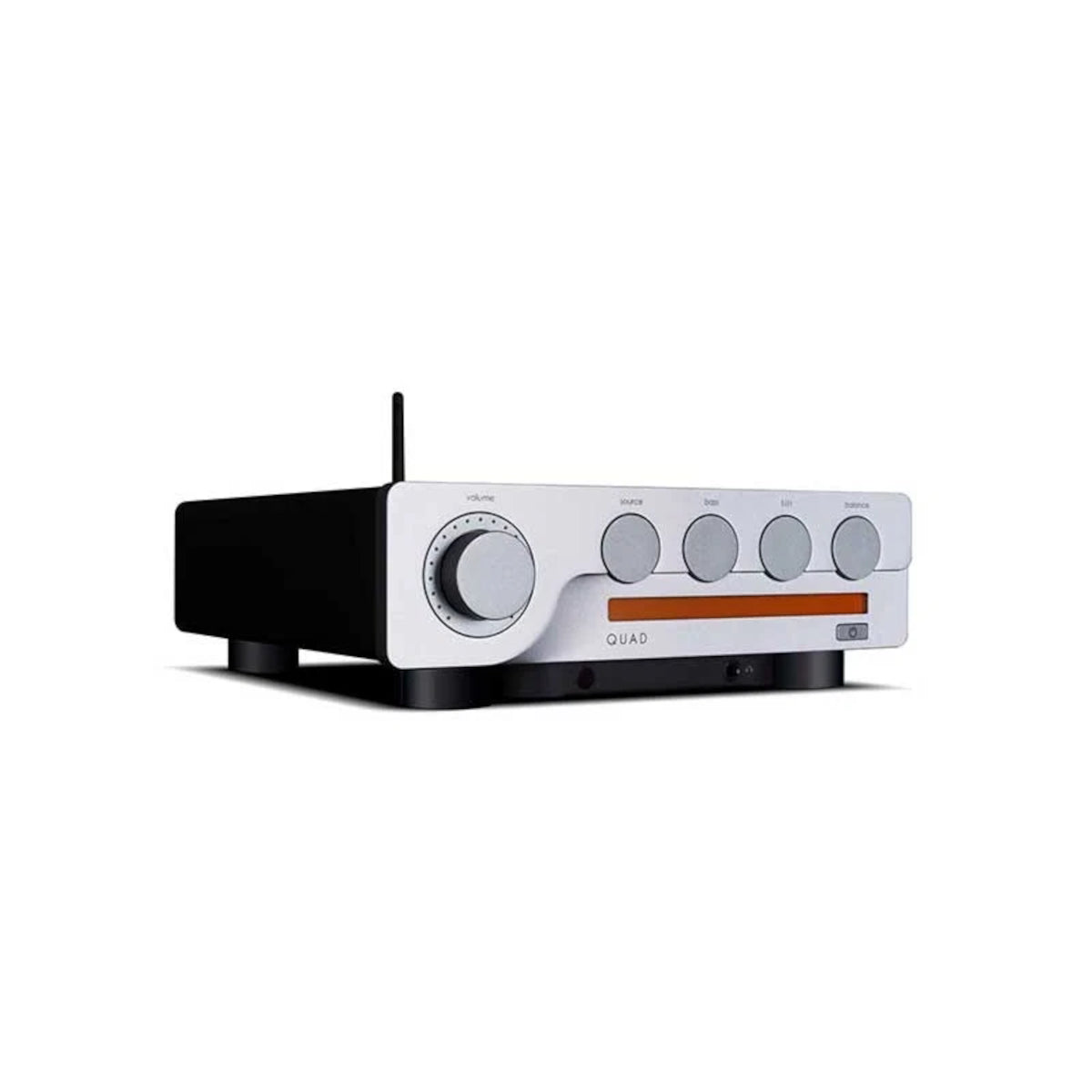

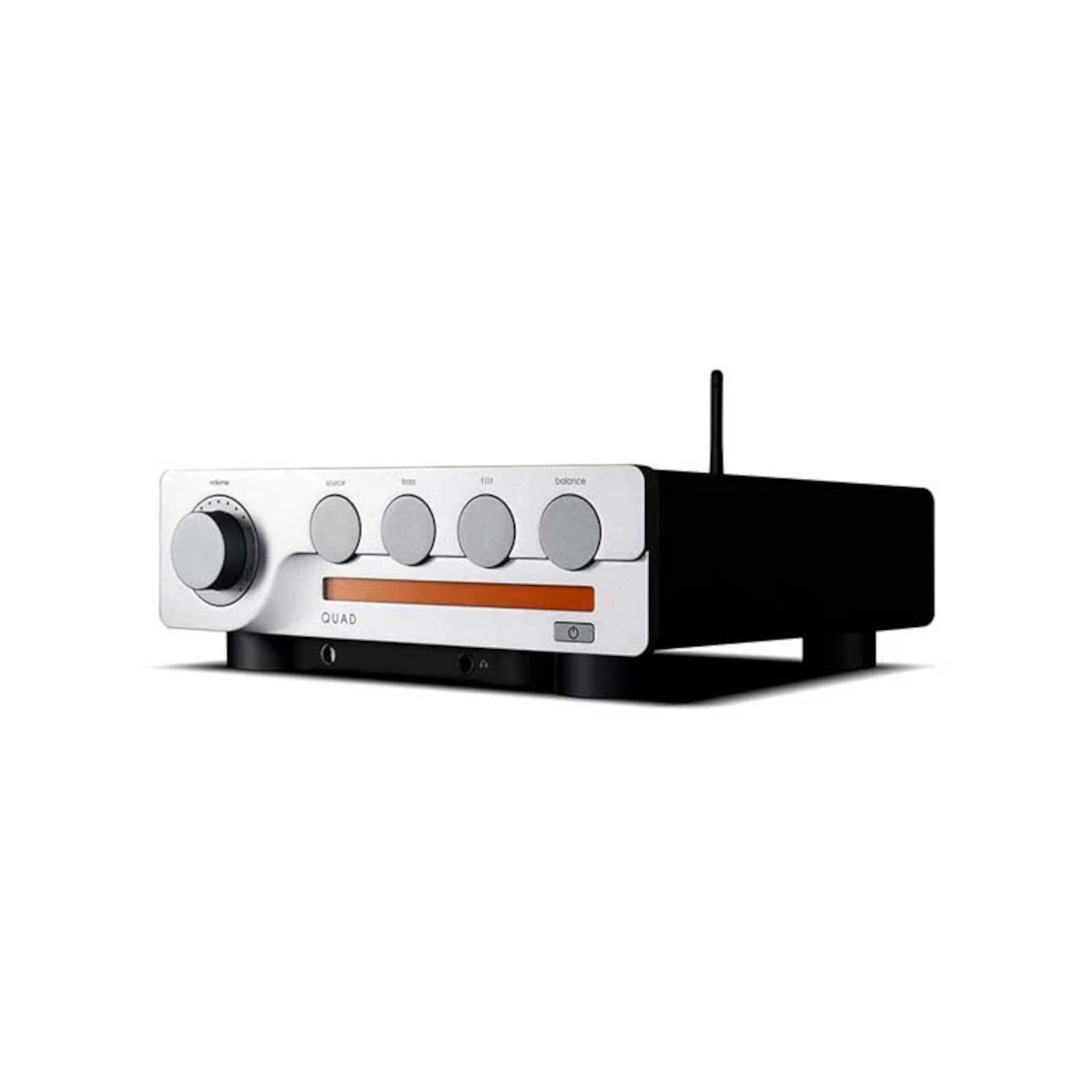

Quad 3 Integrated Amplifier

Quad 3 Integrated Amplifier

$2,999.00 AUD
$2,999.00 AUD
Sale Sold out
Shipping calculated at checkout.

Quad 3 is a compact integrated amplifier featuring 65W per channel (8Ω) Class AB amplification, a high-performance ESS9038Q2M DAC, MM phono stage, and HDMI ARC. With extensive digital and analogue connectivity, it’s ideal for modern two-channel listeners who demand versatility, clarity, and classic design.

Integrated amplifiers cleverly combine both pre and power amplification stages. Responsible for attenuating speaker volume and input selection control from varying sources (CD players, network streamers, Blu Ray, etc), integrated amplifiers are a popular all-in-on choice for all listeners.

Quad established in 1936, Quad is one of the UK’s oldest and most prestigious audio manufacturers still in production today. Renowned for its award-winning audio electronics and loudspeakers, Quad stays true to its ideology as the closest approach to the original sound.

Features

Quad 3’s HDMI ARC input creates perfect symmetry between your TV and two-channel stereo system, unlocking richer, more articulate sound from movies, series, music streaming, and games––all with the convenience of single-cable simplicity and volume control via your TV remote.

A custom-engineered Class AB amplifier—driven by a 235VA toroidal transformer and 30,000uF capacitor bank—forms an architecture built for dynamic headroom and confident drive. Quad 3 delivers remarkable control, so that even at low volumes bass lines stay grounded and transients land with authority.

Specifications

  • Rated Power Output : 2 x 65 Watts RMS (8 Ohms, THD<1%) 2 x 100 Watts RMS (4 Ohms, THD<1%)
  • Frequency Response : 20Hz - 20kHz (+/- 0.3dB)
  • Signal To Noise Ratio : >110dB  (A-weighted); >78dB (Phono MM, A-weighted)
  • Total Harmonic Distortion (THD) : <0.003% (1kHz @ 30W/8 Ohm)

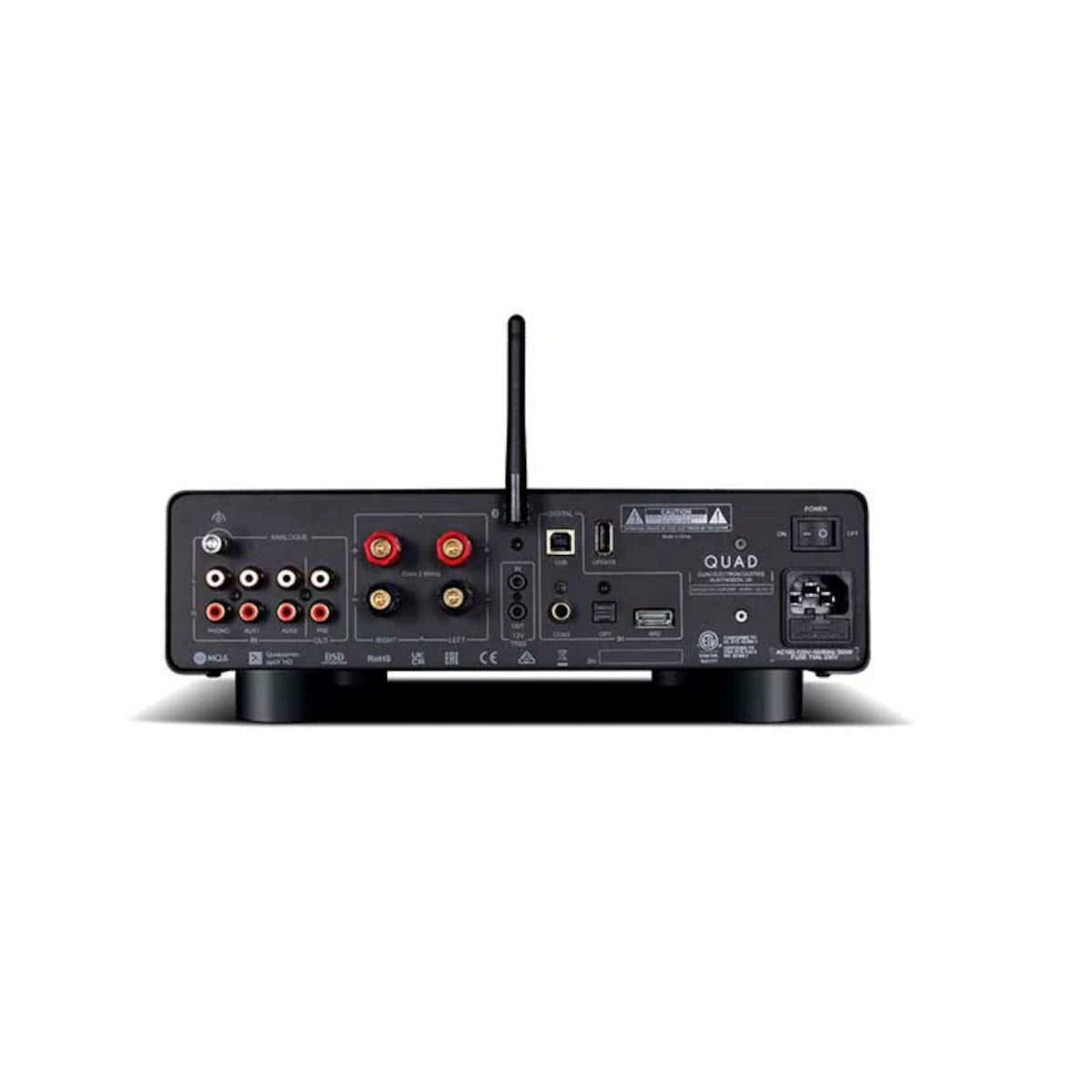

  • Analogue Inputs2 x RCA (Line In), 1 x Phono (MM)
  • Digital Inputs1 x SPDIF (Coax), 1 x SPDIF (Optical), 1 x USB-B, 1 x HDMI ARC, 1 x Bluetooth (aptX / aptX HD)
  • Audio Outputs 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x 6.3mm (1/4”) Headphone, 1 x 12V Trigger
  • Included Accessories : Remote Control
  • Dimensions (H x W x D)101 x 300 x 332mm
  • Weight : 8kg
  • Colour Choice : Silver

What's in the box

Quad 3

Remote Control

Power Cable

Manual
