Pathos Acoustic

Pathos InPol Heritage MKII Tube Hybrid Integrated Amplifier

$42,999.00 AUD

Sale Sold out

Shipping calculated at checkout.

Color: Matte Metallic Black with Padouk

Quantity

Overview

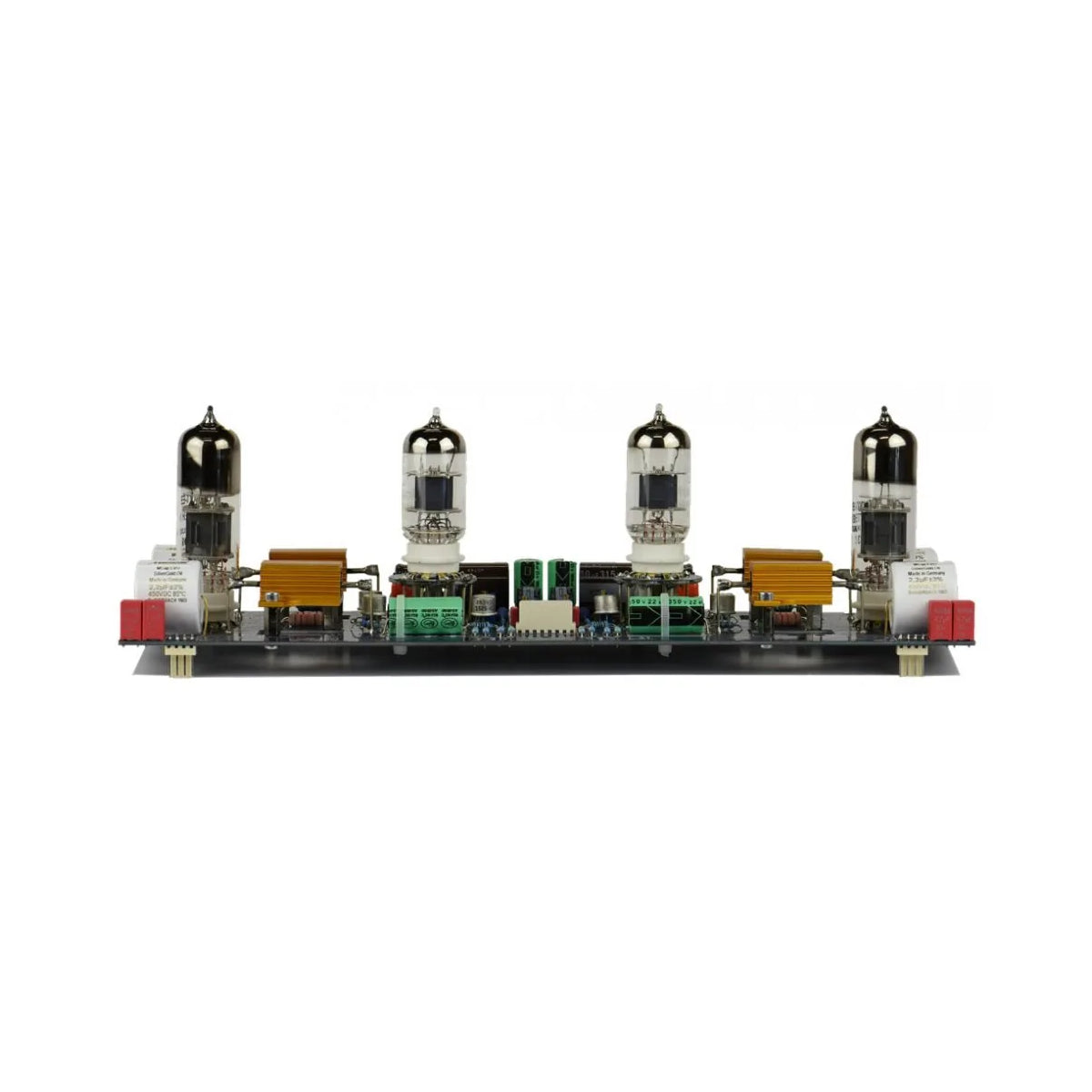

A pure class-A ECC803S input stage pairs with Pathos' double INPOL technology offering high output with exceptional damping

Think of the directness of SET with the control and damping of solid state. Pathos' patented and unique InPol technology allows the tube input stage to effectively drive your speakers with no further amplification. A dual InPol circuit delivers the low impedance and high current needed for a high damping factor, allowing for immense control over your loudspeaker drivers.

InPol (Inseguitore Pompa Lineare or Linear Pump Follower) is a Pathos patented system. that allows for much greater output in pure class-A. This fully balanced circuit design uses a single solid-state component in follower configuration, with a both a high current and high voltage gain.

Read review here

Features

The Pathos InPol Heritage is a fully-balanced, dual mono, pure Class A integrated amplifier with a tube input stage and the company’s latest generation double-InPol output stage. InPol stands for Inseguitore Pompa Lineare (Linear Pump Follower) and this technology is the beating heart of the Heritage MKII amp.

Specifications

Type : Reference stereo integrated amplifier Pure class A– double INPOL technology – fully balanced-digital Bias/gain set technology
Tubes : 2 x ECC803S tung-sol2 X 6H30 Sovtek
Output power : 2 x 80W@ 8 Ohm,
Frequency response : 2Hz – 200KHz ± 0.5db
Max input voltage: 10VRMS
Input sensitivity : 780mVRMS
Input impedance : 20 KOhm
Volume regulator : purely resistive relays
THD : 0,1% @ 80W
S/N Ratio : > 100dB
Gain33 db : Unbalanced 39 db Balanced

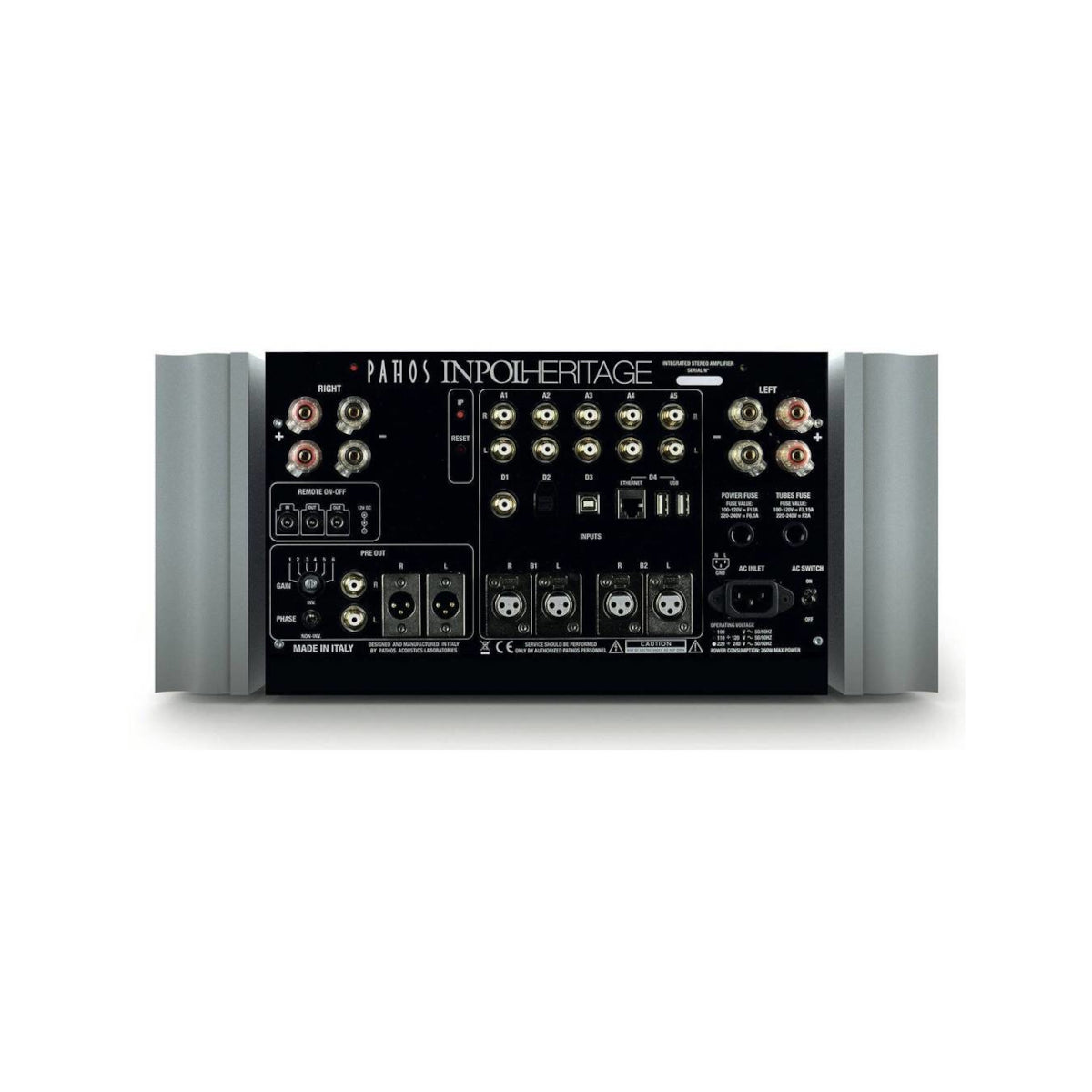

CONNECTIONS

Analog inputs : 2 balanced XRL line, 4 unbalanced RCA line
Digital inputs : Installation of optional HiDac Mk2 board isrequired to enable these inputs1 USB port type “B” for PC, 1 SPDIF coaxial,1 SPDIF optical,
Outputs : 1 Pre out stereo line Unbalanced RCA, 1 Pre out stereo line, Balanced XLROutput gain selectable in 4 positions
Pre-output phase can be selected
Dimensions : 693mm (D) X 450 (W) X 230mm (H)
Net Weight:80Kg
