Pathos In The Groove MM / MC Phono Stage
Pathos In The Groove MM / MC Phono Stage
Couldn't load pickup availability
In The Groove solid-state phonostage features passive RIAA preamplification, an external PSU, and settings for impedance, capacitance, and gain
Completely developed in-house by Pathos in Italy, the In The Groove has a linear power supply in separate housing for the lowest possible noise floor. Impedance and capacitance can be set with knobs on the front panel, and a gain setting is available on the rear. The In The Groove offers balanced XLR or unbalanced RCA outputs.
Entirely handmade in Italy.
Compactness and elegance
It’s about small changes that may meet the taste of the listener or not, but specifically for this reason they reveal all their strong flexibility and adjustment of such electronics.
Aluminium has been used both for painting and for frame, on the upper part can be found our carved logo. It is compact and elegant; this product is an important accessory to your audio system to enjoy at best vinyl quality.
In The Groove is available in two finishes and, if combined with Converto EVO and AmpliD, will set up a perfect audio system both for digital and phono source.
This product is entirely handmade in Italy.
Features
Features

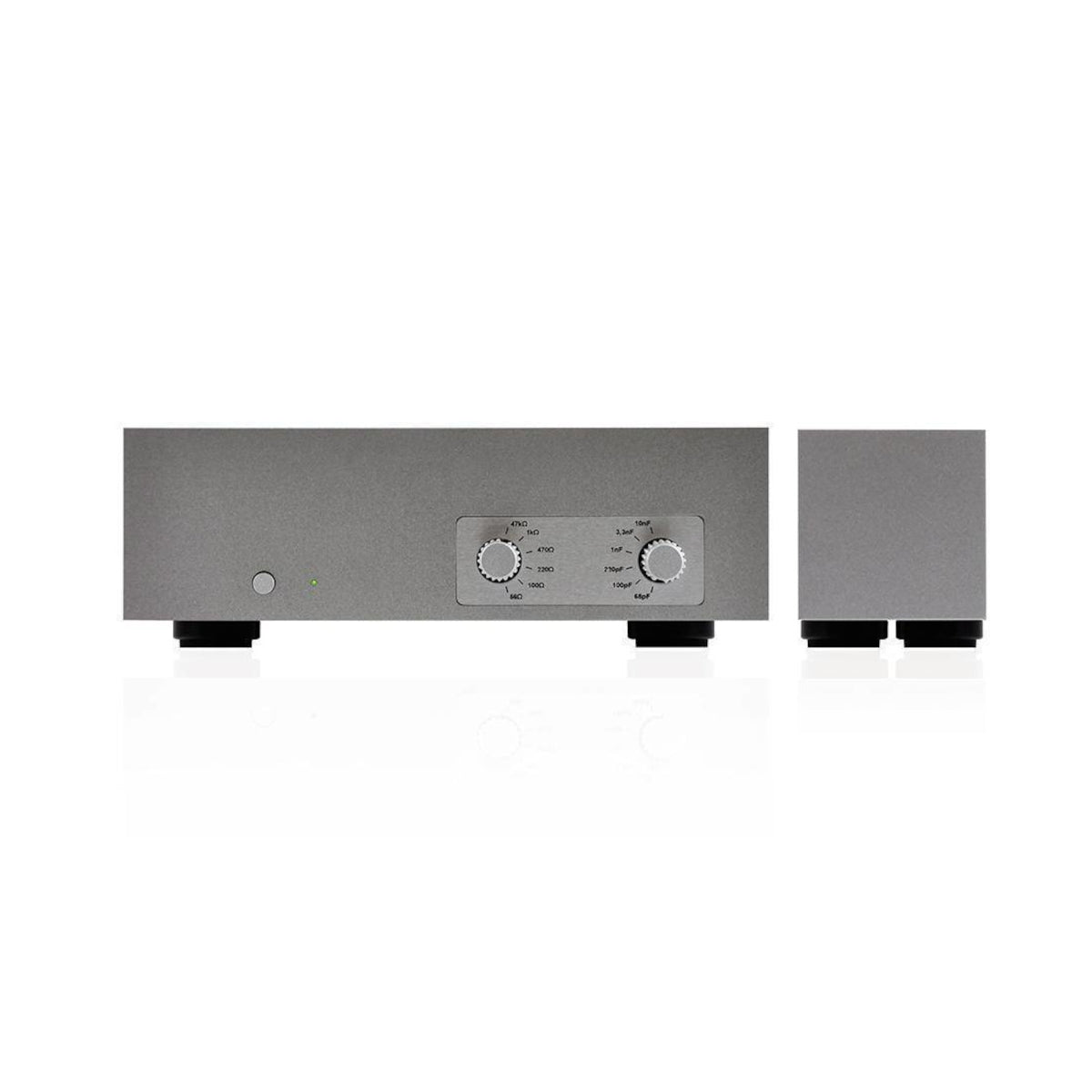

Front panel easy adjustable 6 settings of resistance and 6 settings of capacitance
Separate power supply for cleaner power and reduced interference.
Specifications
Specifications
- Frequency response: RIAA ± 0.2 dB
- THD: 0.04% @1 V RMS , 1 kHz
- Gain: 62dB, 56dB, 50dB, 43dB
- Input impedance: Selectable in 6 settings of resistance and 6 settings of capacitance
- Max output level: 5.5 V RMS unbalanced, 5.5+5.5 V RMS balanced
- Analog output: 1 x balanced XLR, 1 x RCA
- Output impedance: 75 ohm unbalanced, 40 ohm balanced
- Power consumption: 10 W max, <0.5 W standby mode
- Dimensions
- Preamplifier: 10.2" (D) x 7.87" (W) x 2.75" (H)
- Power supply: 9" (D) x 2.36" (W) x 2.75" (H)
- Weight (preamplifier, power supply): 5 lb (2.3 kg), 2.64 lb (1.2 kg)
What's in the box
What's in the box
1 x In The Groove
1 x Power Supply
