OAD Ultrafidelity

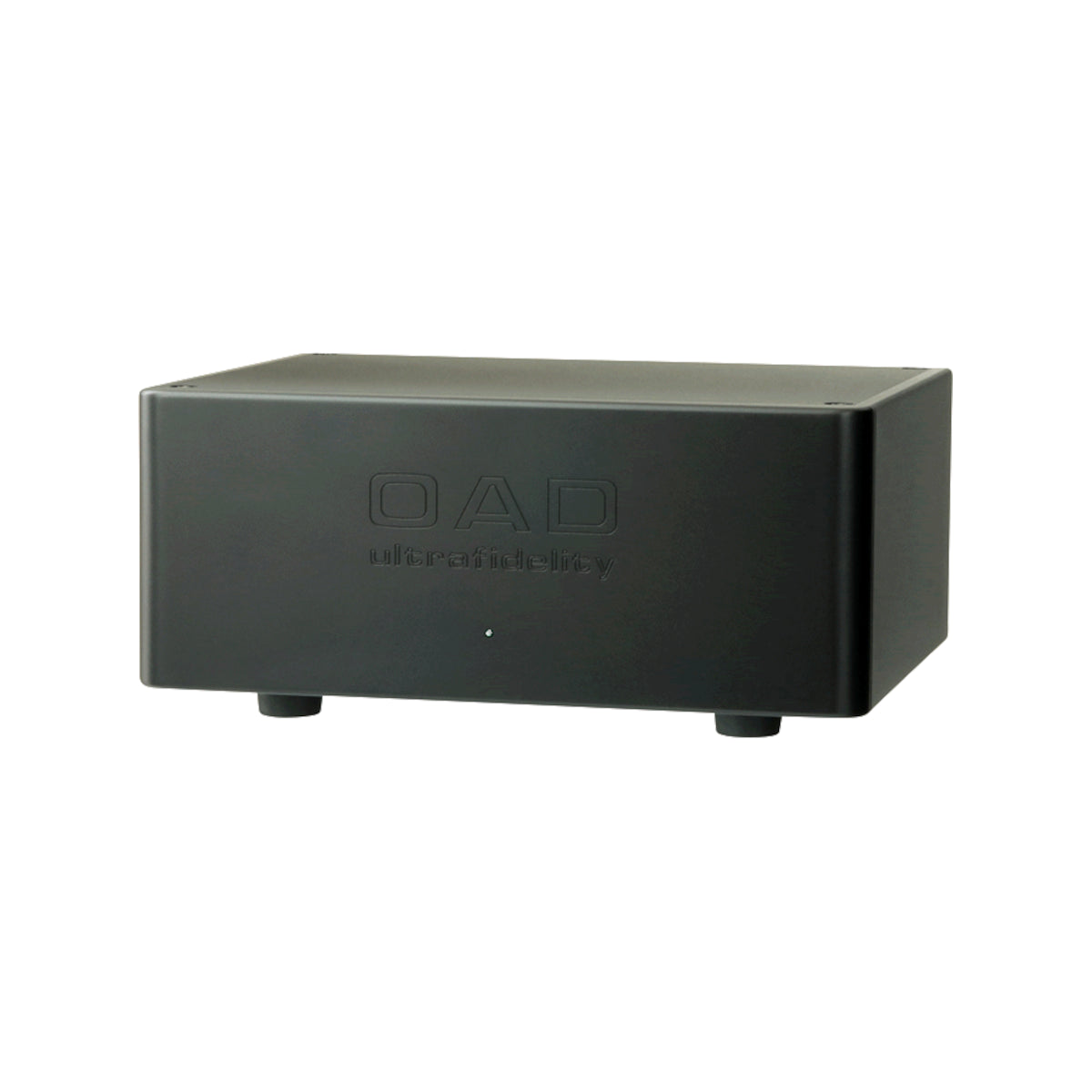

OAD Ultrafidelity UP1 Reference Phono Amplifier

OAD Ultrafidelity UP1 Reference Phono Amplifier

Regular price $5,800.00 AUD
Regular price Sale price $5,800.00 AUD
Sale Sold out
Shipping calculated at checkout.
Color: Black

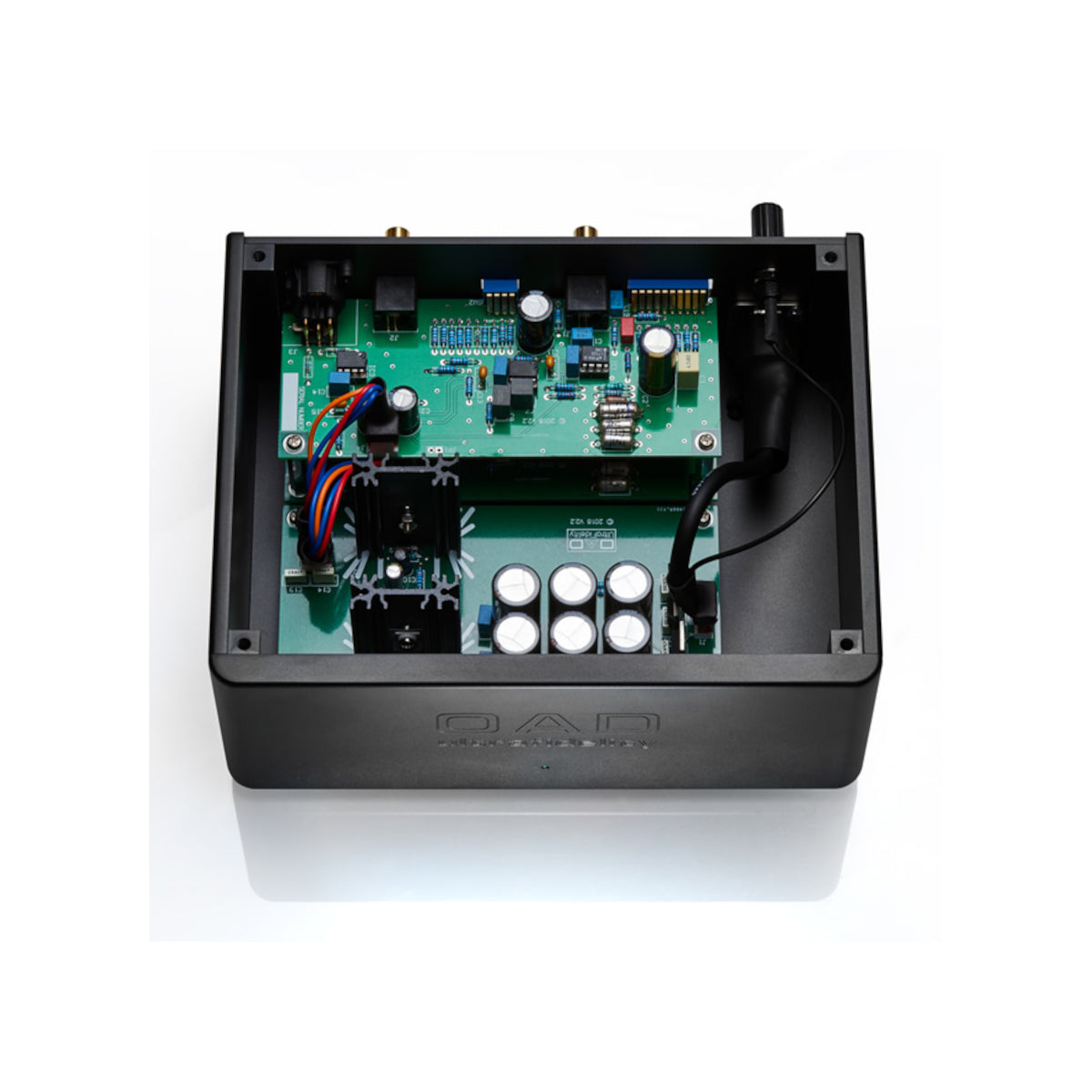

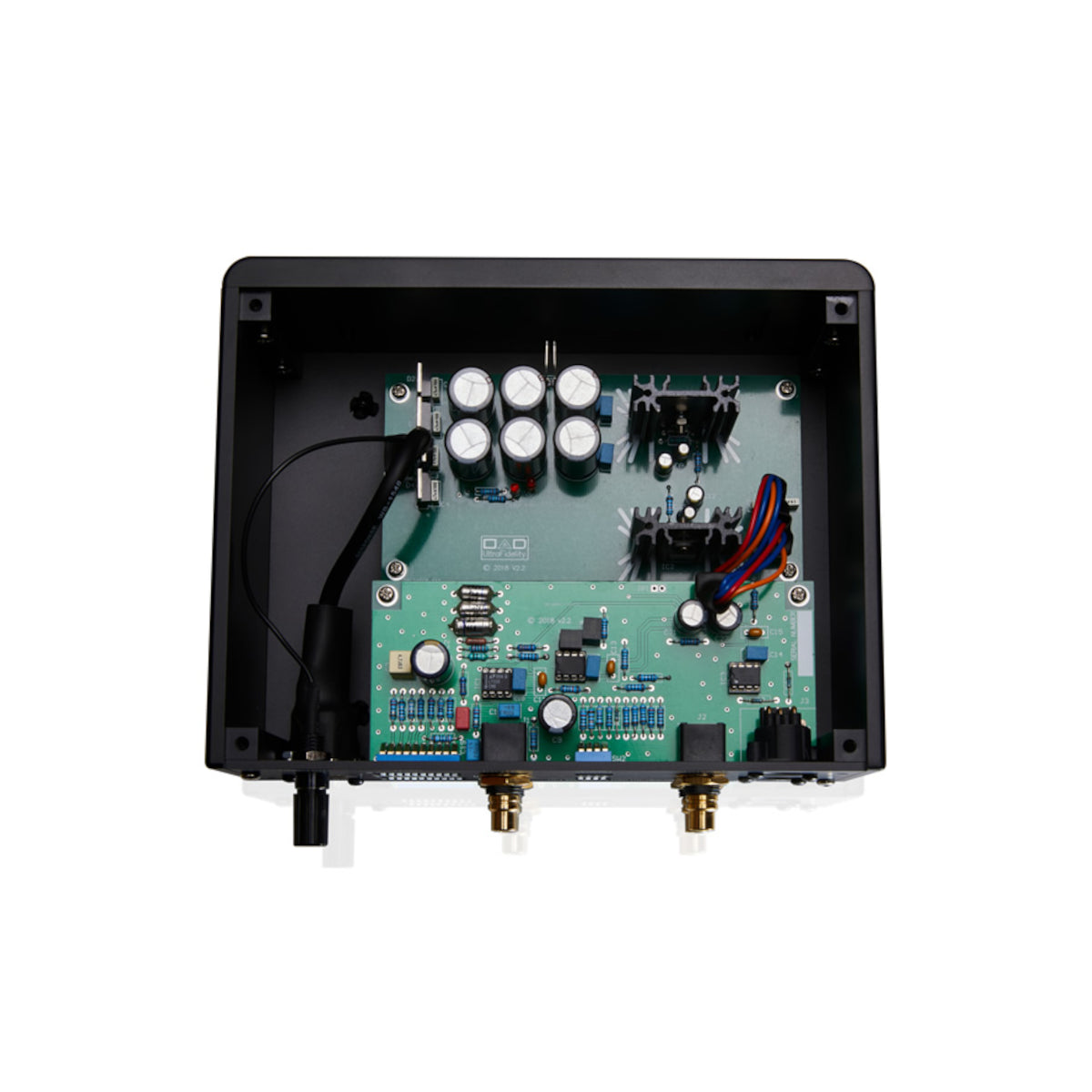

The UP1 Reference takes the already excellent sound and specs of the UP1 to the next level. With a heavier chassis and 5 additional power supplies, it removes any power supply noise from the signal, surpassing human hearing and even the best Test and Measurement equipment. We've upgraded to Solid Polymer capacitors in critical areas, providing unrivaled audio performance with higher ripple current, lower ESR, stable capacitance at any temperature, and greater lifespan. Experience audio like never before.

Each channel on the UP1 Reference has two banks of DIP switches for customizing your cartridge settings. The first bank offers a wide range of input impedance values, additional capacitance options, and a selection for Moving Magnet/Moving Iron/Moving Coil. The second bank sets the overall gain for your cartridge from 40dB to 80dB in 5 dB steps. With these versatile options, there is no cartridge that the UP1 Reference will not be compatible with.

Download UP1 Reference Owner's Manual

Features

  • Ultra-low noise MC/MM circuitry
  • Dual Mono design
  • Accurate RIAA equalisation
  • All Moving Iron, Moving Magnet and high and low output Moving Coil cartridges catered for
  • Fully user adjustable, no additional components or soldering required
  • Fully electrically isolated from incoming power supply
  • High current line drivers for driving long interconnects and/or difficult loads
  • Comprehensive loading options including capacitor loading for MM
  • World's greatest gain range 40 to 80dB due to ultra-low noise design
  • Uncompromising EMC Shielding due to chassis being milled from solid Aluminium

Specifications

  • Input: RCA
  • Output: 1 pair Unbalanced RCA (single ended), 1 pair Balanced XLR
  • Input impedance:22 Ohm,30 Ohms, 50 Ohms, 100 Ohms, 220 Ohms, 470 ohms, 1000 Ohms, 47k Ohms
  • Output impedance: 50 ohm
  • Input capacitance (without additional switched capacitance): 100 pF
  • Input sensitivity: 200uV – 20 mV
  • Gain: 40 – 80 dB (2 VRMS output at 1 kHz)
    THD 0.004 % (1 kHz)
  • MM cartridge: >113 dB A-weighted, input shorted
  • MC cartridge: > 93 dB A-weighted, input shorted
  • RIAA linearity: +/- 0.1 dB (20 Hz – 20 kHz)
  • Nominal output: 2 VRMS
  • Maximum output: 10.5 VRMS
  • Power consumption: 5 W
  • Dimensions: Preamplifier W 210 x D 183 x H 95 mm, 3.3 kg
  • Power Supply: W 114 x D 130 x H 63 mm, 1.25 kg
  • Shipping Weight: 6kg

What's in the box

OAD UP1 Reference Phono Amplifier
