Nagaoka

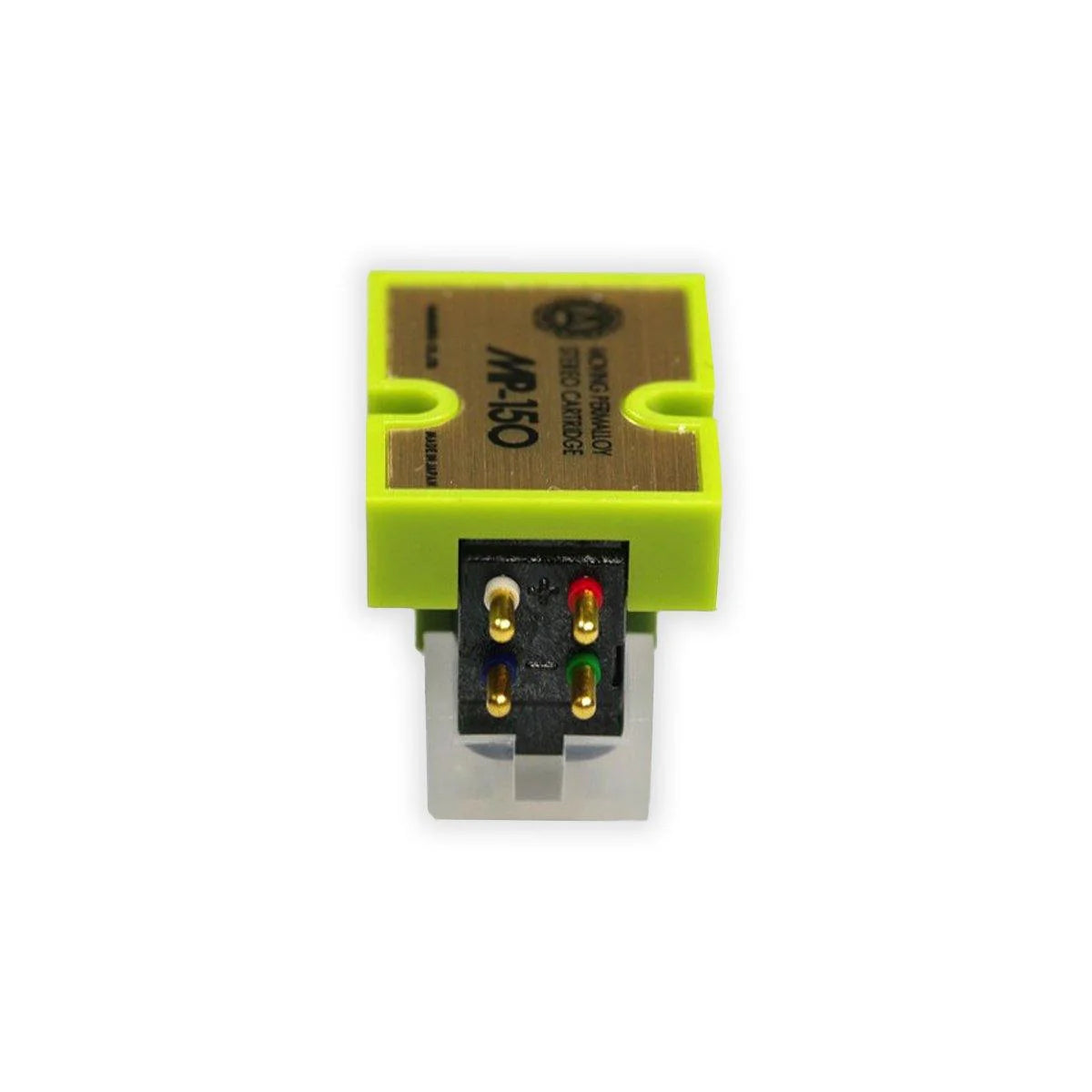

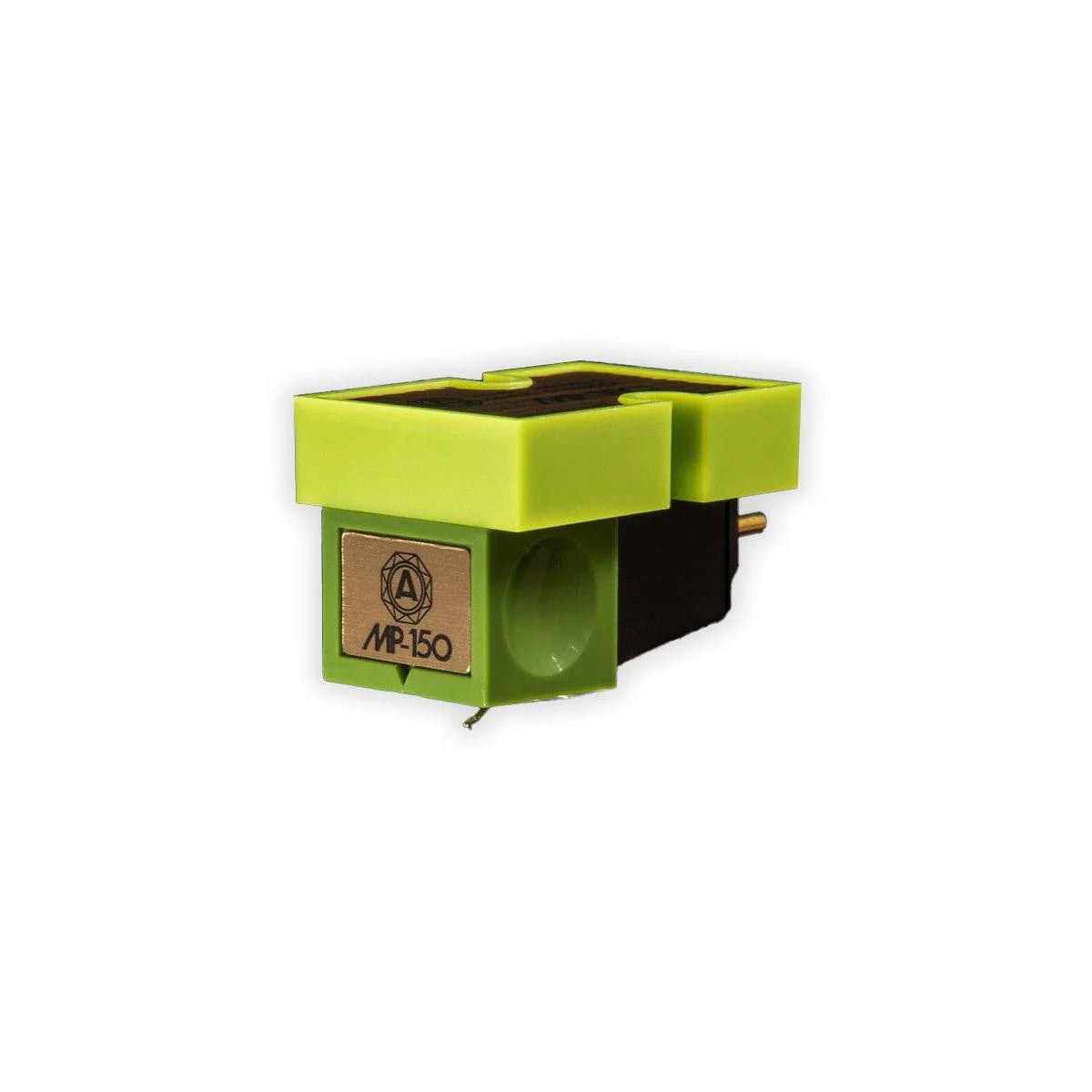

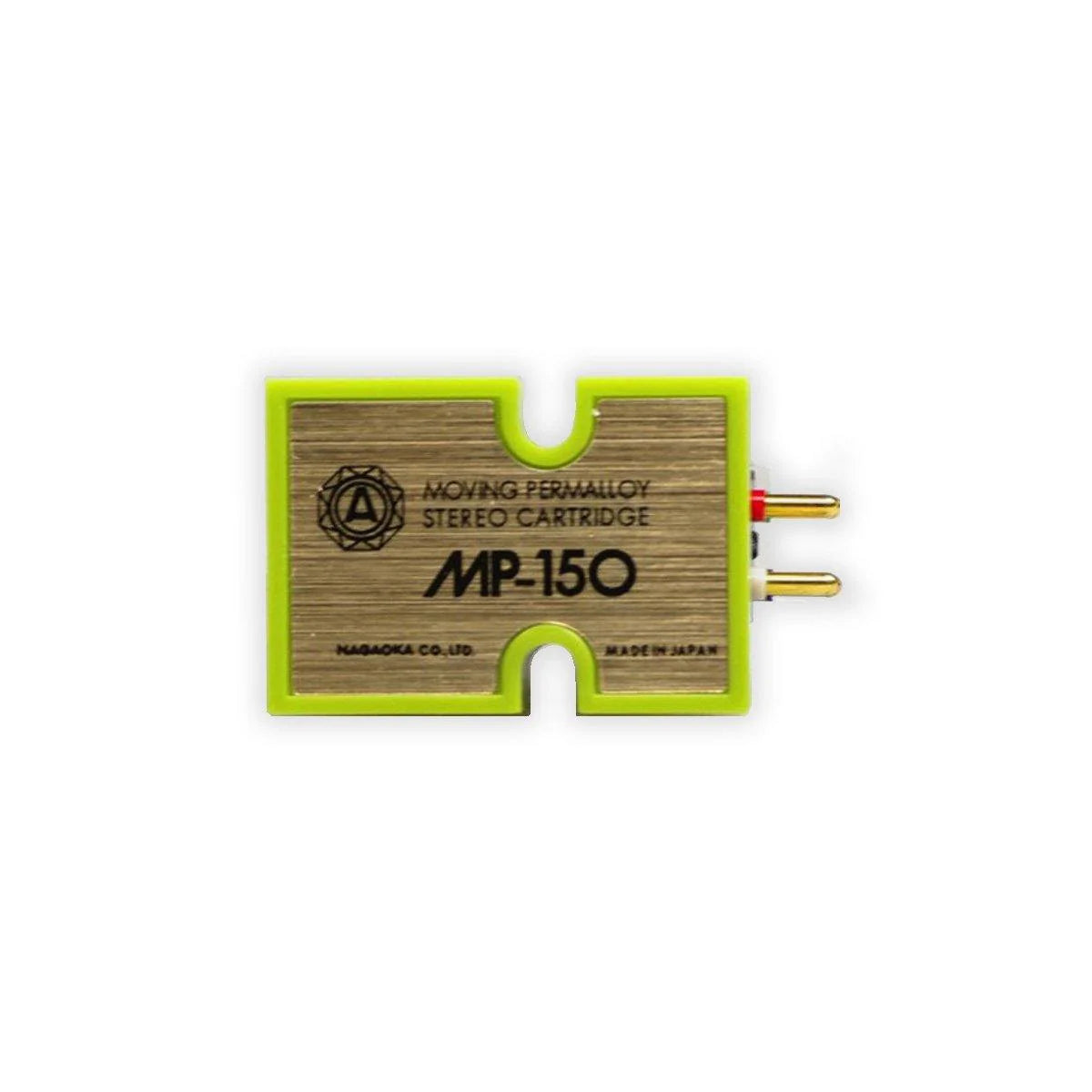

Nagaoka MP-150 Moving Magnet (MM) Cartridge
Nagaoka MP-150 Moving Magnet (MM) Cartridge
Regular price
$489.00 AUD
Regular price
Sale price
$489.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Made in Japan MP-150 record player cartridge from Nagaoka is an absolute delight, offering unmatched dynamic contrast and great fidelity across the audio spectrum with superb clarity in the lows and sweetness in the highs.
The Nagaoka MP-150 phonograph cartridge from Japan offers superior clarity, detail and dynamic contrast with a fine solid bass, superb fluidity across the frequency spectrum, and sweet highs.
Features
Features
- Superfine polished Elliptical Diamond Stylus tip
- Powerful Samarium Cobalt Magnet
- Low mass, hardened, tapered Aluminum Alloy Cantilever
- Reinforced Carbon Fiber pole shoe
- Anti Ferro-Magnetic Permalloy shielding casing
Specifications
Specifications
- Type: Moving magnet (Permalloy)
- Cantilever: Hardened tapered aluminum alloy
- Stylus type: Superfine elliptical diamond
- Weight: 6.5 g
- Output Voltage @ 1kHz, 5cm/sec: 4.5mV
- Frequency response: 20Hz-20kHz
- Channel balance @ 1kHz: > 1.5dB
- Channel separation @ 1kHz: > 24dB
- Recommended loading: 47k ohms
- Dynamic compliance: 6.0 x 10-6 cm/dyne
- Static compliance: 18 x 10-6 cm/dyne
- Tracking force range: 1.5 - 2.0 g
- Break-in period: 30 hours
- Stylus replacement: Nagaoka JN-P150
What's in the box
What's in the box

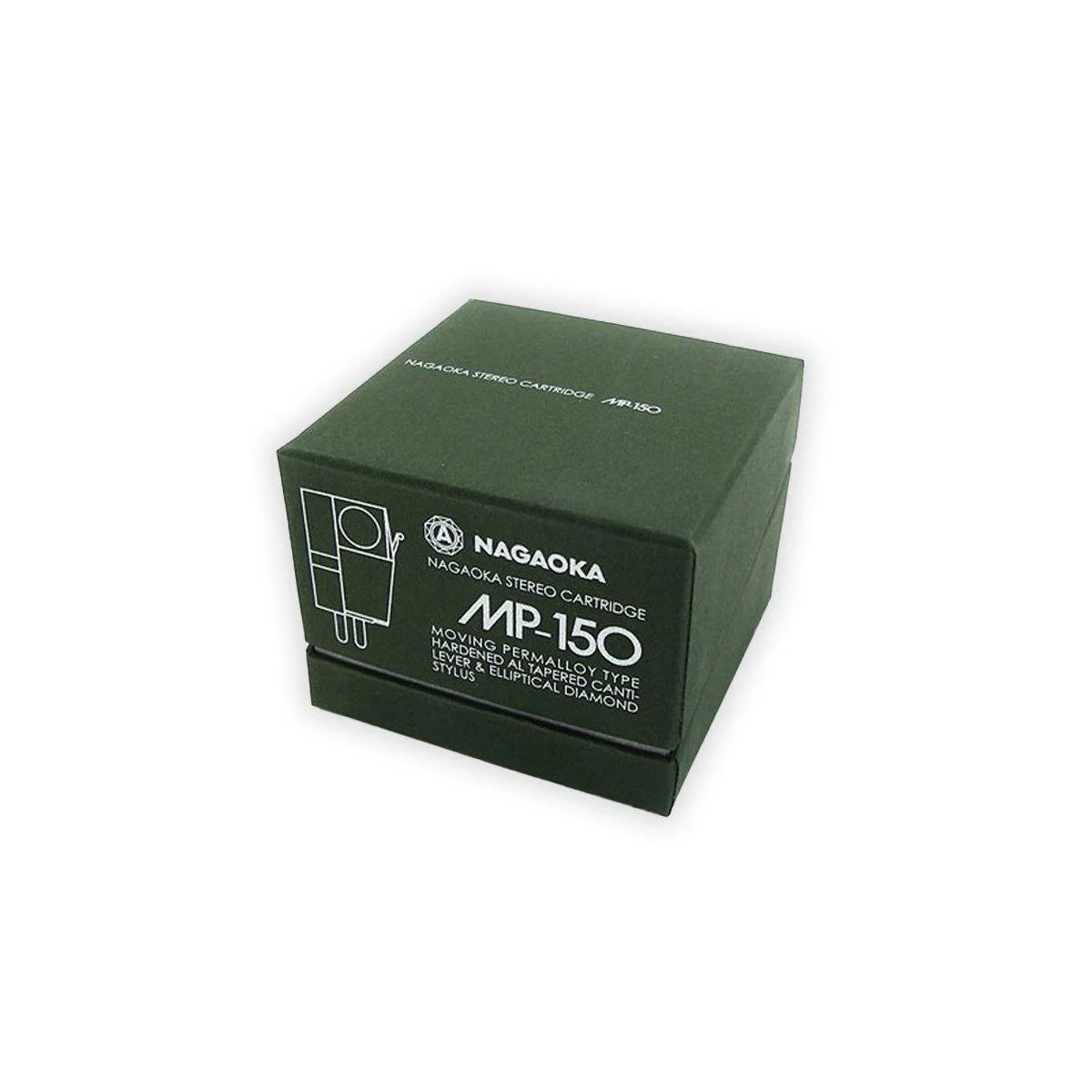

1x Nagaoka MP-150 Moving Magnet (MM) Cartridge
