Nagaoka

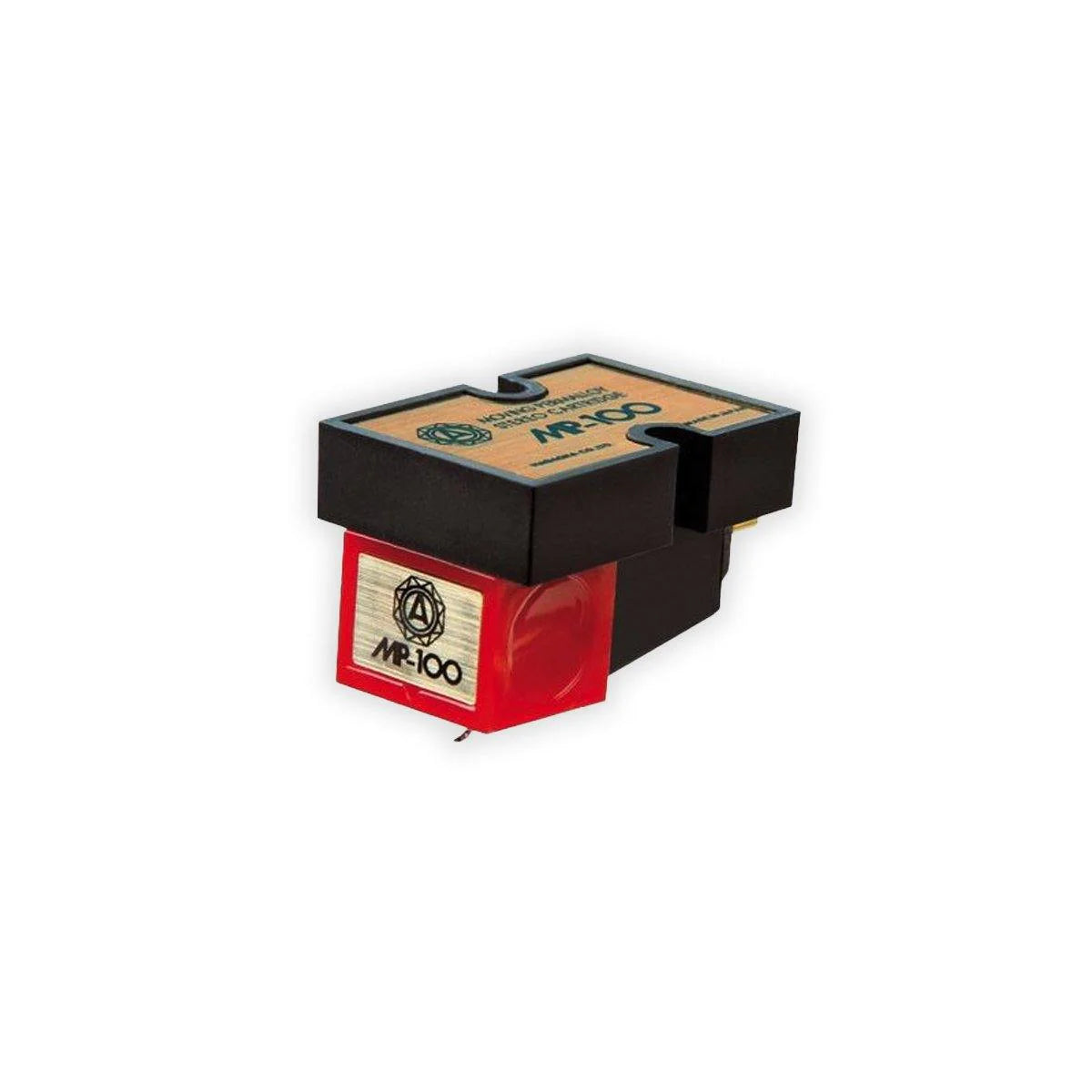

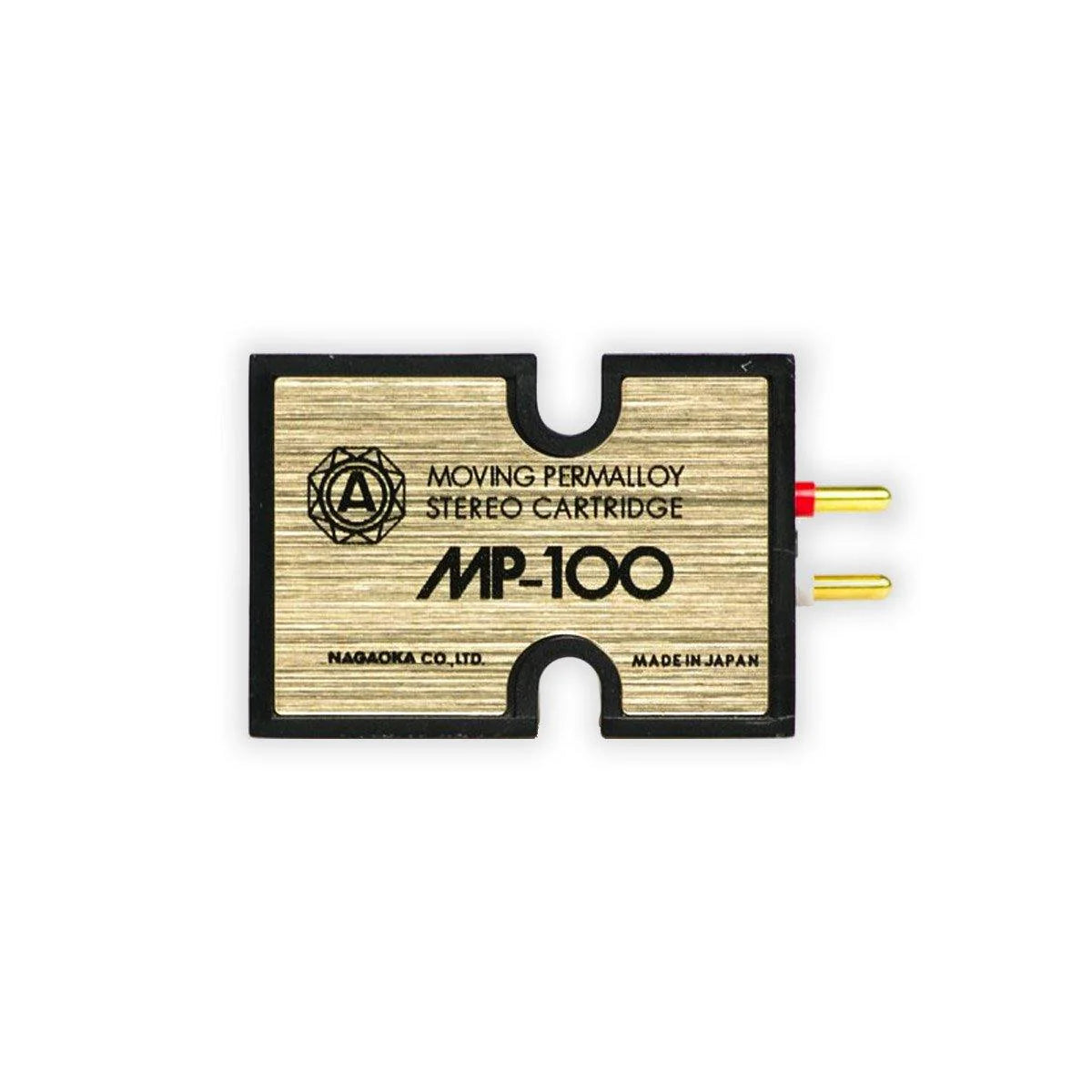

Nagaoka MP-100 Moving Magnet (MM) Cartridge
Nagaoka MP-100 Moving Magnet (MM) Cartridge
Regular price
$169.00 AUD
Regular price
Sale price
$169.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Nagaoka MP 100 is an amazing entry point cartridge in the world of high resolution analogue audio. Offering a cost effective solution with high performance and clear sound reproduction.
The Nagaoka MP-100 phonograph cartridge from Japan offers musical clarity and expression beyond its price and competitors. It's a splendid upward start toward long term musical enjoyment of one treasured vinyl record collection.
The Made in Japan MP-100 record player cartridge utilises a half-inch system with a conical diamond on a lightweight aluminium cantilever.
Features
Features
- Superfine polished conical stylus
- Powerful Samarium Cobalt Magnet
- Lightweight Aluminum Alloy Cantilever
- Reinforced Carbon Fiber pole shoe
- Anti Ferro-Magnetic permalloy shield casing
Specifications
Specifications
- Type: Moving magnet (Permalloy)
- Cantilever: Lightweight aluminum alloy
- Stylus type: Conical diamond with .0006 inch radius
- Weight: 6.5 g
- Output Voltage @ 1kHz, 5cm/sec: 5mV
- Frequency response: 20Hz-20kHz
- Channel balance @ 1kHz: > 2dB
- Channel separation @ 1kHz: > 22dB
- Recommended loading: 47k ohms
- Dynamic compliance: 5.5 x 10-6 cm/dyne
- Static compliance: 18 x 10-6 cm/dyne
- Tracking force range: 1.5 - 2.3 g
- Break-in period: 30 hours
- Stylus replacement:Nagaoka JN-P100
What's in the box
What's in the box
1x Nagaoka MP-100 Moving Magnet (MM) Cartridge
