Musician Draco R2R DAC (Ex-Demo)
Musician Draco R2R DAC (Ex-Demo)
Couldn't load pickup availability
Ex Demo.
Comes with original packaging
Read review here
Musician is a relatively new brand that has quickly built a reputation for producing high-performing R2R DACs at reasonable prices, and Draco comes with the most reasonable price tag yet. Most of the technology has trickled down from the more expensive Musician Pegasus that got high scores here at iiWi reviews. Now the question remains – is Draco a good affordable alternative, or has it sacrificed too much?
Build and Features

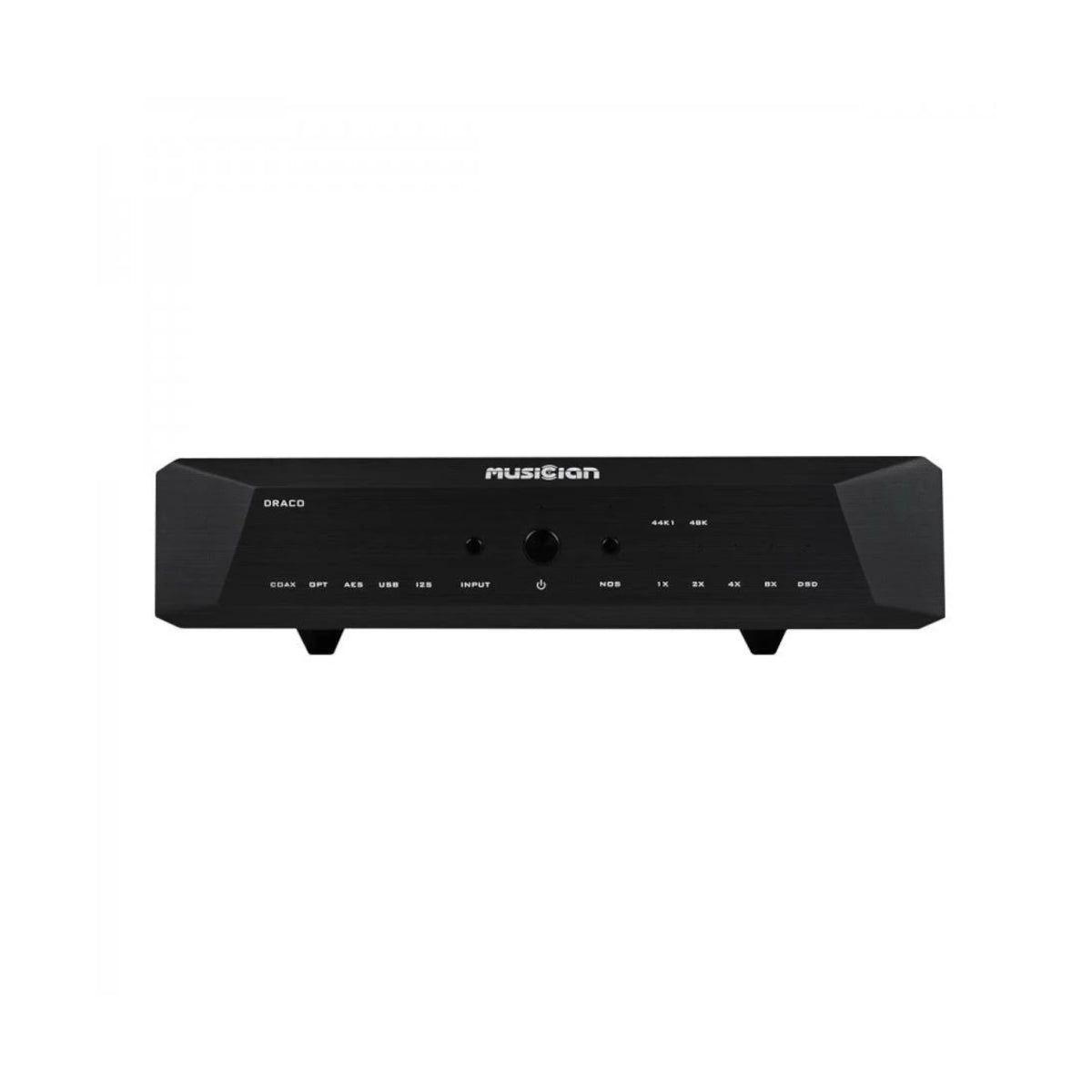

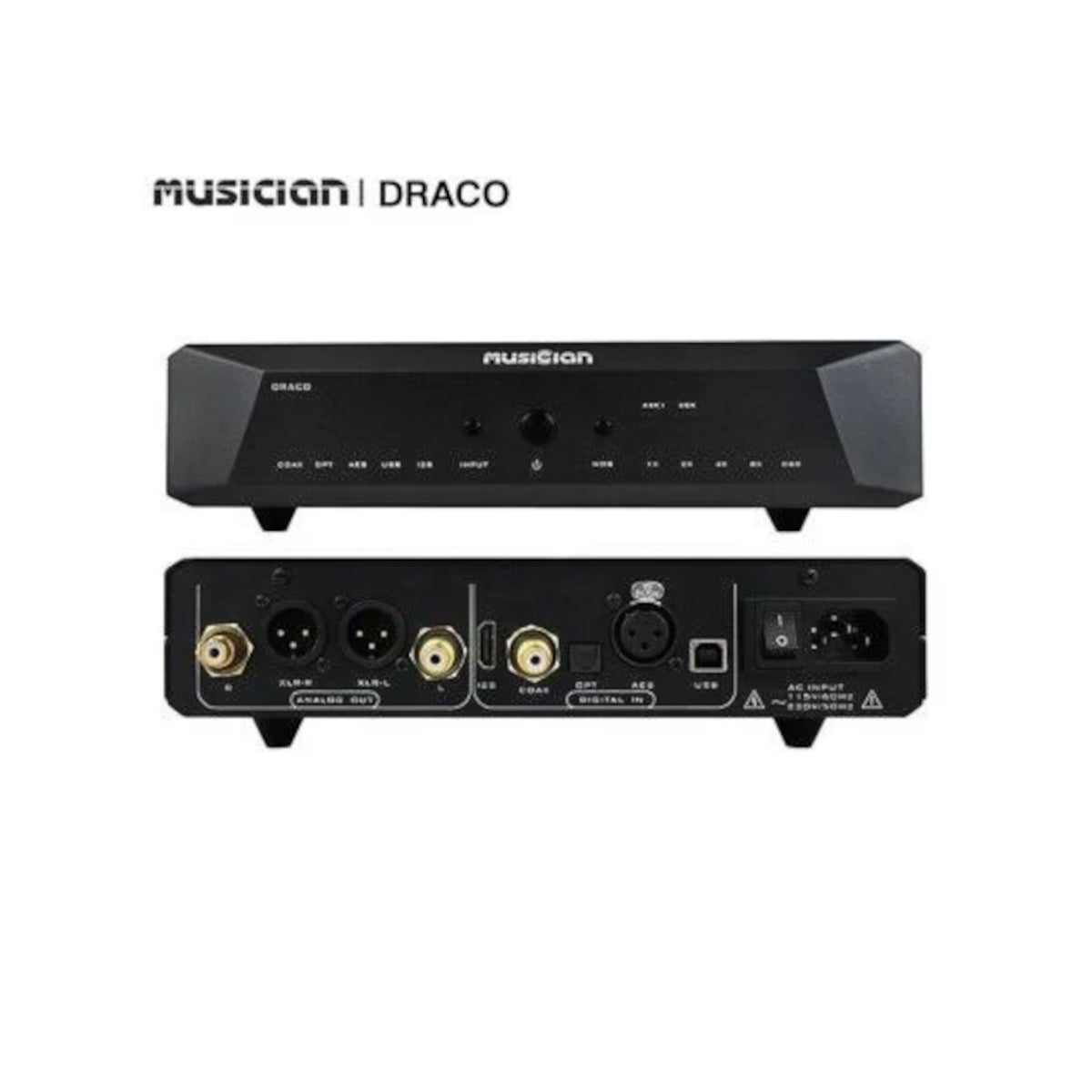

Just like its bigger brother, Musician Draco uses thick aluminium for the front plate. Some savings were made by using thinner metal sheets for the top cover and sides. But make no mistake, this is still a high-quality all-metal build we’re talking about. The front panel is simple with only a few buttons and several red LED indicators. Moving to the back, we can see another cost-saving measure – a gilded IEC power socket sourced from Furutech is gone, and a generic-looking one took its place. That was to be expected however, I don’t think there’s much budget for boutique parts once we go below one thousand dollars price.
Features
Features
Specifications
Specifications
- Product type: DAC R2R
- Inputs
1x USB-B
1x Coaxial
1x Optical Toslink
1x AES/EBU
1x I2S via HDMI LVDS - Outputs
1x Single-ended RCA
1x Balanced XLR - Supported sampling rates
I2S / USB : PCM up to 32bit 1536kHz, DSD up to DSD1024
Others inputs : PCM up to 24bit 192kHz, DSD DoP up to DSD64 - Frequency response 10Hz – 85kHz
Output level
RCA : 1.4 Vrms
XLR : 2.8 Vrms - Supply voltage: 110-240VAC, 50/60Hz
- Consumption ≤ 20W
- Dimensions: 280 x 250 x 50mm
- Weight: 5.5kg
