Musician Aquarius R2R DAC Balanced Output ( Ex Demo)
Musician Aquarius R2R DAC Balanced Output ( Ex Demo)
Couldn't load pickup availability
Ex Demo Stock. When new the Musician is $5,000+.
Warranty 1 year. Read review here
Demo is available on request. Please contact Groove Audio to make an appointment.

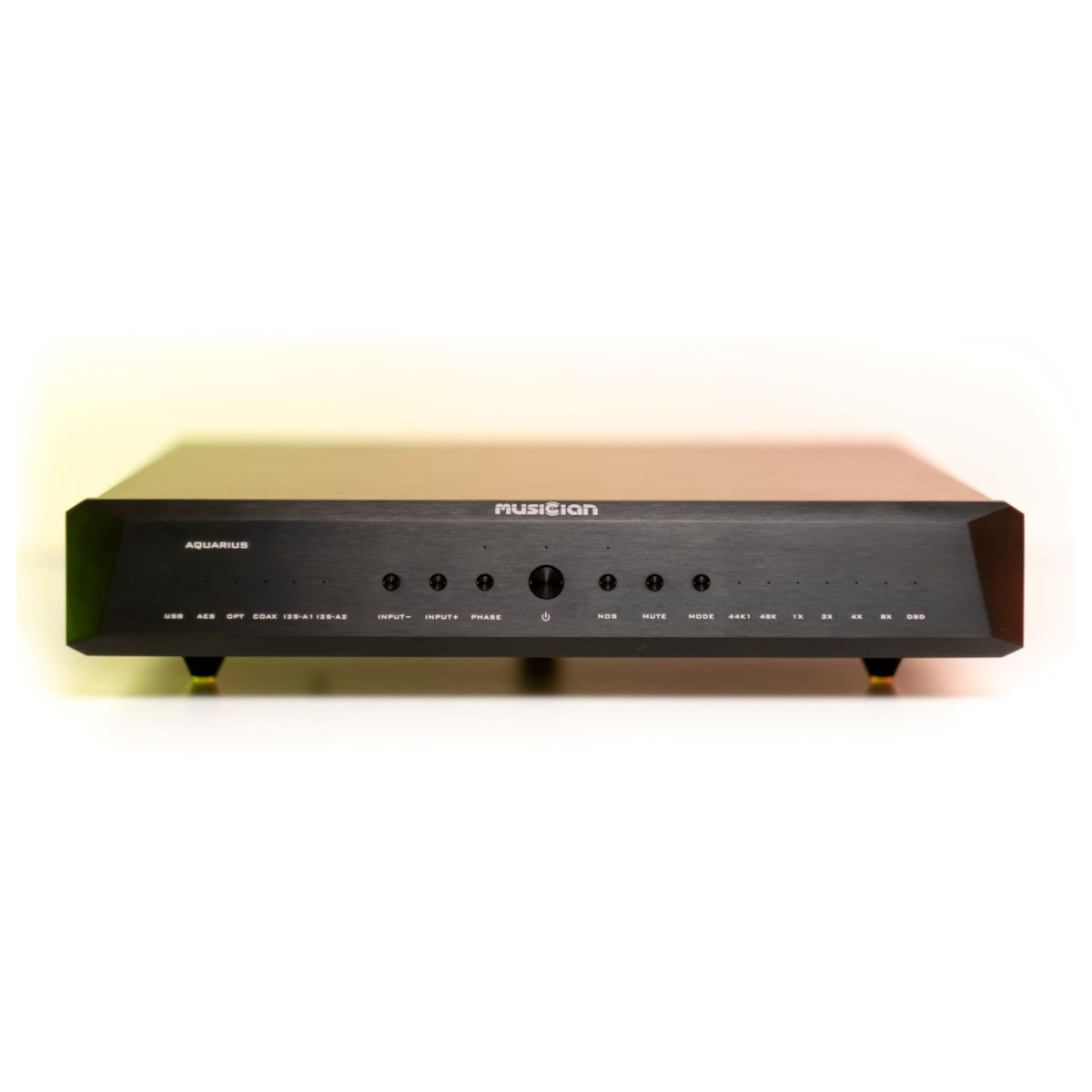

The Musician Aquarius is a fully balanced DAC and as such it offers a pair of XLR and RCA analog outputs which have fixed volume levels.
Fo more information see http://www.musician-audio.com/en/col.jsp?id=134
Features
Features
Dual crystal oscillator design accurately restore audio signals with different sampling rates, greatly reducing jitter and significantly improving stability.
Specifications
Specifications
Technical Highlights
Proprietary R2R + DSD Architecture
True balanced 24BIT R2R + 6BIT DSD (32 steps FIR Filters)
Adopt 0.005% precision resistanceConstant temperature twin crystal oscillator design
Low distortion, Low Noise Power Supply
O-type single crystal copper transformer
FIFO Buffer
Digital Signal Processing via FPGA
DSD1024, PCM1536 Supports On USB & I2S Input (the audio source needs to be compatible with the native interface)
Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU
Licensed Thesycon USB Driver For Windows Platform
Driverless On Mac & LinuxDSD
DSD64-DoP On All Input
DSD1024 On USB & I2S Input
PCM
24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input
1536kHz On USB & I2S InputSampling Mode: Non-Oversampling NOS / Oversampling OS
Digital Input

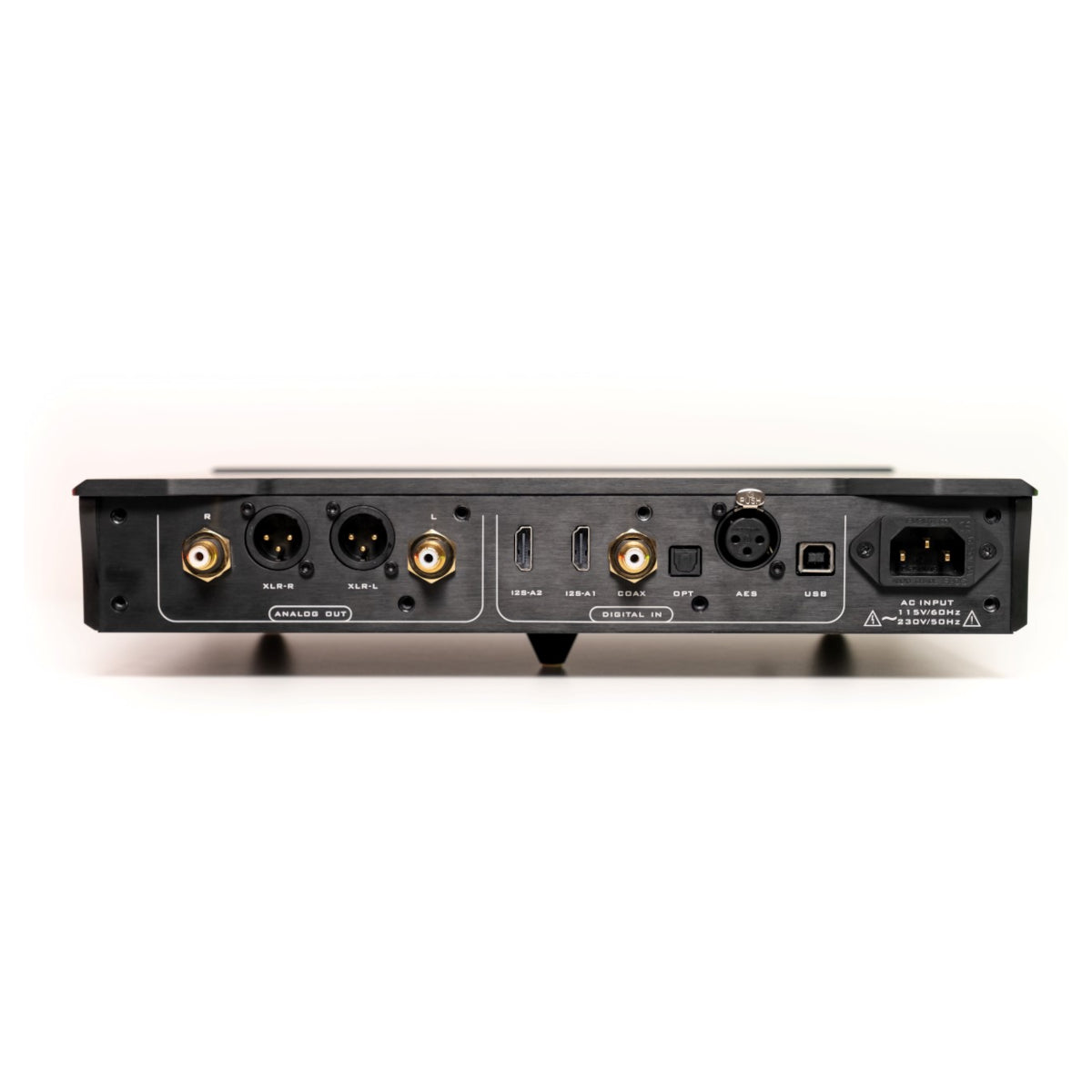

USB * 1 , AES/EBU * 1 , Optical * 1 , Coaxial * 1 ,I2S* 2Analog Output
RCA * 1 , XLR * 1Unit Size:330*300*60mm
Unite Weight:5.8KG
Packing weight
7.35KG
What's in the box
What's in the box
Aquarius
Box
Manual
