Microphase Audio Design

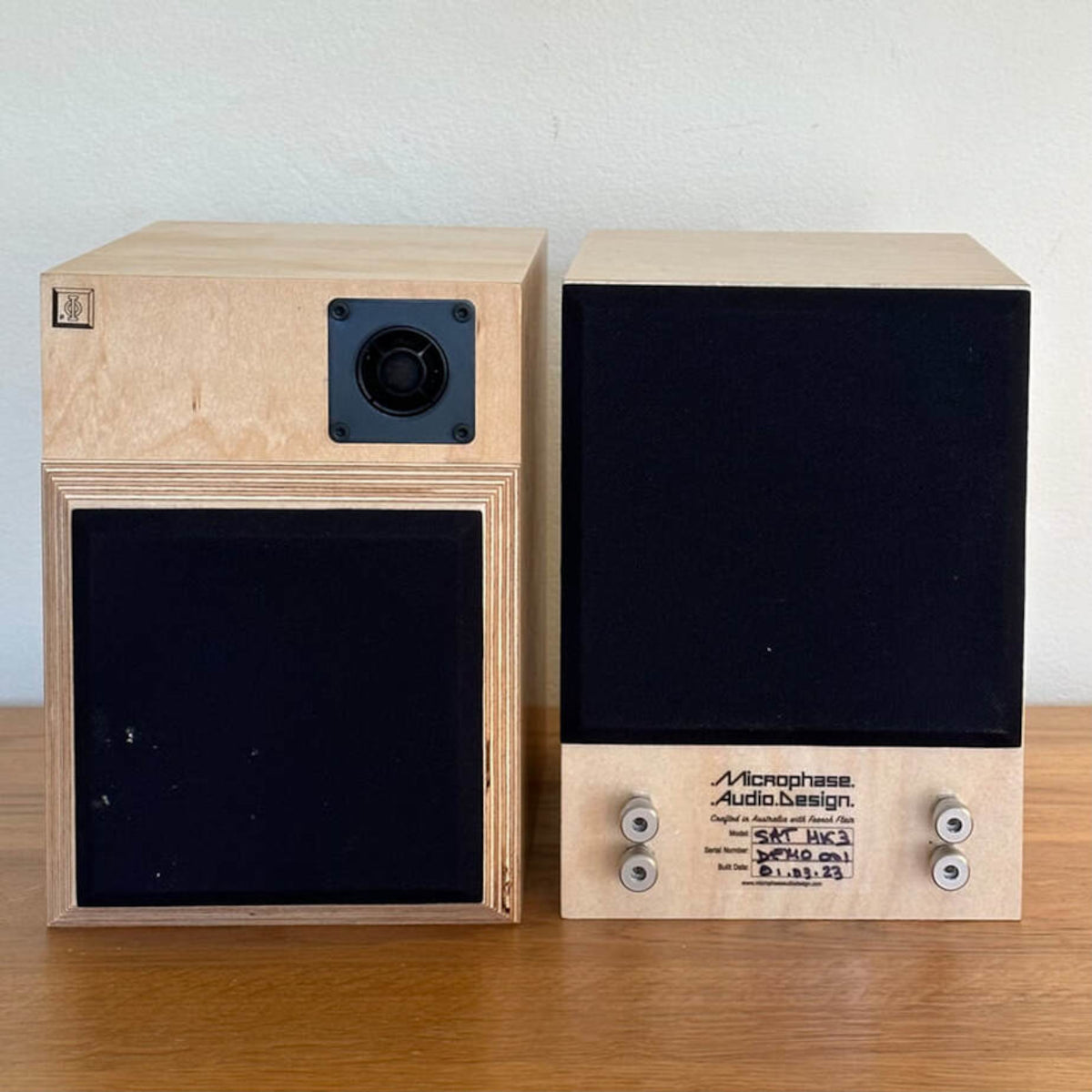

Microphase Audio Design SAT MK3.3 Bookshelf Speakers
Microphase Audio Design SAT MK3.3 Bookshelf Speakers
Regular price
$5,500.00 AUD
Regular price
$6,270.00 AUD
Sale price
$5,500.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
With the obsolescence of our top of the range SAT MK2 due to difficulties in sourcing its back driver in small quantities, we are moving up in a slightly bigger cabinet than the SAT MK1 and MK2, giving us the ability to upgrade the midrange to 13cm - instead of 11cm - and use a 17cm at the back with the same look as the front driver, both being made specially for us by renowned French driver manufacturer AUDAX.
New Specifications | SAT MK3.3
3-way miniature monitor, with bi-wiring and time aligned tweeter in a marine grade birch plywood cabinet with a clear polyurethane finish.
The main full range driver - 13cm - has a paper membrane and phase plug specially designed for us by AUDAX in France. The back driver is a 17cm also from Audax with a paper cone specially assembled for MAD. The tweeter is from Audax as in the MK1 and with a new 3D printed faceplate designed in house. No expenses spared in this product with all crossover components from reputable German manufacturer Mundorf, French SCR and USA designed Dayton Audio.
The main full range driver - 13cm - has a paper membrane and phase plug specially designed for us by AUDAX in France. The back driver is a 17cm also from Audax with a paper cone specially assembled for MAD. The tweeter is from Audax as in the MK1 and with a new 3D printed faceplate designed in house. No expenses spared in this product with all crossover components from reputable German manufacturer Mundorf, French SCR and USA designed Dayton Audio.
Features
Features
Specifications
Specifications
- Dimensions : 180x250x250mm
- Frequency response: 70Hz - 20KHz +/- 6 dB
- Efficiency: 90dB/1W/1m
- Phase: +/- 18 degrees from 20Hz to 20KHz
- Impedance: Nominal 4 ohms
- Crossover frequencies: 400Hz@12dB/oct | 4KHz@ 12dB/oct, Linkwitz-Riley phase alignment
- Power handling: 100W
