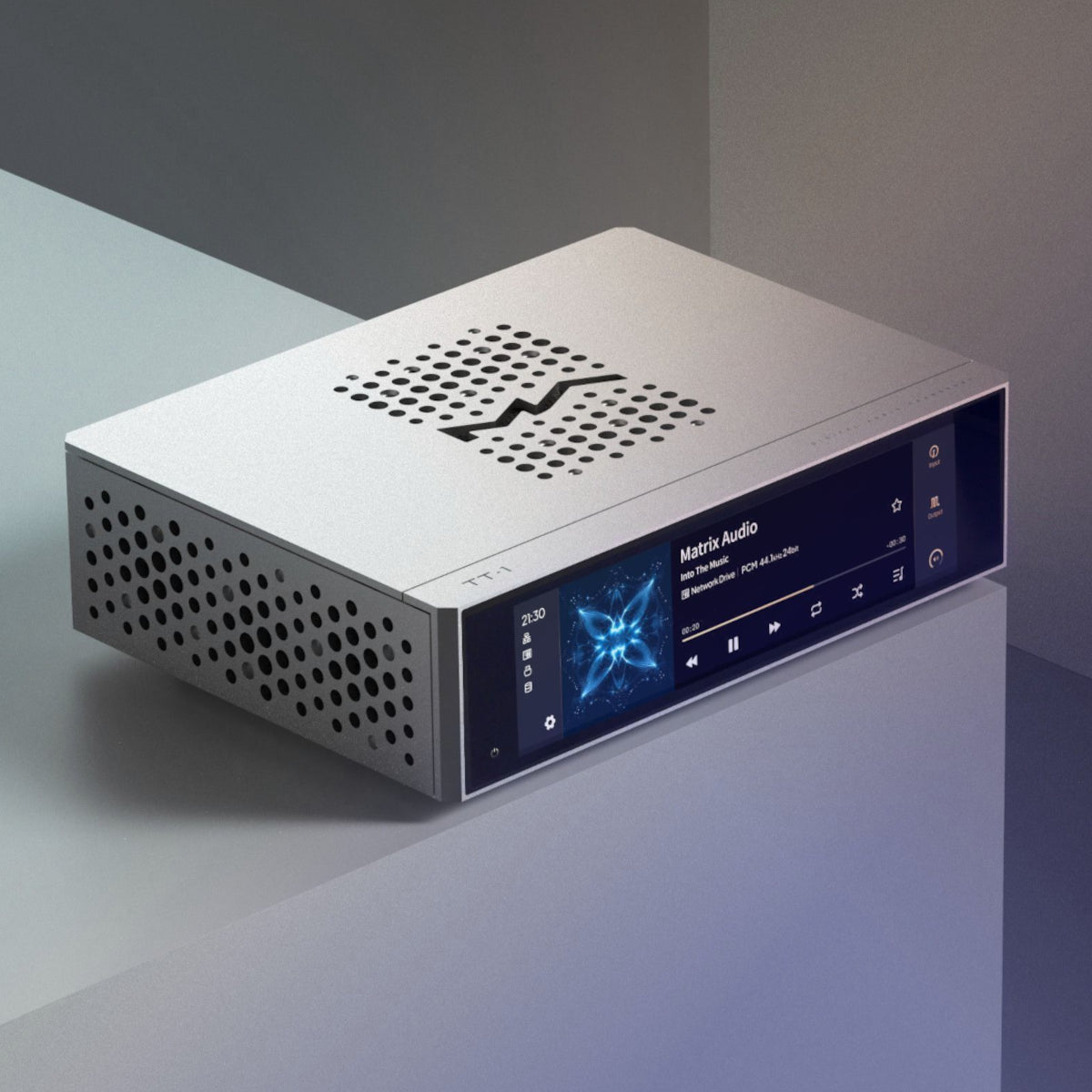

Matrix Audio TT-1 Digital Audio Streaming Transport (Pre-Order)

Name: Matrix Audio TT-1 Digital Audio Streaming Transport (Pre-Order)
Brand: Matrix Audio
Price: 3199.00 AUD
Availability: InStock

$3,199.00 AUD

Sale Sold out

Shipping calculated at checkout.

Quantity

Matrix Audio TT-1 is a mid-range digital audio streaming transport from Matrix Audio. Equipped with the same Hi-Fi streaming hardware as the M Series, with a powerful core upgrade and a next-level display enhancement, it delivers a brand-new experience that captivates both your ears and eyes.

Inheriting the essence of Matrix Audio's core technologies, it also enables options for future upgrades. Whether you are an audiophile seeking enhanced sound quality or an advanced audio enthusiast looking to elevate your digital music, the TT-1 is an excellent digital source for your audio system.

• Hi-Res Music Streamer & Digital Transport

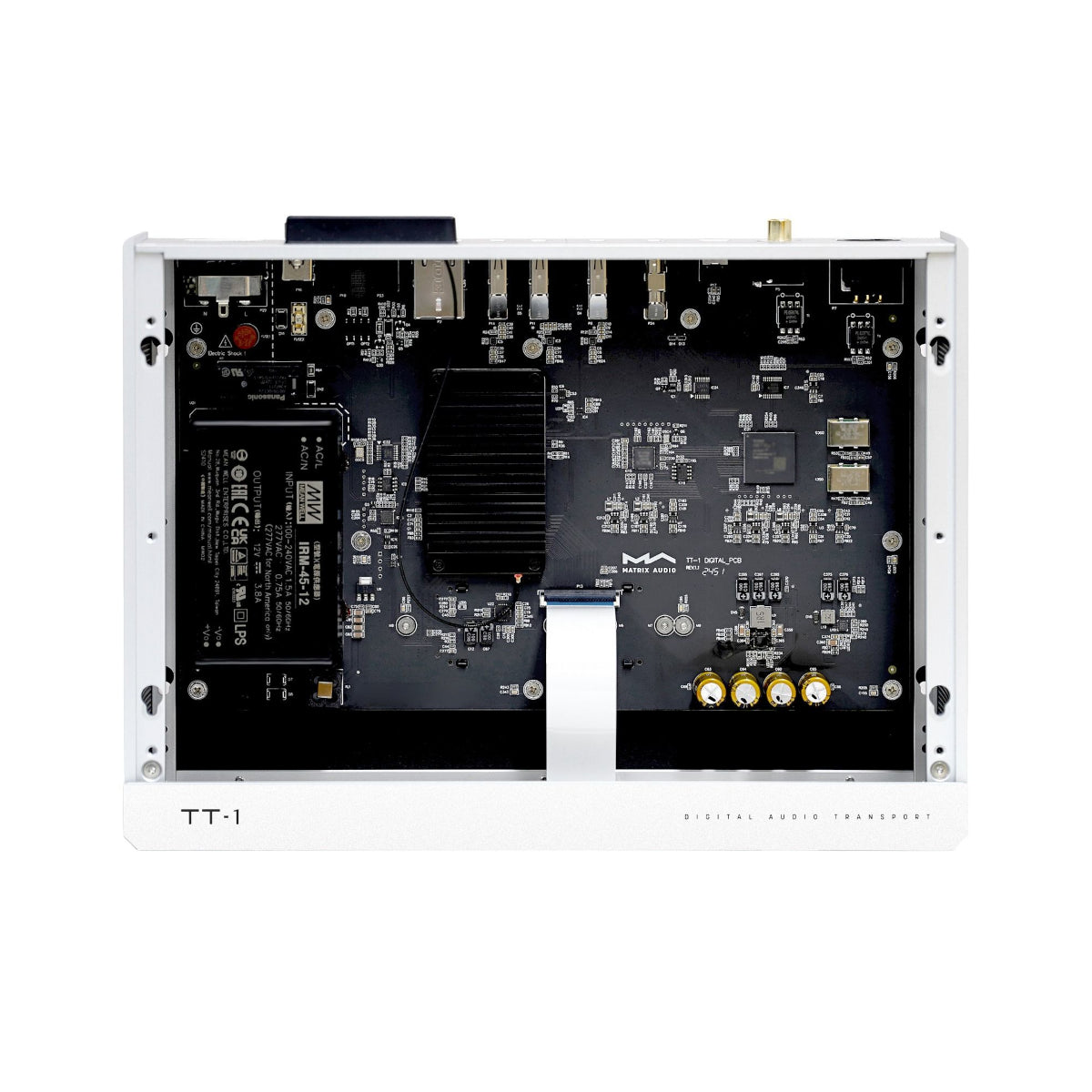

• Dual Femtosecond Clocks Powered by Independent Low-Noise Linear Regulators

• Digital outputs: COAXIAL, OPTICAL & AES/EBU, IIS LVDS & USB DAC

• Supports Optional M.2 NVMe SSD Drives & USB Mass-storage

Features

• Hi-Res Music Streamer & Digital Transport
• Dual Femtosecond Clocks Powered by Independent Low-Noise Linear Regulators

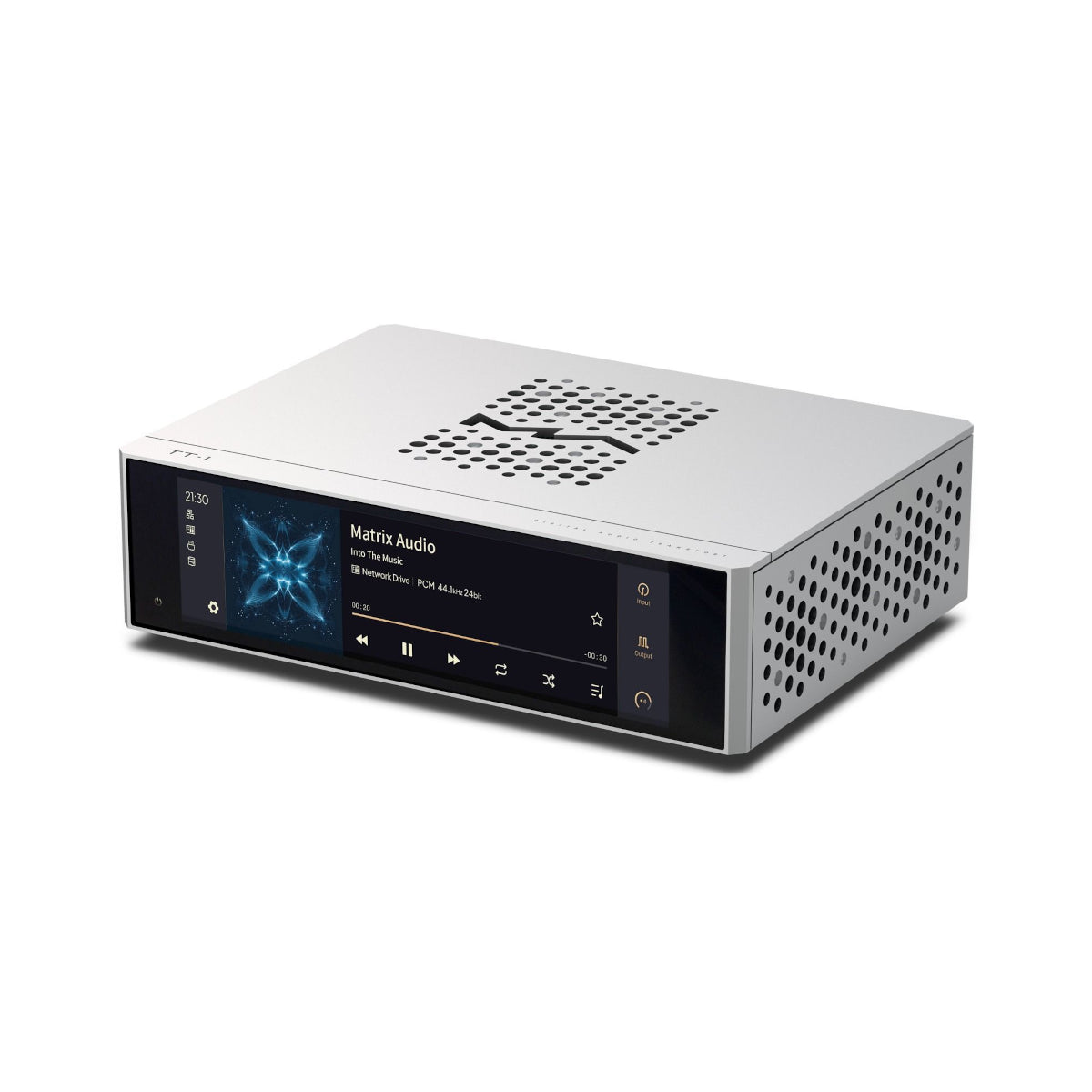

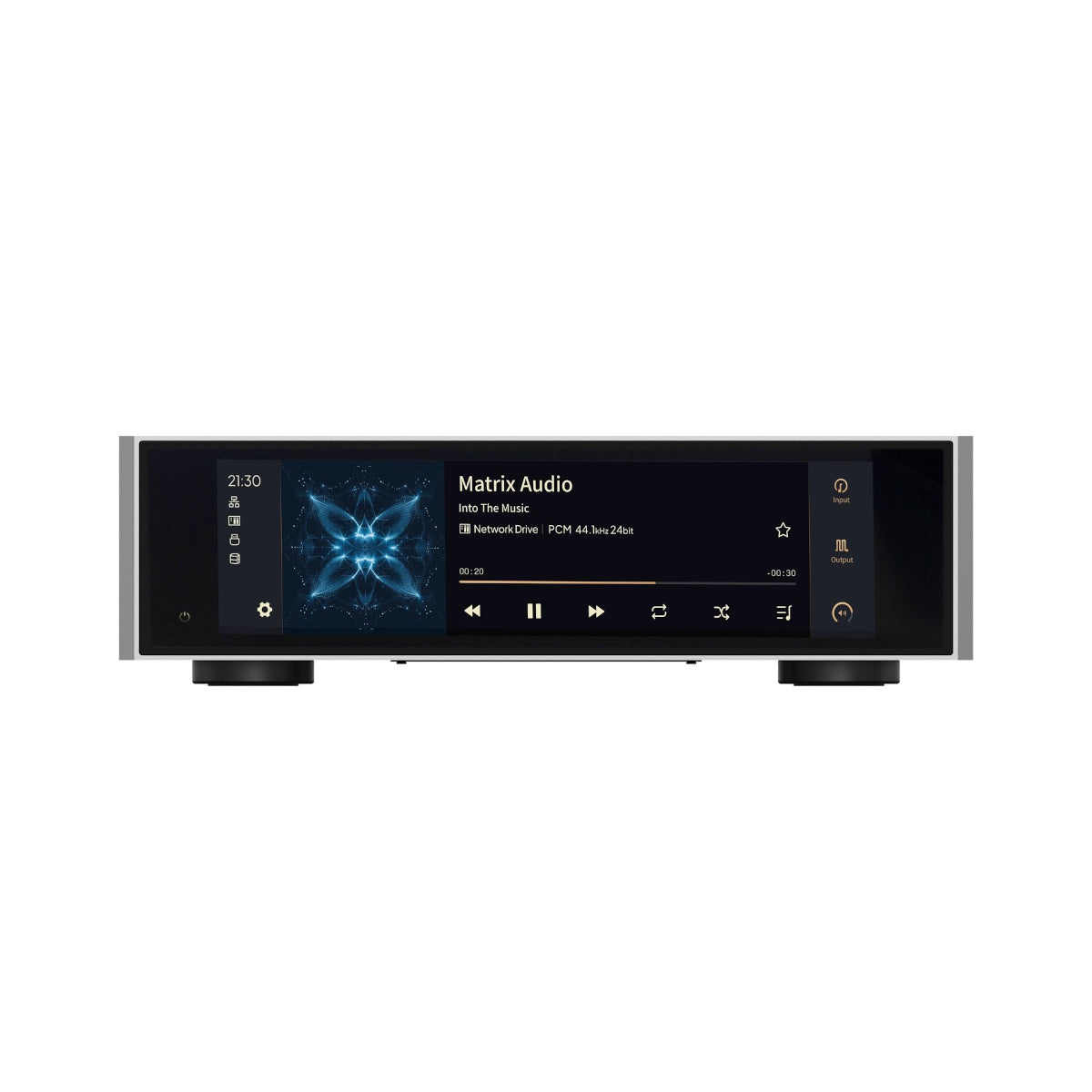

• Large Colour Touch Screen Display
• Option For Linear Power via DC In

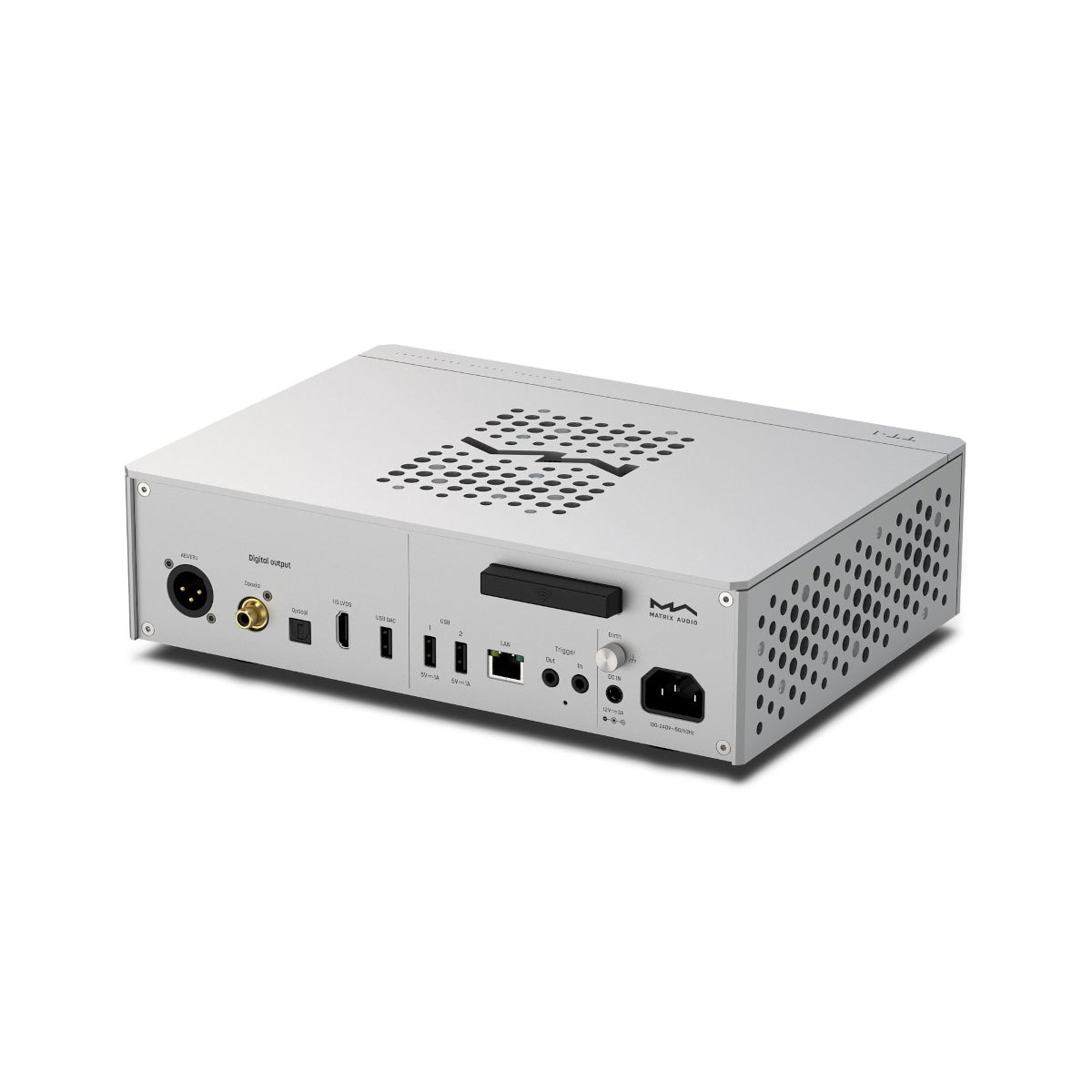

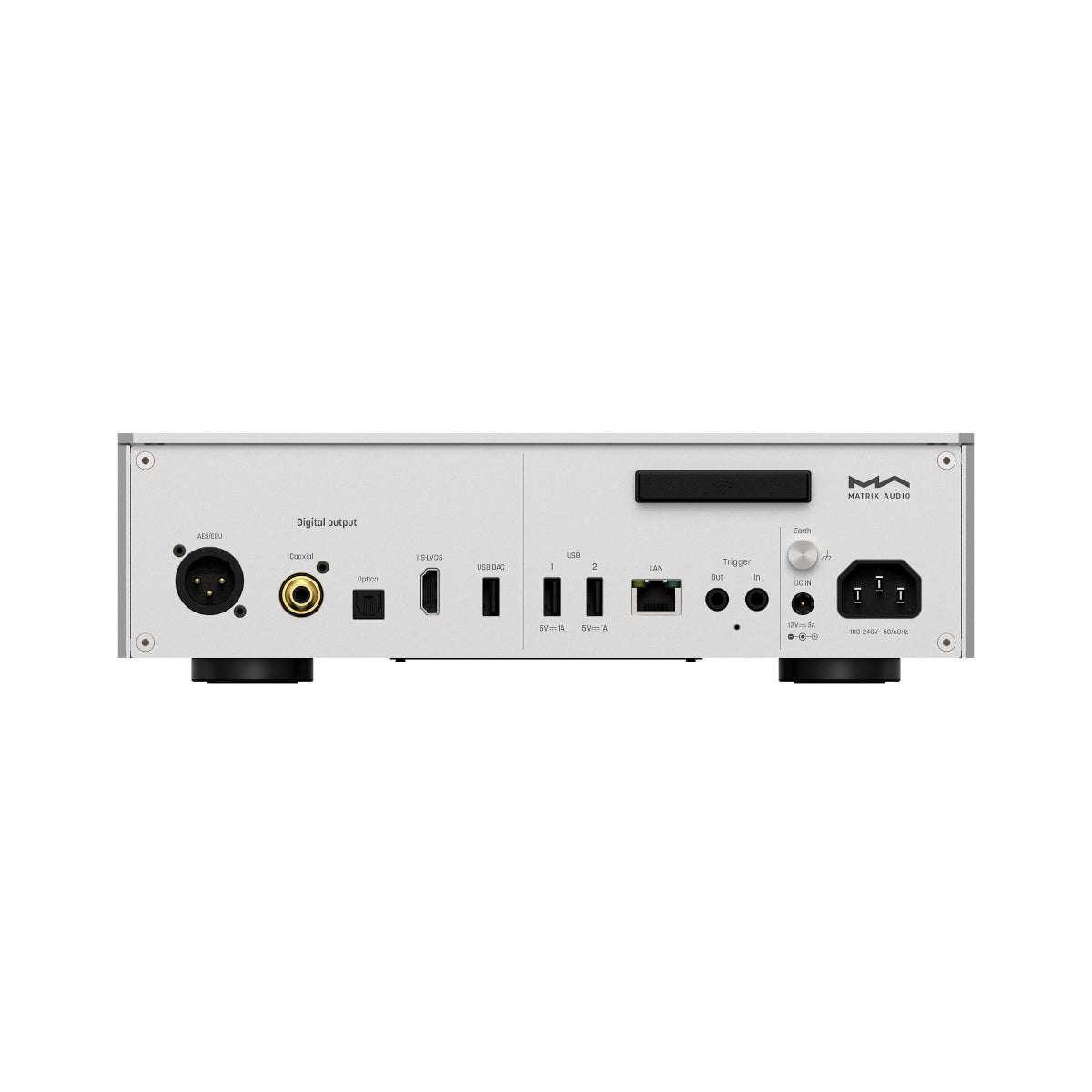

• Digital outputs: COAXIAL, OPTICAL & AES/EBU, IIS LVDS & USB DAC
• Supports Playback of Files up to PCM 768kHz, DSD 24.58MHz
• Supports Roon Ready, AirPlay 2, DLNA/UPnP, TIDAL Connect, Spotify Connect, vTuner etc
• Supports Optional M.2 NVMe SSD Drives & USB Mass-storage
• Playback Local Music File from USB & NAS Storage Devices
• Gigabit Ethernet & Dual-Band Wi-Fi
• New "Matrix Design" language
• Elegant Industrial Design & Refined Build Quality

Specifications

Digital Output

COAXIAL, OPTICAL & AES/EBU
• PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
• DSD 2.8MHz (DoP)

IIS LVDS
PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz

USB DAC
• Depends on the specifications supported by the connected USB DAC device. Not higher than PCM 32Bit/768kHz and DSD 24.58MHz.
• The USB DAC port provides a maximum of 5V/1A low-noise power supply.

Network

LAN
10/100/1000 Mbps

WLAN
2.4 GHz / 5 GHz

USB

USB 3.0 x 2
• The USB port provides a maximum power of 5V/1.5A.
• The USB port works with devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT, and NTFS file formats, but is not guaranteed to be compatible with all storage devices.

MA Player

Controller App
MA Remote App

Local Playback
• MP3, WMA, WAV, AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF, CUE, ISO
• PCM 16-24Bit 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
• DSD 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz, 24.58MHz

Roon Ready
• PCM 16-24 Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
• DSD 2.82MHz, 5.64MHz, 11.29MHz, 22.58MHz

AirPlay 2
The audio specs depend on the service provider

DLNA/UPnP
The audio specs depend on the service provider

TIDAL Connect
The audio specs depend on the service provider

Spotify Connect
The audio specs depend on the service provider

vTuner
The audio specs depend on the service provider

Radio Paradise
The audio specs depend on the service provider

Trigger

Trigger In
DC 6-12V<10mA

Trigger Out
DC 12V/50mA MAX

SSD Storage Expansion

SSD Storage Slot
• M.2 2280 2260 2242 NVMe PCIe SSD slot x 1
• The maximum power specification provided by the expansion slot is DC 3.3V3A.

Power Specs

AC Input
• Wide voltage switching power supply
• Power Voltage: AC 100V-240V 50/60Hz
• Power Consumption: < 35W

DC Input (Optional)
• External power voltage: DC 12V ±10%
• External power wattage: Larger than 35W
• Power plug: Outer diameter 5.5mm; inner diameter 2.1mm (+ for inner, - for outer)
