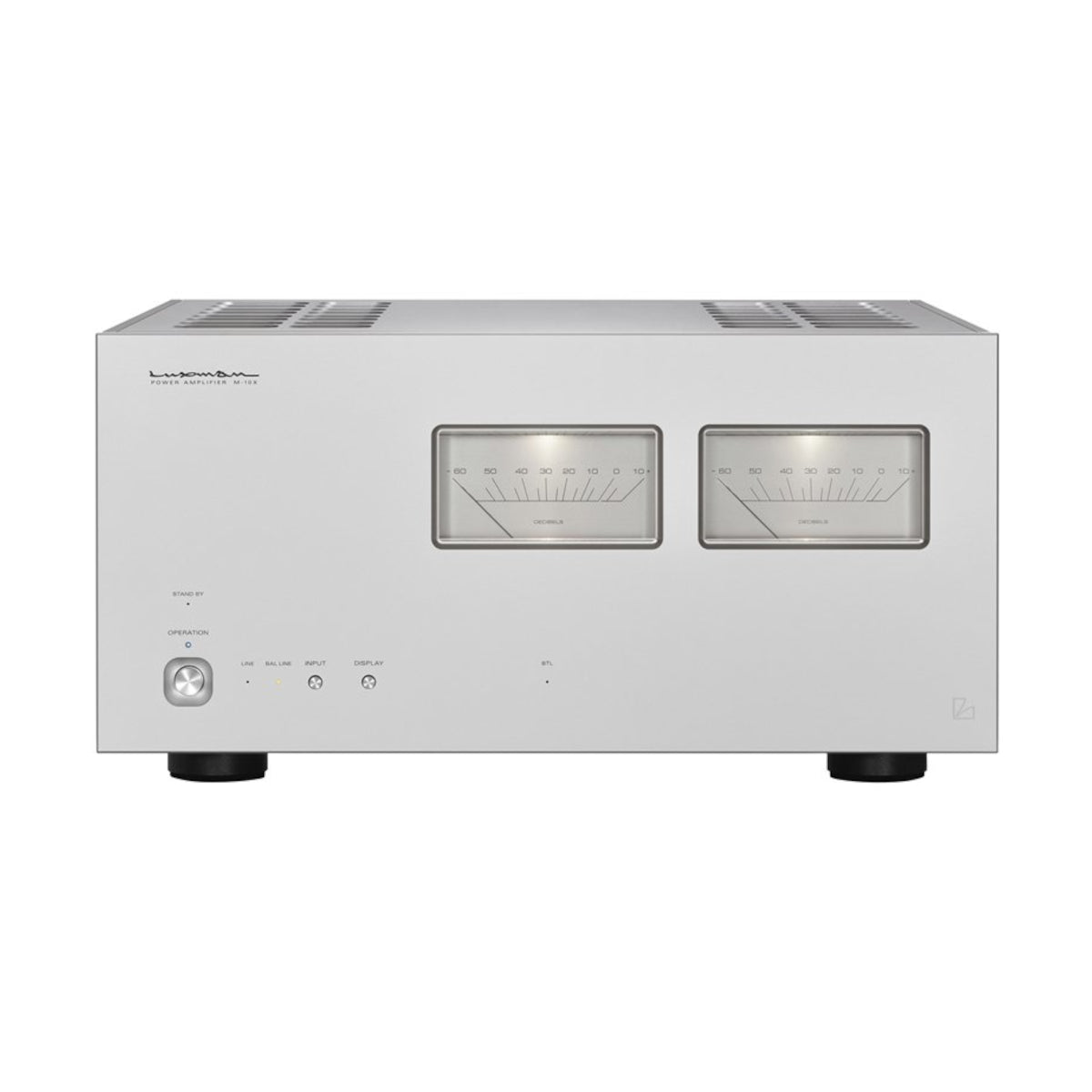

LUXMAN M-10X Stereo Power Amplifier - Silver

LUXMAN M-10X Stereo Power Amplifier - Silver

$24,999.00 AUD
$24,999.00 AUD
Sale Sold out
Shipping calculated at checkout.

Product Overview

  • Solid State Power Amplifier
  • Amplified feedback engine that brings music to life LIFES Version 1.0
  • Overwhelming power linearity and instantaneous max power output of 1200W x 2 into 1 ohm
  • Analog meters that express the dynamics of music
  • Highly regulated transformer

Looking ahead to the 100th anniversary of our founding in 2025, we have returned to the fundamentals of music playback and have finally achieved a LUXMAN milestone, while still looking toward the future, we present our new generation flagship stereo power amplifier, the M-10X. The most important innovation is the realisation of our new amplification feedback engine LIFES, which has been developed and refined through the skillful attention of LUXMANs technical team. While based on our traditional ODNF technology, we implemented a fundamental review of the system and every detail from the layout down to individual components which all contribute to a rich musicality, full of vitality. High performance drivability enhances playback through any speaker system.A beautiful chassis housing design, with blasted white finish, is proudly complimented with proper analog meters.This exquisite flagship model, the M-10X, can evoke what we mean by the true depth of sound, marking the beginning of a new era for LUXMAN.

Features

  • Solid State Power Amplifier
  • Amplified feedback engine that brings music to life LIFES Version 1.0
  • Overwhelming power linearity and instantaneous max power output of 1200W x 2 into 1 ohm
  • Analog meters that expressc the dynamics of music
  • Highly regulated transformer

Specifications

  • Rated output : 150W + 150W (8Ω)/at stereo 300W + 300W (4Ω)/at stereo 600W (8Ω)/at monaural
  • Instantaneous max. output: 1,200W + 1,200W (1Ω)/at stereo2,400W (2Ω)/at monaural
  • Input sensitivity : 1.24V/150W (8Ω) Gain 29dB
  • Impedance : Unbalanced 51kΩ Balanced 28kΩ
  • Frequency response : 20Hz to 20kHz (+0, -0.1dB) 1Hz to 130kHz (+0, -3.0dB)
  • Total harmonic distortion : 0.003% or less (1kHz/8Ω)0.04% or less (20Hz to 20kHz/8Ω)
  • S/N ratio (IHF-A)117dB
  • Amplification feedback circuit LIFES 1.0
  • Output configuration : 3 stage Darlington 4 paralleled push-pull
  • Damping factor : 600
  • Power consumption : 540W 290W (under no signal)1.0W (at standby)
  • External dimensions : 440(W) x 224(H) x 488(D) mmfront side knob of 2mm and rear side terminalof 38 mm included in depth
  • Net weight : 48.4kgAccessories
  • Trigger cable (Modular/3.5mm Monaural) Power cable
  • Speaker terminal Supported Y-lug terminaldimension
  • Width of Part A: 14 mm or less
  • Width of Part B: 7 mm or more*
  • Connection may not be performed depending on the shape of theY-lug terminal.

What's in the box

1 x LUXMAN M-10X

Manual

Power Cord
