Luxman

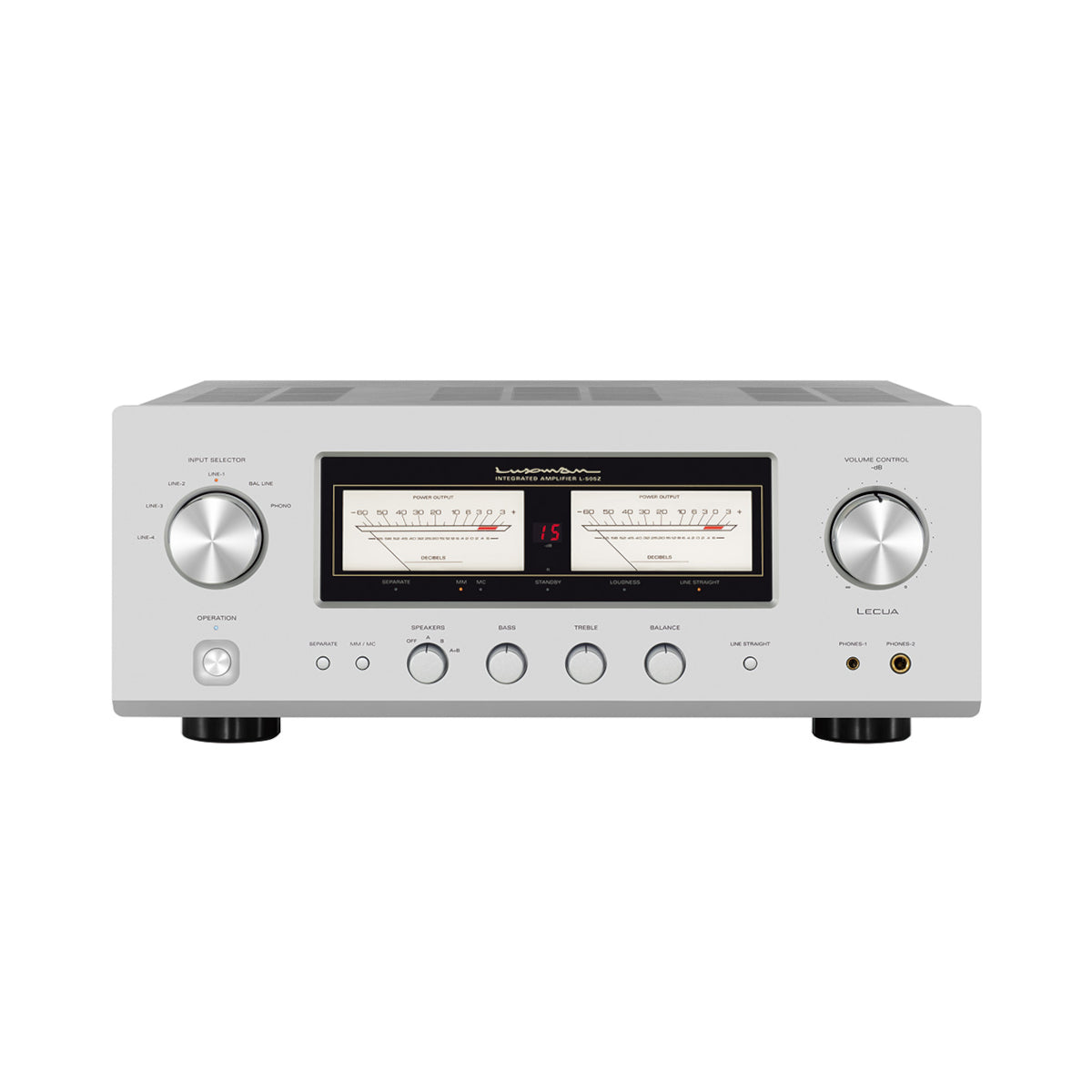

LUXMAN L-505Z Integrated Amplifier - Silver

LUXMAN L-505Z Integrated Amplifier - Silver

Regular price $9,999.00 AUD
Regular price Sale price $9,999.00 AUD
Sale Sold out
Shipping calculated at checkout.

Designed in honor of our L-505 amplifier, which continues to fascinate many audio enthusiasts as possibly our most familiar hi-fi model and equipped with our newly developed “LIFES” amplifier feedback engine, which is at the core of LUXMAN’s contemporary designs, we would like to complete the Z series circle with the L-505Z. While inheriting all the high-quality sound and design know-how from our higher-end models, it has achieved even more as a multifunctional integrated amplifier. Redefining the standard and now entering a new era, the L-505Z invites you into the world of exciting high-end audio.

Luxman L-505Z is the newest integrated amplifier in the Z series. The L-505Z replaces the L-505UXII, which was superseded in 2022. This sits just below the L-507Z and produces 2 x 100 watts into 8ohm.



Features

  • Class A/B Solid State Integrated Amplifier
  • Our latest amplification feedback engine brings music to life with LIFES Version 1.0
  • Large needle VU level meter and 7-segment LED
  • Headphone terminals with independent grounding
  • High stability power supply
  • 100 watts x2 (8 ohms) or 150 watts x2 (4 ohms)

Specifications

  • Rated output : 100W + 100W (8Ω),150W + 150W (4Ω)
  • Input sensitivity/input impedance
  • PHONO (MM): 2.5mV/47kΩPHONO (MC): 0.3mV/100Ω
  • LINE: 180mV/47kΩBAL.
  • LINE: 180mV/55kΩ
  • MAIN IN: 1V/47kΩ
  • Output voltagePRE OUT: 1V
  • Frequency response
  • PHONO: 20Hz to 20kHz (±0.5dB)
  • LINE: 20Hz to 100kHz (within -3dB)
  • Total harmonic distortion : 0.009% or less (8Ω, 1kHz)0.09% or less (8Ω, 20Hz to 20kHz)
  • S/N ratio (IHF-A) PHONO (MM): 87dB or morePHONO (MC): 70dB or more
  • LINE: 104dB or more
  • Volume adjustment : LECUA
  • Amplification feedback circuit : LIFES 1.0
  • Output configuration : Bipolar parallel push-pull
  • Damping factor : 200
  • Max. amount of tone control
  • BASS: ±8dB at 100Hz
  • TREBLE: ±8dB at 10kHz
  • Power supply230V~(50Hz) / 115V~(60Hz)
  • Power consumption : 330W 90W (under no signal), 0.5W (at standby)

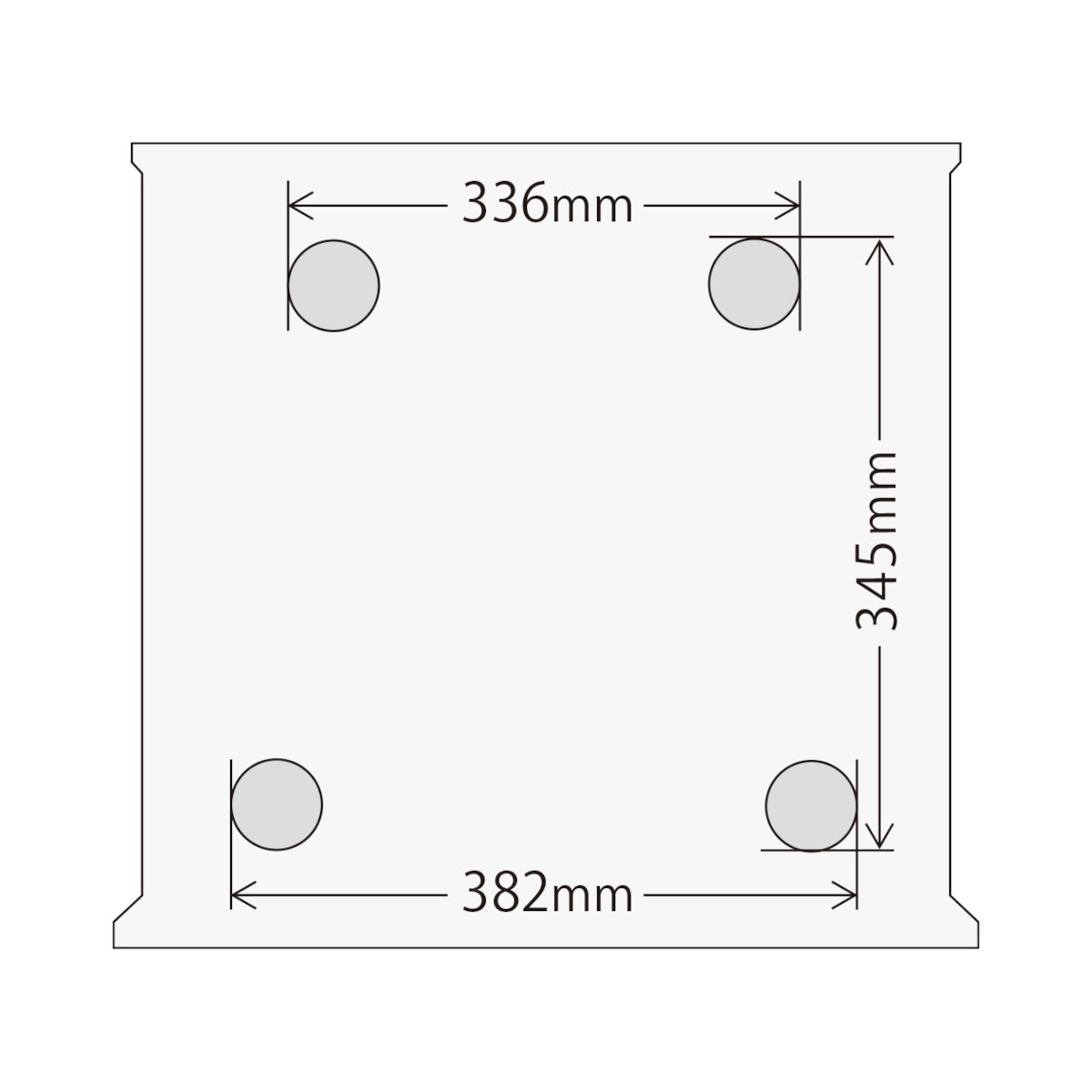

  • External dimensions : 440(W) x 178(H) x 454(D) mmfront side knob of 20mm and rear side terminalof 27mm included in depth
  • Net weight : 22.5kg (main unit)
  • Accessories

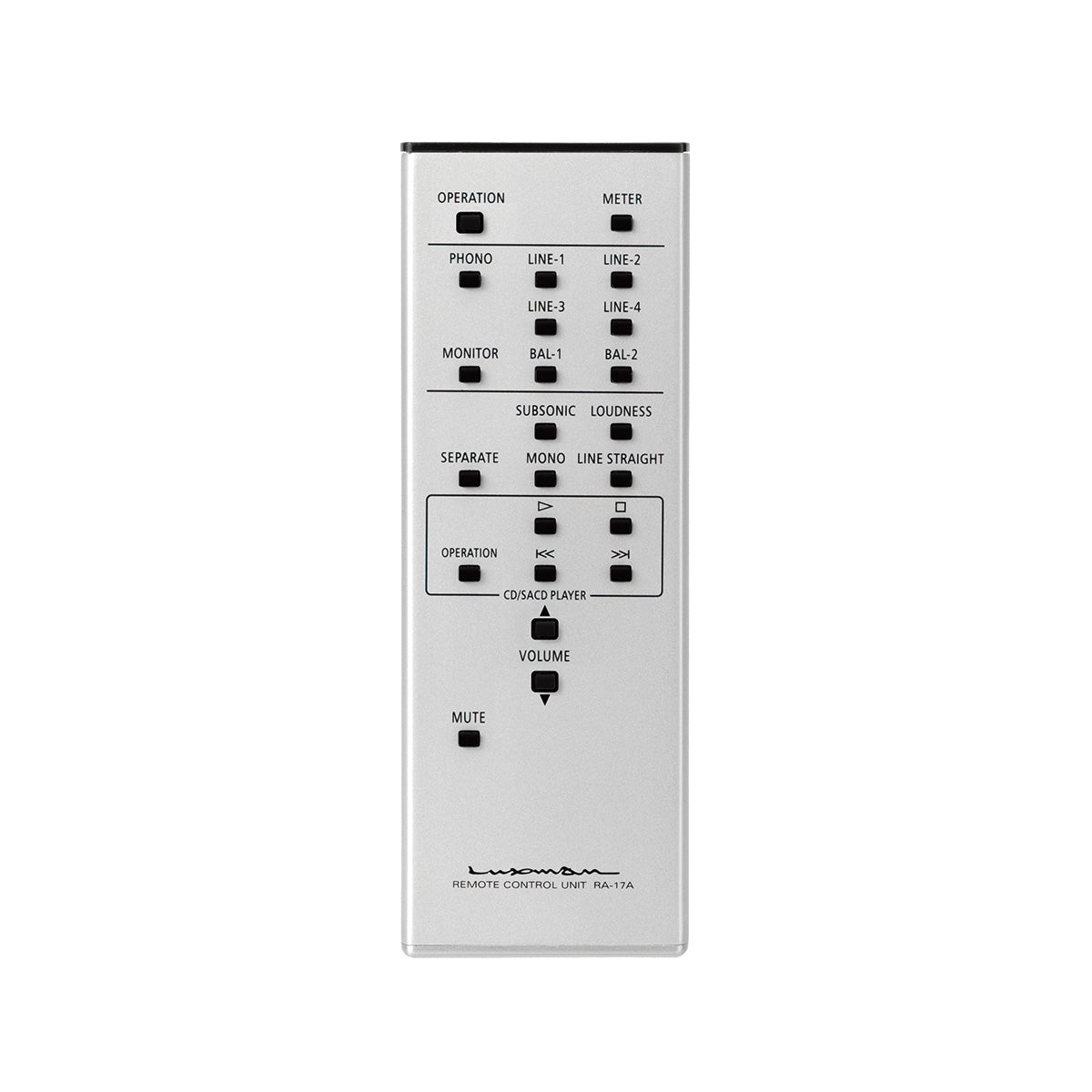

  • Remote control (RA-17A)
  • Power cable
  • Speaker terminal : Supported Y-lug terminal dimension Width of part a: 15mm or less
  • Width of part b: 8mm or more

What's in the box

  • L505Z
  • Remote control (RA-17A)
  • Power cable
