LUXMAN

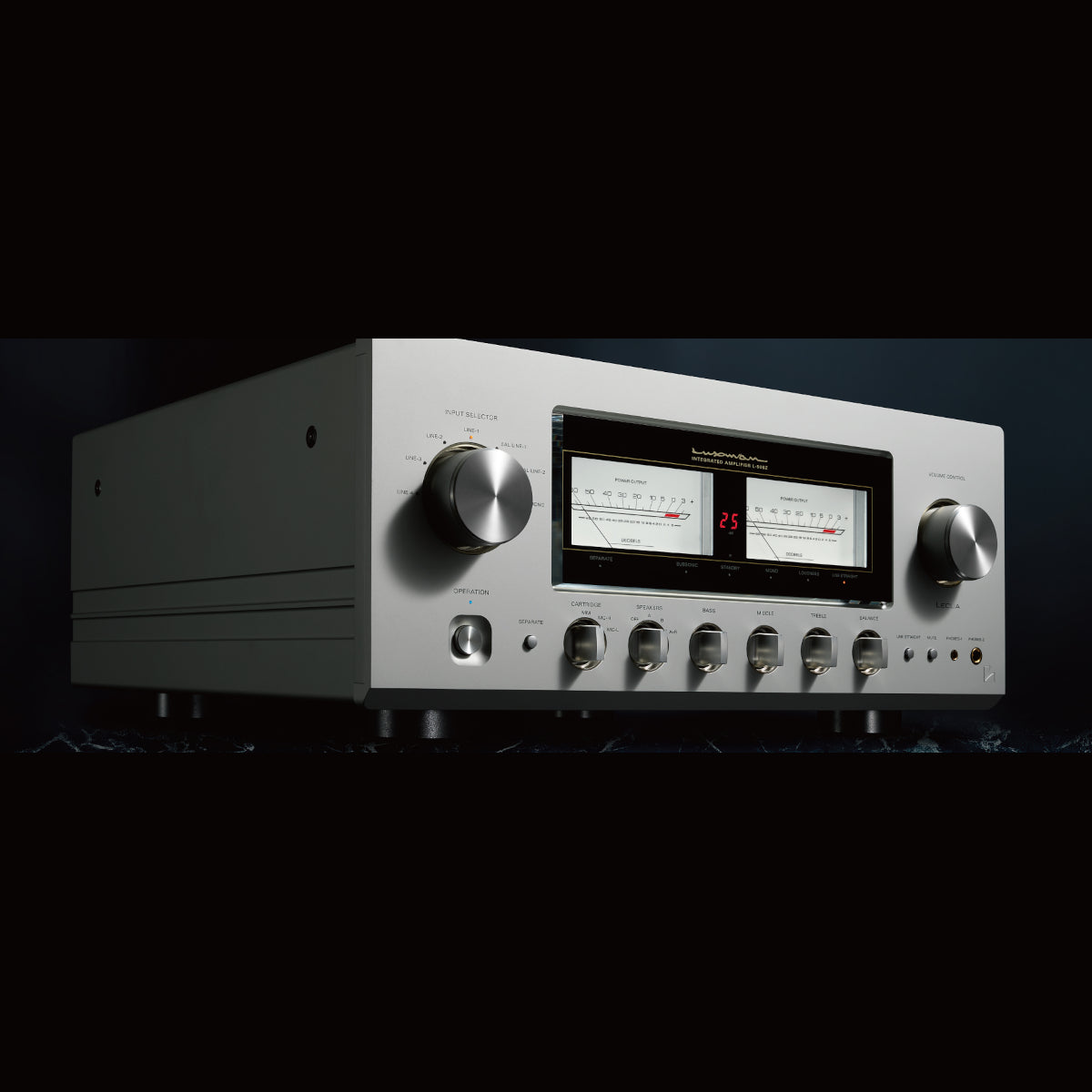

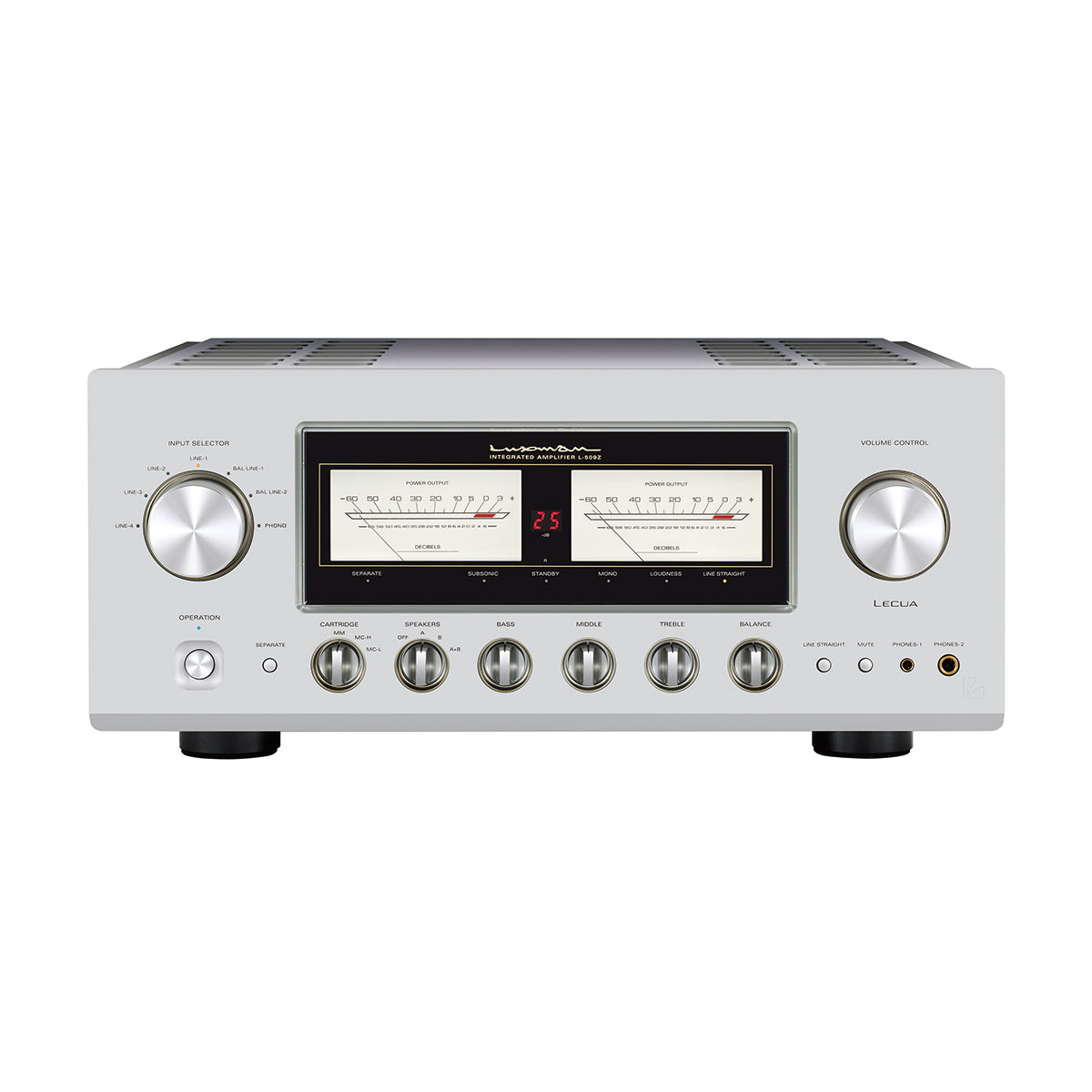

LUXMAN L-509Z Integrated Amplifier - Silver

LUXMAN L-509Z Integrated Amplifier - Silver

$18,499.00 AUD
$18,499.00 AUD
Sale Sold out
Shipping calculated at checkout.

Introducing our next-level “single-chassis separates” concept, pursuing the ideal with a new, all-in-one flagship amplifier. Taking our Z-Series integrated amplifiers to a performance peak. As the premium model for the new Z-Series generation, the L-509Z has evolved beyond the concept of a traditional integrated amplifier. Both the preamplifier and power amplifier sections simultaneously use our new generation amplification feedback engine “LIFES” for the first time. The volume control is supported by our new “LECUA-EX” attenuator system that suppresses sound quality deterioration and realises a more precise feel of operation. The “single-chassis separates” concept, which aims for the ultimate in integrated amplifiers, now achieves unprecedented performance. Pursuing the ideals of audio enthusiasm, we are combining our passion for music with improved technology. The L-509Z, a new pinnacle of LUXMAN integrated amplifier design.

Features

  • Solid state integrated amplifier
  • Our latest amplification feedback engine brings music to life with LIFES Version 1.0
  • Large needle VU level meter and 7-segment LED
  • Precision hairline finished aluminium top panel

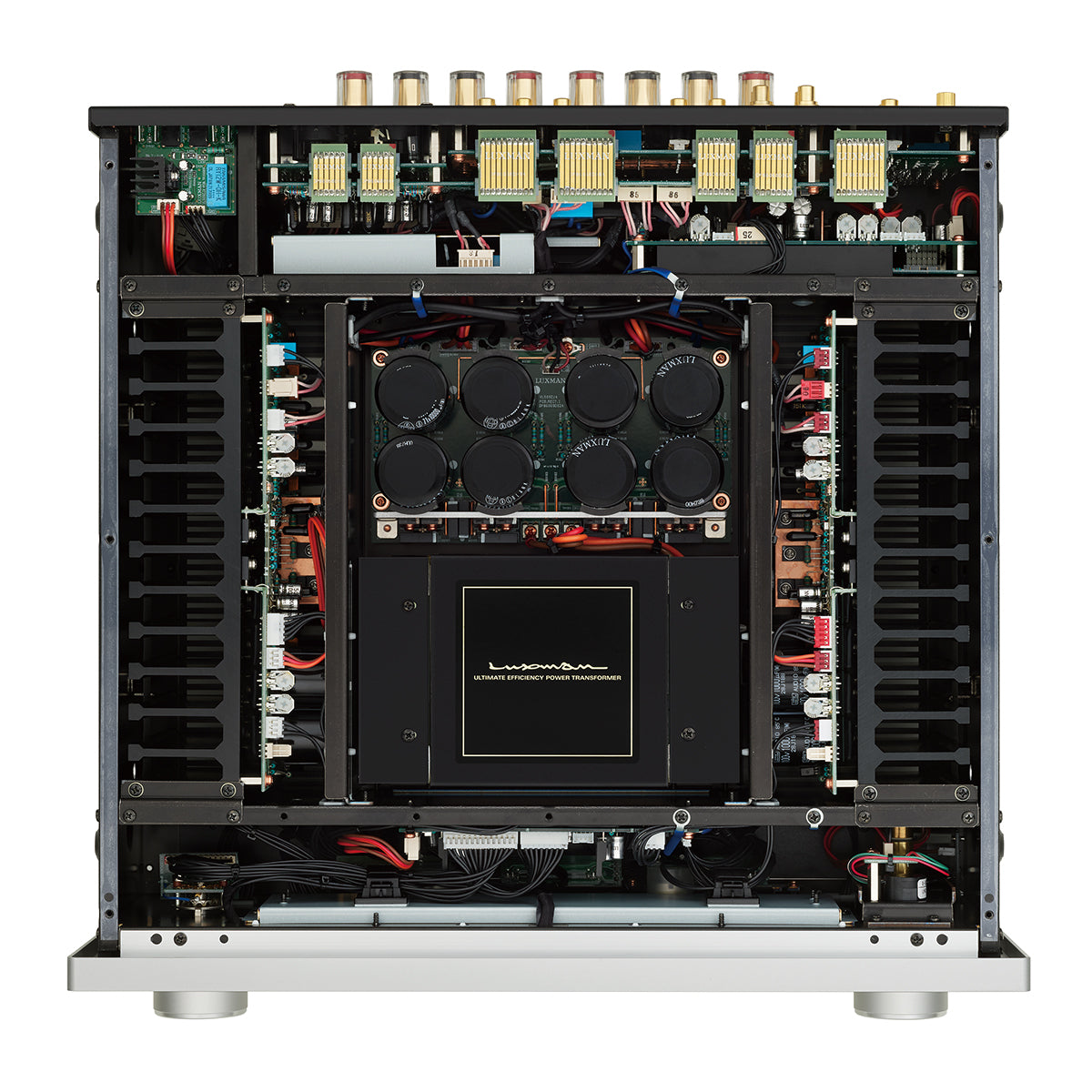

  • High regulated power supply
  • Electronically controlled attenuator LECUA-EX* incorporating an elaborate rotation mechanism

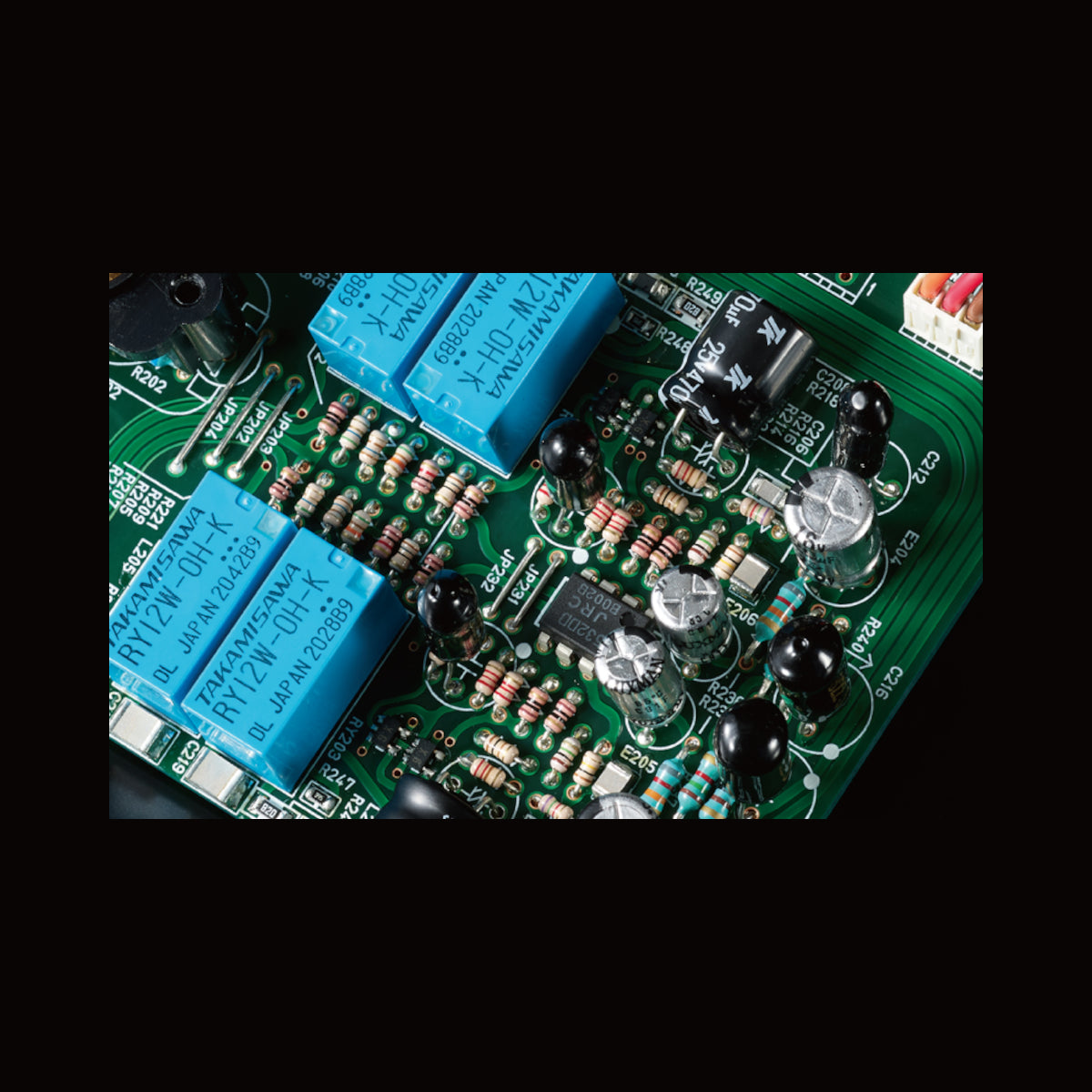

  • High-quality phono EQ

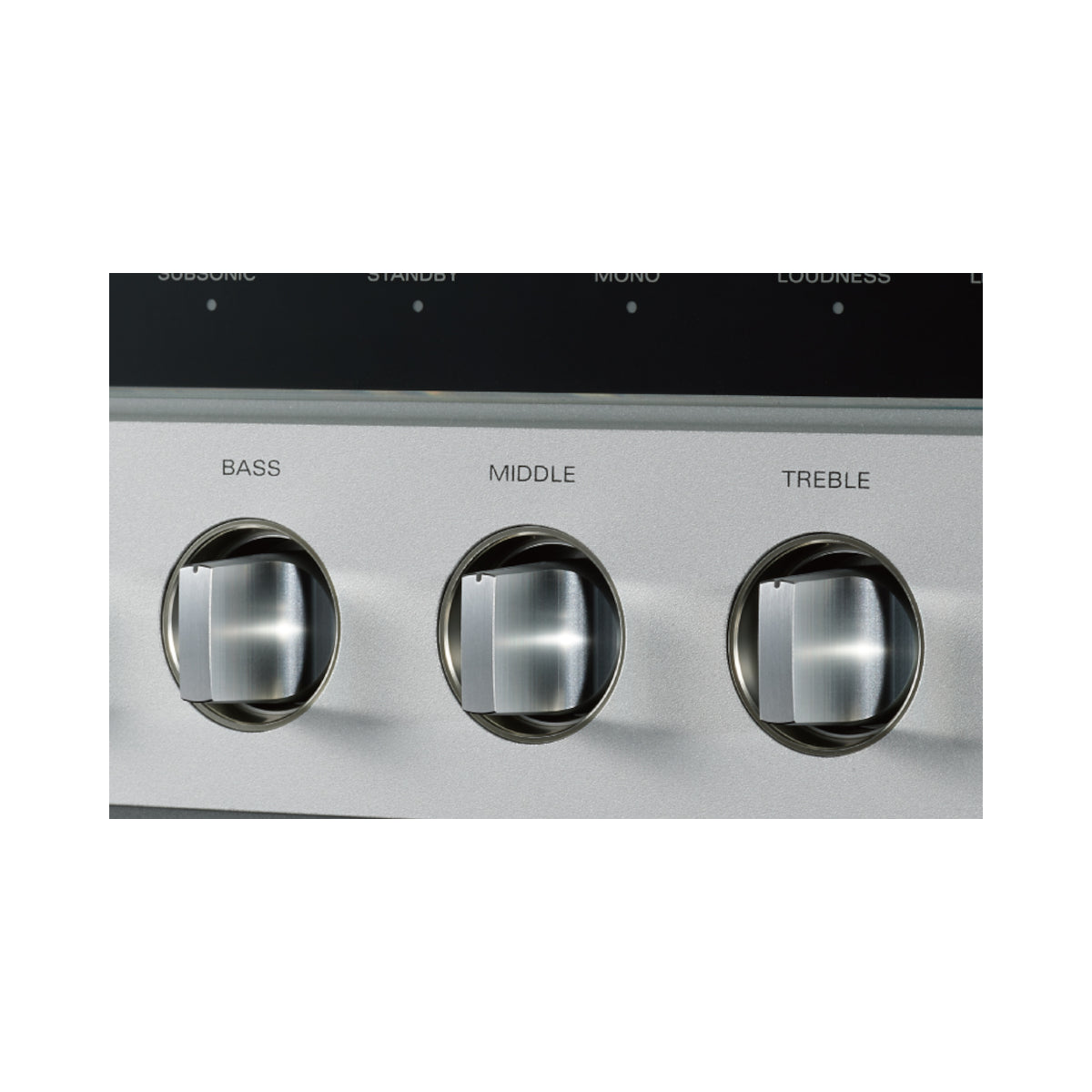

  • 3-band tone control
  • Low-impedance transmission
  • Headphones outputs with ground isolation

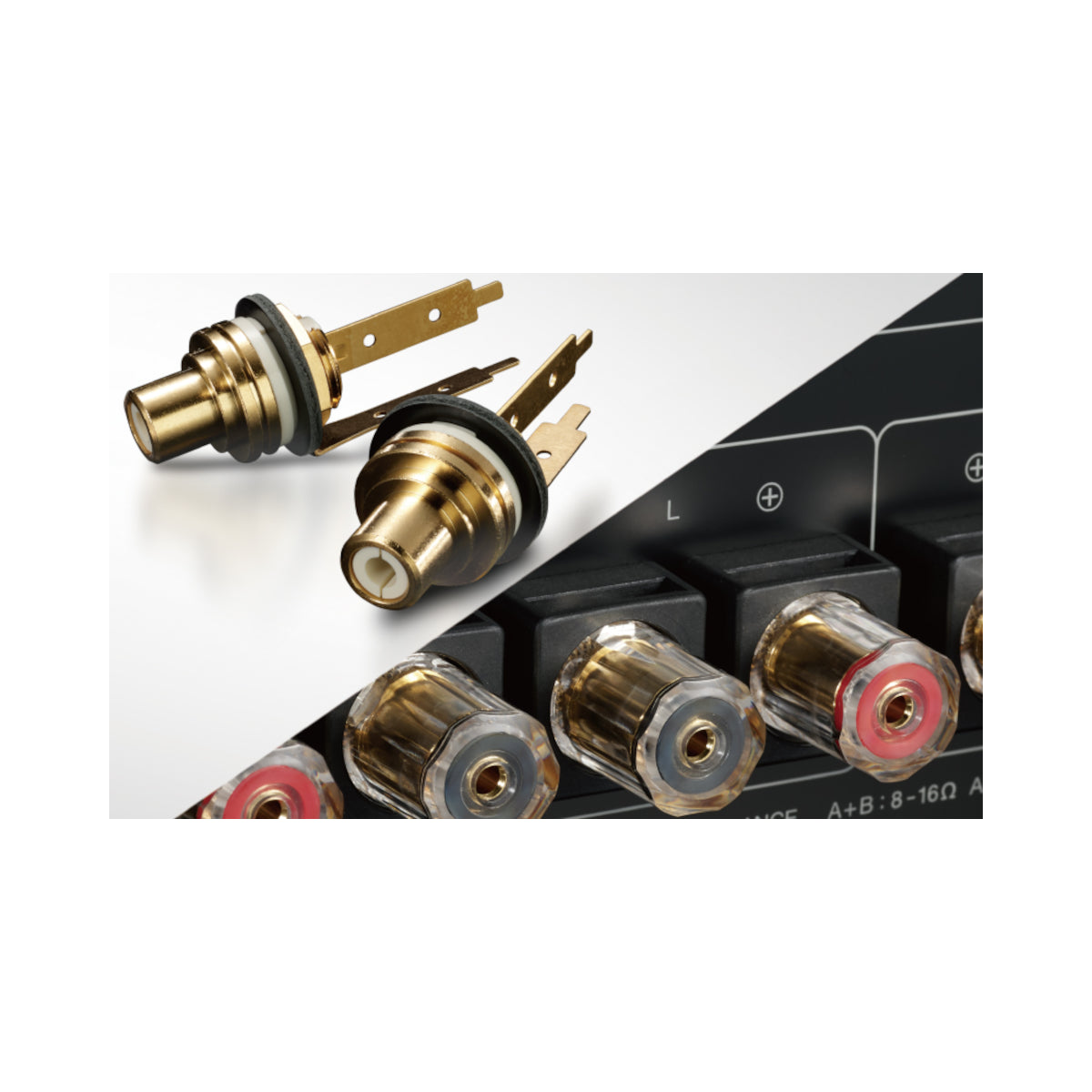

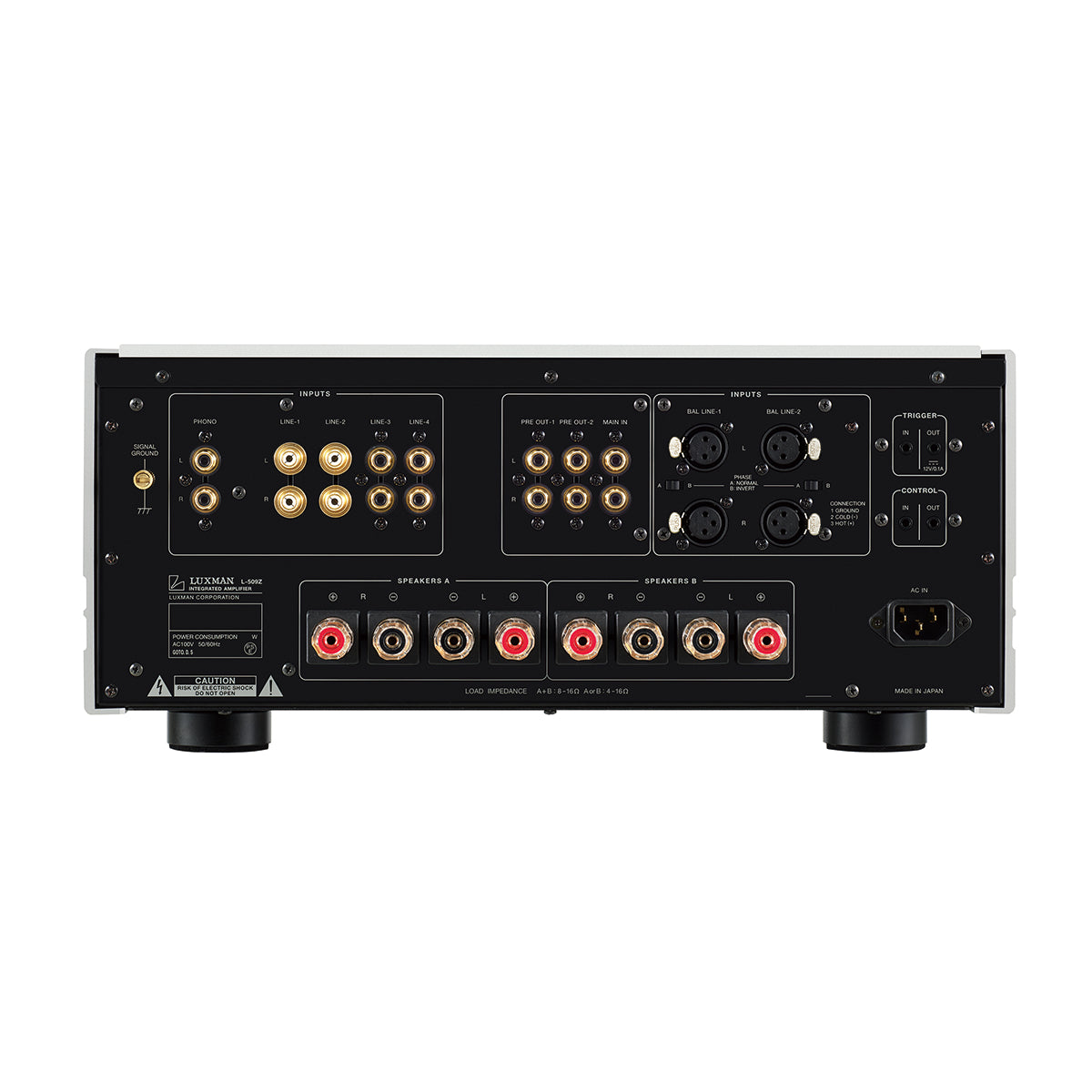

  • High quality input/output terminals

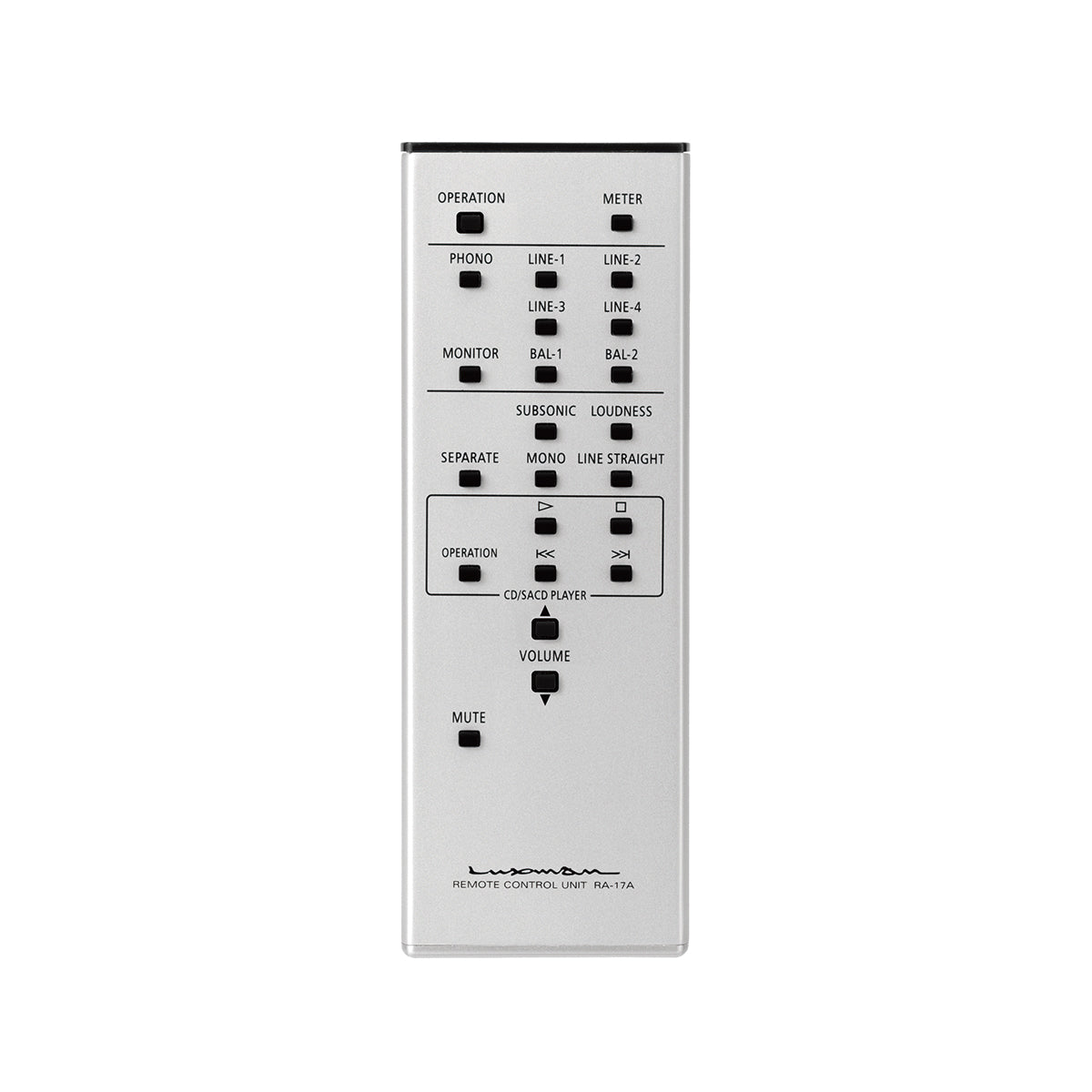

  • Ergonomic aluminium remote control

Specifications

1. Rated Output:

  • 120W+120W(8Ω)
  • 220W+220W(4Ω）

2. Input sensitivity/input impedance:

  • PHONO (MM): 2.5mV / 47kΩ
  • PHONO (MC-H): 0.3mV / 100Ω
  • PHONO (MC-L): 0.1mV/40Ω
  • LINE: 180mV / 47kΩ
  • BAL.LINE: 180mV / 79kΩ
  • MAIN IN: 1.1V / 47kΩ

3. Output Voltage: PRE OUT: 1V

4. Frequency Response:

  • PHONO: 20Hz to 20kHz (±0.5dB)
  • LINE: 20Hz to 100kHz (within -3dB)

5. Total Harmonic Distortion:

  • 0.007% or less (8Ω, 1kHz)
  • 0.03% or less (8Ω, 20Hz to 20kHz to 20kHz)

6. S/N ratio (IHF-A):

  • PHONO (MM): 87dB or more
  • PHONO (MC-H): 70dB or more
  • PHONO (MC-L): 62dB or more
  • LINE: 106dB or more

7. Volume Adjustment: LECUA-EX

8. Amplification Feedback Circuit: LIFES 1.0

9. Output Configuration: Bipolar 4-parallel push-pull

10. Damping Factor: 330

11. Max. Amount of Tone Control:

  • BASS: ±8dB at 100Hz
  • TREBLE: ±8dB at 760kHz
  • TREBLE: ±8dB at 10kHz

12. Power Supply: 230V~(50Hz) / 115V~(60Hz)

13. Power Consumption: 390W, 150W (under no signal), 0.5W (at standby)

14. External Dimensions: 440(W) x 193(H) x 463(D) mm front side knob of 20mm and rear side terminal of 37mm included in depth

15. Net Weight: 29.4kg (main unit)

16. Accessories:

  • Remote control (RA-17A)
  • Power cable

17. Speaker Terminal Supported Y-lug Terminal Dimension:

  • Width of part a: 16mm or less
  • Width of part b: 7mm or more
  • * Connection may not be performed
    depending on the shape of the
    Y-lug terminal.

What's in the box

  • LUXMAN L-509Z Integrated Amplifier
  • Remote control (RA-17A)
  • Power cable
