LUXMAN

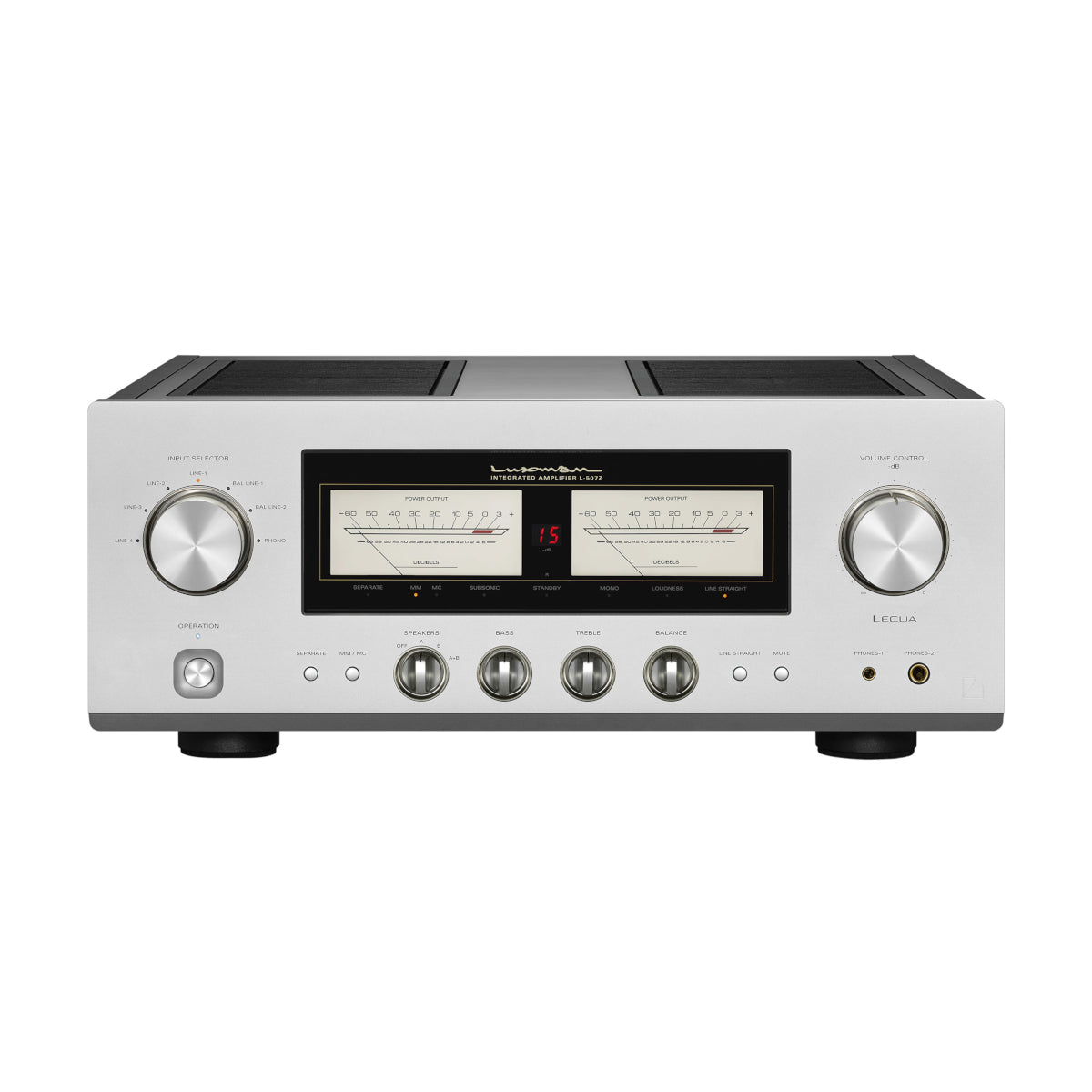

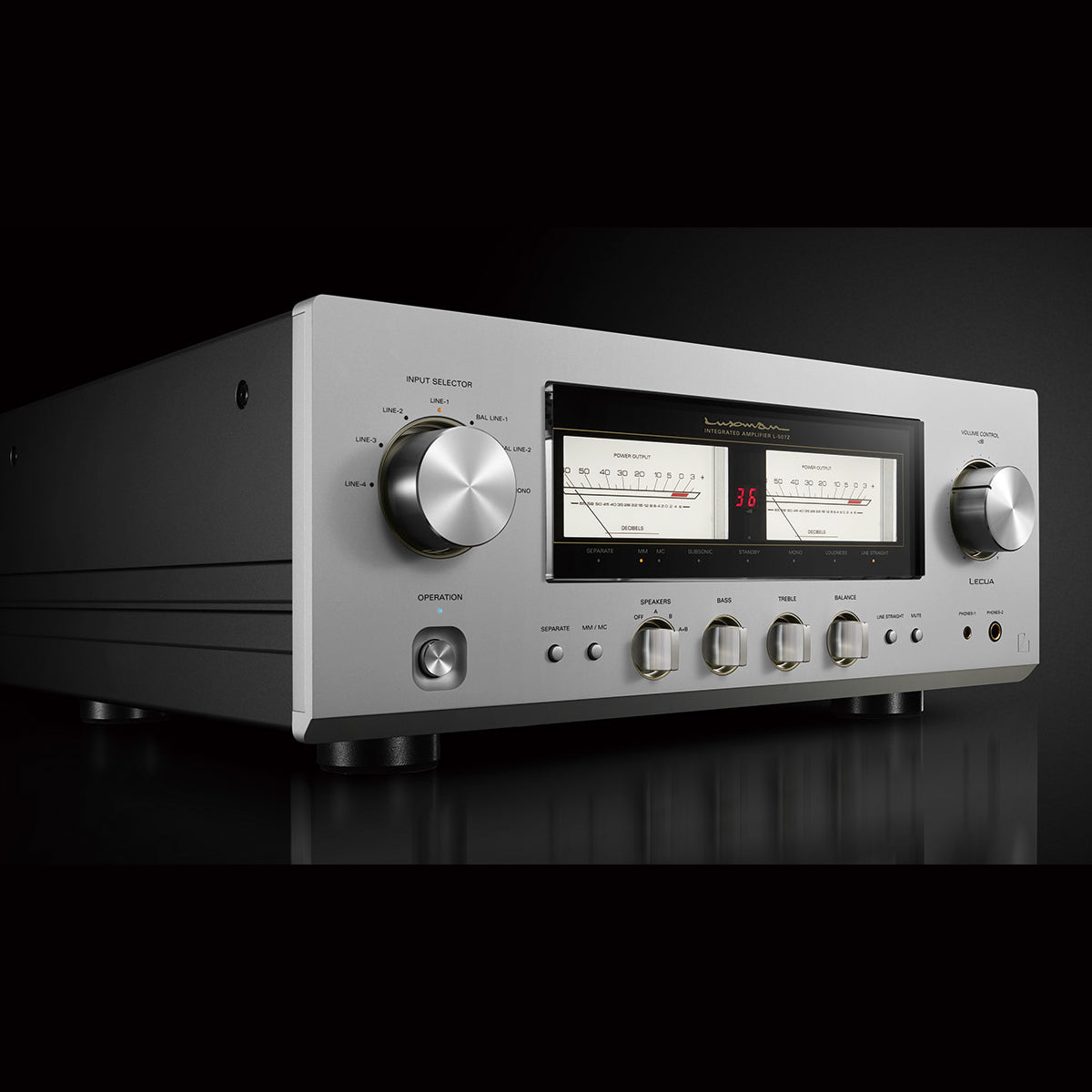

LUXMAN L-507Z Integrated Amplifier - Silver

LUXMAN L-507Z Integrated Amplifier - Silver

$12,499.00 AUD
$12,499.00 AUD
Sale Sold out
Shipping calculated at checkout.

The integration of sophistication and technical evolution. Introducing our innovative Z series.

LUXMAN’s new generation Z series integrated amplifiers. The L-507Z is the debut model heralding our new generation of amplifier products. Featuring our newly developed LIFES amplification feedback engine, we look towards the future of Luxman. This amplifier has realized a dramatic development in musicality that goes far beyond its class. L-507Z combines advanced technology and sophisticated functionality. Our new, innovative Z series integrated amplifier generation begins with this superb model.

Features

  • Our latest amplification feedback engine brings music to life with LIFES Version 1.0

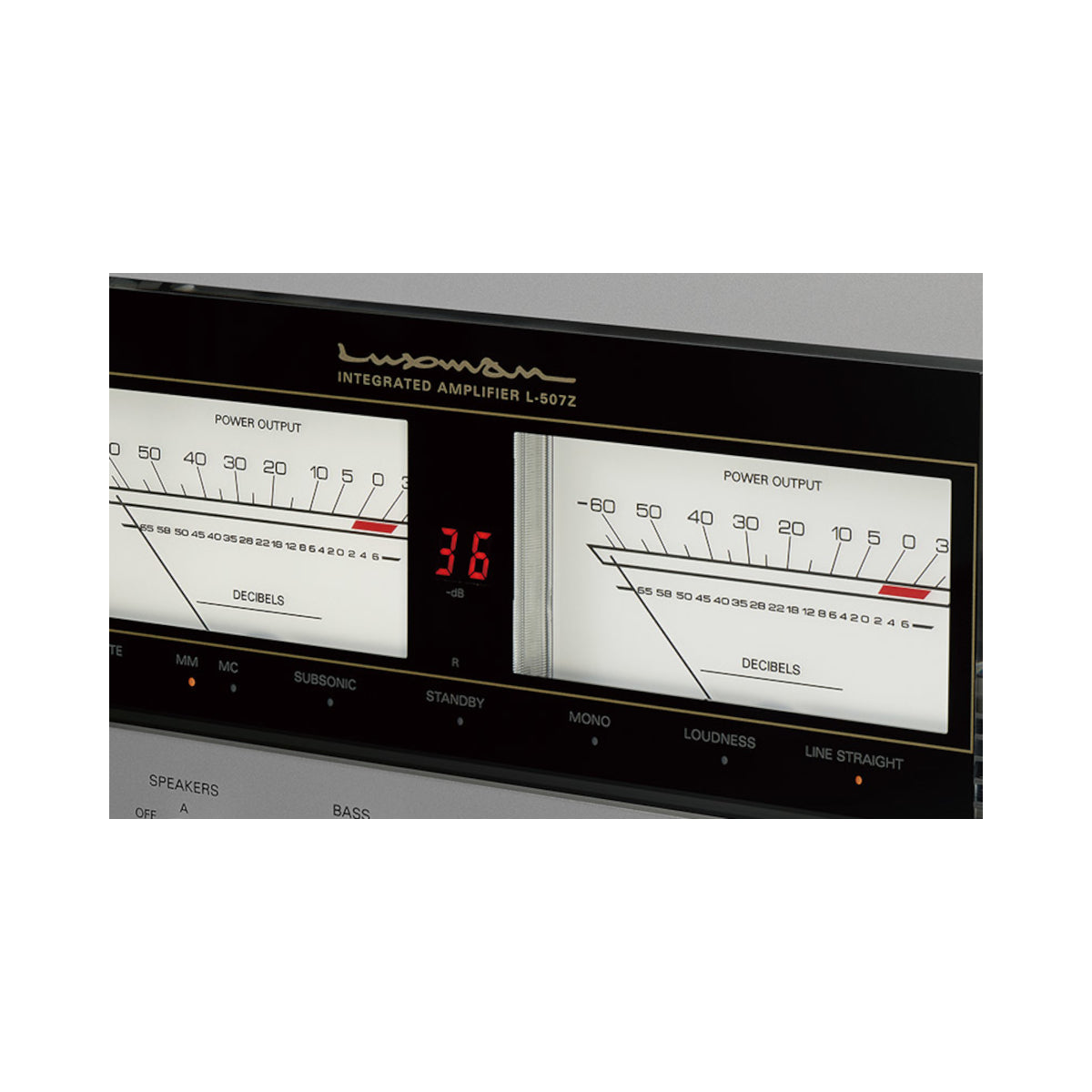

  • Large needle VU level meter and 7-segment LED
  • Precision hairline finished aluminium top panel
  • New LECUA1000

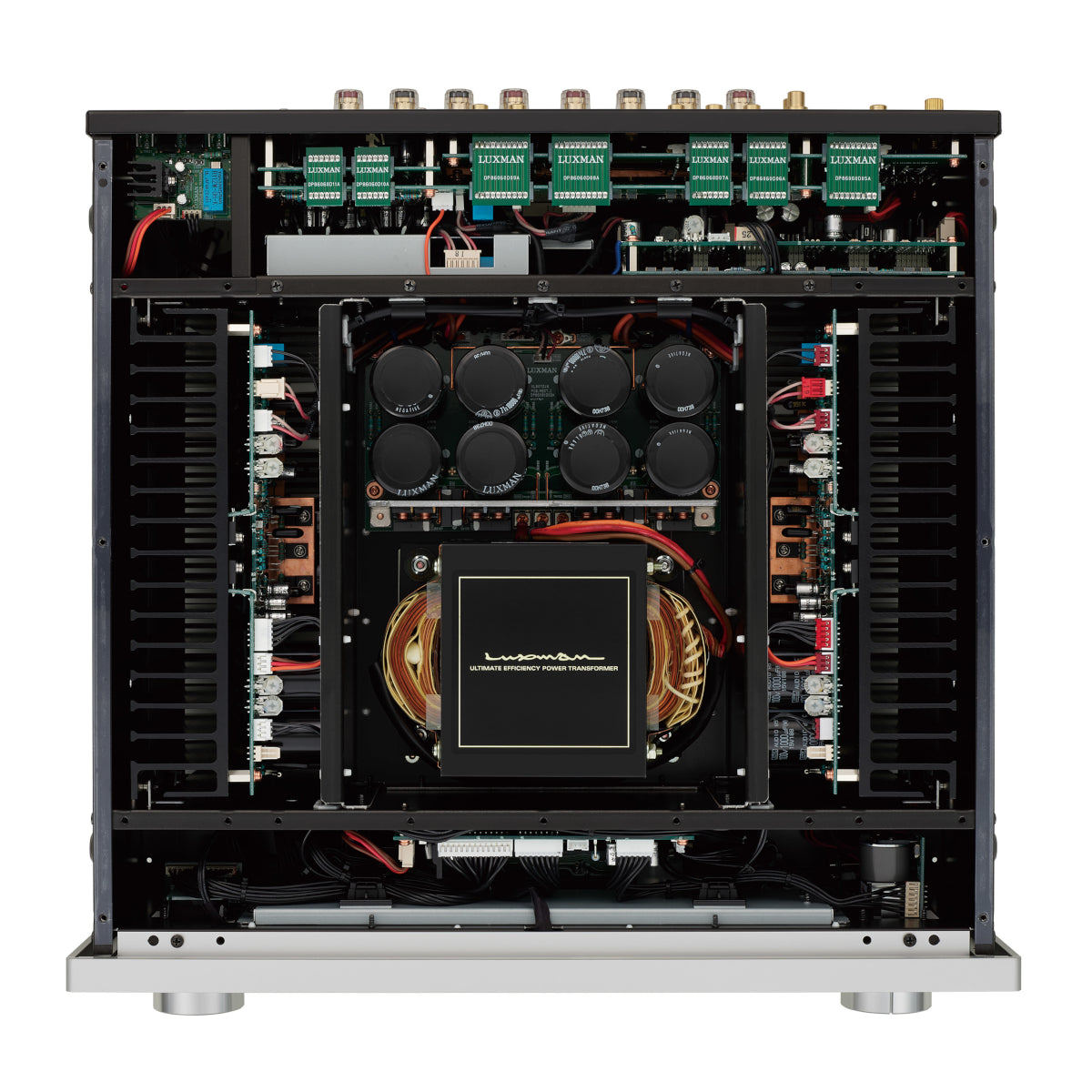

  • Highly regulated power supply circuit

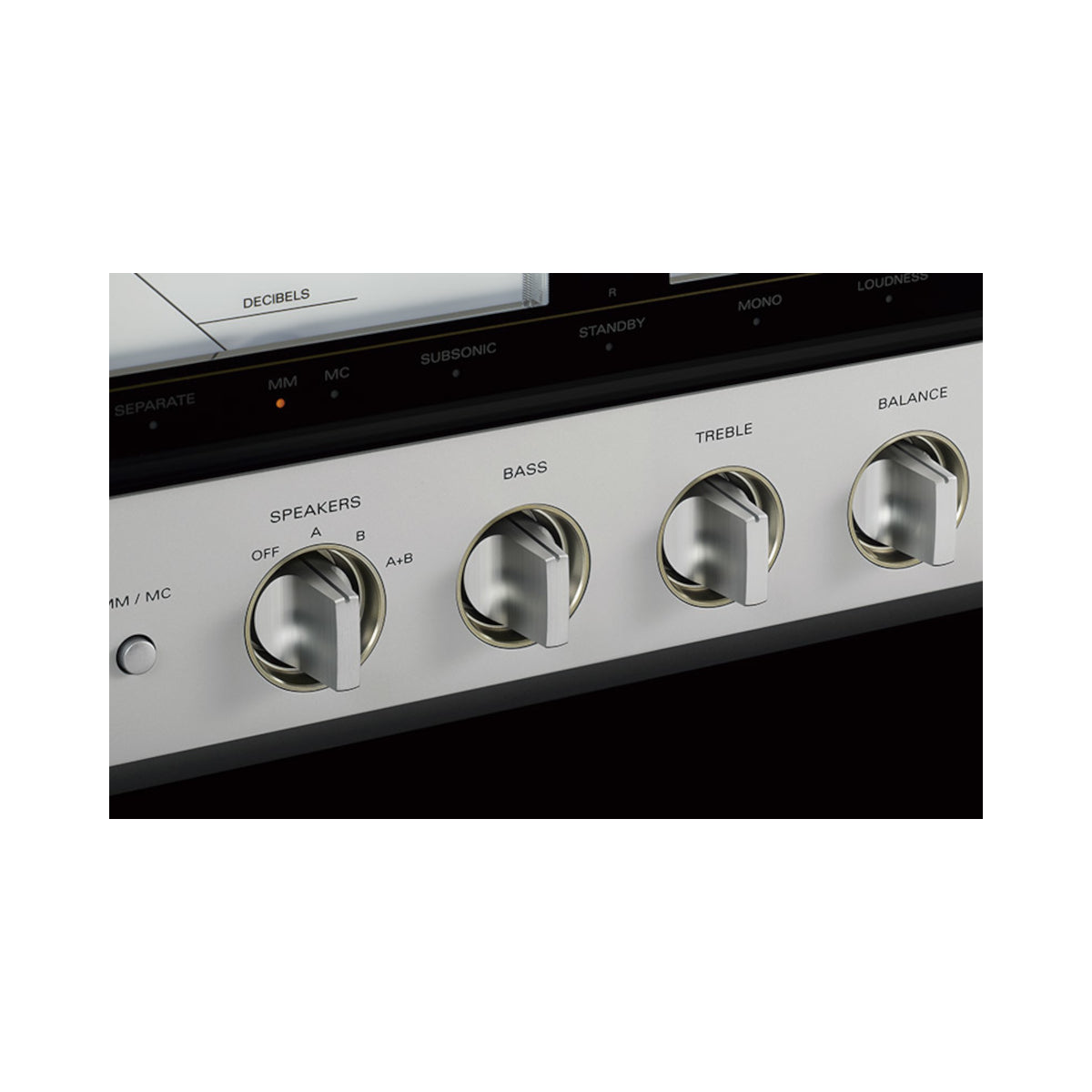

  • Various functions, switching and controls

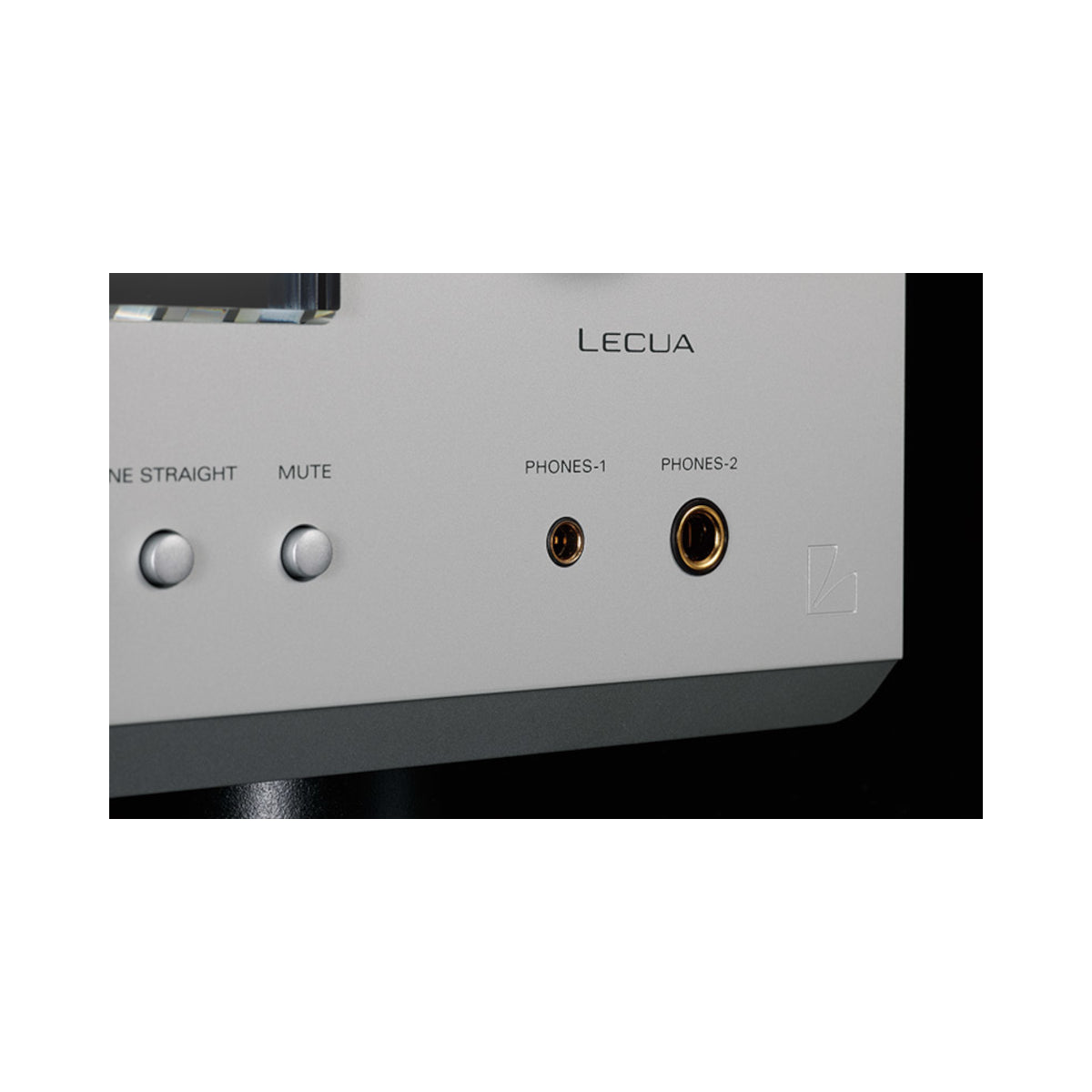

  • Newly designed parallel headphone outputs

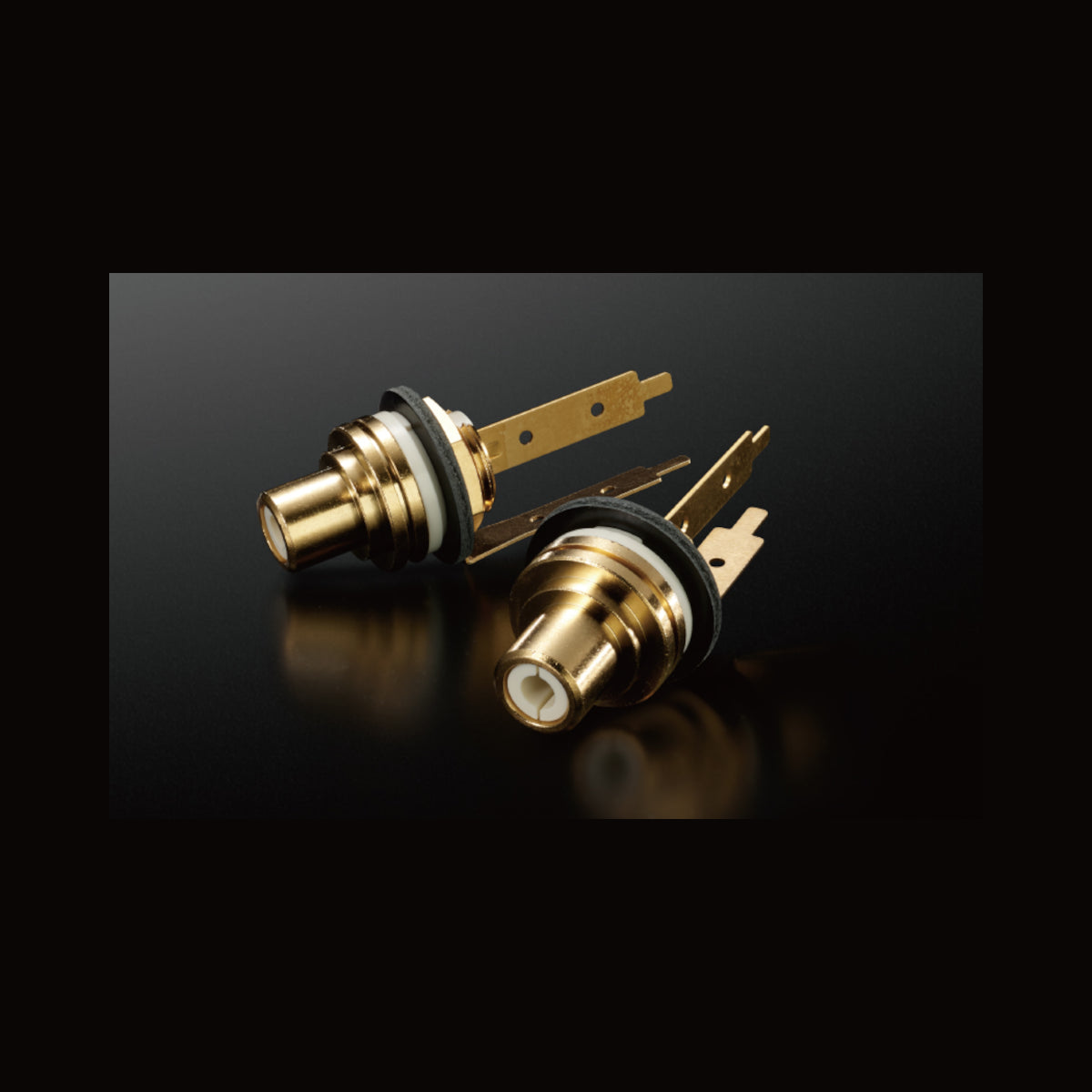

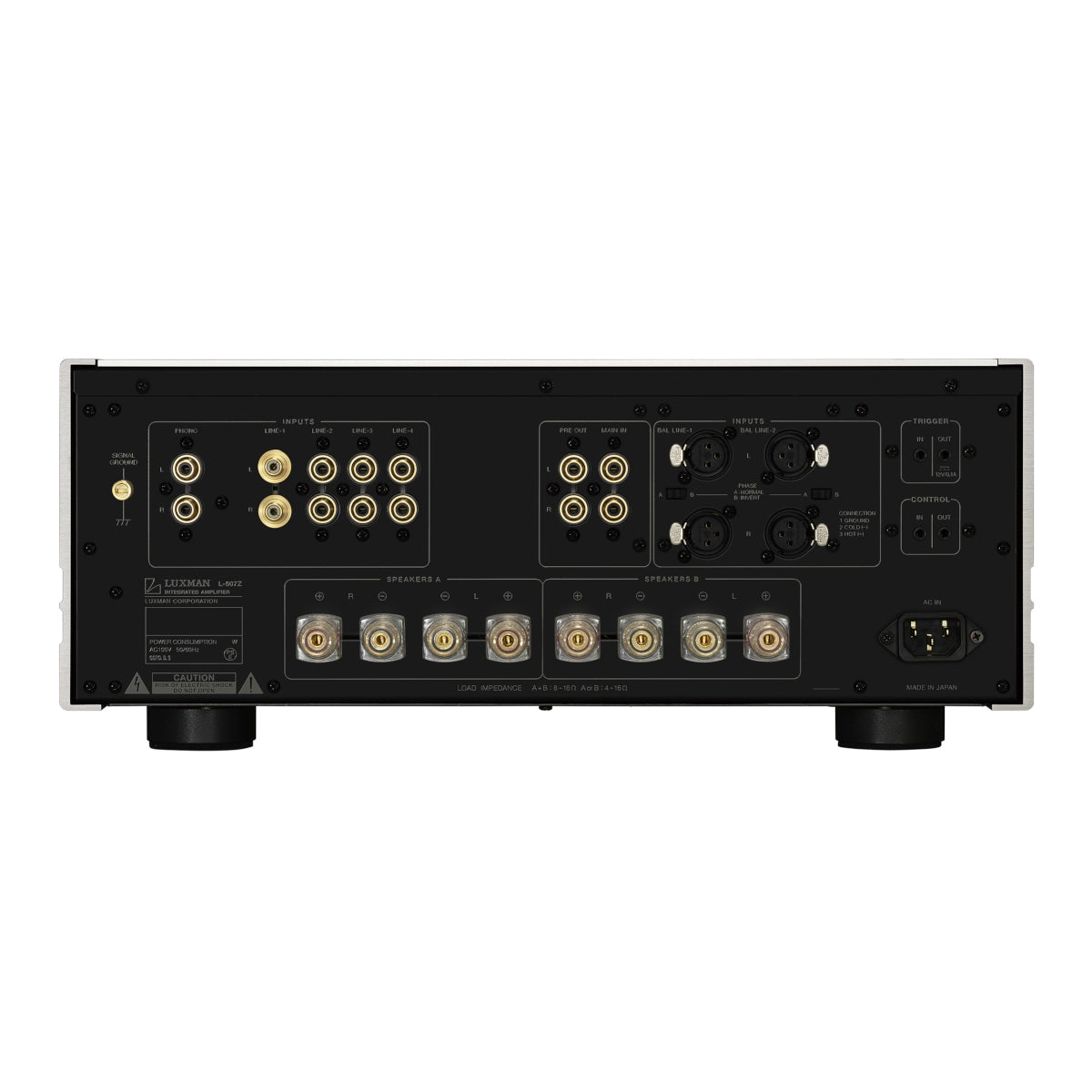

  • High-quality input terminals
  • Low impedance transmission
  • Cast iron feet

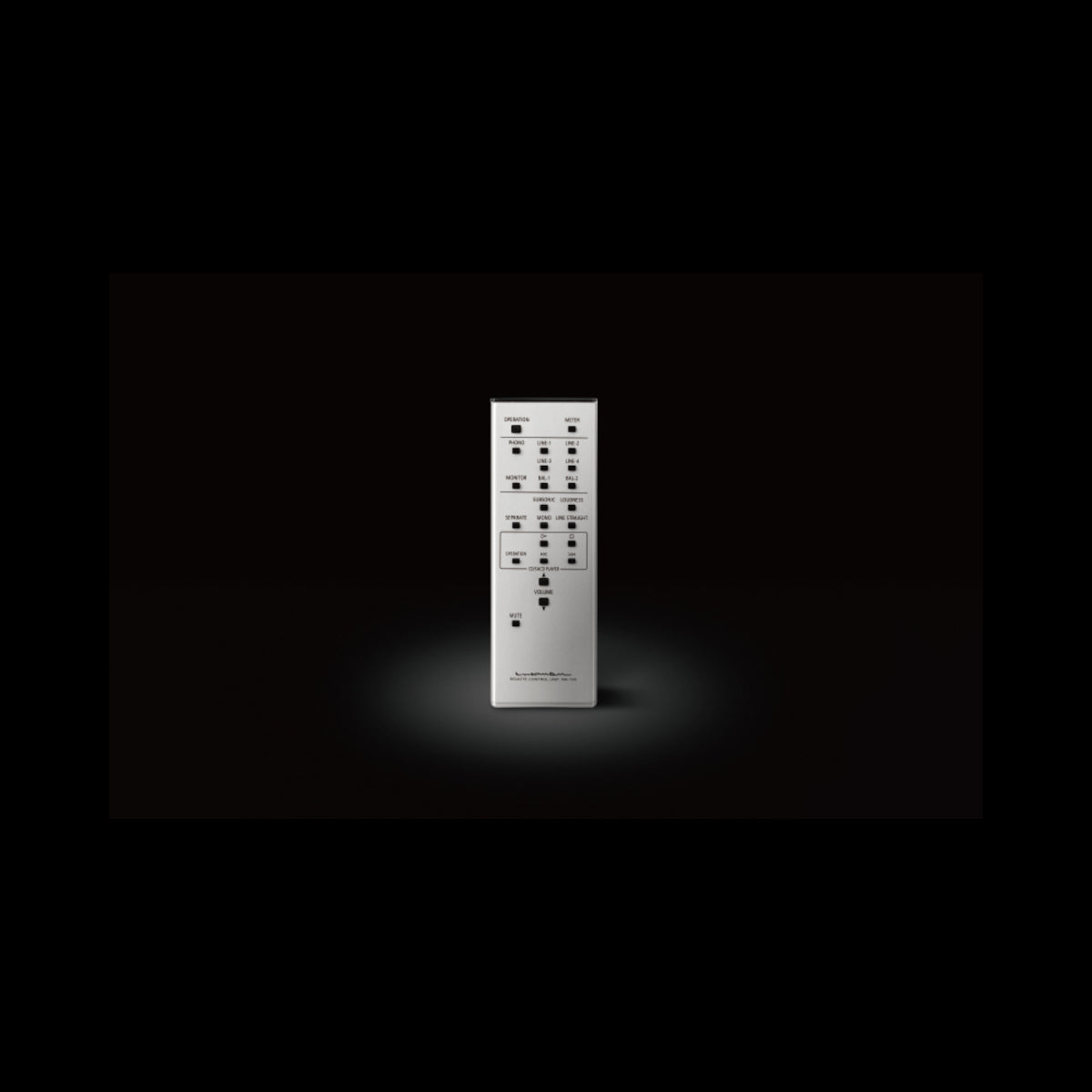

  • Ergonomic aluminium remote control

Specifications

1. Rated Output:

  • 110W+110W(8Ω)
  • 220W+220W(4Ω）

2. Input sensitivity/input impedance:

  • PHONO (MM): 2.5mV / 47kΩ
  • PHONO (MC): 0.3mV / 100Ω
  • LINE: 180mV / 47kΩ
  • BAL.LINE: 180mV / 79kΩ
  • MAIN IN: 1.05V / 47kΩ

3. Output Voltage: PRE OUT: 1V

4. Frequency Response:

  • PHONO: 20Hz to 20kHz (±0.5dB)
  • LINE: 20Hz to 100kHz (within -3dB)

5. Total Harmonic Distortion:

  • 0.007% or less (8Ω, 1kHz)
  • 0.03% or less (8Ω, 20Hz to 20kHz)

6. S/N ratio (IHF-A):

  • PHONO (MM): 91dB or more
  • PHONO (MC): 75dB or more
  • LINE: 105dB or more

7. Volume Adjustment: New LECUA1000

8. Amplification Feedback Circuit: LIFES 1.0

9. Output Configuration: Bipolar 3-parallel push-pull

10. Damping Factor: 300

11. Max. Amount of Tone Control:

  • BASS: ±8dB at 100Hz
  • TREBLE: ±8dB at 10kHz

12. Power Supply: 230V~(50Hz) / 115V~(60Hz)

13. Power Consumption: 350W, 86W (under no signal), 0.4W (at standby)

14. External Dimensions: 440(W) x 178(H) x 454(D) mm front side knob of 20mm and rear side terminal of 27mm included in depth

15. Net Weight: 25.4kg (main unit)

16. Accessories:

  • Remote control (RA-17A)
  • Power cable

17. Speaker Terminal Supported Y-lug Terminal Dimension:

  • Width of part a: 15mm or less
  • Width of part b: 8mm or more
  • * Connection may not be performed
    depending on the shape of the
    Y-lug terminal.

What's in the box

  • LUXMAN L-507Z Integrated Amplifier
  • Remote control (RA-17A)
  • Power cable
