Luxman

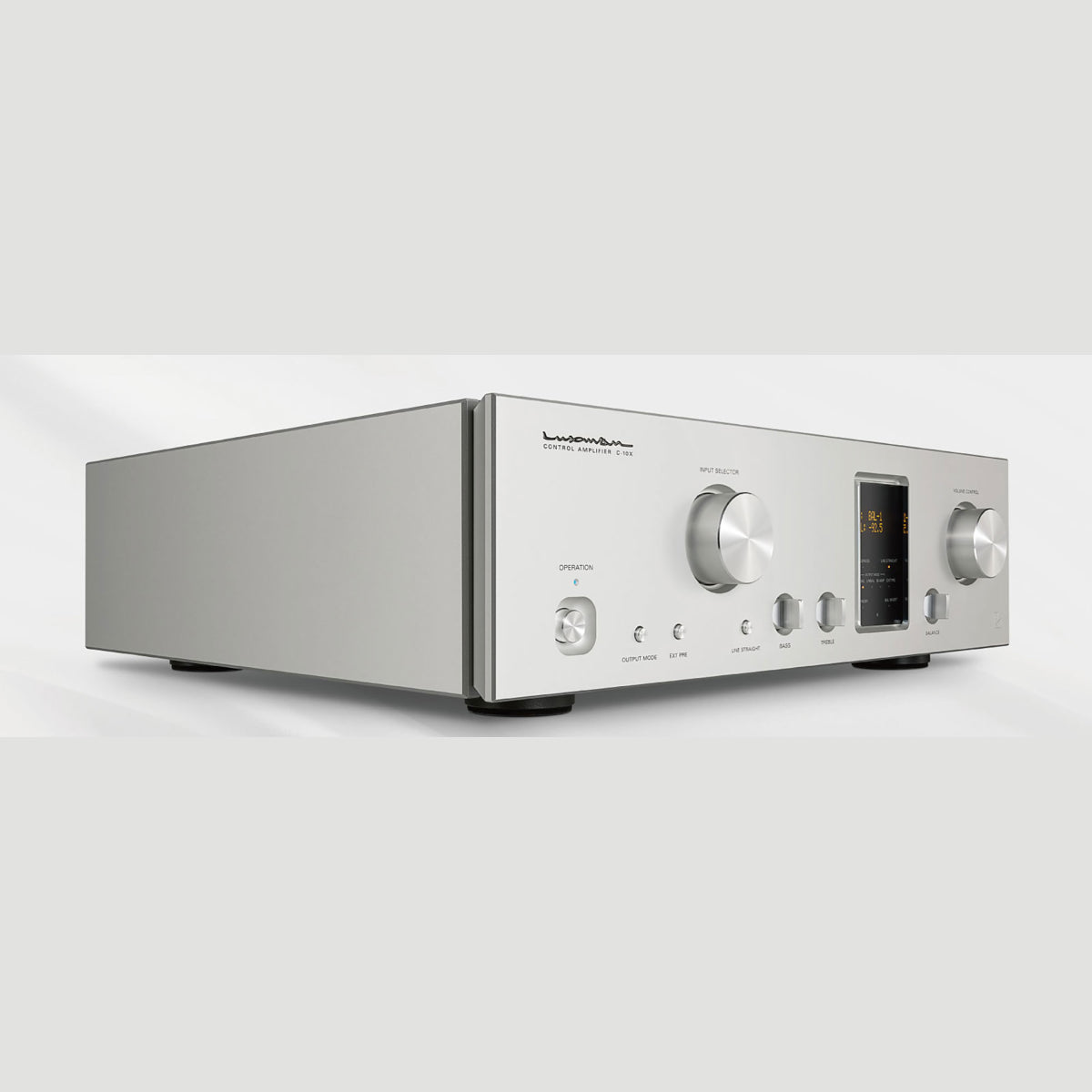

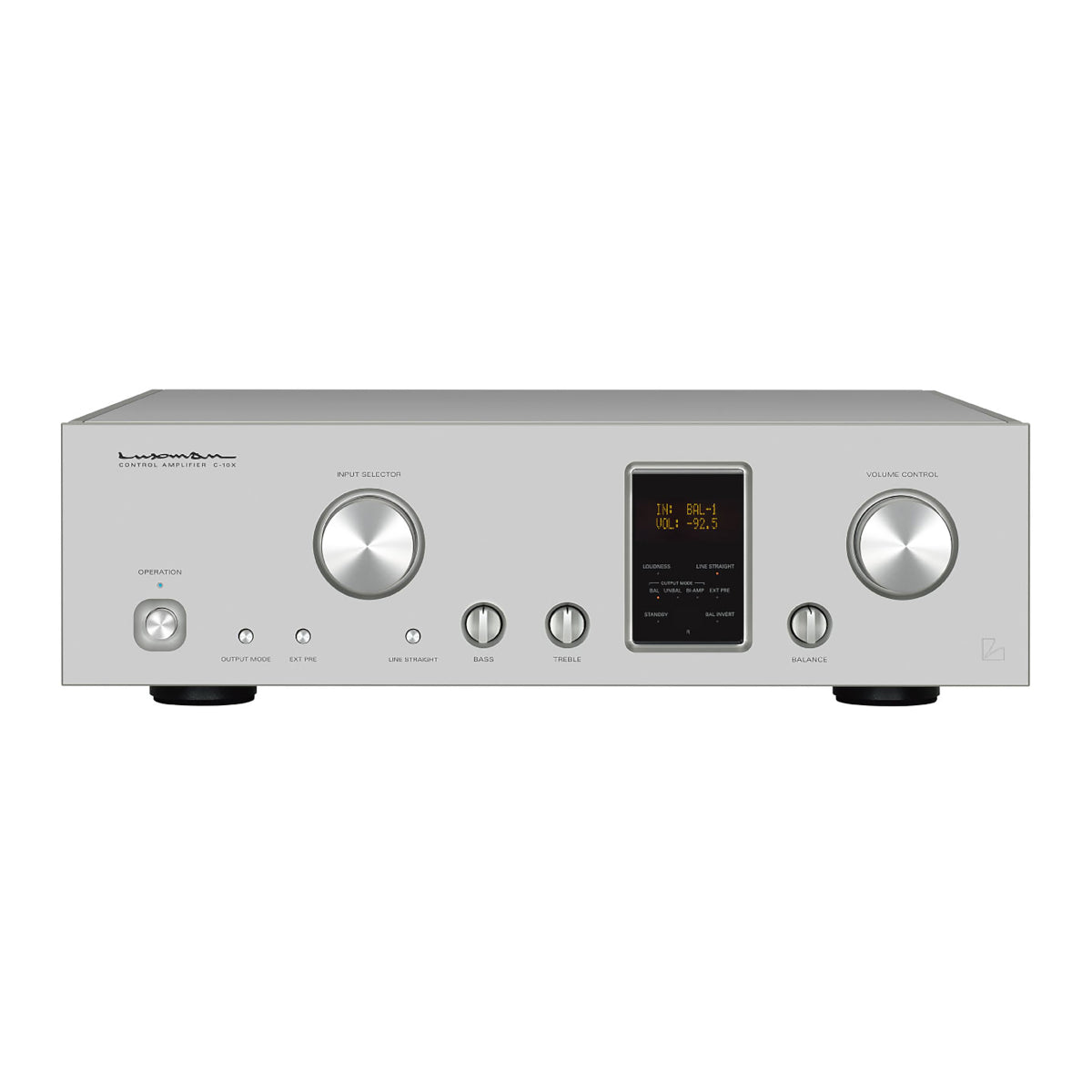

LUXMAN C-10X Stereo Control Amplifier (Preamp) - Silver
LUXMAN C-10X Stereo Control Amplifier (Preamp) - Silver
Regular price
$24,999.00 AUD
Regular price
Sale price
$24,999.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Overview
The C-10X is equipped with our new "LIFES" amplifier feedback engine and the latest version of our original electronically controlled attenuator, "LECUA-EX", technologies developed to lead LUXMAN into our next century. Fully-balanced audio pathways are directly connected throughout the three-dimensional structure, achieving infinite silence, overwhelming instantaneous power, and a true sense of realism. This is the birth of the C-10X control amplifier, heralding a new era of pure musical reproduction.
Features
Features
- Direct, three-dimensional connections between fully balanced amplifier circuit and attenuator
- Various control functions for controlling the audio system
- Panel configuration with beautiful contrast
Specifications
Specifications
- Input sensitivity / Input impedanceUnbalanced 180mV/45kΩ Balanced 180mV/90kΩ
- Output/Inputimpedance Unbalanced rating 1V/90Ω, max. 14.1V Balanced rating 1V/180Ω, max. 28.7V
- Frequency response : 20Hz to 20kHz (+0, within -0.1dB)5Hz to 110kHz (+0, within -3.0dB)
- Total harmonic distortion : Unbalanced 0.005% (20Hz to 20kHz)Balanced 0.003% (20Hz to 20kHz)
- S/N ratio (IHF-A) Unbalanced 129dBBalanced 132dB
- Volume control : LECUA-EX
- Amplification feedback circuit LIFES 1.0
- Max. change amount oftone control BASS: ±8dB at 100Hz TREBLE: ±8dB at 10kHz
- Remote control functions Operation, Dimmer, Input selector
- Output mode (Unbalanced, Balanced, Bi-amp)
- Balanced phase switchingChannel preset (Balanced phase setting, Input leveloffset setting, Bi-amp output level setting)External pre-amplifier inputLine straight, Loudness, Volume up/down, MuteZoom display
- Power consumption : 40W, 2.6W (at standby)
- External dimensions440(W) x 130(H) x 434(D) mmfront side knob of 16mm and rear side terminalof 15mm included in depth
- Net weight : 19.8kg (main unit)
- Accessories : Remote control (RA-20), Power cable
What's in the box
What's in the box
- 1 x LUXMAN C-10X

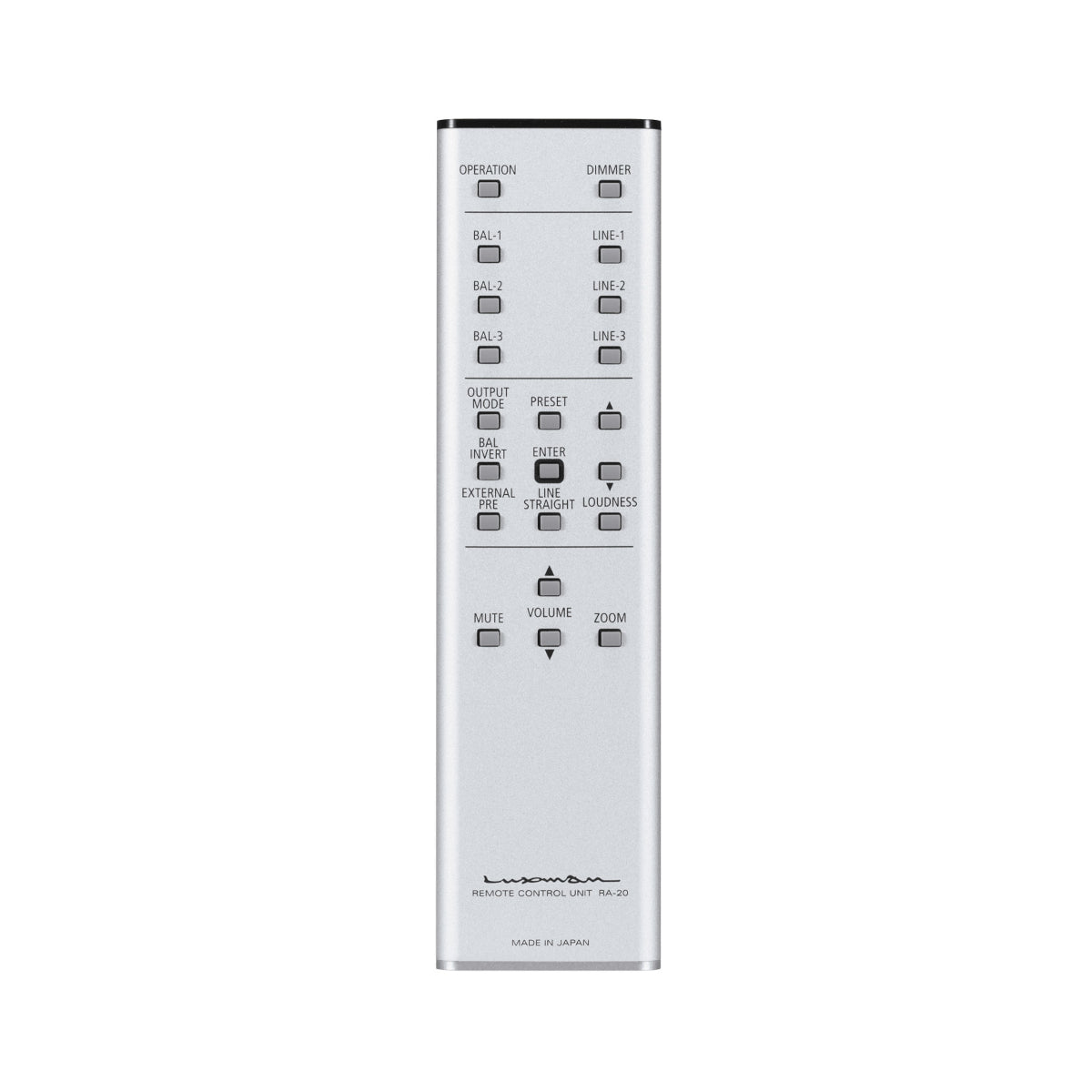

- Remote control (RA-20)
- Power cable
