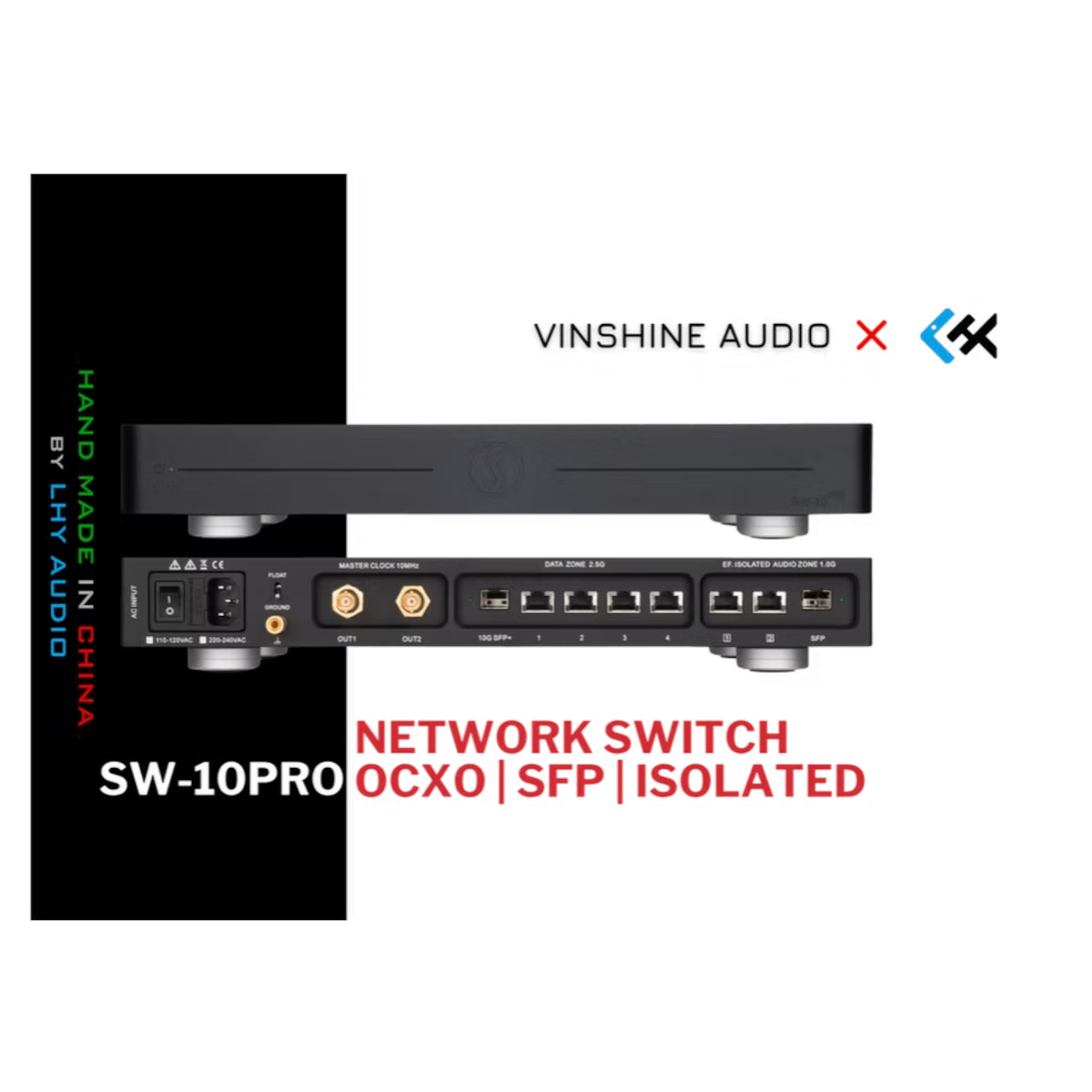

LHY SW-10PRO Audiophile Ethernet Switch with Integrated OCXO Master Clock

$3,199.00 AUD

~~$3,499.00 AUD~~ $3,199.00 AUD

Sale Sold out

Shipping calculated at checkout.

Color: Black

Quantity

Ship in 2-3 weeks

The SW-10PRO is a special collaboration model co-developed by Vinshine Audio and LHY Audio, built upon the foundation of the AS-8PRO with several critical enhancements for elevated performance:

Upgraded OCXO: Equipped with an all-new military-grade SC-CUT OCXO featuring ultra-low phase noise better than -110 dBc/Hz at 1Hz offset, offering superior timing accuracy.

Enhanced Power Supply: Utilizes 12 × Vishay BC056 high-grade reservoir capacitors (vs. 6 on AS-8PRO), delivering greater current stability and lower noise floor.

Superior Clock Architecture: Features a top-tier PLL clock synthesizer that distributes ultra-precise 10MHz signals to both the 1G and 2.5G network zones.

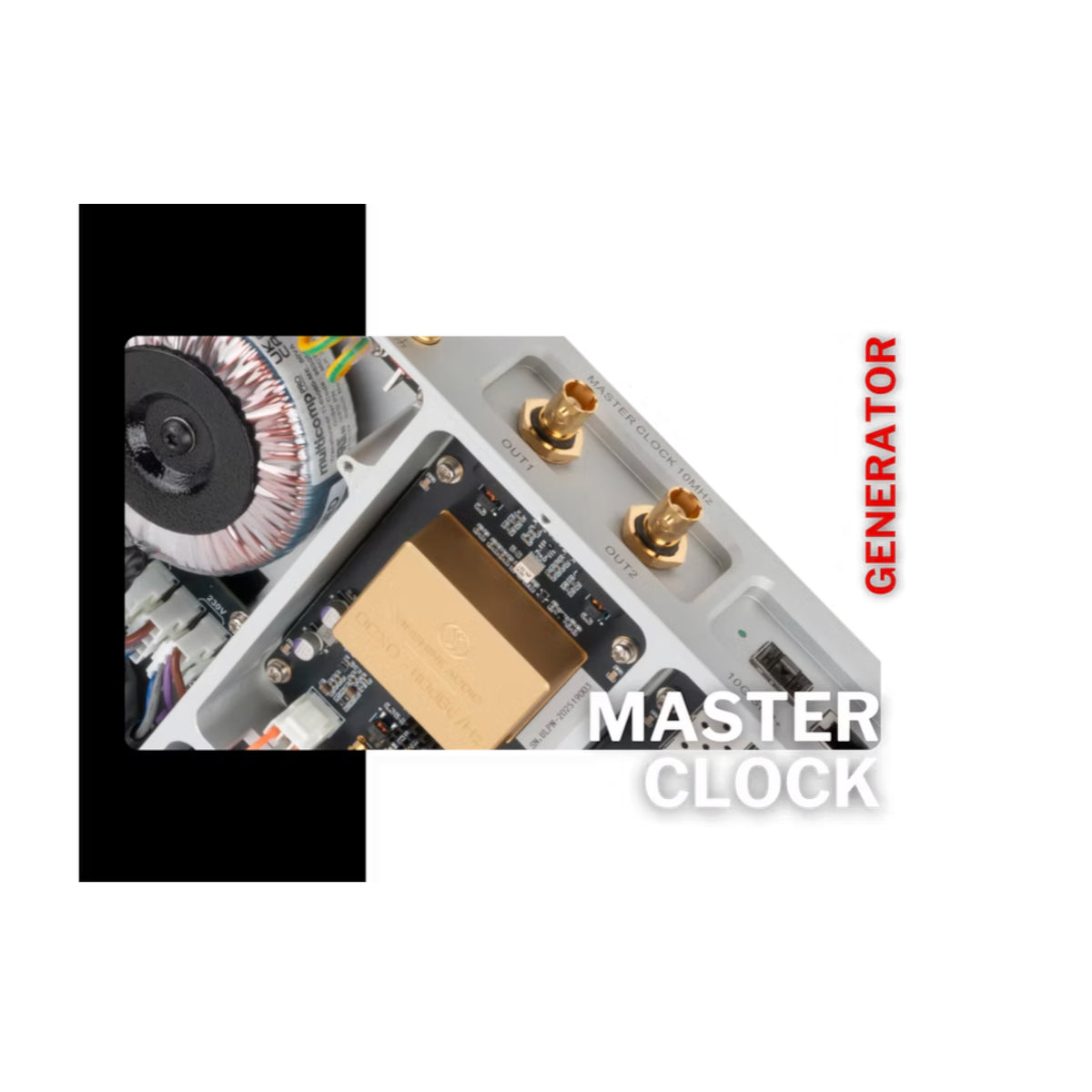

Dual Master Clock Outputs: The SW-10PRO doubles as a high-end 10MHz Master Clock generator, equipped with two precision 50Ω BNC outputs. This allows it to simultaneously synchronize multiple high-end components—such as streamers, DACs, or reclockers—ensuring system-wide timing coherence, reduced jitter, and a significant uplift in overall sonic transparency and imaging stability. (AS-8PRO offers 1 in, 1 out.)

Exclusive Design: Features Vinshine Audio embossed branding on a CNC-milled aluminum billet chassis

Test Certification Included: Each unit is shipped with a serialized, traceable OCXO Phase Noise and Allan Deviation Test Report, assuring measured performance and quality

Features

Technical Highlights

High-End 1G/2.5G Audiophile Ethernet Switch with Integrated OCXO Master Clock

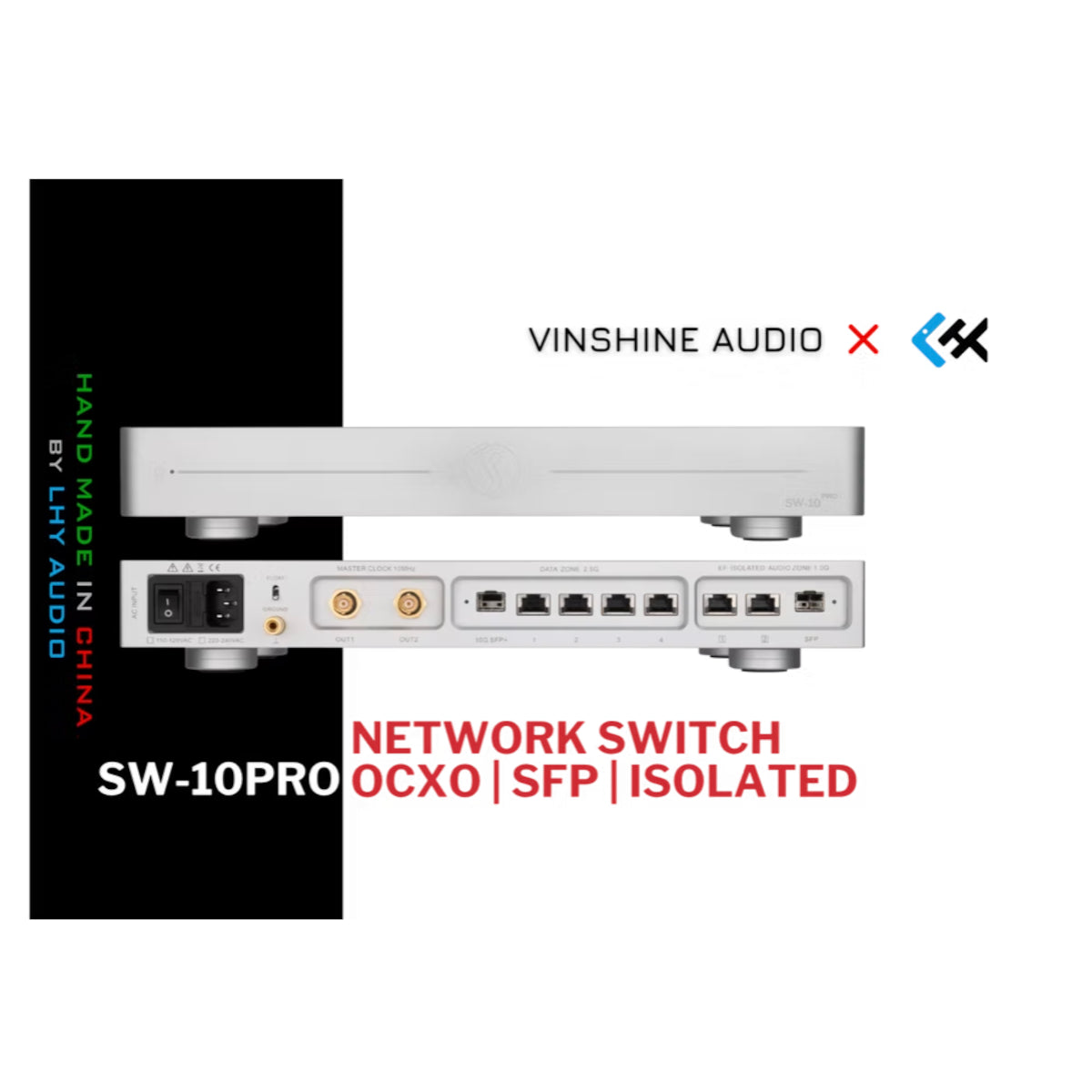

CNC-Machined Solid Billet Aluminium Chassis [Silver / Black]

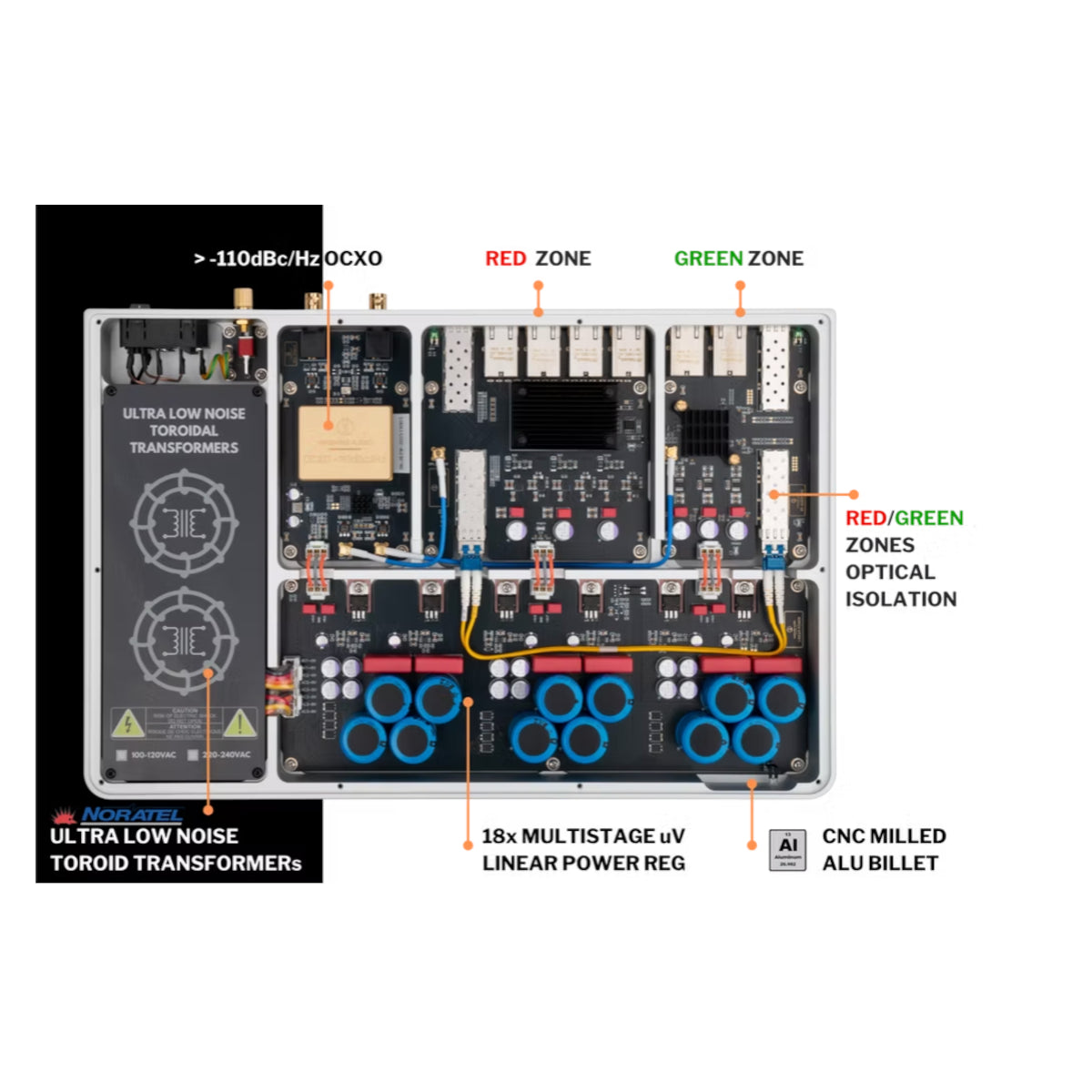

All-in-One Architecture: Segregated 2.5G Main Switching Zone + 1G Isolated Audio Zone + Ultra-Low Phase Noise Clock

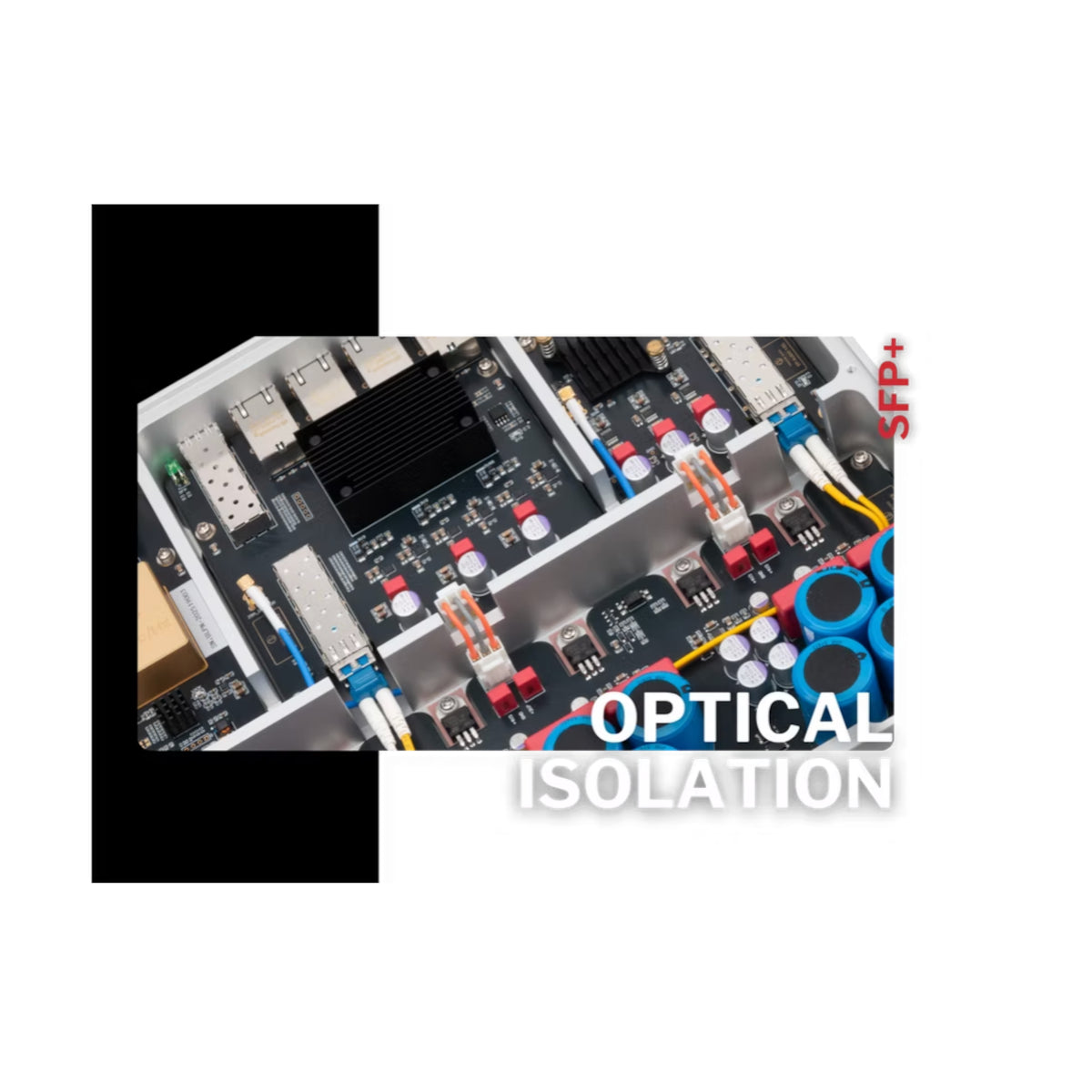

Built-in Dual Single-Mode Optical Fiber Links for Zone Isolation (Optical-Electrical Separation)
AC Inlet: High-Quality IEC with Power Switch and Fuse Protection
AC Noise Filtering: UK RIFA RFI Suppression Capacitors and EMI Filter
Dual 50VA Audio-Grade Toroidal Transformers (Multicomp NORATEL Series)

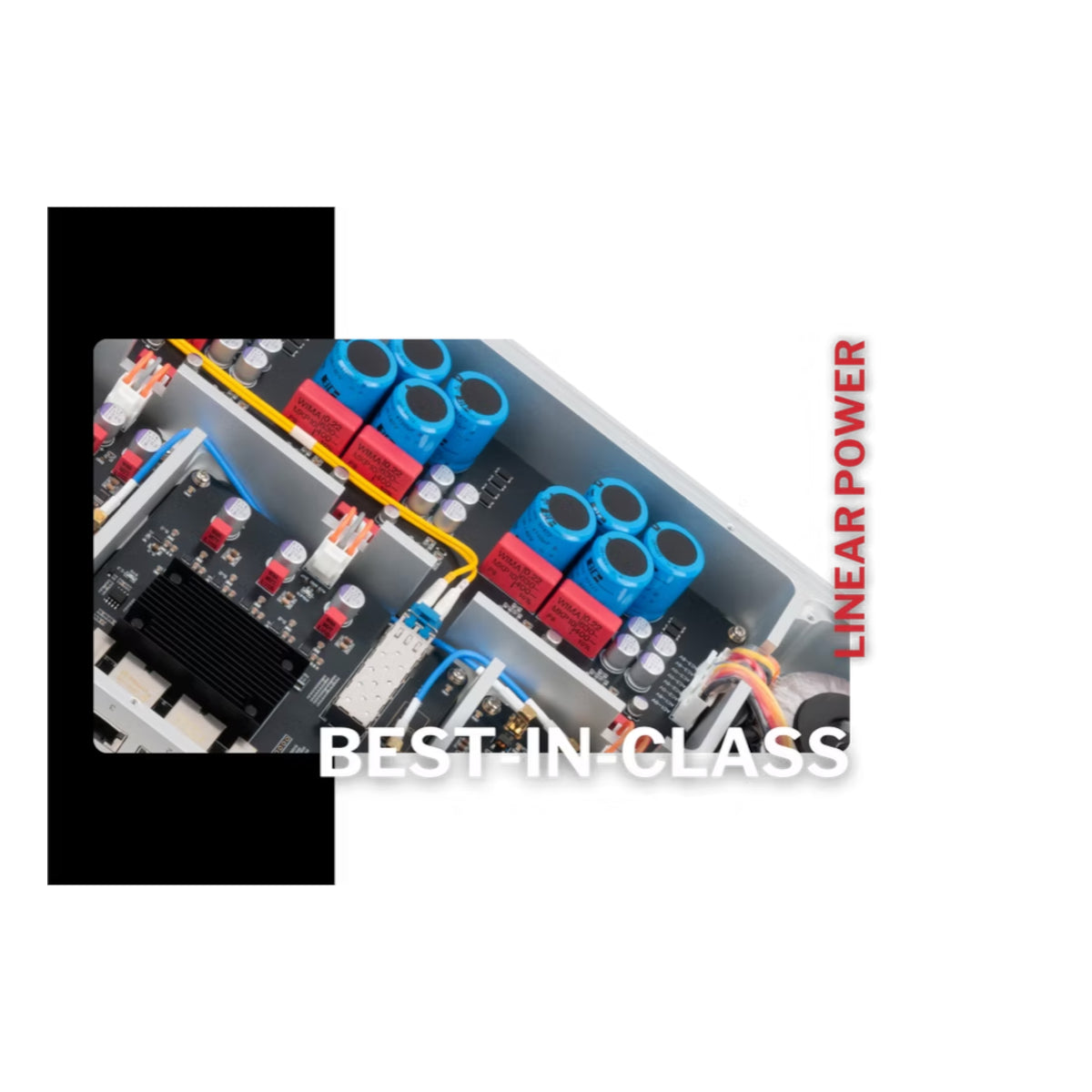

18 Sets of Multi-Stage uV-Class Linear Power Regulation, Fully Linear , LDO
Premium Vishay BC056 12x 4700uF Reservoir Capacitors

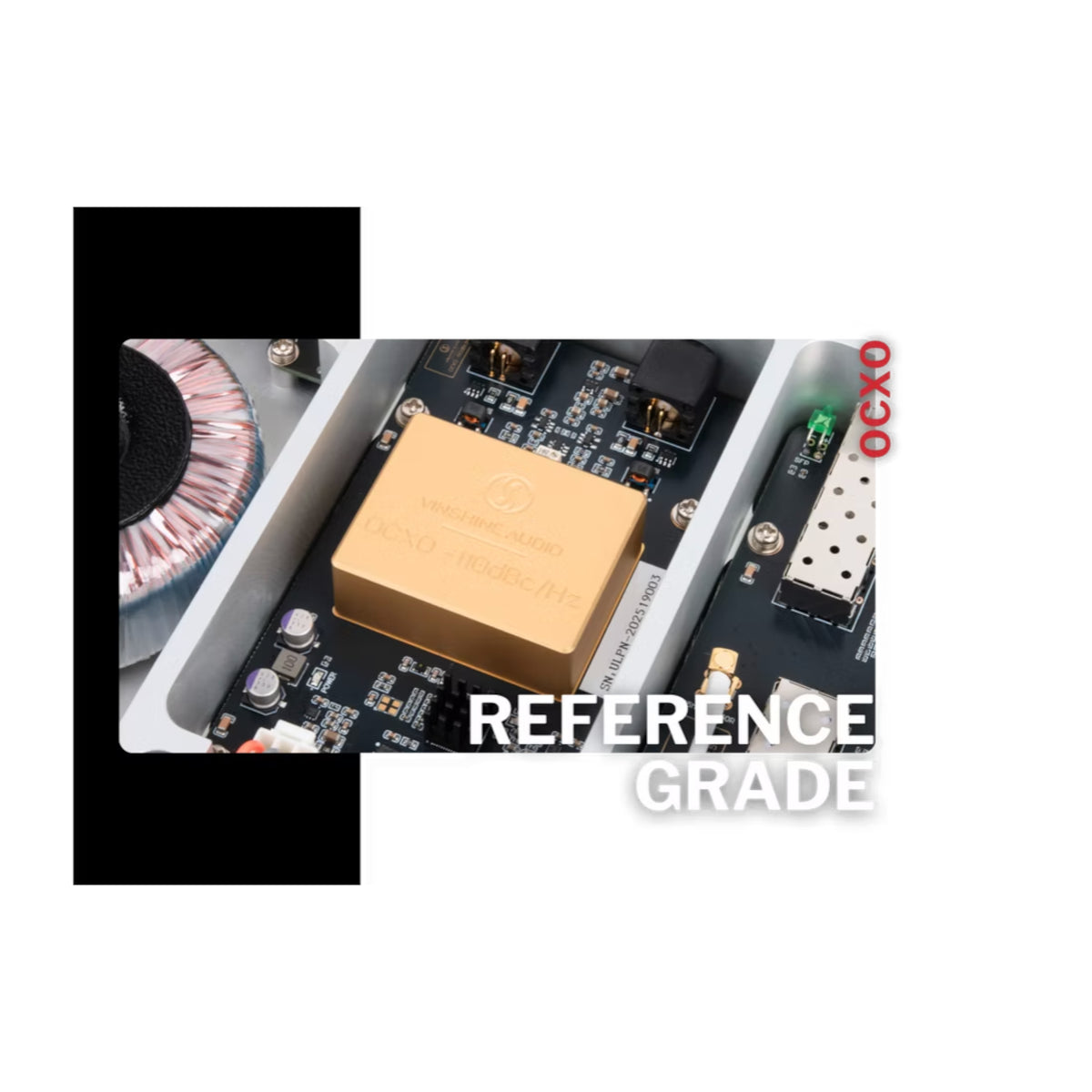

SC-CUT Dual Thermostatically-Controlled OCXO with High-end PLL Synthesizer
Ultra-Low Phase Noise: Better than -110 dBc/Hz
Reclocking of Internal Network Zones & External Clock Output
Master Clock Functionality: Two 10MHz BNC Outputs (50Ω-75Ω, Squarewave)
Integrated Passive Thermal Management via Chassis Heatsinking
Isolated Ground Terminal with Ground Lift Switch for Ground Loop Management

4 × RJ-45 2.5G Gigabit Ethernet Ports (Red Zone)

2 × RJ-45 Isolated 1G Gigabit Port (Green Zone - Audio)

1 × SFP Port for Fiber Input (Red Zone)

1 × SFP Port for Fiber Input (Green Zone - Audio)

2 × 10MHz Master Clock Outputs (BNC, 50Ω - 75Ω)
Connectivity

OCXO & Master Clock

Oscillator Type: SC-CUT OCXO (Dual, Independent Chambers)

Phase Noise: Better than -110 dBc/Hz @ 1Hz Offset

Clock Distribution: Internal Zones & External Devices

External Clock Output: 2 x 10MHz BNC, 50Ω-75Ω (Square Wave)
