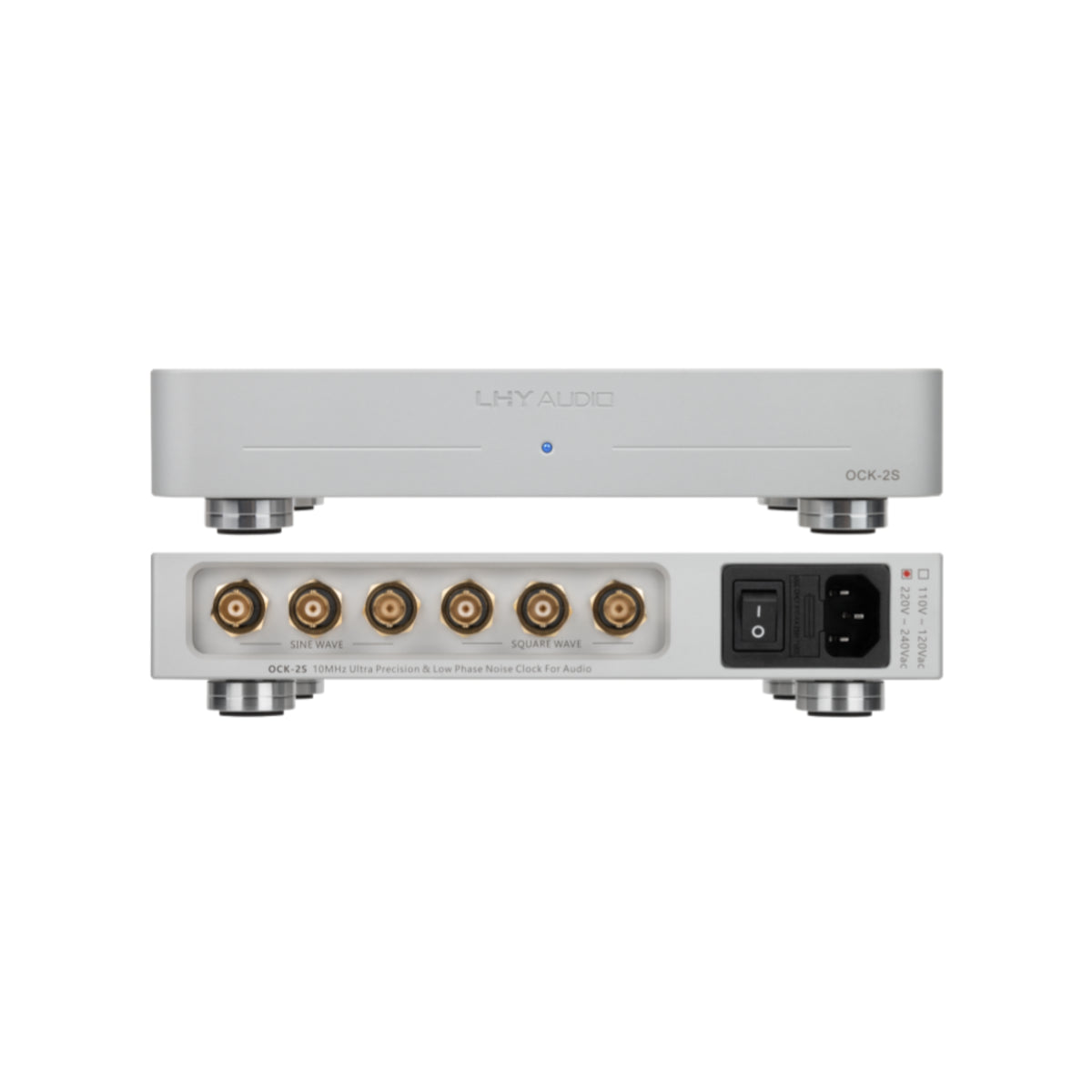

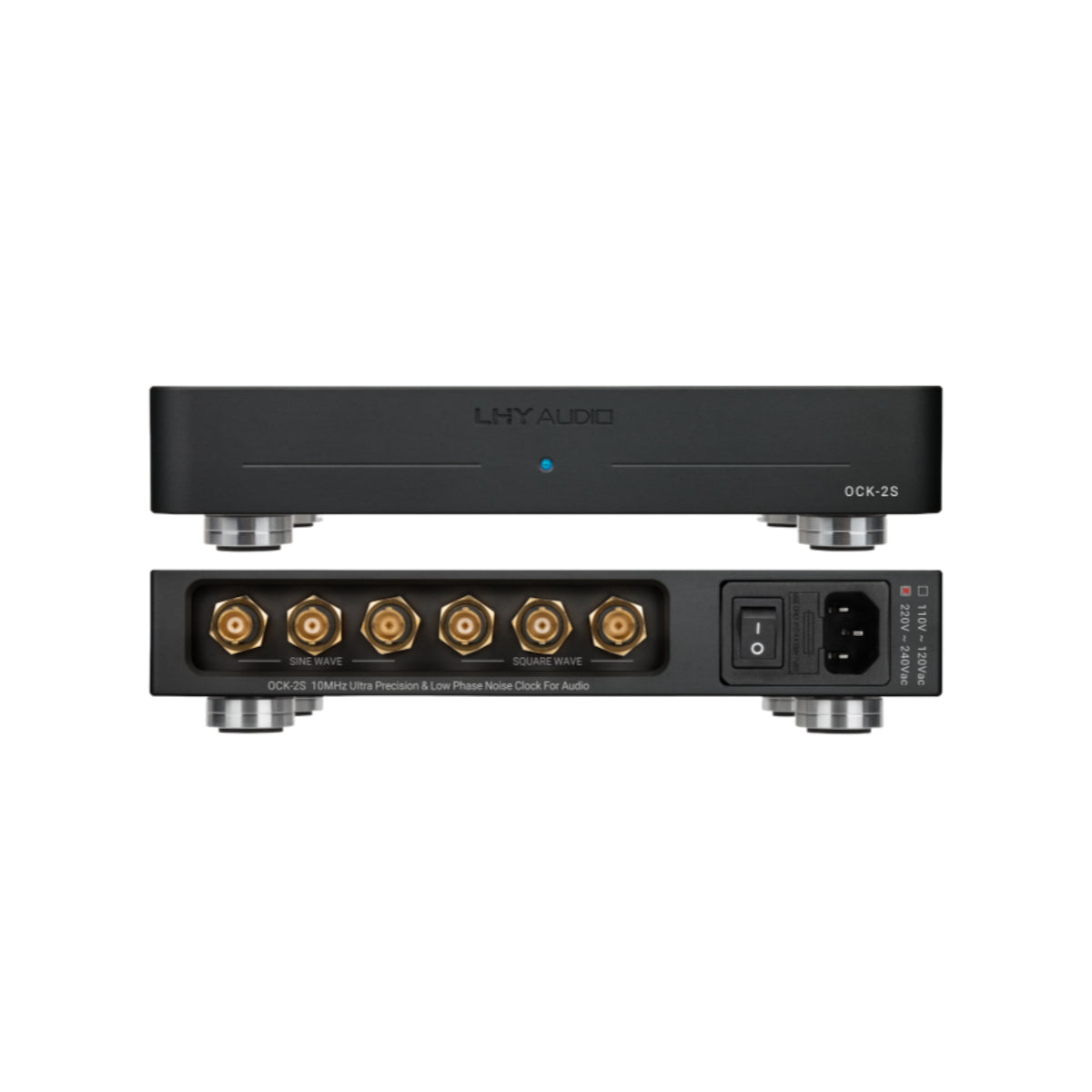

LHY Audio OCK-2S High-precision Reference Master Clock Generator

Elevate your audio and digital systems with the LHY Audio OCK-2S, a high-end master clock generator designed for unparalleled precision and performance. Featuring an SC-CUT OCXO oscillator with ultra-low phase noise (-110 dBc/Hz @ 1Hz offset), it ensures exceptional frequency stability, minimizes jitter, and enhances sound clarity and detail in Hi-Fi setups .

Key Features:

Six Independent Outputs: Three sine wave and three square wave outputs (50Ω/75Ω BNC connectors) for versatile connectivity .

Premium Design: Low-noise power supply reduces electrical interference, ensuring optimal performance .

Wide Compatibility: Ideal for high-end DACs, digital transports, and audio streamers, improving overall system accuracy .

Superior Stability: Outperforms standard oscillators with advanced SC-CUT technology for higher frequency accuracy .

Ideal For: • Audiophile-grade audio systems • Professional telecommunications and research equipment • Embedded systems and digital signal processing

Additional Features :

Ultra Low Phase Noise (-110 dBc/Hz at 1 Hz Offset):

The OCK-2S is equipped with a SC-CUT OCXO (Oven-Controlled Crystal Oscillator) that offers exceptionally low phase noise of -110 dBc/Hz at a 1 Hz offset.

This ultra-low phase noise ensures minimal signal distortion, providing highly stable and precise frequency generation, making it ideal for applications requiring high signal purity, such as high-precision timing sensitive audio equipment.

Improved OCXO DC Supply and Circuitry:

The OCXO circuitry has been upgraded for enhanced DC supply regulation and power stability, ensuring better performance in terms of frequency accuracy and reliability.

This improvement reduces the noise introduced by power supply fluctuations, providing cleaner outputs and reducing jitter, which is critical in high-performance systems where precision is paramount.

Galvanic Isolated Outputs (x6) via True 50Ω and 75Ω BNC Connectors:

The system offers 6 galvanically isolated outputs, ensuring that any electrical interference or ground loops do not affect the signal integrity.

The outputs are available through true 50Ω and 75Ω BNC connectors, providing compatibility with both professional RF equipment and broadcast systems.

This feature guarantees a high level of signal isolation, preventing cross-talk between channels and ensuring the integrity of each signal output.

Master Clock 10MHz Outputs:

Sinewave 50Ω x 2

Sinewave 75Ω x 1

Squarewave 50Ω x 2

Squarewave 75Ω x 1

Output Stability: < 5ppb

Output Accuracy: < 0.05ppm

Phase Noise: -110dBc at offset 1Hz

Operating Temperature:

15 mins to warm up

60 mins to reach optimal temperature

Power Consumption: < 9W

Dimension: 240W x 50H x 175D (mm)

Weight: 2.05kg
