LHY Audio AS6 LPS & OCXO Ethernet Switch for Audiophile
LHY Audio AS6 LPS & OCXO Ethernet Switch for Audiophile
Couldn't load pickup availability

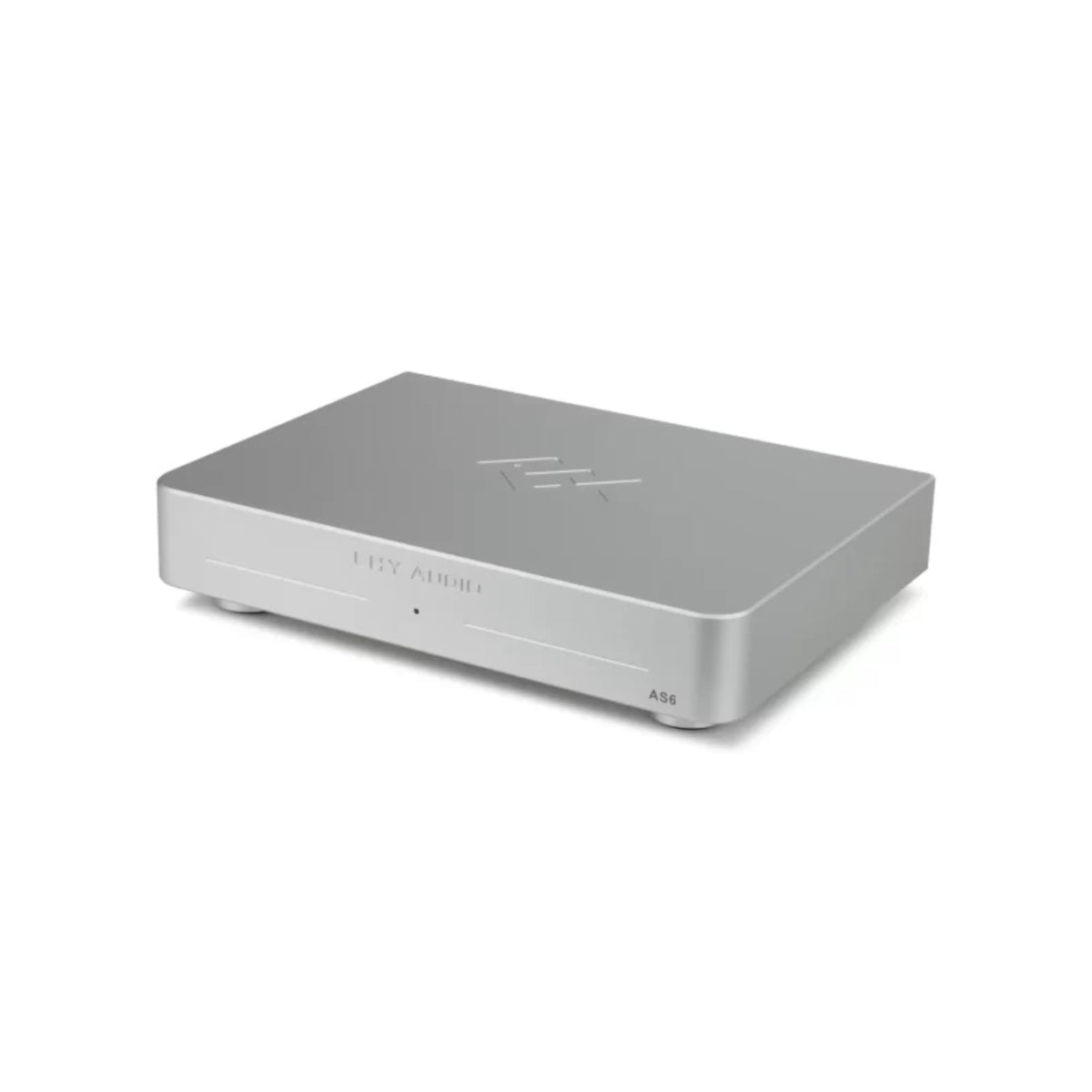

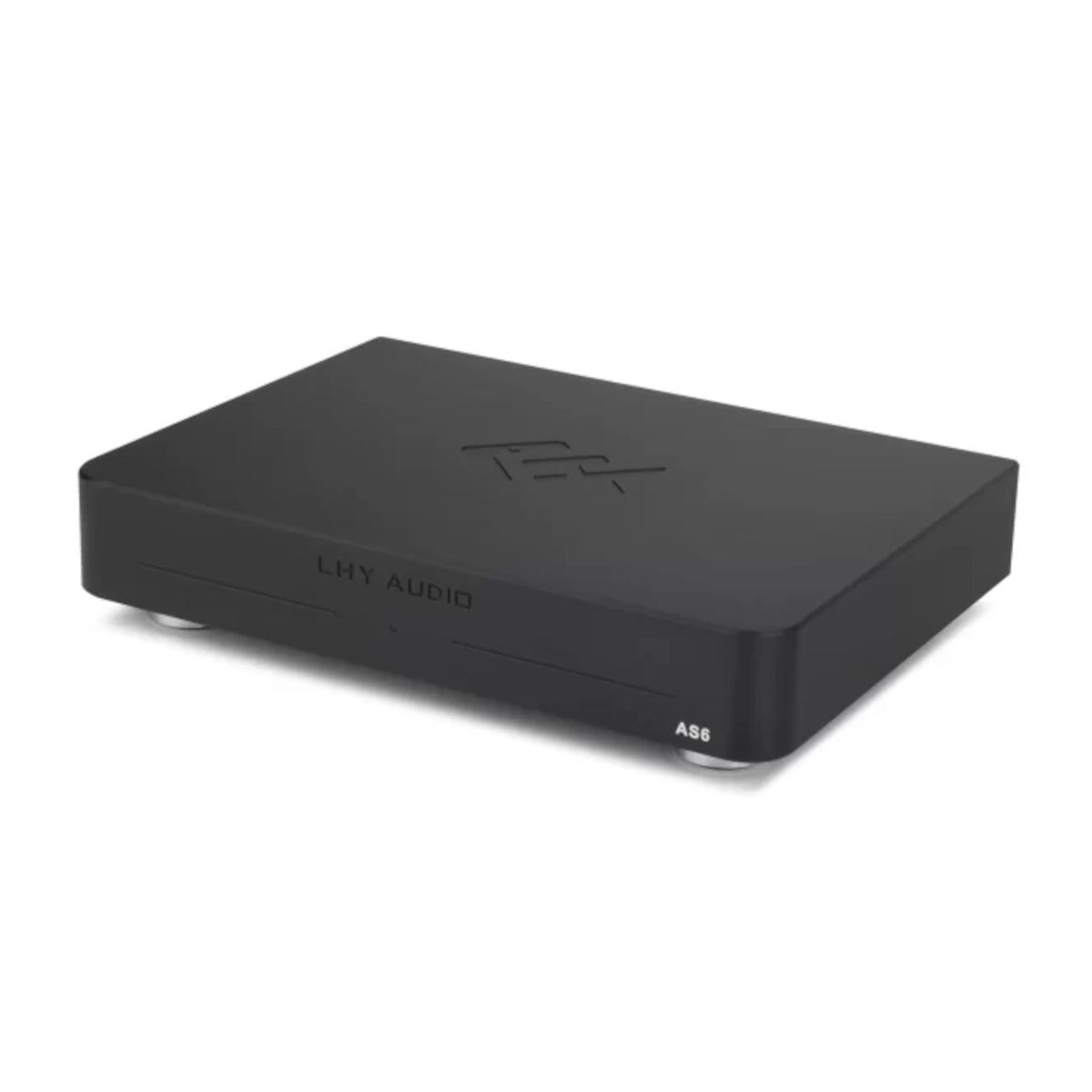

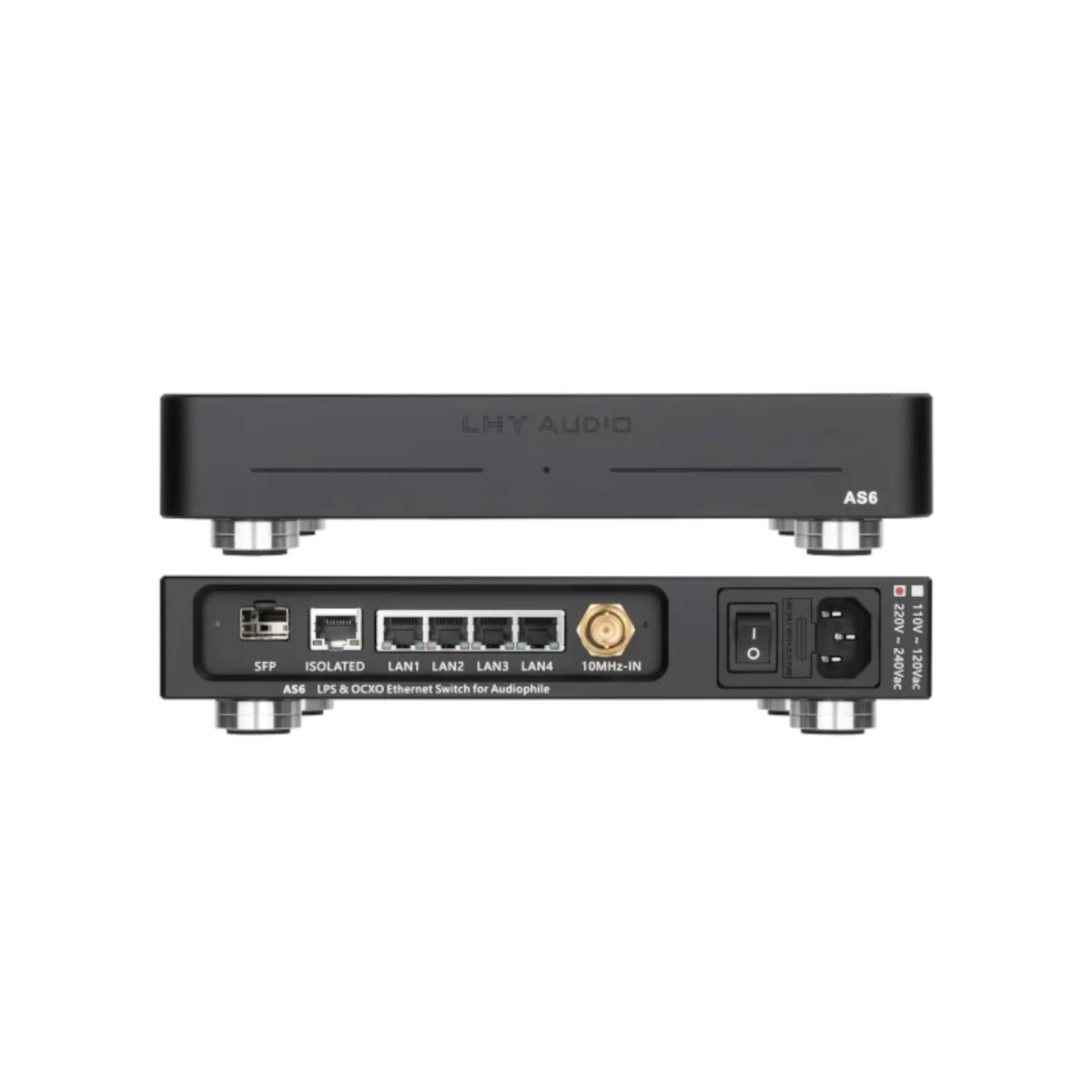

LHY Audio AS6 is an evolution of the SW6-SFP audiophile switch, including 5 RJ45 ports and 1 isolated RJ45 port, a fibre optic SFP port and a BNC Clock input connected to the integrated 10MHz OCXO clock. All of this is housed in an elegant anodised aluminium enclosure machined from solid material and designed to separate AC current processing, DC current processing and audio signal processing.
LHY AS 6 designed to enhance network performance by suppressing signal noise, the AS6 mitigates data packet retransmission caused by transmission errors—a key factor degrading network efficiency.
More Info :
Features
Features
- Triple independent LT3042+PNP μV-power rails for OCXO & mainboard

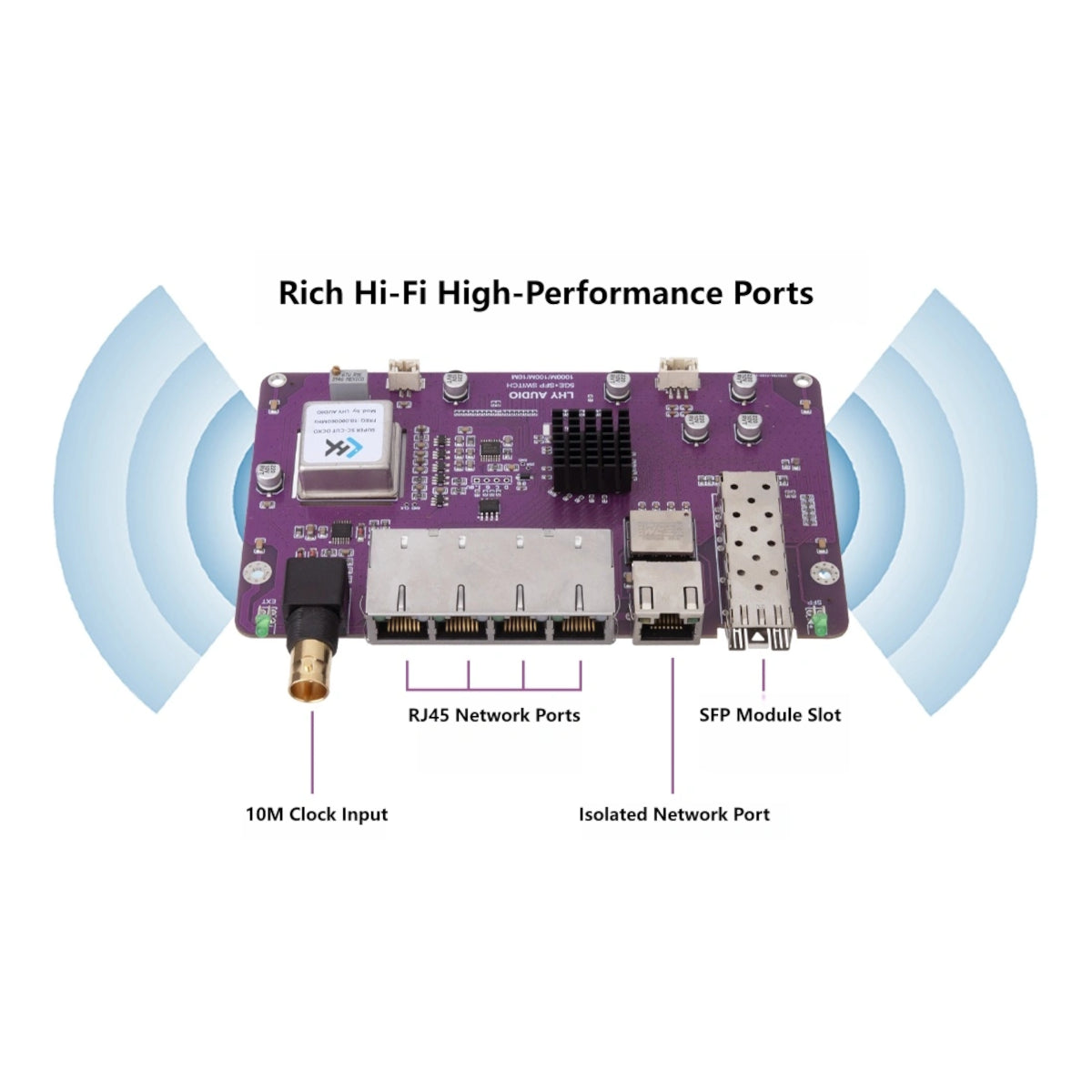

- Isolated RJ45 ports with dedicated network magnetics.
- Integrated low-phase-noise OCXO with external 10MHz clock input via BNC.
- Multi-stage filtration: EMI AC filter + high-speed rectification + high-capacity capacitor bank
Specifications
Specifications

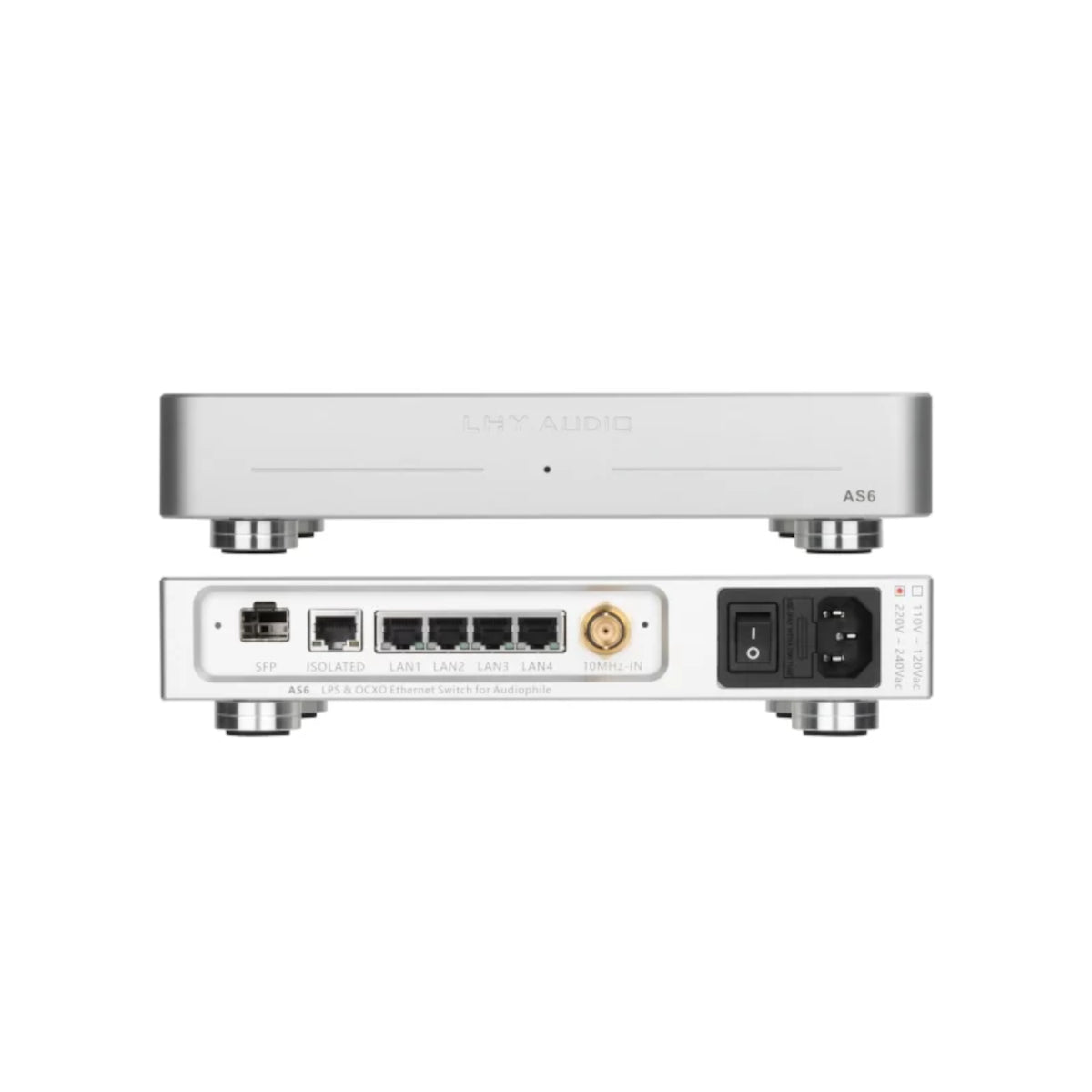

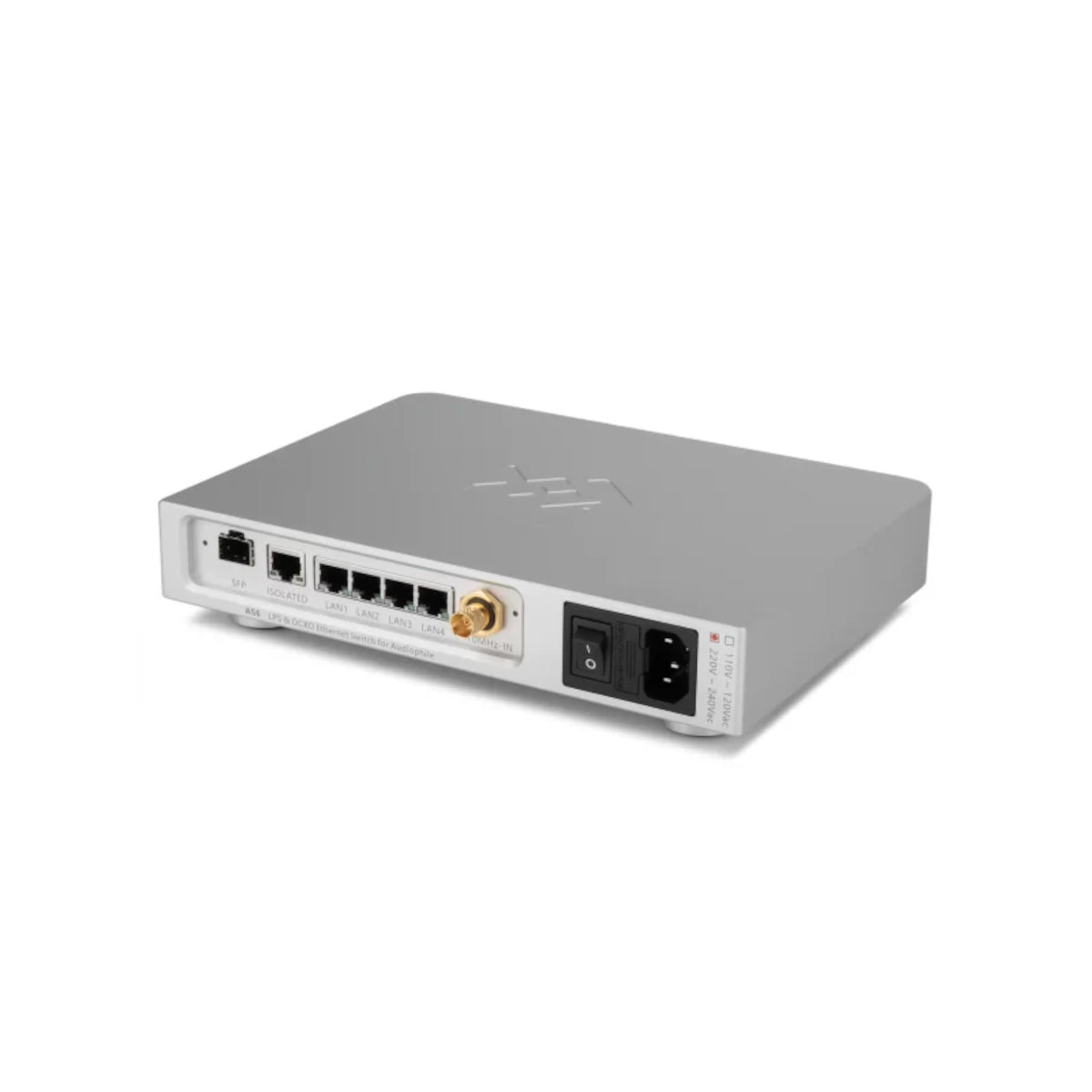

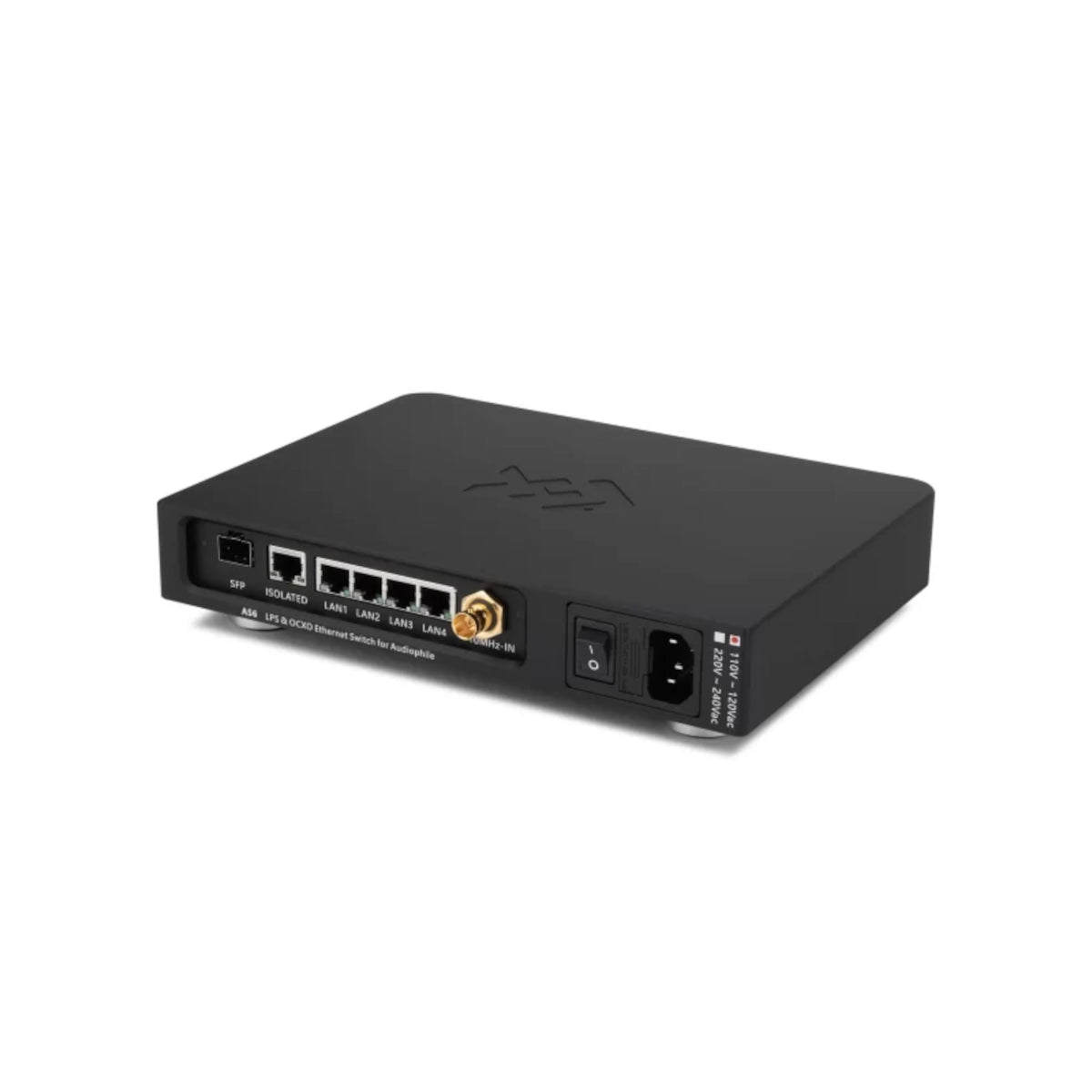

- Port Quantity
RJ45 ×4, SFP Interface ×1, ISOLATED ×1, BNC ×1 (Impedance: 50Ω/75Ω, Level: 0dBm to 20dBm, CMOS Square Wave: 0.3V-3.3V (p-p), Sine Wave: 0.5V-3.3V (RMS))
- Port Speed : 10/100/1000Mbps
- Regulated Power Supply : 3 Channels of LT3042+PNP
- Core Clock : Imported OCXO (Oven-Controlled Crystal Oscillator)
- Chassis Type : Solid Aluminum Alloy Machining
- Dimensions : 240 × 175 × 50mm (Width × Depth × Height)
- Weight : 2kg
- Voltage : Factory Default 220~240VAC (Customizable to 110~120VAC)
- Power Consumption : 10W, Fuse Spec: 5×20mm
- Accessories : Standard Power Cord
What's in the box
What's in the box
- LHY AS-6 Network Switch
- Power cord
