LHY Audio
LHY Audio AS6 Pro high-performance audiophile Ethernet switch (220V -240V)
LHY Audio AS6 Pro high-performance audiophile Ethernet switch (220V -240V)
Couldn't load pickup availability

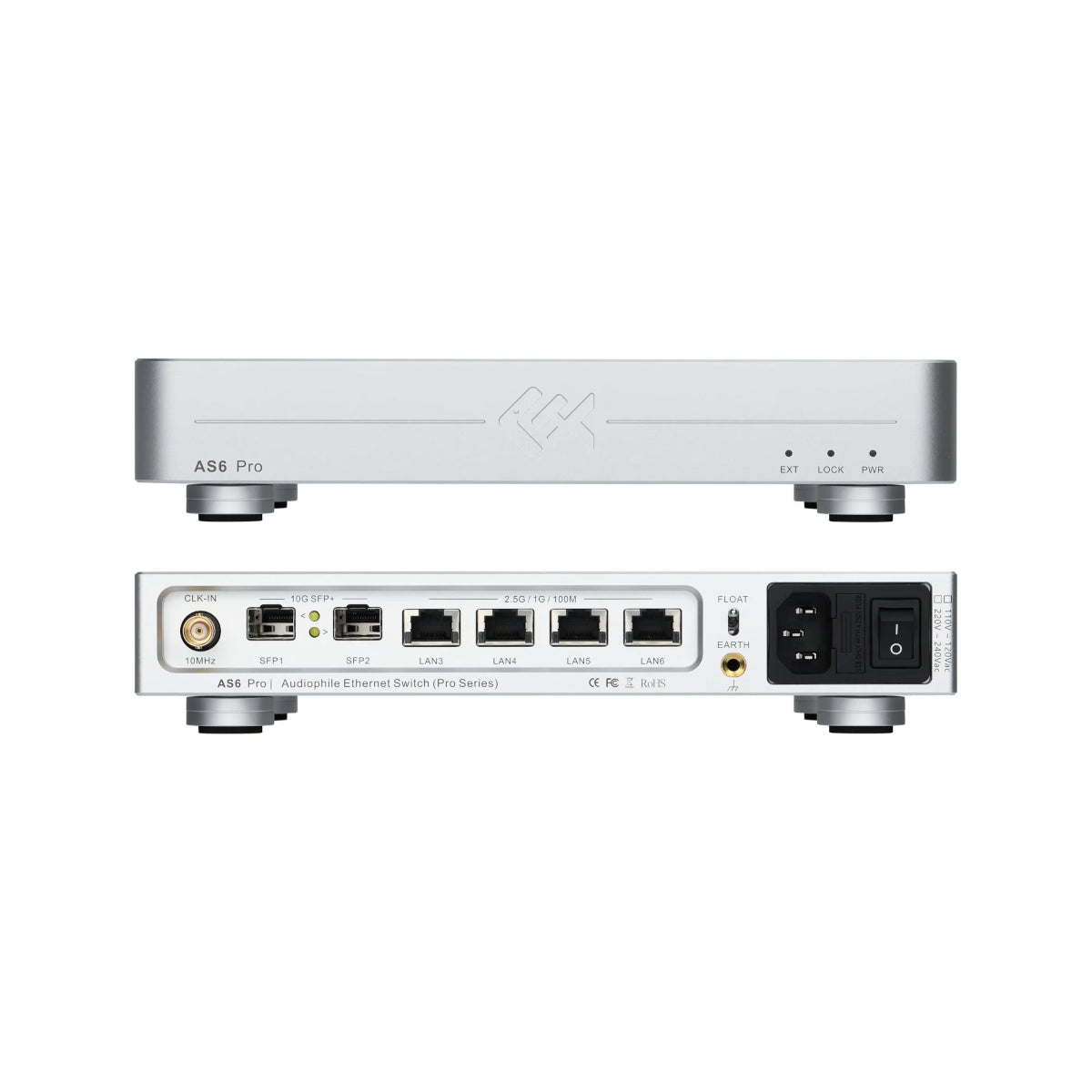

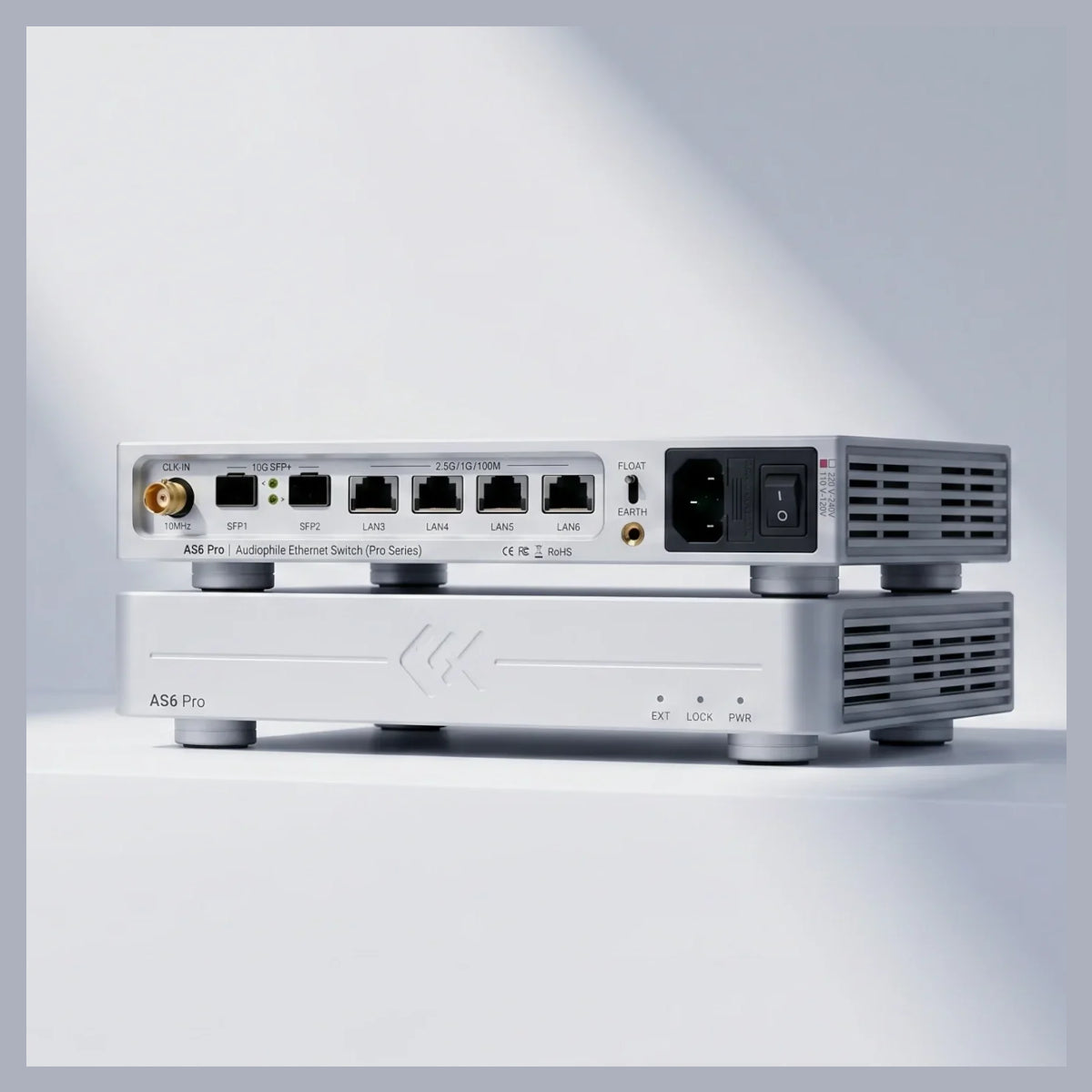

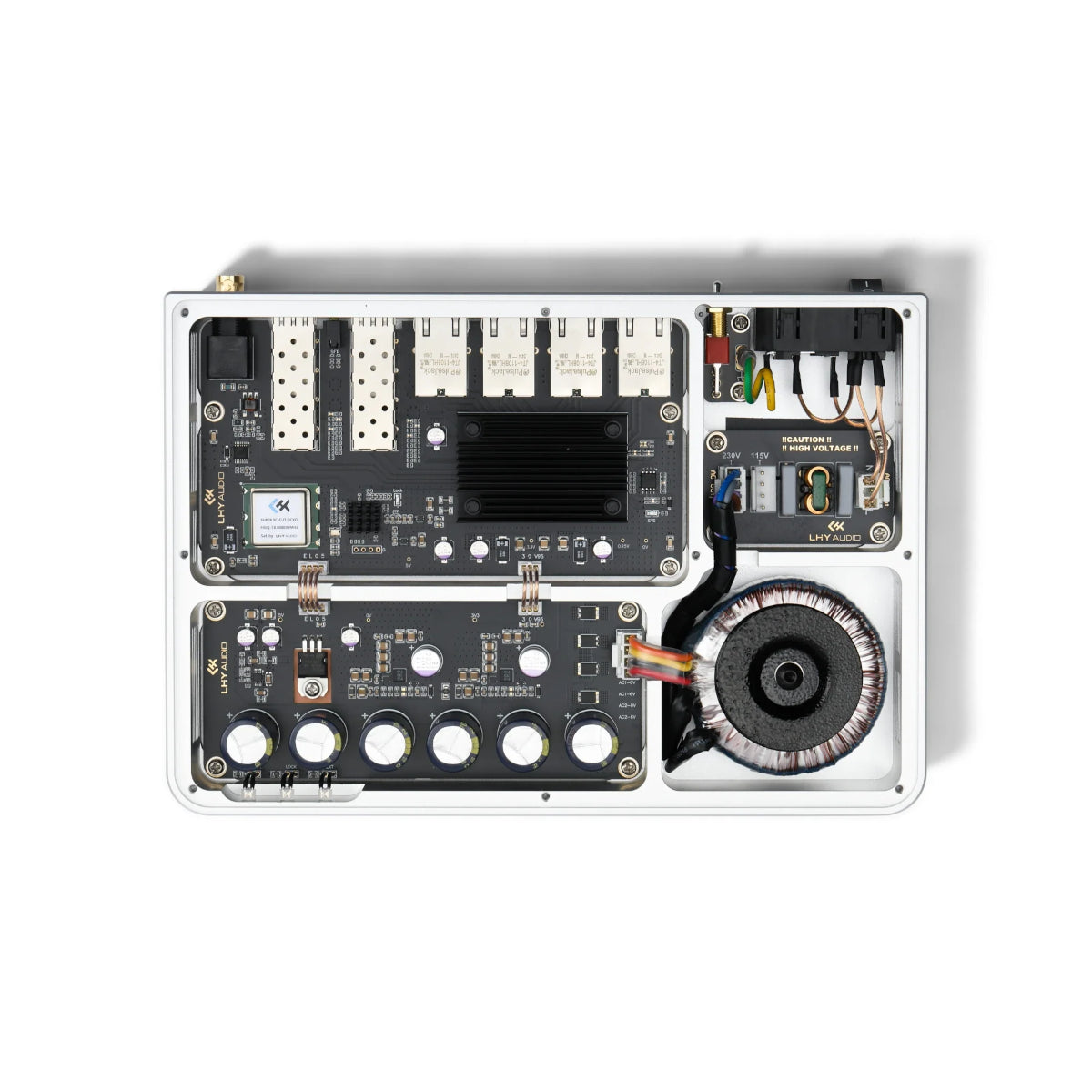

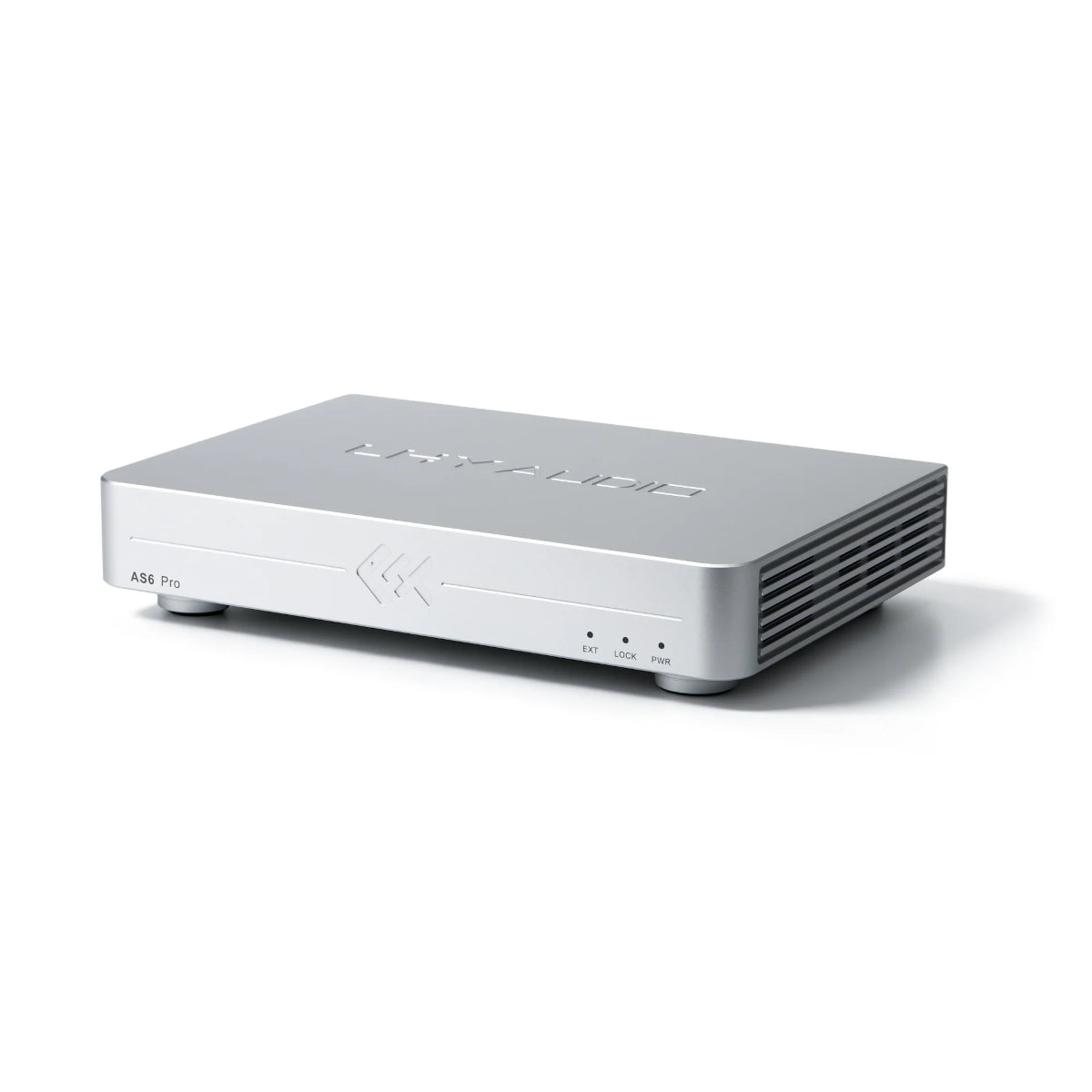

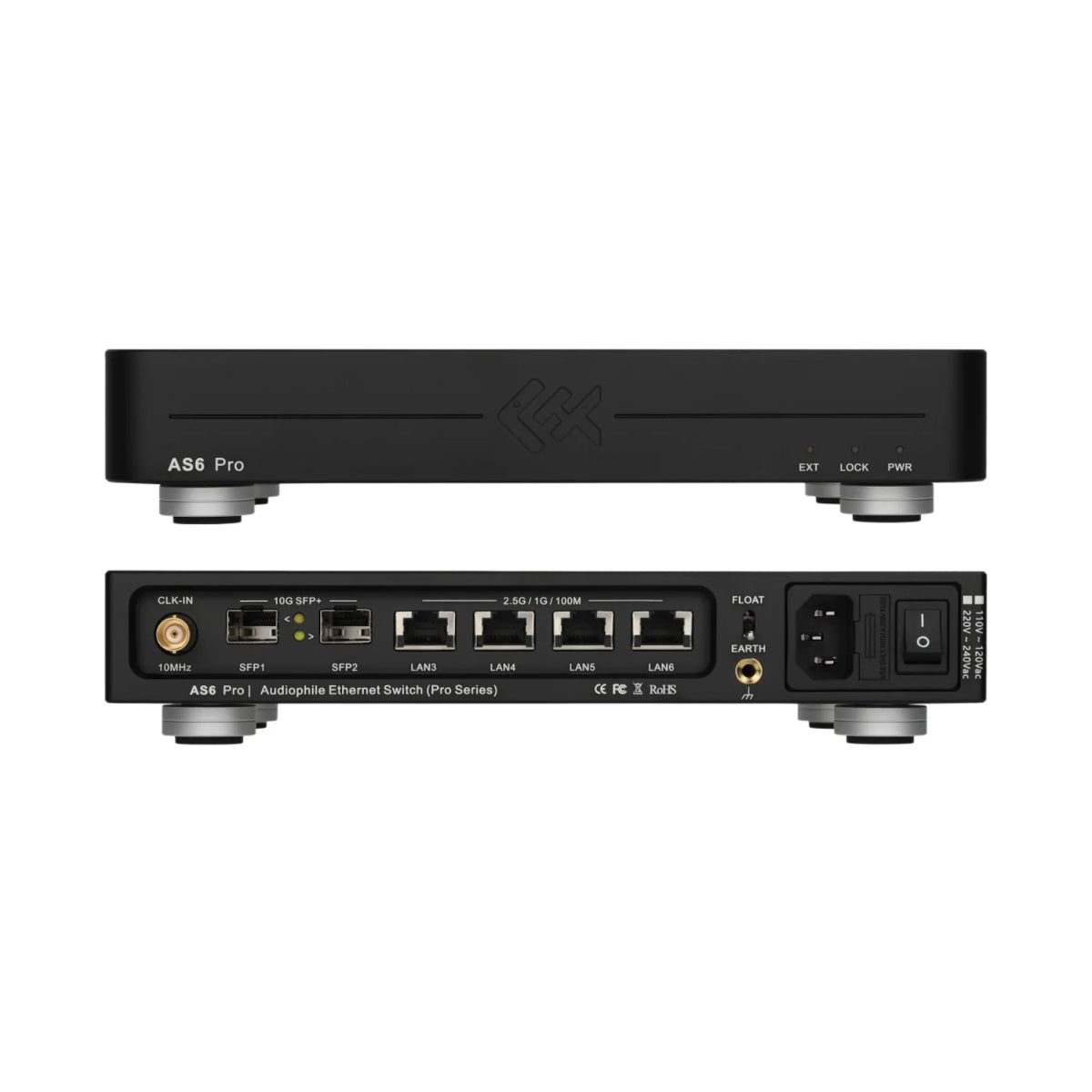

AS6 Pro is a high-performance audiophile Ethernet switch built for advanced digital audio networks. It carries forward the proven AS6 clock platform while adding 4 × 2.5G Ethernet, 2 × 10G SFP+ optical ports, a 30VA linear power foundation, dual independent DC conversion, LT3042-based low-noise regulation, improved passive cooling, 10MHz external clock input, and Float / Grounded grounding control.
FAQ

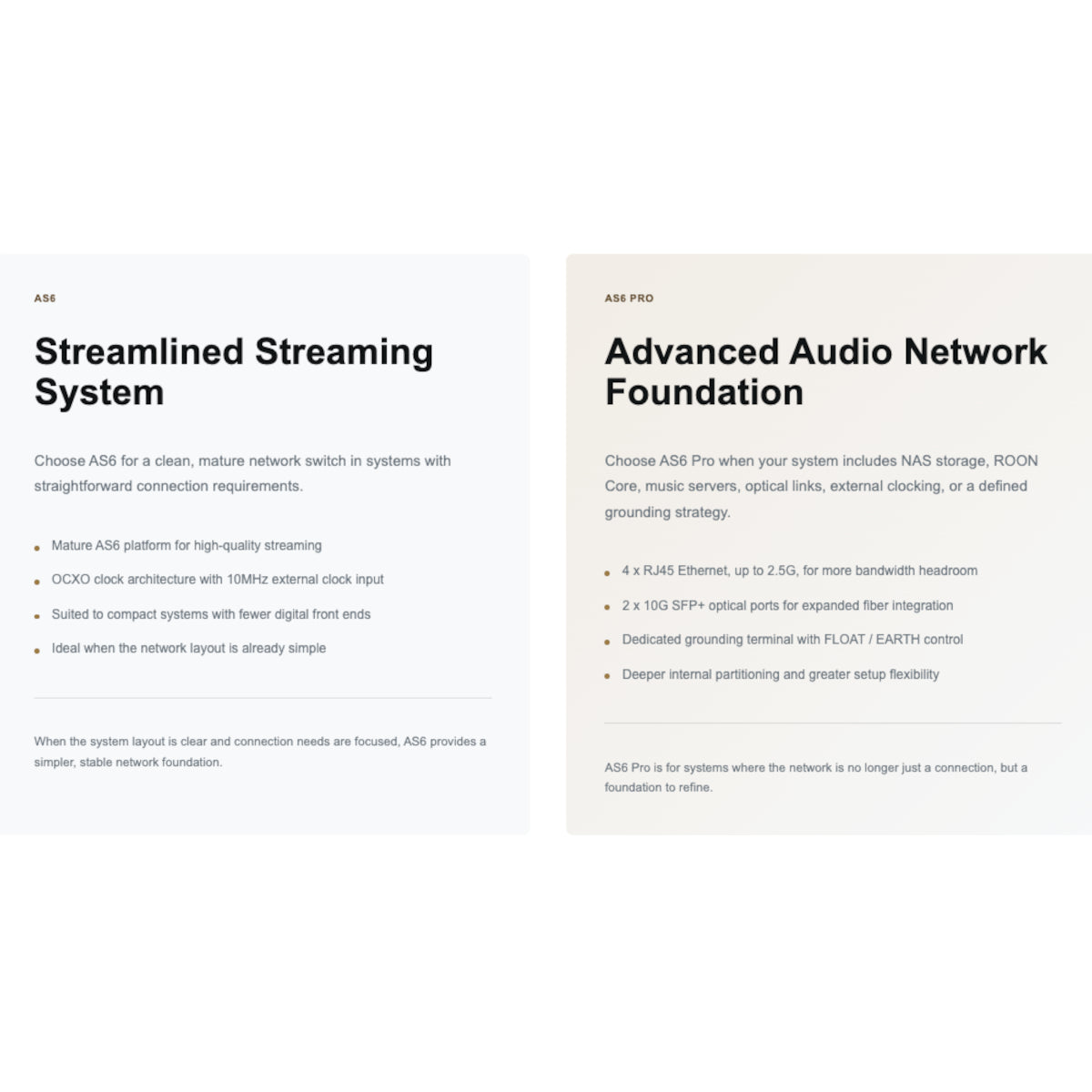

Which one is for me AS6 or AS6 Pro ?
Choose AS6 for a streamlined high-fidelity streaming setup. Choose AS6 Pro when the network itself becomes part of the system architecture, with greater connection headroom, optical integration, grounding control, and setup flexibility.
Features
Features
Specifications
Specifications
AS6 Pro Audiophile Ethernet Switch

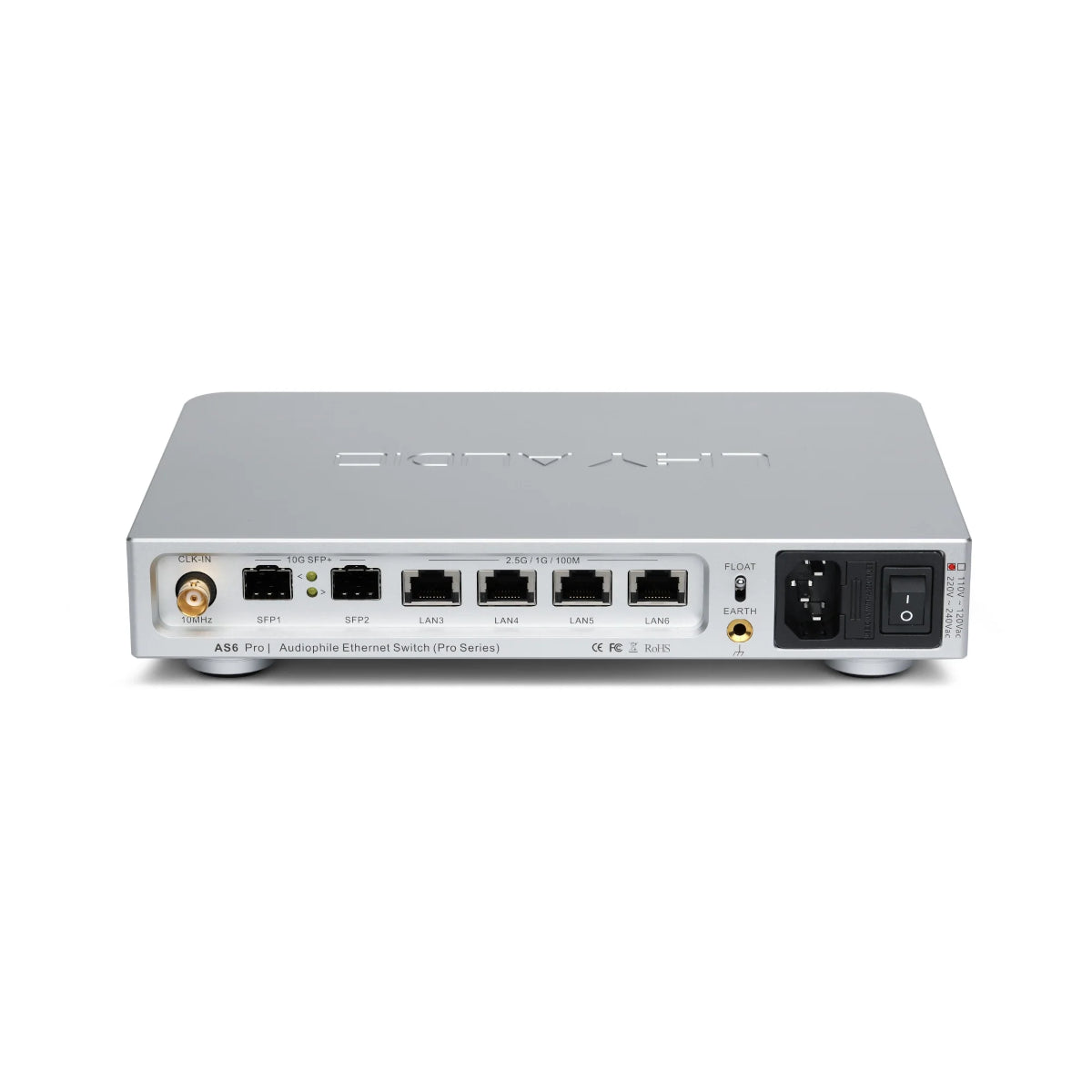

SFP Ports : 10Gbps SFP / SFP+ x 2RJ45 PortsUp to 2.5Gbps RJ45 x 4, compatible with 1000/100/10Mbps
Jumbo Frame : Up to 12288 Byte / 12KB
Clock Input BNC x 1, 10MHz
Internal Clock : SC-CUT OCXO oven-controlled crystal oscillator
Phase Noise : -100dBc @ 1Hz Offset, typical value
Stability : Below ±5ppb; frequency accuracy below ±0.05ppm

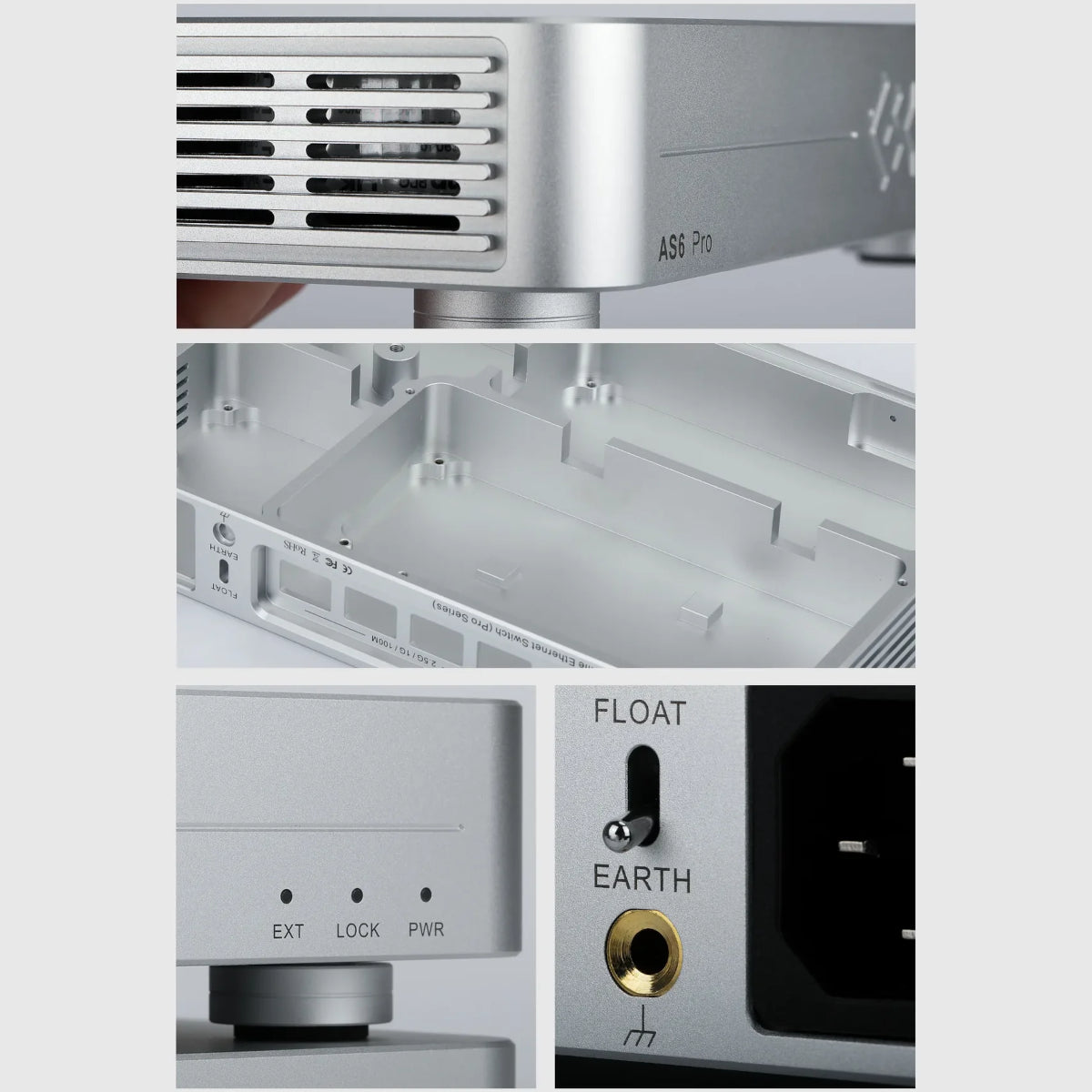

Grounding : Dedicated grounding terminal x 1, grounding mode switch x 1
Size / Weight :256 x 175 x 50mm; 3.3kg
Power : 220-240VAC standby approx. 5W, full load approx. 16W
What's in the box
What's in the box
AS6 Pro
Power cable
SFP electrical module
RJ45 network cable
warranty card
