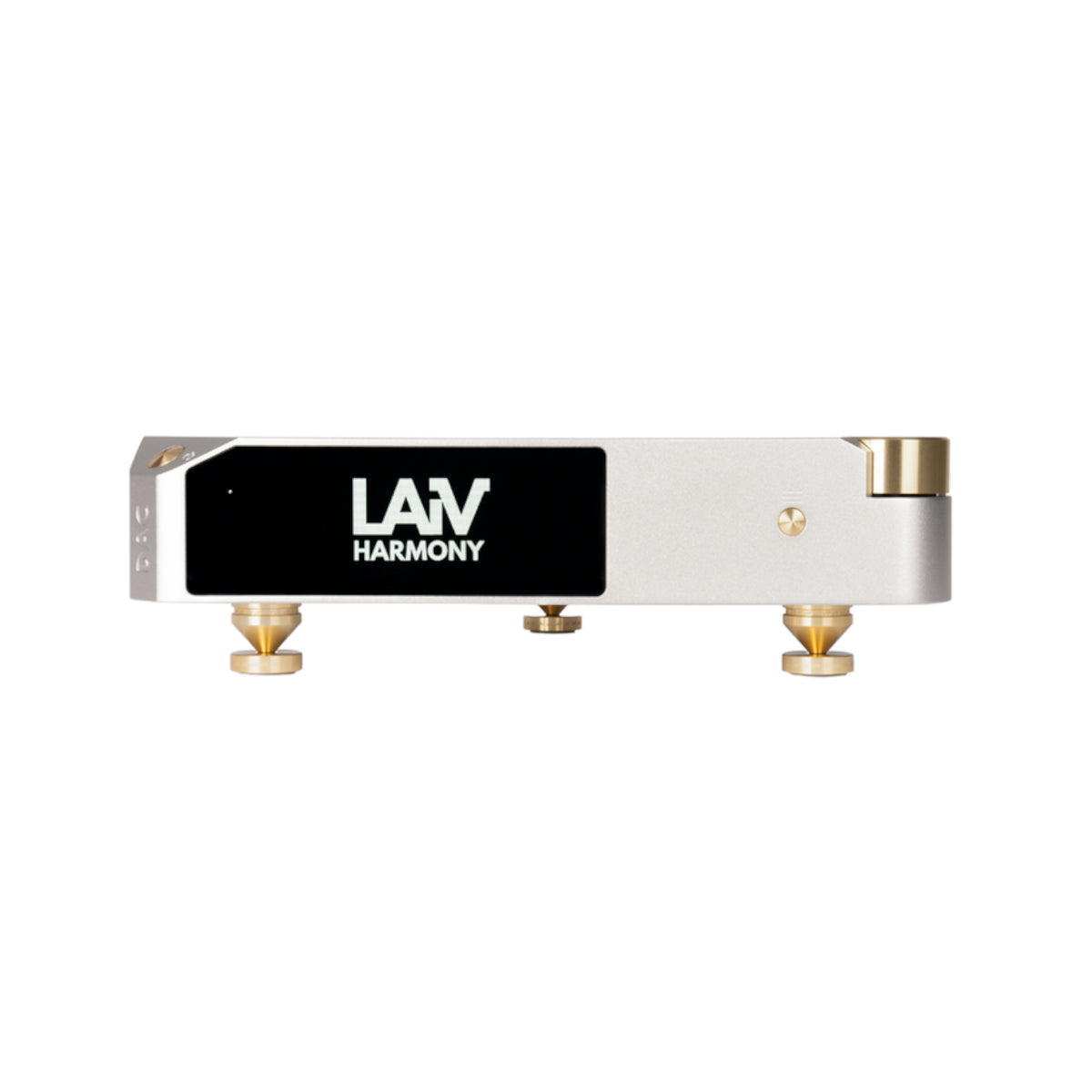

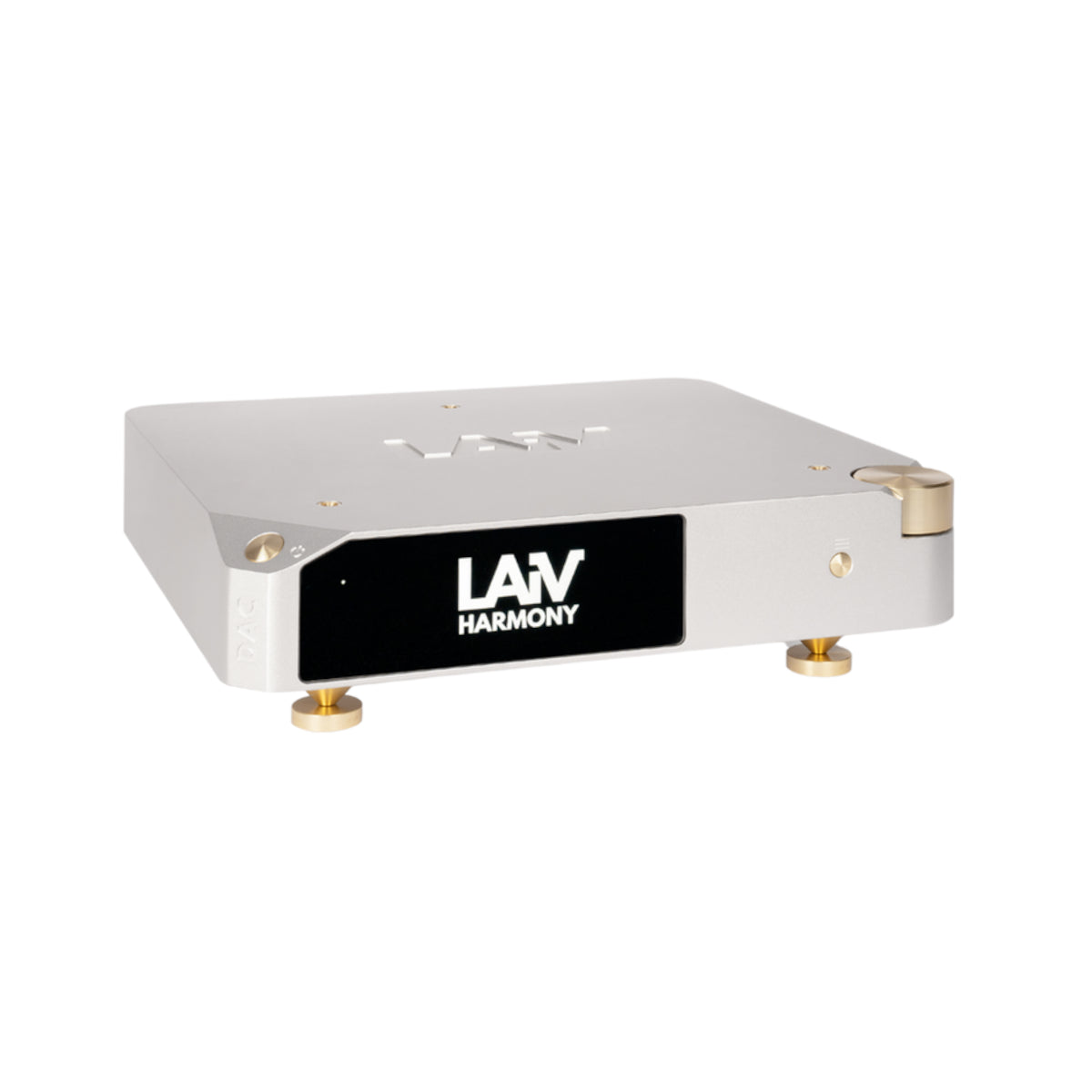

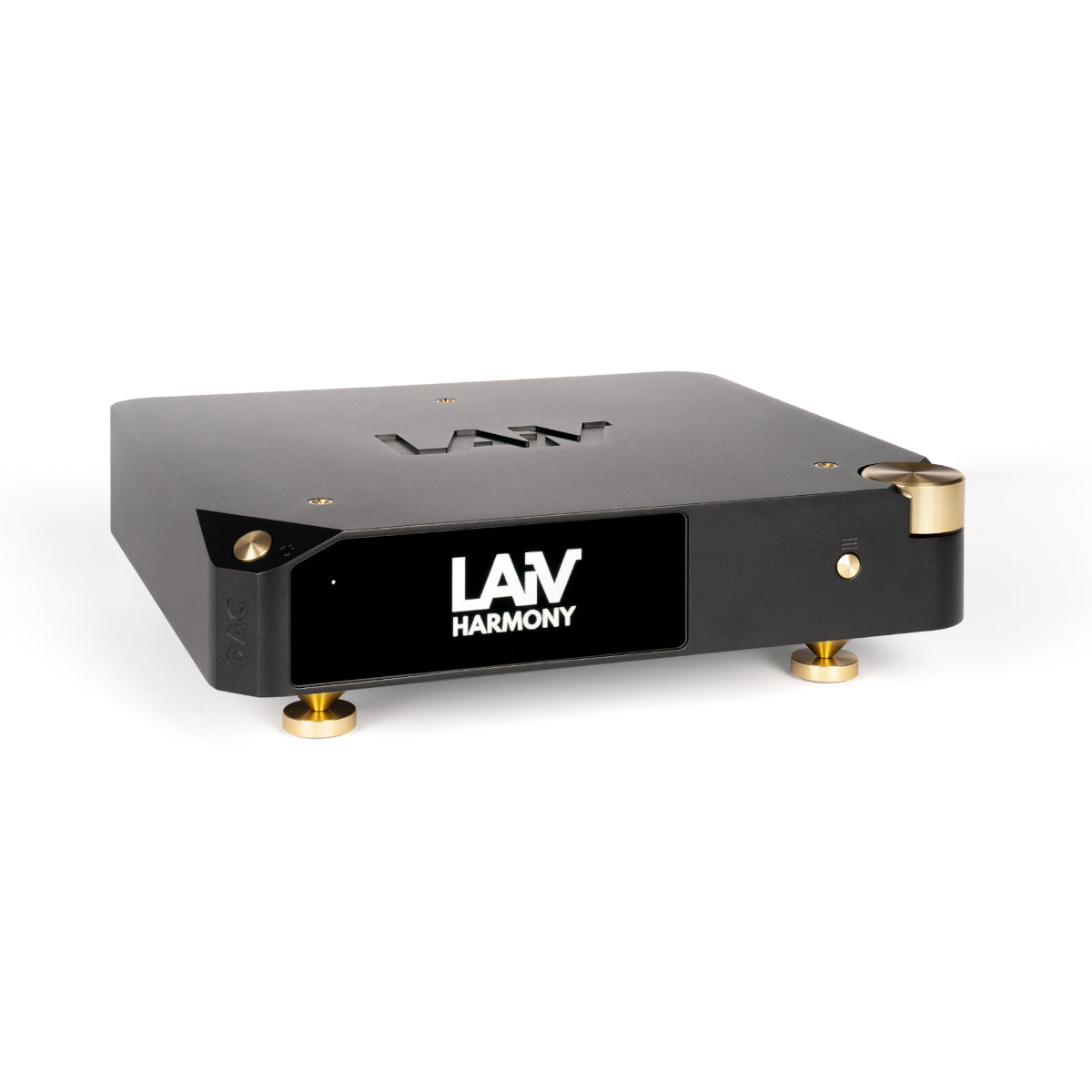

LAiV Harmony DAC
LAiV Harmony DAC
Couldn't load pickup availability
A high-fidelity Digital-to-Analog Converter (DAC) that merges cutting-edge technology with an elegant, user-centric design philosophy. The Harmony DAC aims to deliver an exceptional audio experience while seamlessly integrating into modern living spaces.
Highlights
Precision Perfected: Exquisite Quality Redefined: Utilise high-quality materials and precision craftsmanship to ensure durability and longevity.
Revolutionising Audio: Inspired by Industrial Ingenuity: Designed with a modular approach inspired by industrial efficiency and adaptability, offering users unmatched flexibility, easy upgrades, and simple maintenance.
Sonic Integrity: Unleash the Power of Uncompromised Sound: Experience unmatched audio quality with our advanced Balanced discrete R-2R architecture and premium components, delivering exceptional value.
Seamless Simplicity: Elevating Your Experience: Design an intuitive interface that offers effortless control and enhances the user experience.
Warranty: 24-month limited warranty.5
FAQ
Is the Laiv harmony updateable ? The LAIV Harmony DAC is updateable via firmware, but firmware updates are mainly for bug fixes rather than sonic improvements. So far, there haven't been any firmware updates released, as the DAC has been performing well.
Features
Features
- Modular design
- NOS / OS Mode
- Positive / negative phase
- Function key for quick settings
- Display brightness, delay dim, and delay off
- 8 x I2S Mode with Laiv product auto-configured
- I2S clock supported
- CD track info over SPDIF
Specifications
Specifications
Chip
- Intel®
- Altera®
- Cyclone® FPGA
Clock
- CCHD-957 FEMTO Clock Ultra-Low Phase Noise Oscillator

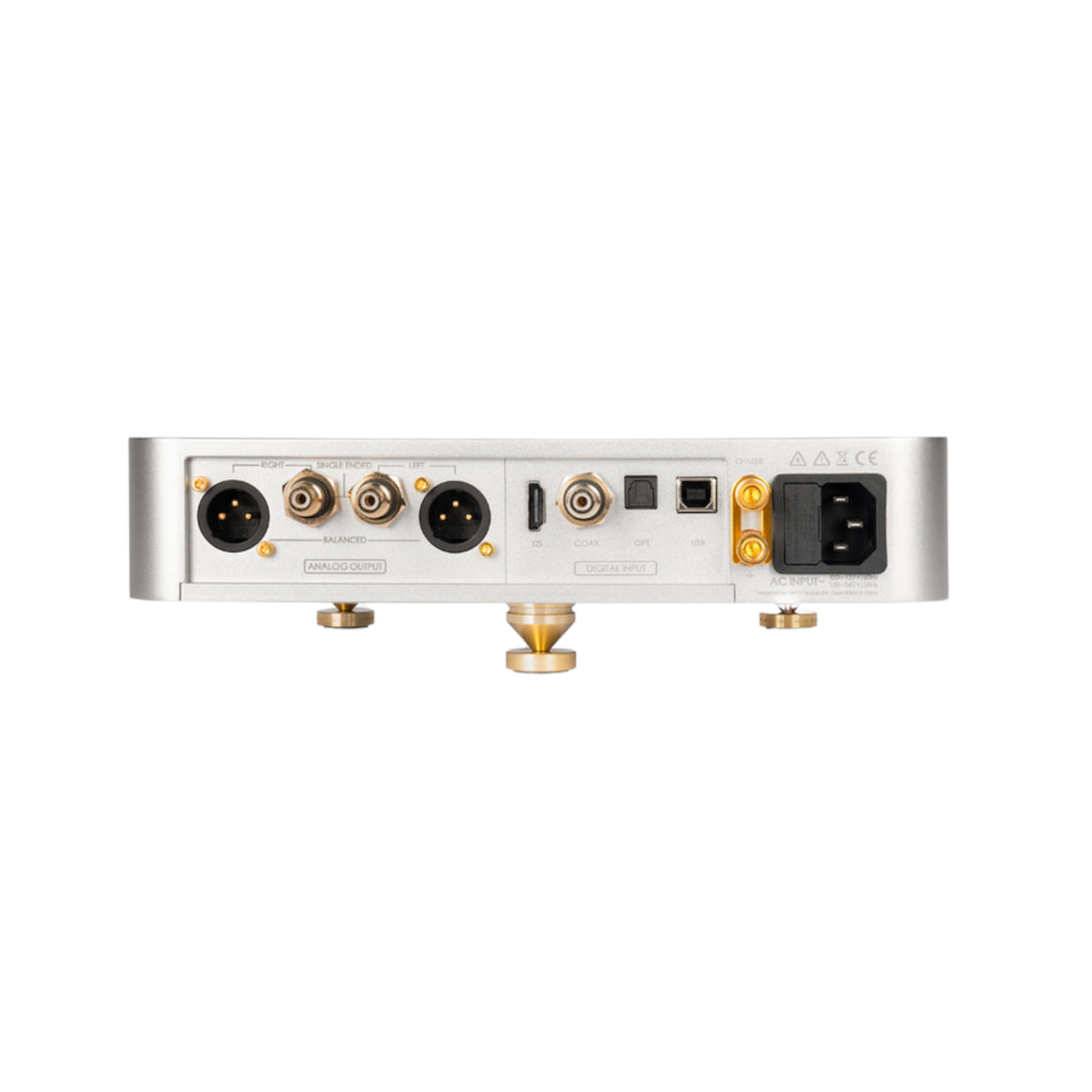

Digital Inputs
- 1 x USB
- 1 x Optical
- 1 x Coaxial
- 1 x I2S
Analog Outputs
- 1 x XLR, maximum at 4.15Vrms, approx. 1200 Ω
- 1 x RCA, maximum at 2.07Vrms, approx. 600 Ω
Supported Formats (Input Dependent)
- USB: PCM: 44.1kHz - 768kHz, DSD: DSD64 - DSD256
- Optical: PCM: 44.1kHz - 192kHz, DSD: Not supported
- Coaxial: PCM: 44.1kHz - 192kHz, DSD: Not supported
- I2S: PCM: 44.1kHz - 768kHz, DSD: DSD64 - DSD256
Frequency Response
- 20Hz – 20kHz, within ± 0.25 dB
THD+N
- 0.0035%3
Crosstalk
- Better than 110 dB, 20Hz – 20kHz3
Signal to Noise Ratio (SNR)
- Better than 123dB, A-Wt.3
Dynamic Range
- Better than 110dB, A-Wt.3
Controls
- Remote control W 45mm D 17mm H 150mm, Weight 157g
- Front panel
Power
- 100 - 127 VAC / 220 - 240 VAC, 50 / 60Hz, ≤ 10W
Fuse
- 2A, Slow-blow, 5 x 20mm.
What's in the box
What's in the box
- Welcome card with Certificate of Authenticity
- Harmony DAC
- Three spike shoes with alignment card
- Remote control (Battery CR2032 not included)
- Power cord
- Cleaning cloth
