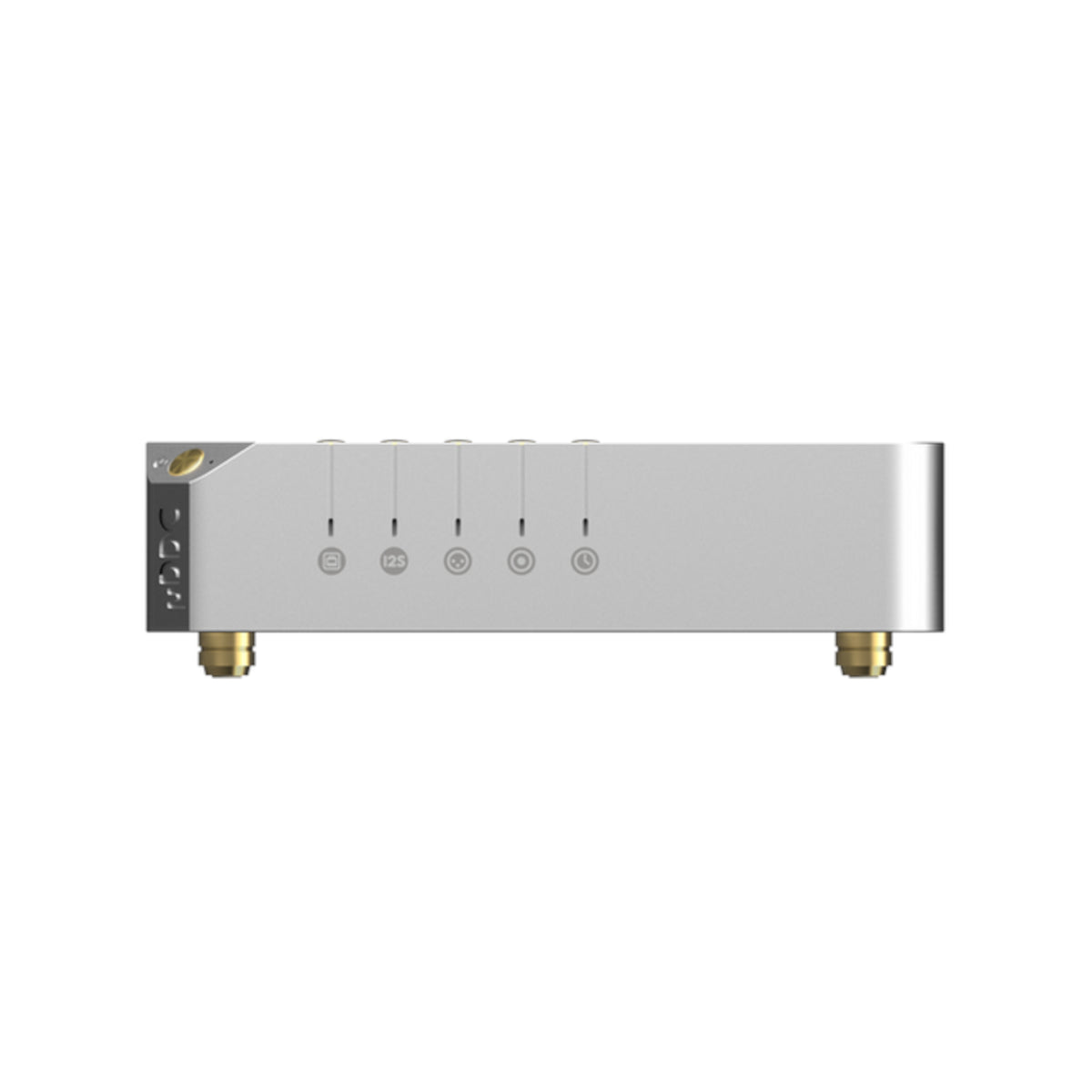

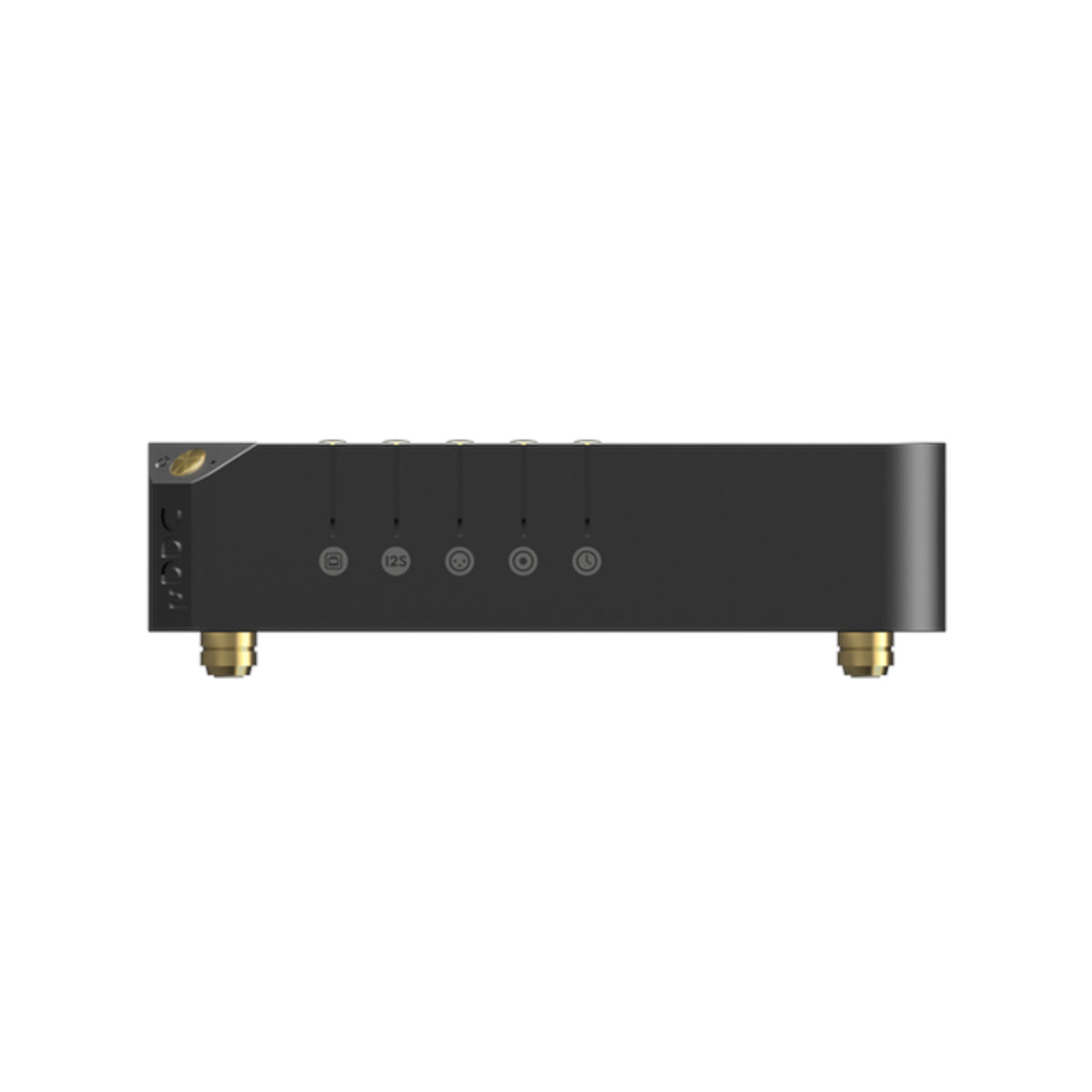

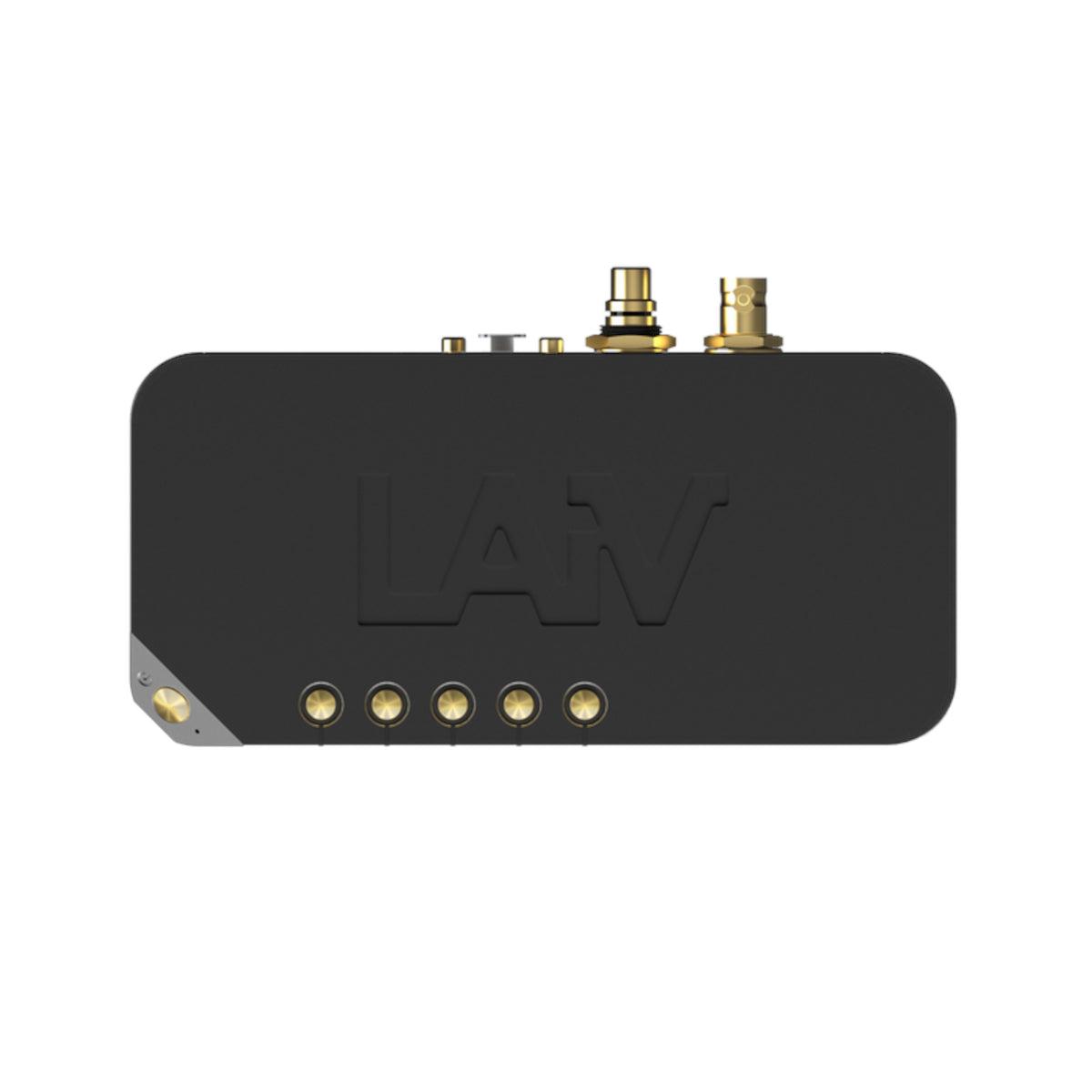

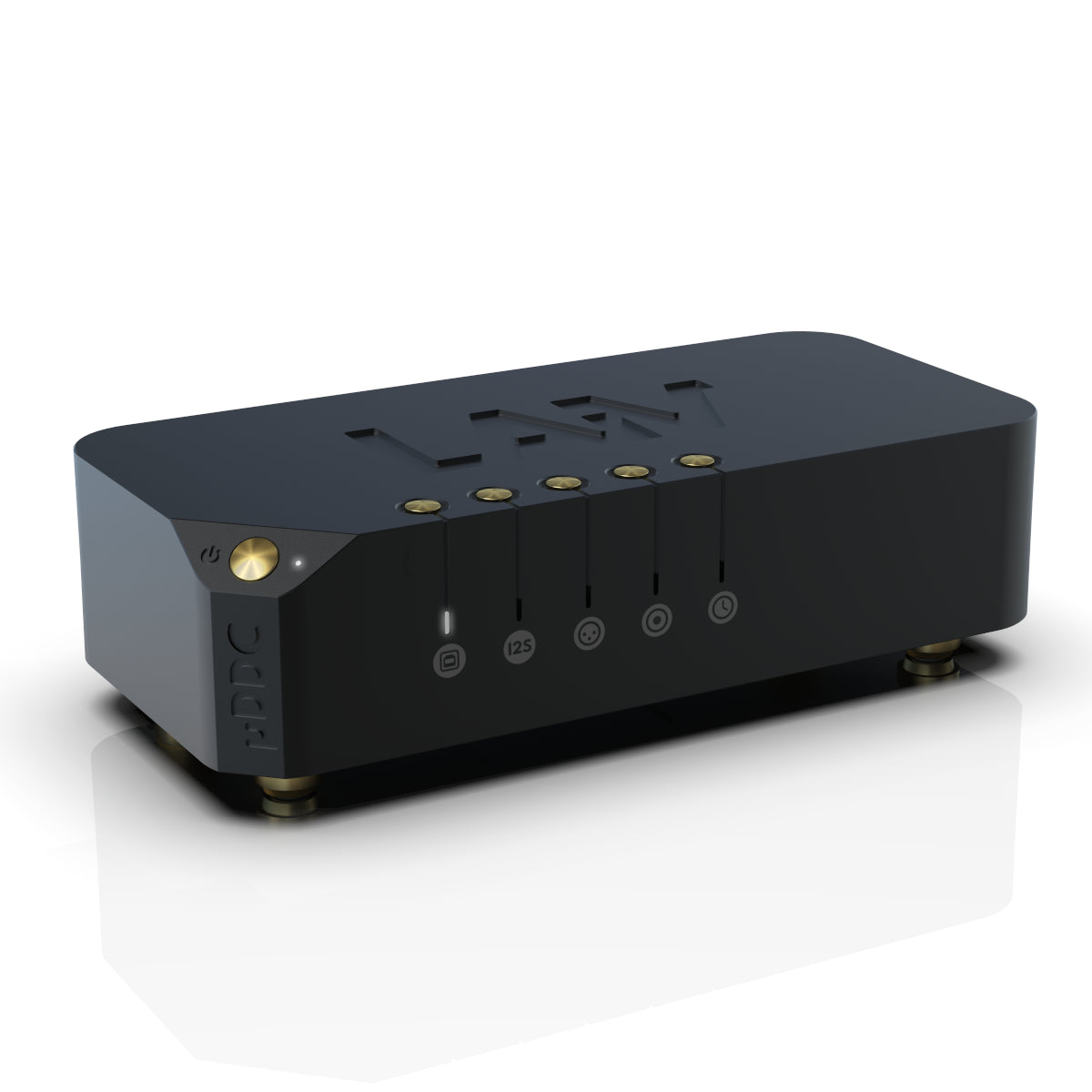

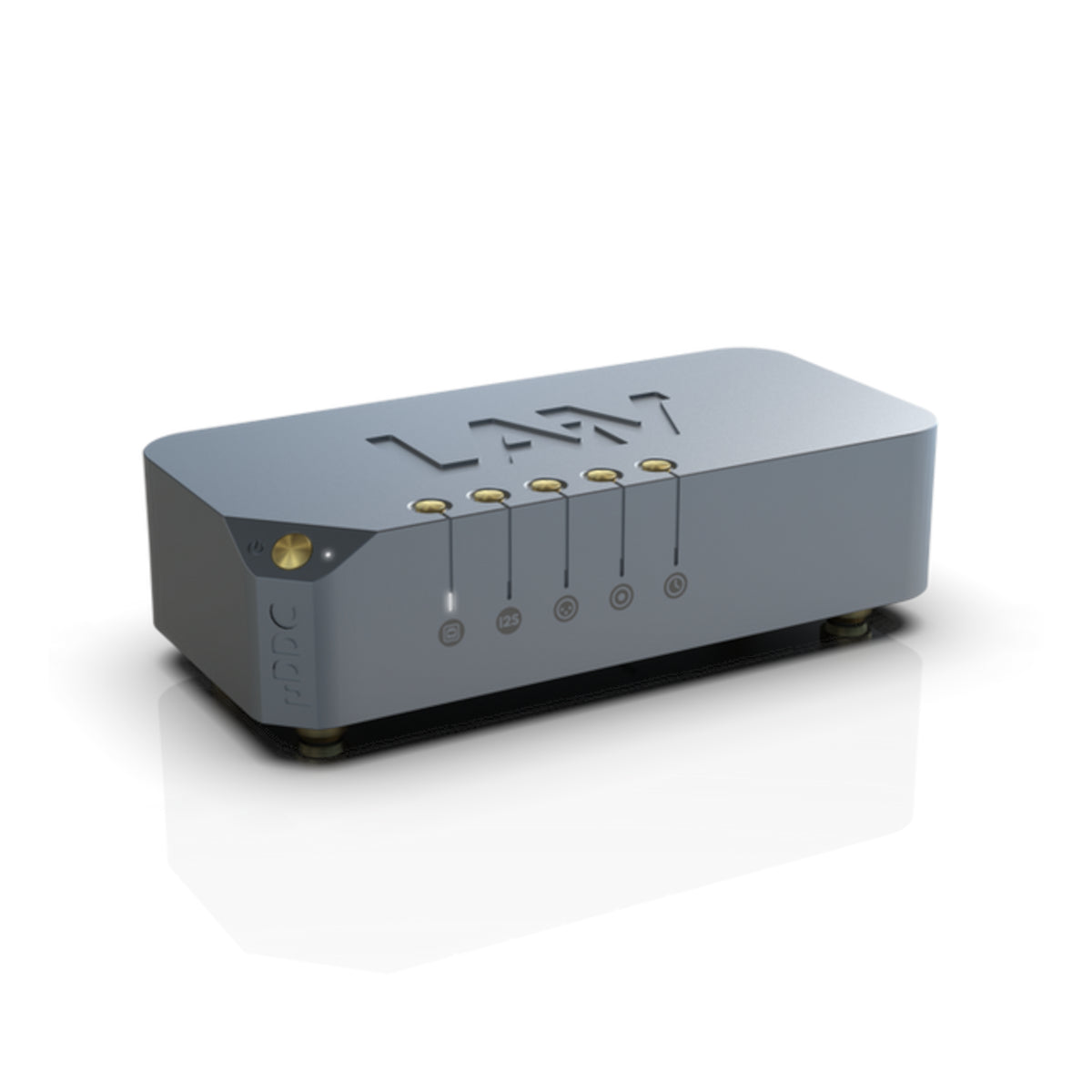

LAiV Harmony µDDC Digital-To-Digital Converter and Reclocker

LAiV Harmony µDDC Digital-To-Digital Converter and Reclocker

Regular price $1,399.00 AUD
Regular price Sale price $1,399.00 AUD
Sale Sold out
Shipping calculated at checkout.
Color: Black

The LAiV Harmony uDDC’s advanced FPGA/CPLD architecture, femto clock technology, and reclocking system result in unparalleled accuracy, transparency, and noise-free signal transmission. Whether you're upgrading a streaming setup or enhancing a DAC's performance, this device unlocks the full potential of your digital audio system.

**Preorder for delivery end of January 2025.

Deep Dive: Technical Innovations of LAiV Harmony uDDC

The Laiv Harmony uDDC combines cutting-edge engineering and precision signal processing to deliver uncompromised digital audio quality. Here’s a closer look at the advanced technologies driving this high-performance device:

FPGA & CPLD Signal Processing

High-Precision FPGA Core

The Harmony uDDC employs a Field-Programmable Gate Array (FPGA) to manage complex digital signal routing and processing with ultra-low latency. This ensures bit-perfect data handling for high-resolution formats like PCM768 and DSD512.

CPLD for Signal Optimization

Complementing the FPGA, a Complex Programmable Logic Device (CPLD) handles critical signal timing, minimizing phase noise and jitter. This division of processing tasks ensures high efficiency and precision in every operation.

Femto Clock FIFO Buffer System

Femto-Second Precision

The integrated femto clock reduces jitter to negligible levels, ensuring the timing integrity of the digital audio signal. This is particularly critical for maintaining the transparency of high-resolution formats.

FIFO Buffer Implementation

A robust First-In-First-Out (FIFO) buffer system synchronizes incoming and outgoing signals, eliminating timing irregularities caused by source devices. The result is a smooth, clocked output that retains the original sonic characteristics.

Reclocking Technology

Reclocking with Femto Precision

The Harmony uDDC's reclocking mechanism re-aligns the signal timing using the femto clock, effectively "cleansing" the digital signal of jitter introduced by upstream devices. This improves signal integrity and enhances soundstage clarity, dynamics, and resolution.

Galvanically Isolated Output

To maintain signal purity, the I²S output is galvanically isolated, preventing electrical interference and noise propagation from the source to downstream components.

Designed for High-End Integration

Ultra-Wide Format Support

Native PCM up to 768kHz and DSD up to DSD512 compatibility ensures seamless playback of even the most demanding audio formats.

External 10MHz Master Clock Input

For audiophiles using an external reference clock, the Harmony uDDC provides a dedicated 10MHz clock input, enabling even greater precision and synchronisation.

How To Use A DDC?

Not sure how to use a DDC reclocker? No worries — please contact us, and we’ll be happy to provide a tailored recommendation for you!

Features

Precision Femto Clock

  • Ultra-low jitter ensures pristine timing accuracy for superior audio clarity and detail.

Versatile I²S Inputs and Outputs

  • Input: High-performance USB, AES/EBU, Coax I²S input with pinout configuration.
  • Output: Galvanically isolated I²S outputs for uncompromised signal purity and reduced noise.

High Sampling Rate Support

  • PCM: Supports resolutions up to 768kHz*
  • DSD: Handles formats up to DSD512*

External Master Clock Input

  • Seamless integration with an external 10MHz master clock for precision synchronization.

*For USB and I²S inputs only.

Specifications

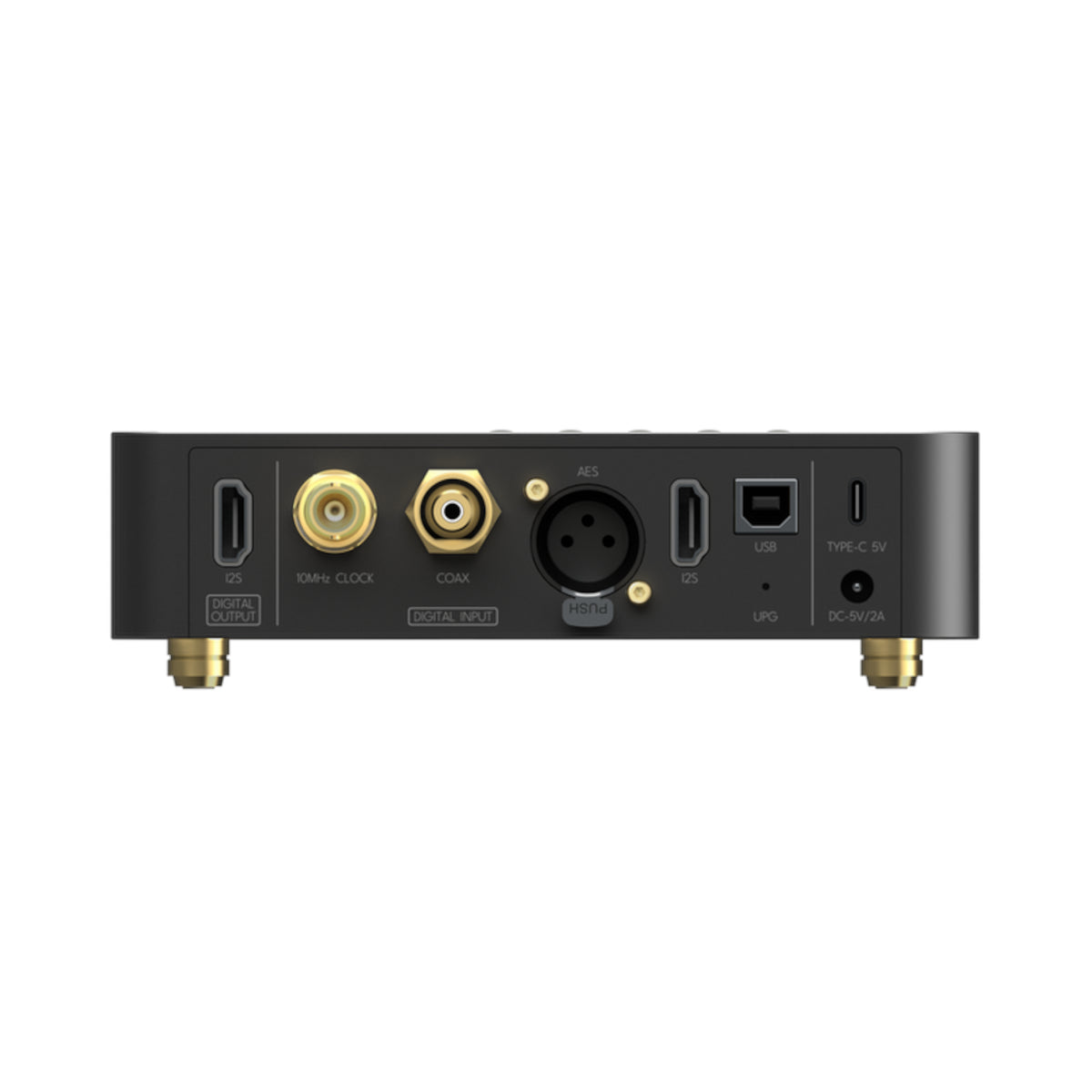

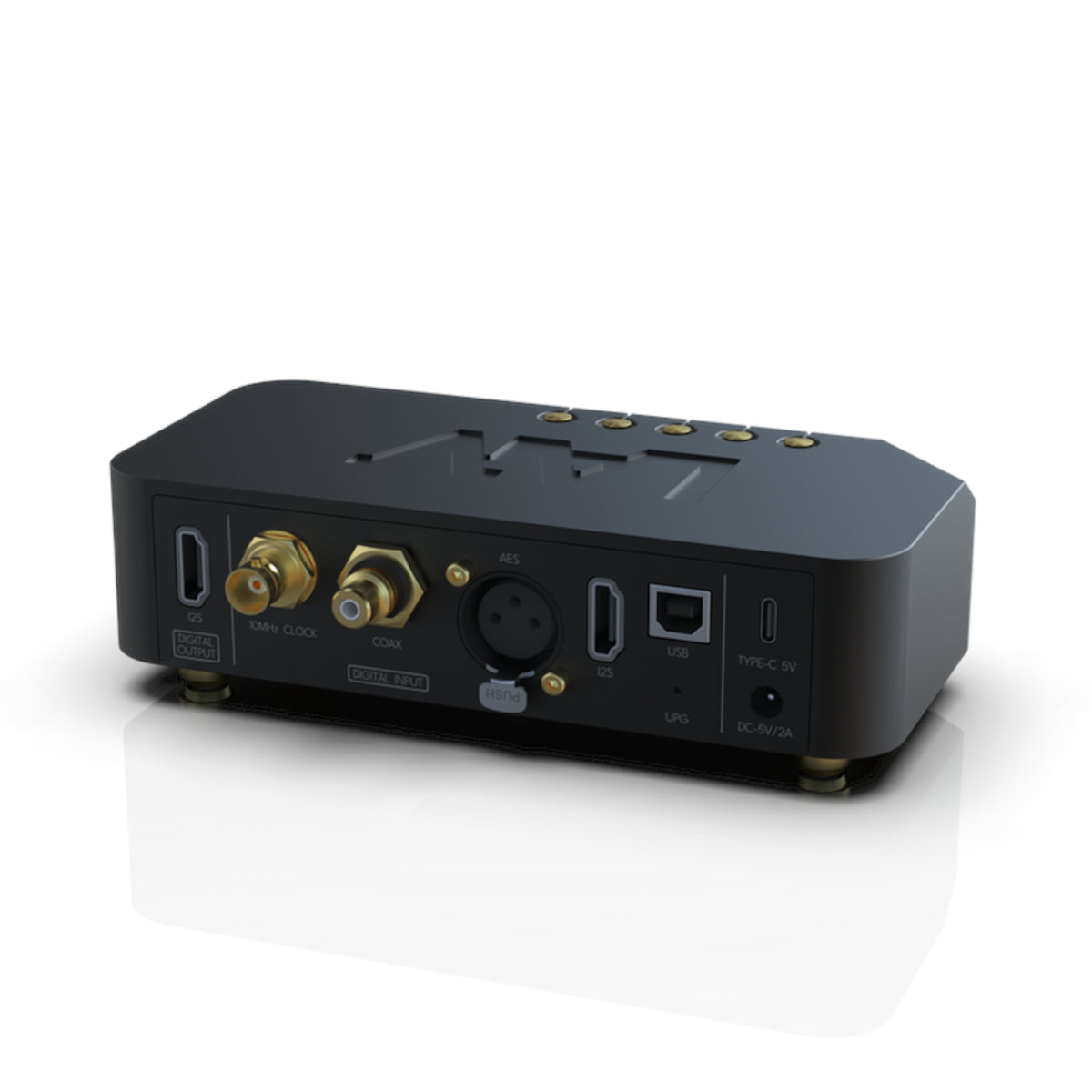

Digital Inputs:

  • USB - PCM768, DSD512
  • I²S - PCM768, DSD512
  • COAX/AES - PCM192, DoP64
  • Master Clock 10MHz

Digital Outputs:

  • I²S - PCM768, DSD512

DC Inputs:

  • 5VDC over USB-C / DC5521
  • Travel Adapter Included

Dimension:

  • W168 x D80 x H49 mm

What's in the box

1 unit µDDC
