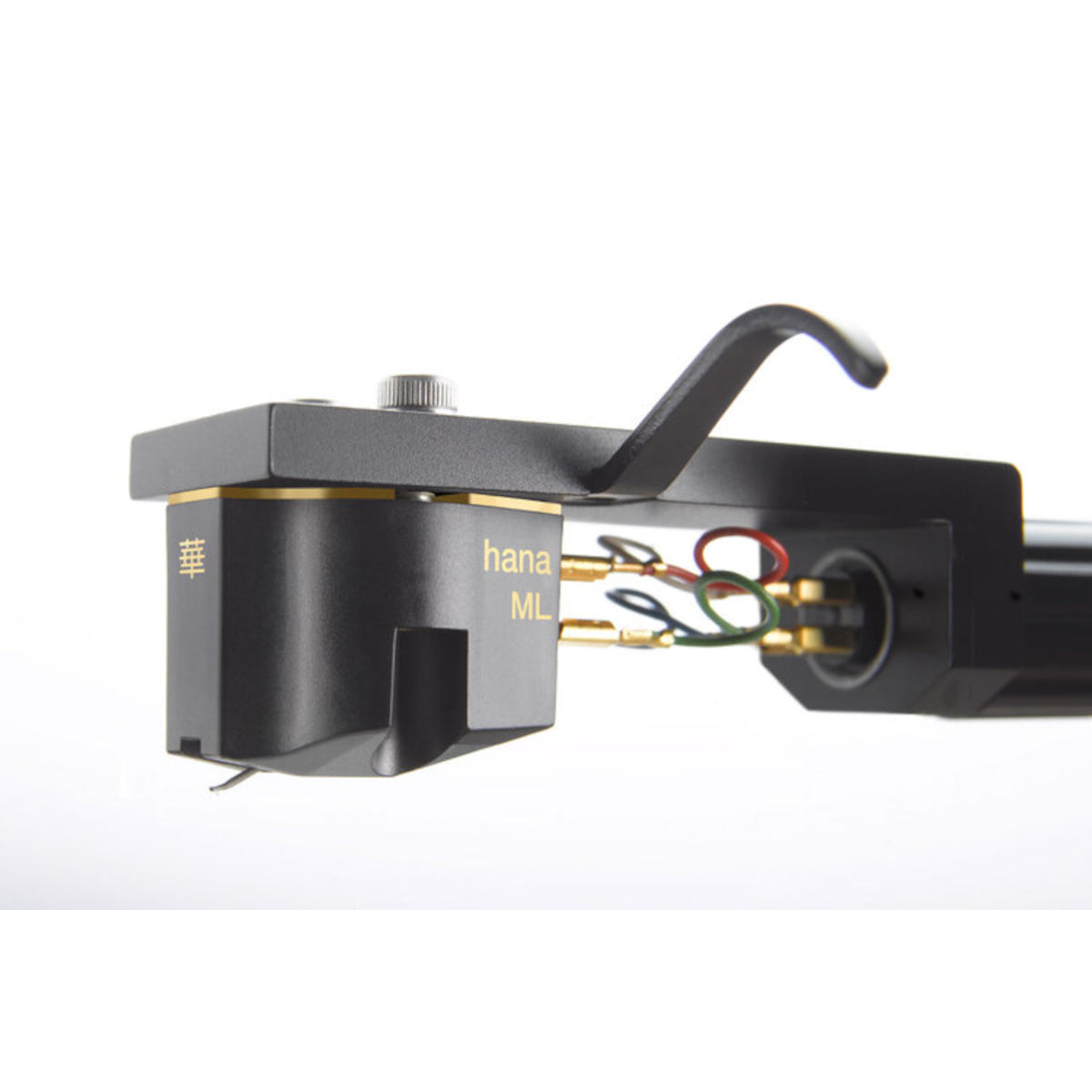

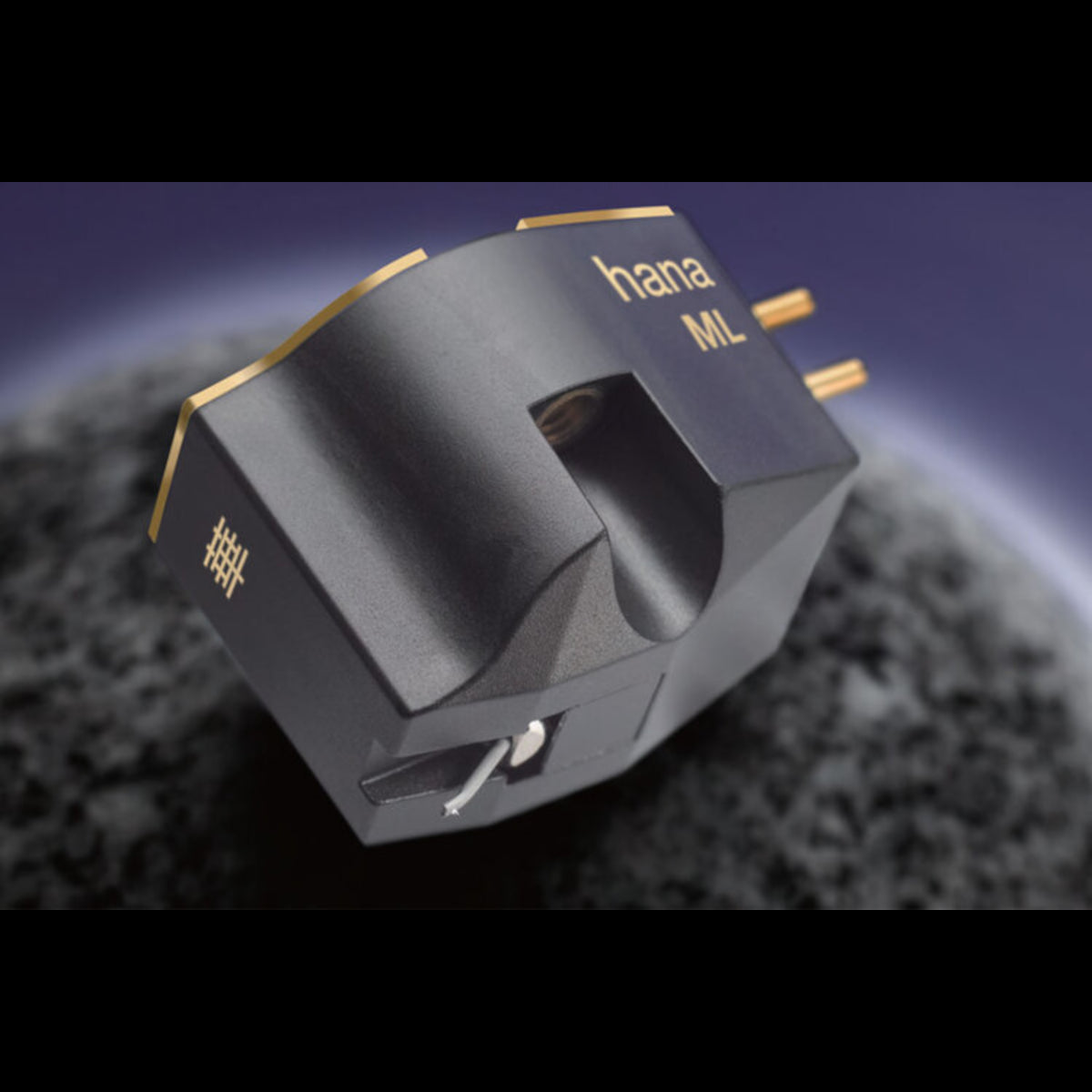

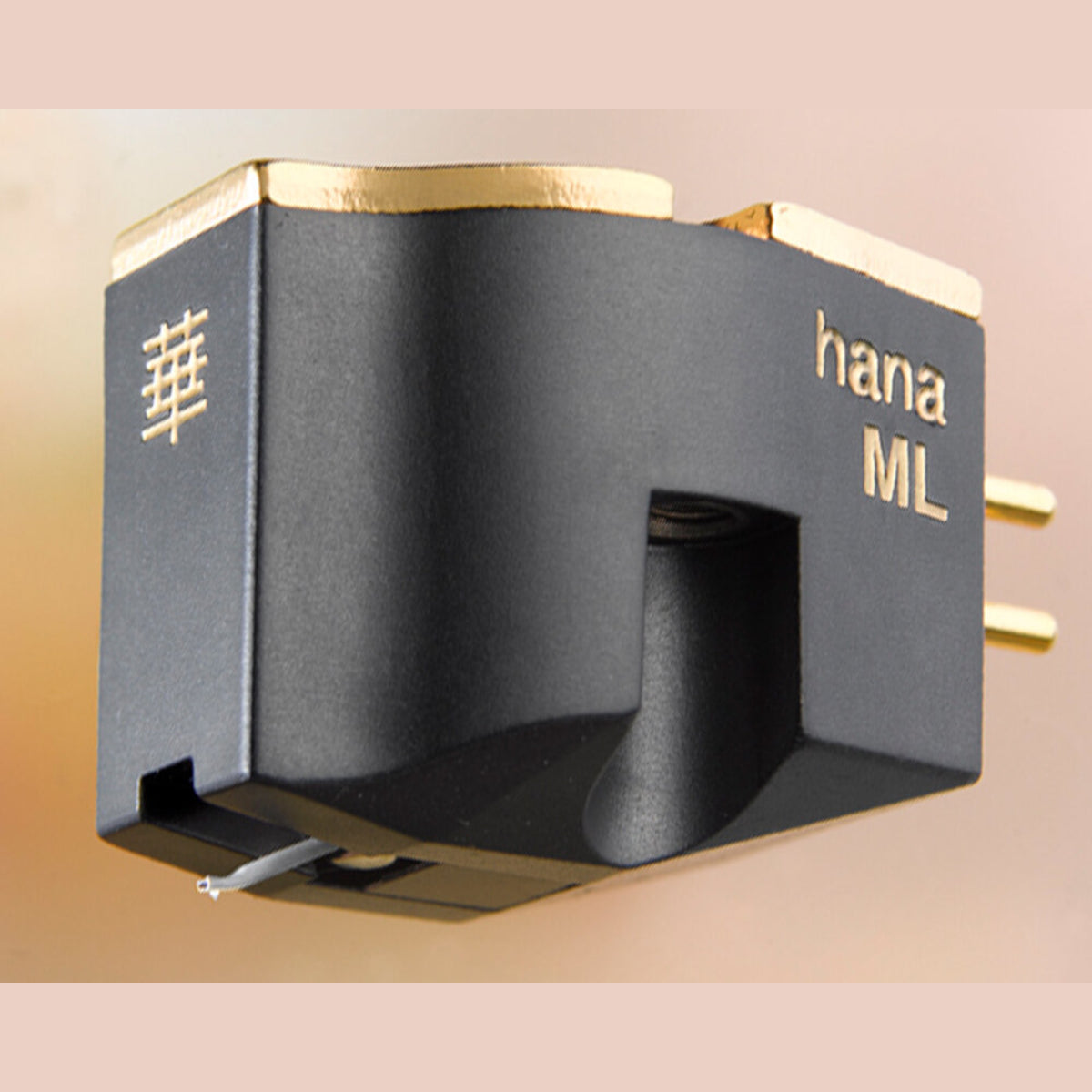

HANA ML Moving Coil Cartridge Nude Natural Diamond Microline Stylus

HANA ML Moving Coil Cartridge Nude Natural Diamond Microline Stylus

Regular price $1,995.00 AUD
Regular price Sale price $1,995.00 AUD
Sale Sold out
Shipping calculated at checkout.

Building upon the foundation of the critically acclaimed HANA sound, the ML aspires toward affordable perfection and represents the further evolution of the “Brilliant and Gorgeous” quality that has earned HANA its worldwide reputation.

M Series Nude Microline stylus – Higher Specification Part

Befitting its name, the M Series uses a Nude Microline stylus, mimicking the cutting stylus and fitting more precisely into the vinyl groove. This enhances tracking to capture the most delicate musical details with better frequency reproduction, stereo imaging, and resolution.

High Purity copper wire – Higher Specification Part

The coil of the ML's new low-impedance generator—the same generator used in the Hana Umami Blue—is wound with a very high-purity copper wire. Implementing the new generator optimizes performance and provides superior matching with a broader range of phono preamps.

Delrin© cartridge body – Advanced Materials

The M Series cartridge body is injection molded from Delrin©, a high-tech polymer with improved mechanical characteristics for better resonance damping, to reveal more low-level information and enhance dynamic range.

Cryogenic Processing - Unique Technical Treatment

Cryogenic processing is Cold Annealing at near absolute zero temperature that restructures metals at the molecular level, especially important in the Alnico-based magnetic electro-motive circuit (cartridge signal generator). The M Series parts treated include the front yoke as well as the center and rear components. The result is a more precise and controlled magnetic flux field for greater linearity and musical sound quality.

Brass Cap with Threaded fittings - Superior Mechanical Interface

The Delrin© cartridge body features a machined brass cap providing constrained mode layer damping and its heavier 9.5 gram weight provides expanded compatibility with a wider range of tonearms and turntables.

Built into the M Series Delrin© cartridge body are metal threaded fittings for headshell mounting hardware, offering easier attachment and a superior mechanical interface for better bass and dynamics.

Features

Nude Microline stylus

Specifications

  • Stylus: Microline Diamond
  • Cantilever : Aluminum
  • Magnetic Circuitry : Pure Iron/Cryo Treatment
  • Coil Wire : High Purity Copper
  • Cartridge Housing : POM (Delrin) / Brass
  • Output Level : 0.4mv/1kHz
  • Output Balance : <1dB/1 KHz
  • Trackability : 70 µm/2g
  • Channel Separation : 30dB/1kHz
  • Frequency Response : 12- 45,000Hz
  • Impedance : 8Ω/1kHz
  • Suggested Load Impedance>100Ω
  • Magnet : Alnico
  • Vertical Tracking Force : 2g
  • Cartridge Weight : 9.5g
  • Height : 16.3mm
  • Body Color : Black w/Brass Plate
  • Warranty : 1 year

What's in the box

Hana ML

Manual

Basic tools
