Graham Audio

Graham Audio LS5/5 Speakers

Graham Audio LS5/5 Speakers

Regular price $26,999.00 AUD
Regular price Sale price $26,999.00 AUD
Sale Sold out
Shipping calculated at checkout.

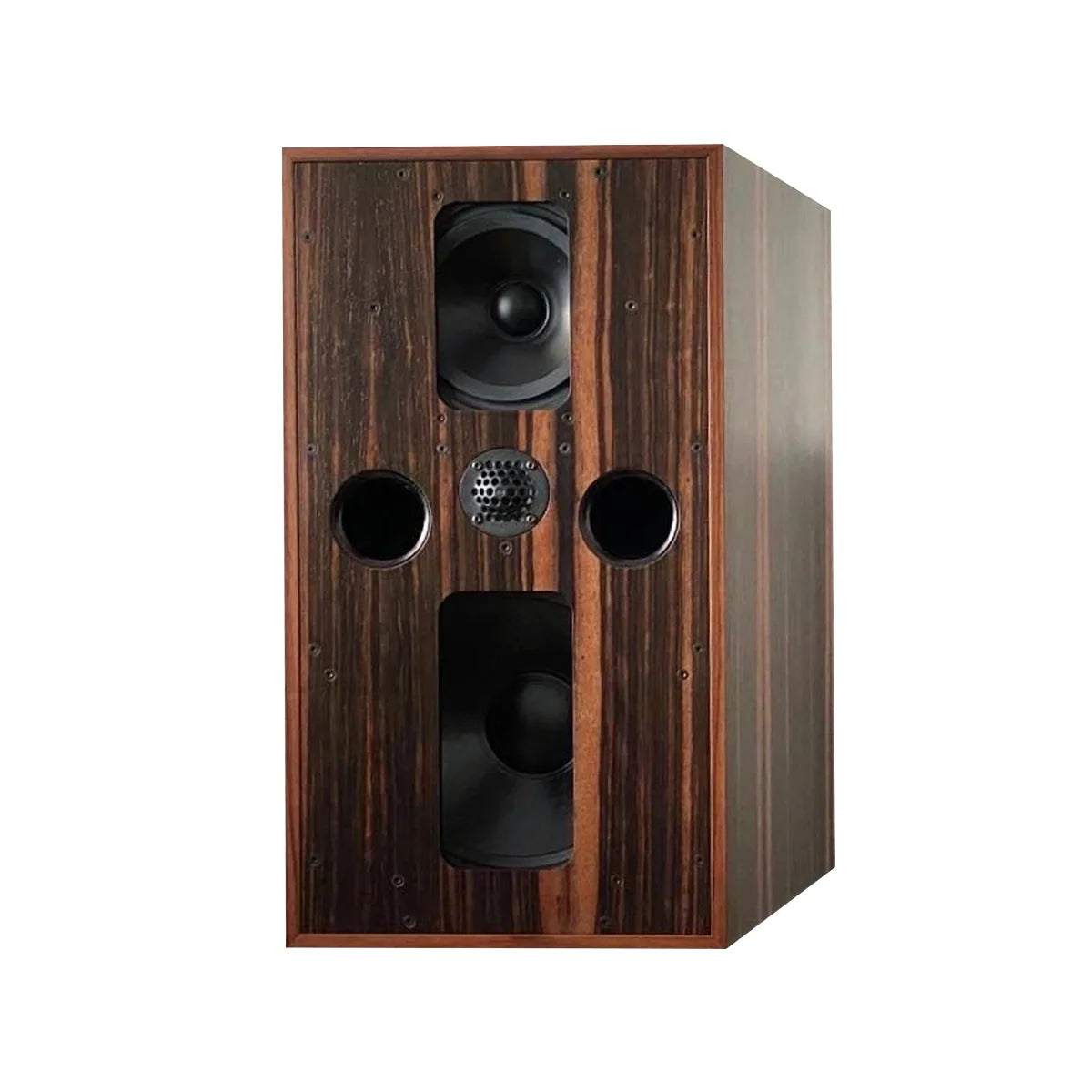

Color: Ebony

The LS5/5 is a large three way monitor designed in 1967.

A 12 inch drive unit handles the low frequencies up to 400Hz. At this point, an 8 inch midrange takes over before handing over to the 1 inch soft dome tweeter at 3.5kHz. Overall, the frequency response is flat to within ±2dB from 40Hz to 20kHz.

In depth article on slotted Baffles https://www.grahamaudio.co.uk/technology/slotted-baffles/

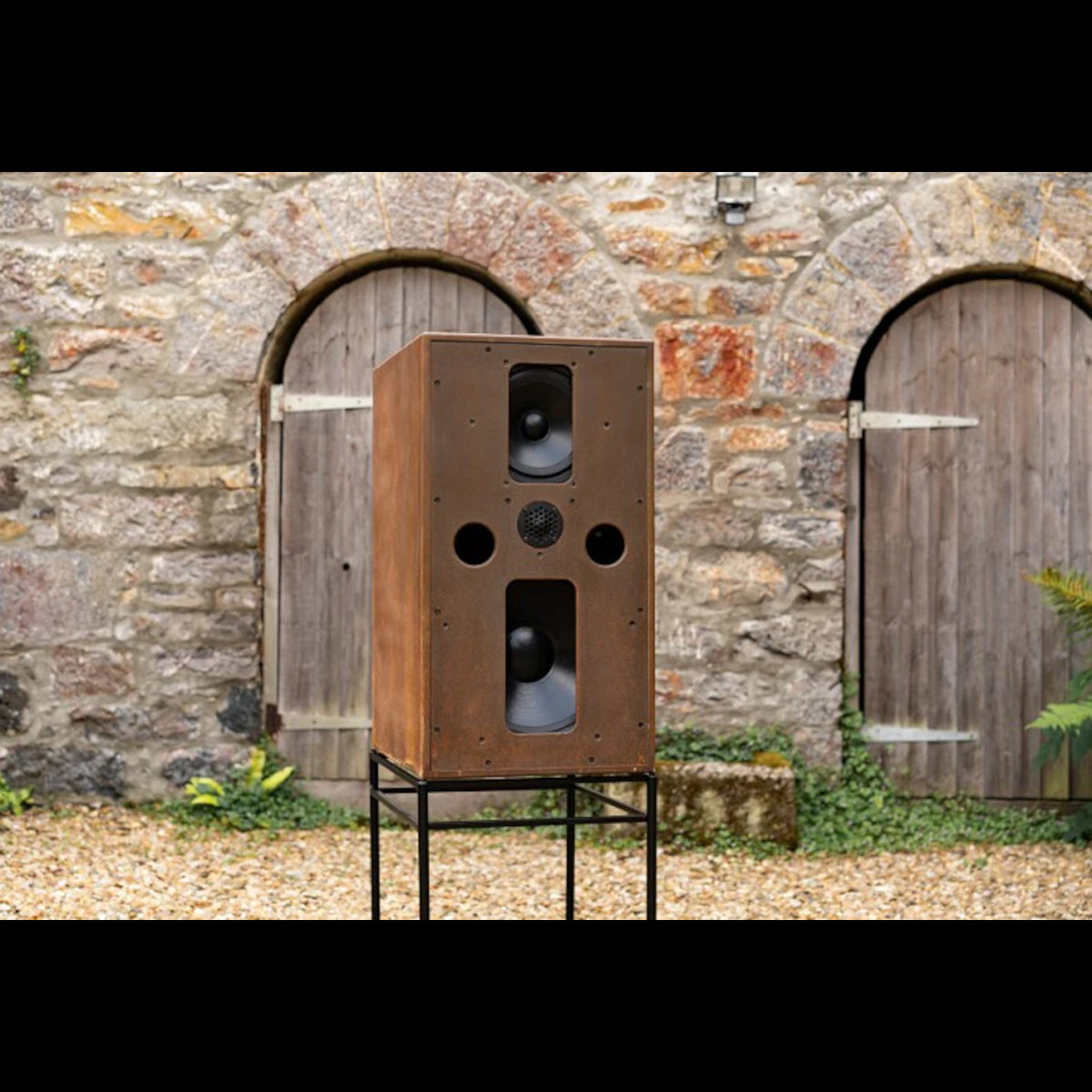

Straight away you'll notice that the bass and midrange drivers are mounted behind slots on the front panel. This feature is highly unusual today, but it works to control the off-axis response of the drive units which results in a smoother response through the crossover regions in typical listening environments. Not surprisingly, we get a lot of questions about this, so we have written an in depth article explaining how the slots work.

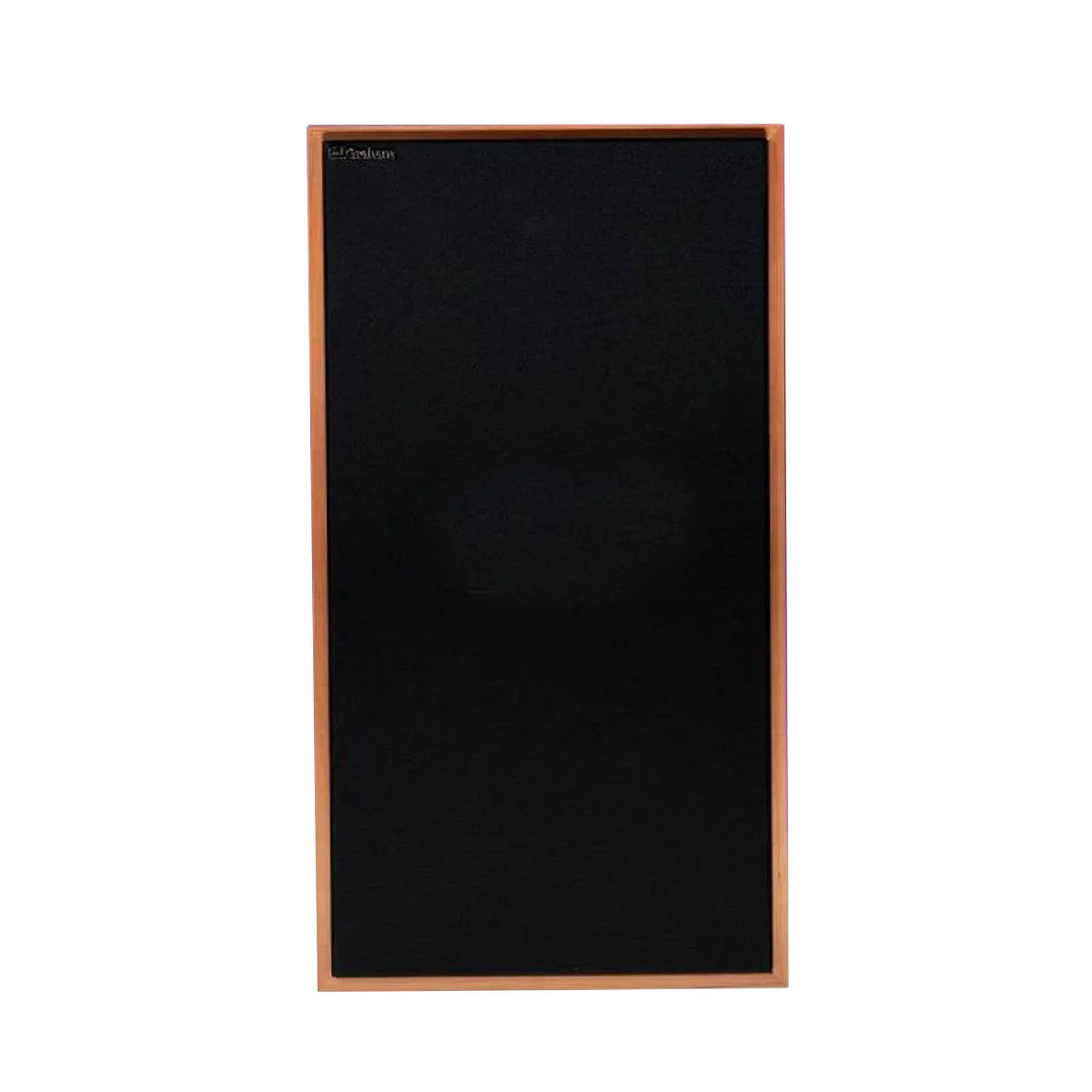

Naturally, this is a BBC-style "thinwall" cabinet, where the relatively thin panels are mass-loaded to ensure that resonances are moved away from the critical mid-range region. Rockwool provides air damping. Hand-matched veneers are applied and finished to a very high standard. The grille is carefully designed to minimise diffraction effects and is held in place by concealed rare-earth magnets.

Read review here

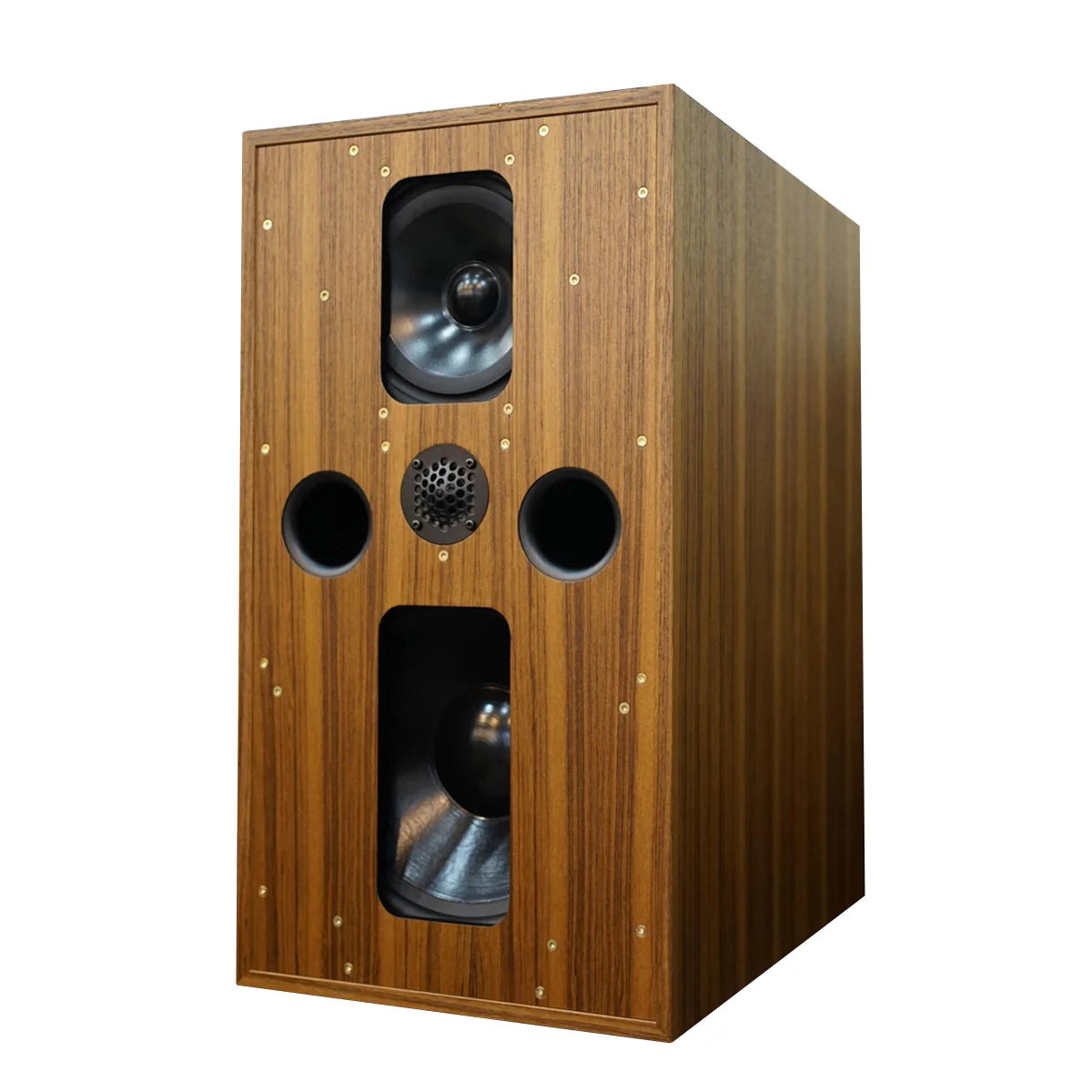

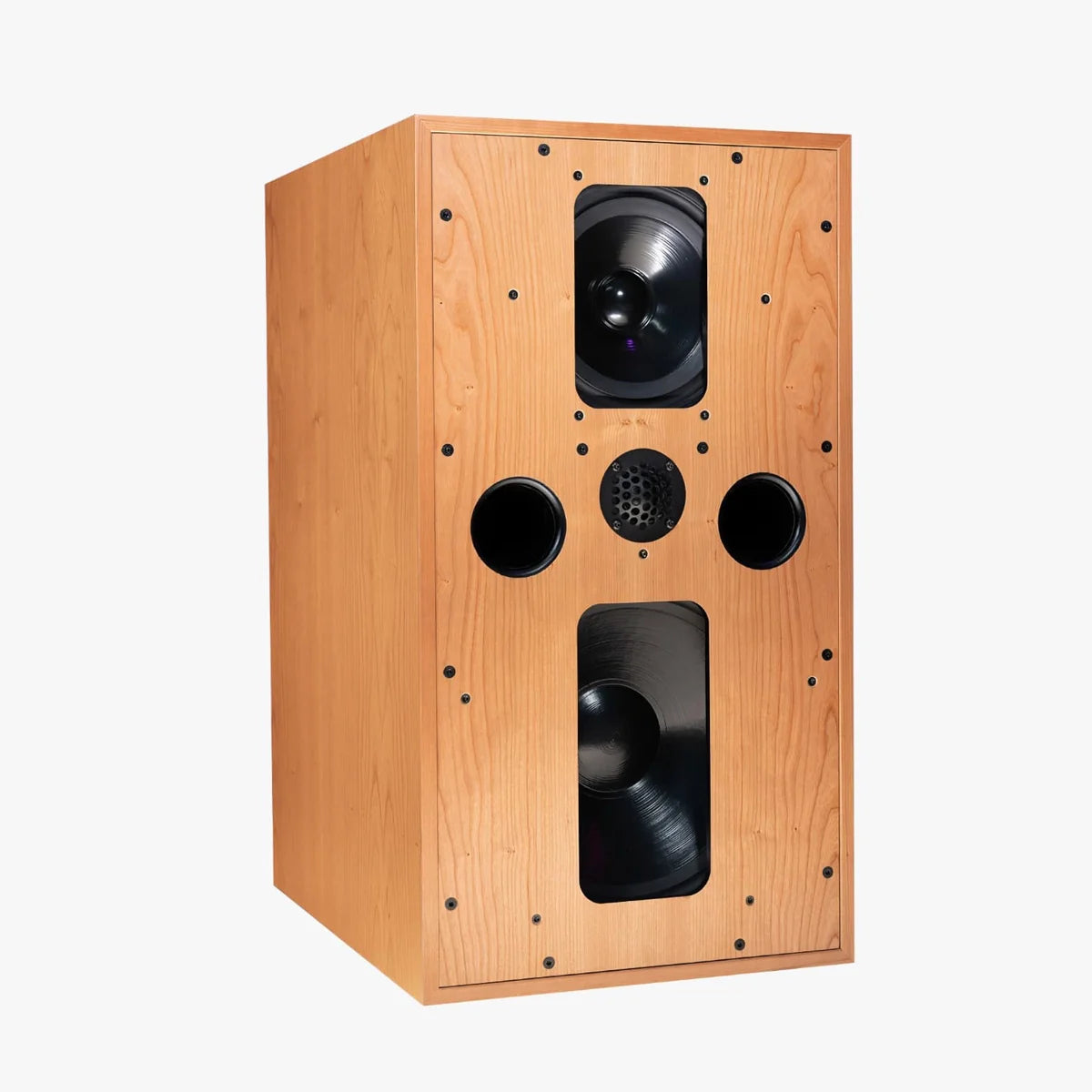

Available in various finishes: Cherry, Oak, Walnut and Ebony.

Rosewood - to be confirmed please contact Groove Audio

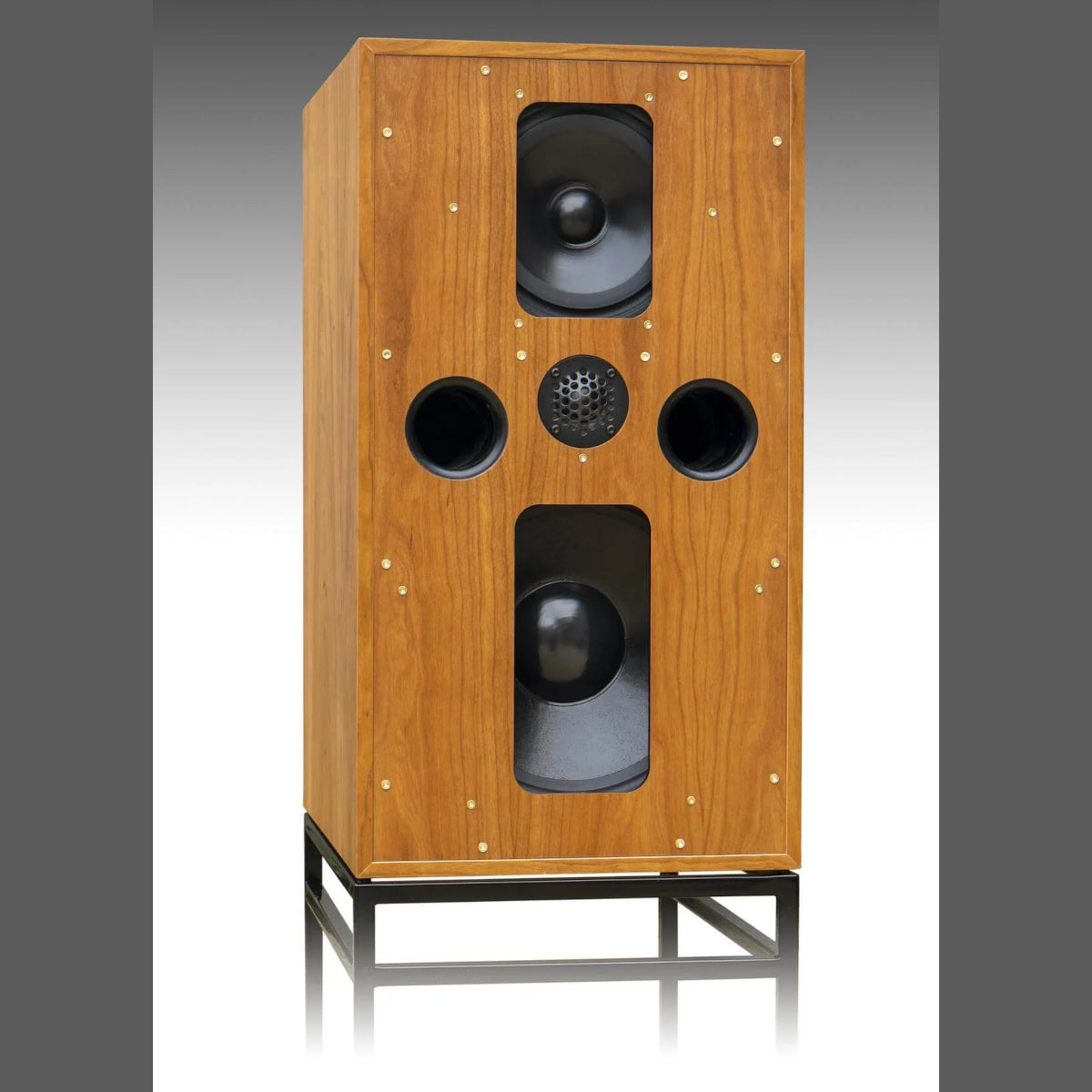

Stands sold separately. LS 5/5 stands are $2,499 (a pair)


Features

A three-way design with slot-loading of the midrange and woofer to achieve a wider, smoother, more uniform axial response, the 5/5 manages the difficult trick of achieving a uniform frequency response across an approximately 60-degree window, while at the same time realising state-of-the-art imaging and a commandingly impressive dynamic range that will exceed the requirements of most music listeners in anything short of baronial-sized listening rooms

Specifications

  • System : 3 Way, reflex loading
  • Enclosure : Thin wall damped construction
  • Finish : Real wood veneer
  • Dimensions (w/h/d)36cm by 65cm by 48cm
  • Weight : 35.5kg
  • Frequency response : 40Hz to 20kHz, ±2dB
  • Nominal impedance : 8Ω
  • Sensitivity : 88dB SPL (2.83V, 1m)
  • Maximum output : Over 104dB for a pair at 2m
  • Bass : 300mm long throw
  • Midrange : 200mm
  • Tweeter : 25mm soft dome tweeter
  • Recommended amplifier power : 50 to 250 watts unclipped programme

What's in the box

  • 1 pair LS5/5
  • 1 pair speaker grille
