Gold Note

Gold Note PH-1000 LITE/LINE Phono Preamplifier

Gold Note PH-1000 LITE/LINE Phono Preamplifier

Regular price $12,550.00 AUD
Regular price Sale price $12,550.00 AUD
Sale Sold out
Shipping calculated at checkout.
Model
Color: Black

THE MOST ADVANCED PHONO STAGE

The PH-1000 is simply the best Phono Stage we have ever created, a unique piece of audio engineering designed to be innovative in every possible way and 100% made in Italy. Featuring class A exclusive discrete components like a class A headphone output, infinite EQ curves with 4 manually adjustable presets plus 36 EQ curves, and the high-quality class A line preamp (optional). For the first time ever, you will be able to play virtually any record the way it’s meant to be thanks to the infinite EQ curves available – that’s why the PH-1000 is a complete game-changer, opening a new era in vinyl reproduction.

PERFECT CARTRIDGE MATCHING

With 14 Gain levels and 12 Load levels, as well as 7 Capacitance options dedicated to MM cartridges, it is the ideal phono stage for high-performance analogue systems, capable of driving even the most exotic cartridges with perfect synergy, making the PH-1000 a professional instrument for high-end studio recording.
On top of that, you can change settings and make ultra-fine adjustments, including the EQ curve, simply by using the SKC and the display as you are playing music. Our innovative technology allows the best ease of use while preserving entirely the sound quality as it works in the analogue domain: the interface is digital and independent from the audio path, which is completely analogue. The result is an ultra-low noise phono stage with high gain and no audio filters.
All the functionalities are in fact managed through discrete audio-grade components and sealed single switches, always shortening the signal path to deliver superior audio quality and extract even the finest details from the vinyl record. Powered by our custom firmware, the PH-1000 can be easily updated via computer when necessary.

MAXIMUM FLEXIBILITY

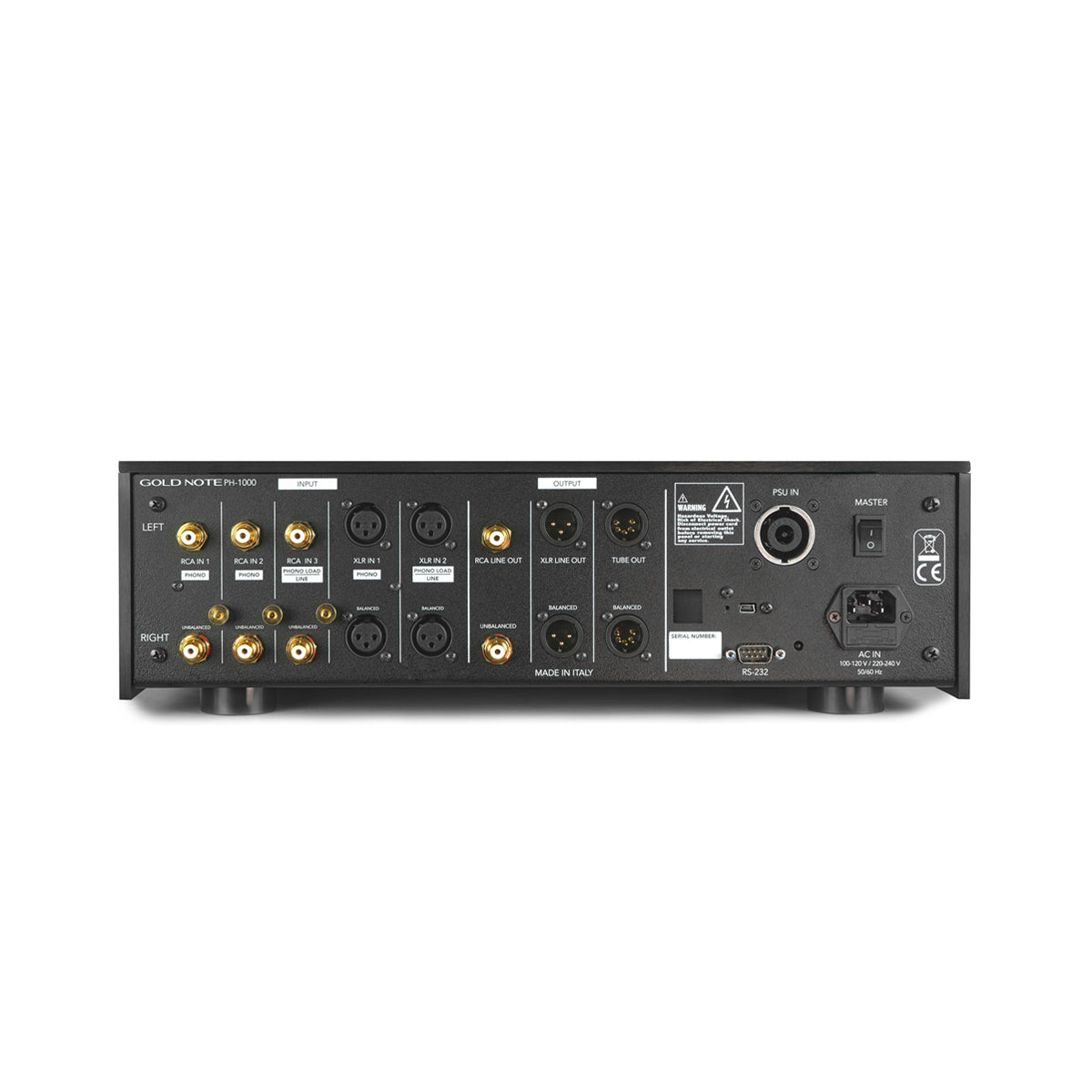

The PH-1000 offers 3 independent inputs, two RCA and one XLR. There are also 2 other inputs, one RCA and one XLR, that can be used either for the external load plugs for even finer control of the Load or as line inputs on the PH-1000 with Preamp.
Add the other functionalities, such as the Headphone Output, the Stereo/Mono control with phase inversion, the L/R Channel Swap, and the Rumble Subsonic Filter, and here you have it, the most advanced phono stage on the market.

NEW MODEL AVAILABLE: PH-1000 LITE

The PH-1000 LITE is designed for those looking for the utmost quality and looking for 3 independent inputs (2 unbalanced RCA, 1 balanced XLR), the ability to select EQ curves, and play Stereo and Mono LPs.

HIGH-QUALITY COMPONENTS

The level of quality meets the highest standard throughout the entire production: from the aluminium ultra-solid chassis machined with precision to the electronic components and circuitry that undergo strict QC computer-controlled tests.

UNLIMITED EQ CURVES

RIAA, Capitol, Columbia/CBS, Deutsche Grammophon, Decca London USA, Decca London UK, and Decca Mono 78rpm,
Epic, HMW, Mercury, RCA Victor, Philips, Elektra, L’Oliseau-Lyre, Parlophone, and more. Each curve can be “enhanced” with our proprietary technology inspired by the Neumann Cutting Lathe for superior dynamic and musicality.

TOTAL CONTROL

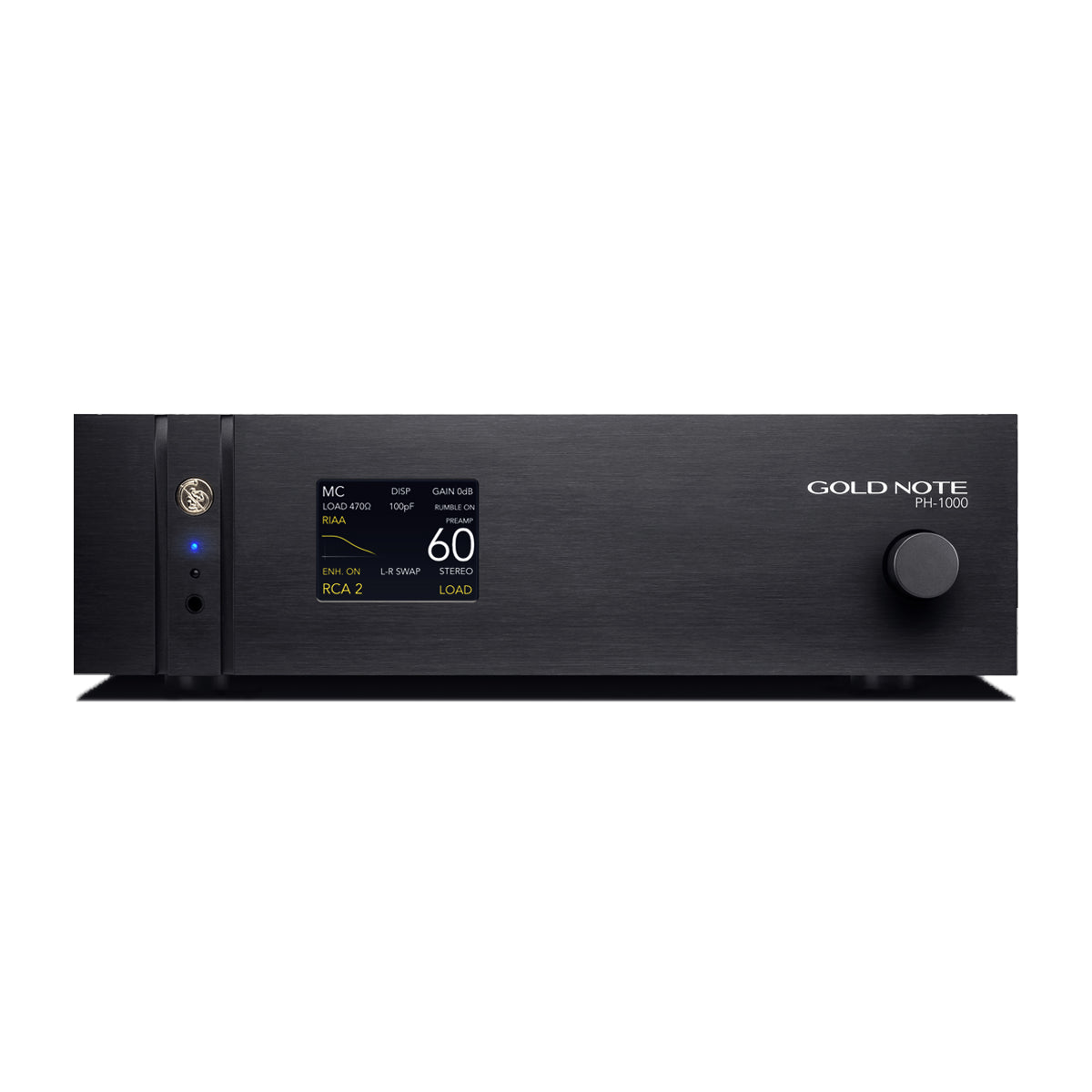

The PH-1000 shows every detail on the colour display powered by our proprietary firmware. With the SKC (Single Knob Control technology) and the display, you have an intuitive system to easily control the phono stage and quickly make fine adjustments without even interrupting the playback.

HEADPHONE OUTPUT

You can now enjoy the shortest audio path ever with the PH-1000, your turntable, and your headphones – that’s all you need for the audio signal to go from the vinyl directly into your headphones without the need for additional stages.

MODULAR DESIGN

For the most demanding audiophiles, the PH-1000 can also be further enhanced with our external power supply PSU-1250 / PSU- 1000, or even the external tube output stage TUBE-1012 / TUBE-1006, to reach the highest level of musical realism in terms of dynamic, details, and imaging.

Please see Stereophile review.

Features

MAXIMUM FLEXIBILITY

The PH-1000 offers 3 independent inputs, two RCA and one XLR. There are also 2 other inputs, one RCA and one XLR, that can be used either for the external load plugs for even finer control of the Load or as line inputs on the PH-1000 with Preamp.

Add the other functionalities, such as the Headphone Output, the Stereo/Mono control with phase inversion, the L/R Channel Swap and the Rumble Subsonic Filter and here you have it, the most advanced phono stage on the market.

LINE: MM/MC Phono Stage with Class-A line stage, 2 RCA and 1 XLR inputs, RCA and XLR outputs, 20 EQ curves, manually adjustable EQ curves, and adjustable load/gain/capacitance.

HIGH-QUALITY COMPONENTS

The level of quality meets the highest standard throughout the entire production: from the aluminium ultra-solid chassis machined with precision to the electronic components and circuitry that undergo strict QC computer-controlled tests.

40+ EQ CURVES

RIAA, Capitol, Columbia/CBS, Deutsche Grammophon, Decca London USA, Decca London UK and Decca Mono 78rpm, Epic, HMW, Mercury, RCA Victor, Philips, Elektra, L’Oliseau-Lyre, Parlophone, and more. Each curve can be “enhanced” with our proprietary technology inspired by the Neumann Cutting Lathe for superior dynamic and musicality.

TOTAL CONTROL

The PH-1000 shows every detail on the colour display powered by our proprietary firmware. With the SKC [Single Knob Control technology] and the display, you have an intuitive system to easily control the phono stage and quickly make fine-adjustments without even interrupting the playback.

HEADPHONE OUTPUT

You can now enjoy the shortest audio path ever with the PH-1000, your turntable and your headphones – that’s all you need for the audio signal to go from the vinyl directly into your headphones without the need of additional stages.

MODULAR DESIGN

For the most demanding audiophiles, the PH-1000 can also be further enhanced with our external power supply PSU-1250 / PSU- 1000, or even the external tube output stage TUBE-1012 / TUBE-1006, to reach the highest level of musical realism in terms of dynamic, details, and imaging.

PH-1000 LITE

  • Infrasonic filter
  • Mono/Stereo control
  • 2 RCA and 1 XLR phono inputs
  • RCA and XLR outputs (class A)
  • Headphone output
  • Capacitance, and Load fine adjustments
  • Gain 40dB (MM) to 60dB (MC) with fine adjustments
  • 18 EQ curves with Enhanced option

PH-1000 / PH-1000 LINE

  • Infrasonic filter
  • Mono/Stereo control
  • 2 RCA and 1 XLR phono inputs
  • RCA and XLR outputs (class A)
  • Headphone output
  • Capacitance, and Load fine adjustments
  • Gain 40dB (MM) to 65dB (MC) with fine adjustments
  • 18 EQ curves with Enhanced option
  • Infinite EQ curves (4 manually adjustable presets)
  • External load (RCA and XLR plugs)
  • L/R swap
  • Class A preamp stage (1 RCA, 1 XLR, only on PH-1000 LINE)

Specifications

FREQUENCY RESPONSE: 20Hz – 20kHz

EQ CURVES

  • 18 EQ curves all with Enhanced option (+/- 0.3dB)
  • Infinite EQ curves with 4 manually adjustable presets (only on PH-1000 / PH-1000 LINE)

THD (TOTAL HARMONIC DISTORTION): <0.01% max.

SIGNAL TO NOISE RATIO: 100dB

DYNAMIC RANGE: 110dB

INFRASONIC FILTER: 10Hz/36dB octave (ON/ OFF)

MONO/STEREO: Stereo, Stereo 180°, Mono, Mono 180°, Mono L

CHANNEL SWAPPING: R/L, L/R

IR RECEIVER: For multifunctional remote control

AUDIO INPUTS

  • 2x unbalanced RCA (0.1mV MC up to 8.0mV MM)
  • 1x balanced XLR (0.1mV up to 1.0mV MC)

LOAD

  • 12 options for RCA
    [100kΩ, 75kΩ, 47kΩ, 33kΩ, 22kΩ, 1kΩ, 470Ω, 220Ω, 100Ω, 47Ω, 22Ω,10Ω]
  • 8 options for XLR
    [4k7Ω, 1kΩ, 470Ω, 220Ω, 100Ω, 47Ω, 22Ω,10Ω]
  • External Load supports RCA and XLR plugs (only on PH-1000 / PH-1000 LINE)

CAPACITANCE: OFF, 100pF, 150pF, 220pF, 330pF, 470pF, 1000pF

GAIN

  • PH-1000 / PH-1000 LINE
    40dB MM to 65dB MC with 7 options [0dB, ± 3dB, ± 6dB, ± 9dB]
  • PH-1000 LITE
    40dB MM to 60dB MC with 7 options [0dB, ± 3dB, ± 6dB, ± 9dB]

LINE INPUT LEVEL: 2Vrms (standard) up to 2,5Vrms (max)

AUDIO OUTPUTS

  • 1x unbalanced RCA @1V
  • 1x balanced XLR @4V
  • 1x Output Stereo for Tube (balanced GN) for optional TUBE-1012 & TUBE-1006

OUTPUT IMPEDANCE: Unbalanced 100Ω, Balanced 300Ω

POWER CONSUMPTION: 30W

PSU INPUT: For external power supply Gold Note, PSU-1250 & PSU-1000

POWER SUPPLY

  • Dual-Mono linear power supply
  • 100-240V with auto sense, 50-60Hz

FUSE: 2A T

DIMENSIONS:

  • 430mm W | 135mm H | 375mm D
  • 630mm W | 350mm H | 600mm D – boxed

WEIGHT

  • Kg. 12 – net
  • Kg. 17 – boxed

What's in the box
