Gold Note PH-05 MM/MC Phono Preamp (Made in Italy)

• The PH-5 allows a selection of the most appropriate equalisation curve for each vinyl record, directly on the touch display: RIAA, DECCA LONDON, and AMERICAN COLUMBIA
• Proprietary technology inspired by Georg Neumann (the producer of the famous Neumann Disc Cutting Lathe), each curve can be “Enhanced” to extend the frequency response up to 50kHz, improving even further the stage, dynamics, and resolution when required.

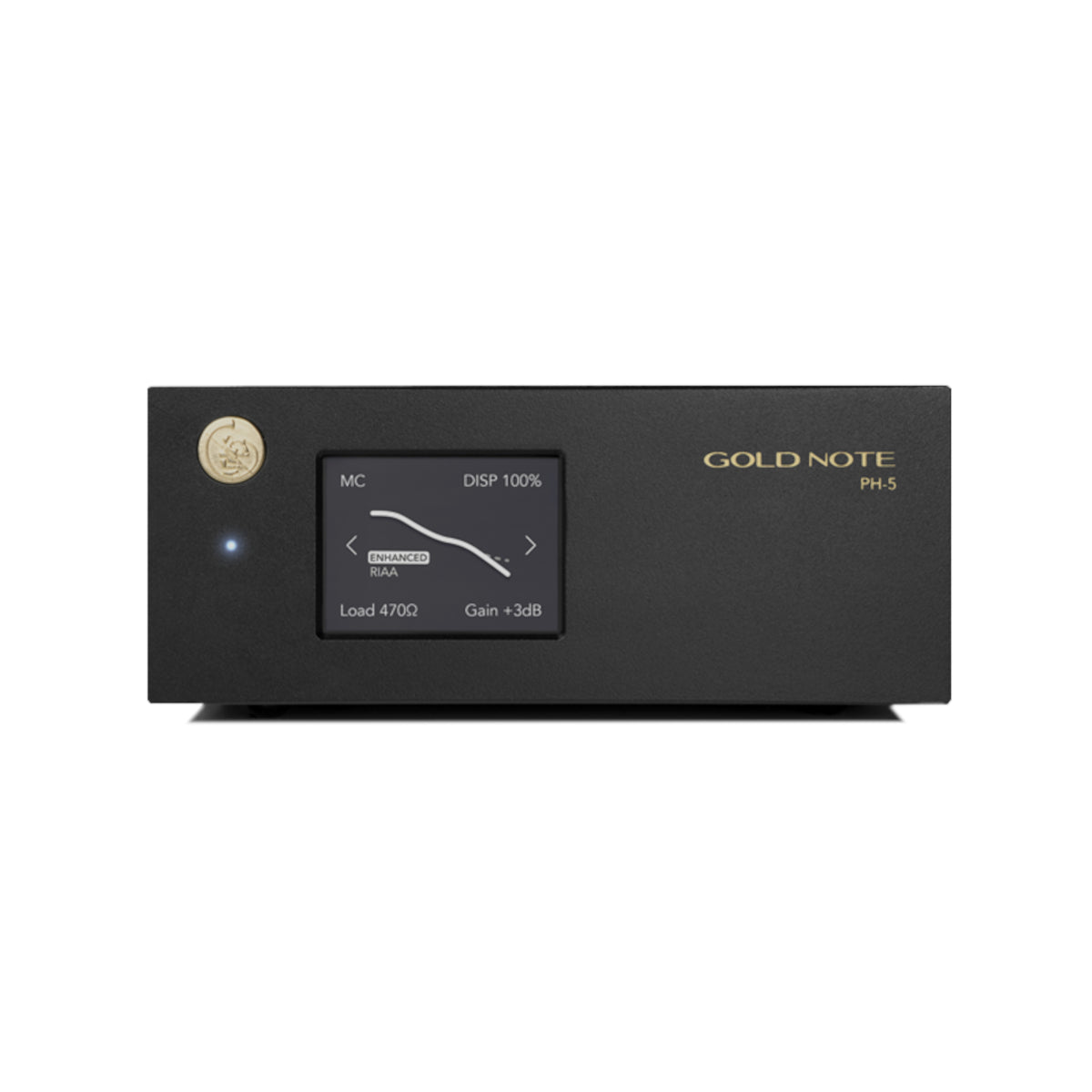

• The PH-5 is the first Gold Note product designed with a touchscreen interface: all the settings are easily accessible and changeable thanks to the innovative and unparalleled user-friendly display that allows you to select and manage all the options in real time while playing your music.

• INFRASONIC FILTER 10Hz/36dB octave
• THD (Total Harmonic Distortion) <0.05% @ 1kHz
• SIGNAL TO NOISE RATIO 89dB
• FREQUENCY RESPONSE 20Hz -20kHz ± 0.3dB Enhanced 20Hz-50kHz ± 0.3dB
• DYNAMIC RESPONSE 105dB
• ANALOGUE INPUT 1x RCA stereo MM/MC
• INPUT SENSITIVITY 0.1mV MC up to 10.0mV MM
• INPUT IMPEDANCE 9 options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22kΩ, 47kΩ]

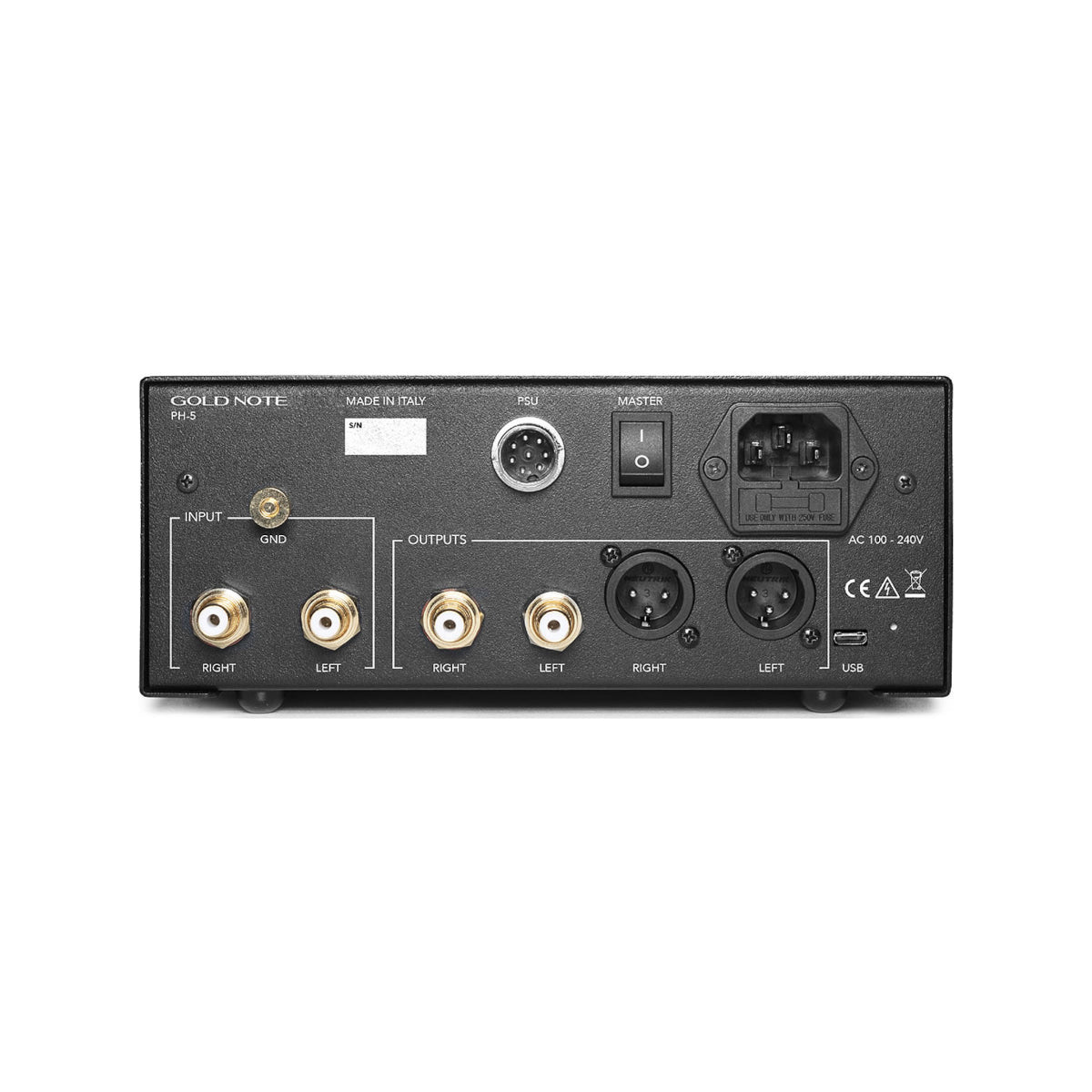

• AUDIO OUTPUTS 1x unbalanced RCA 1x balanced XLR
• OUTPUT IMPEDANCE 50Ω
• GAIN

MM= 40dB
MC= 60dB
with 4 options [0dB, + 3dB, ± 6dB]

• CAPACITANCE (MM ONLY) 220pF

Dimensions

• 200W | 80H | 260D mm
  290W | 180H | 390D mm – boxed
• Kg. 1.2 – net
  Kg. 2.2 – boxed

• 1 unit of the PH-5
• Power cord
• Operating Manual
