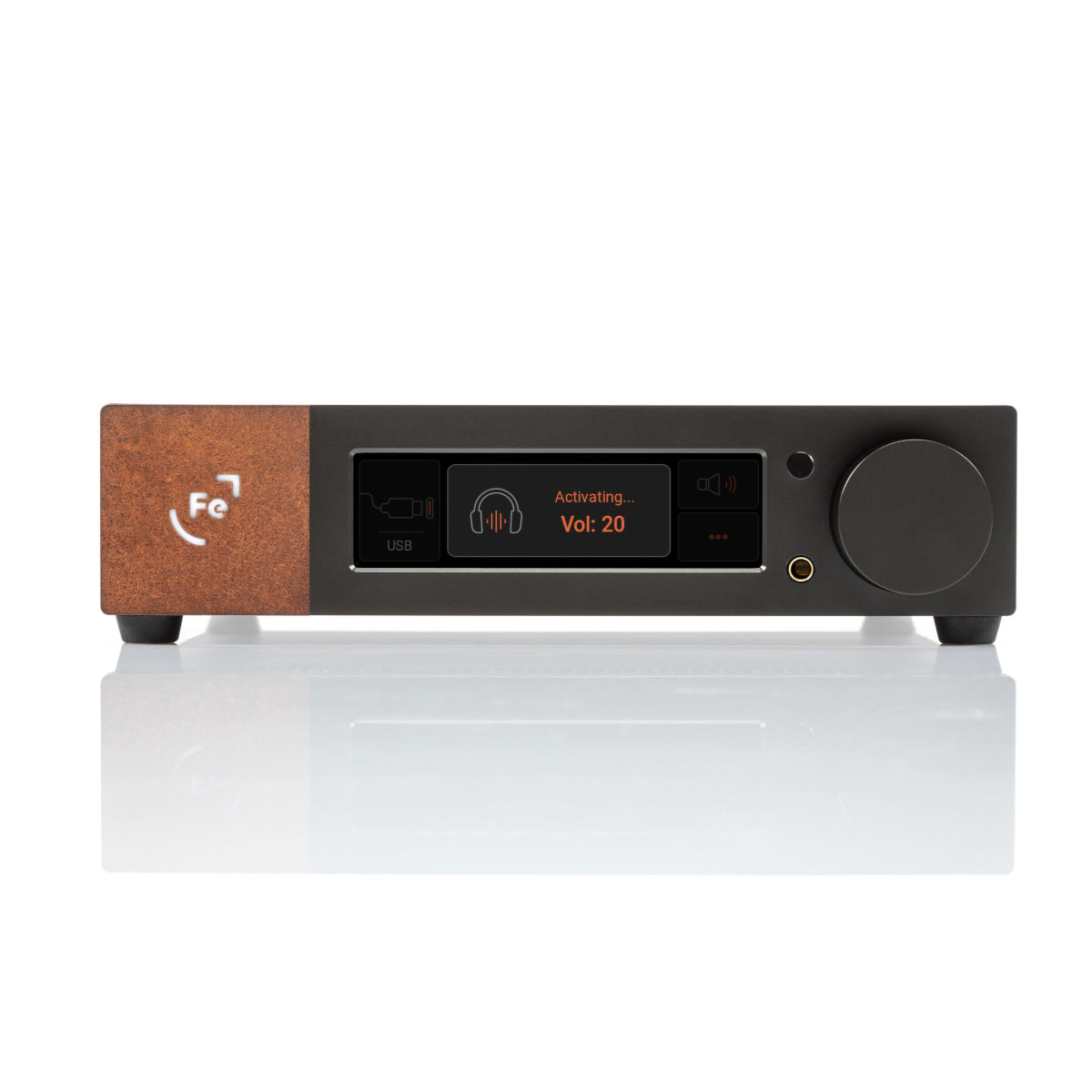

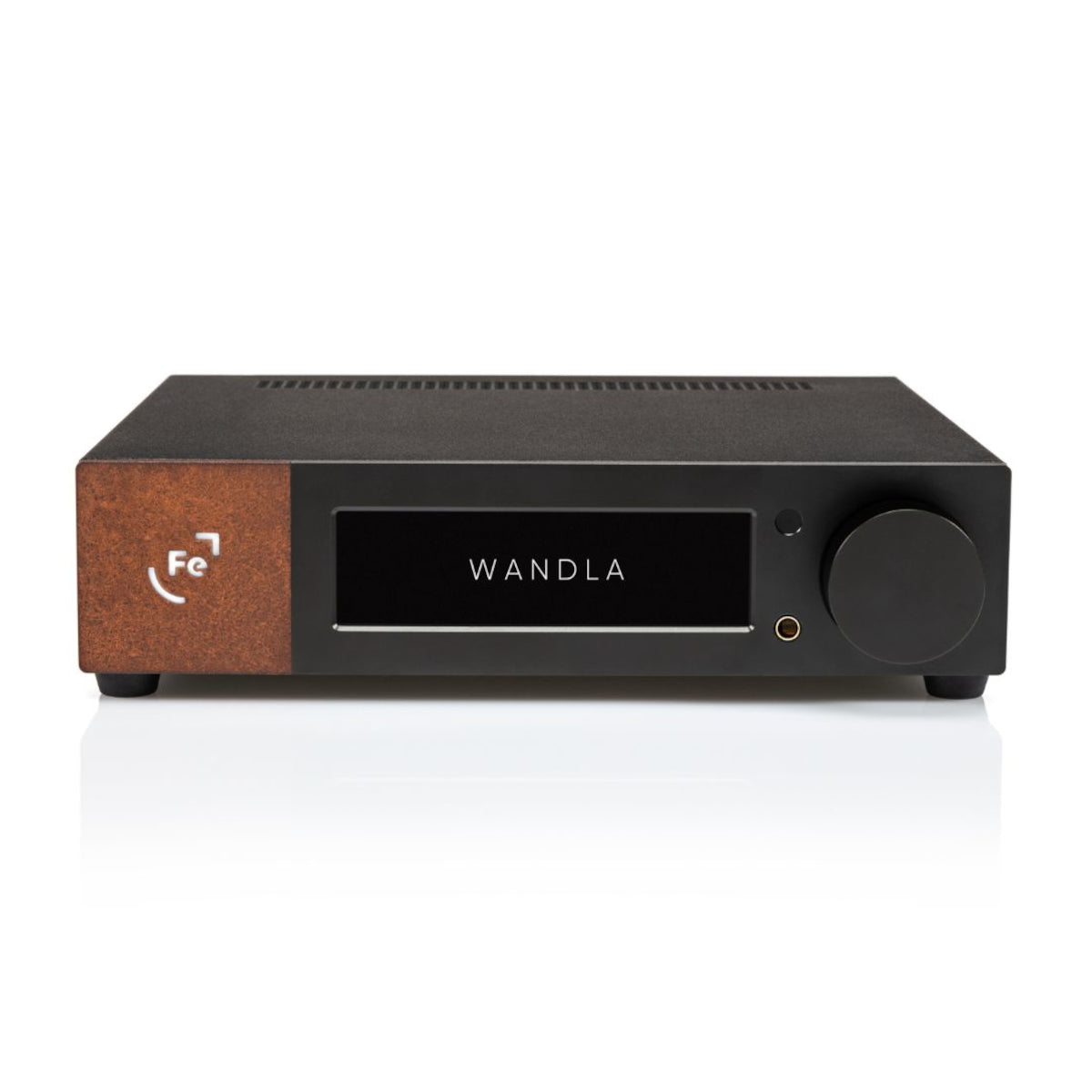

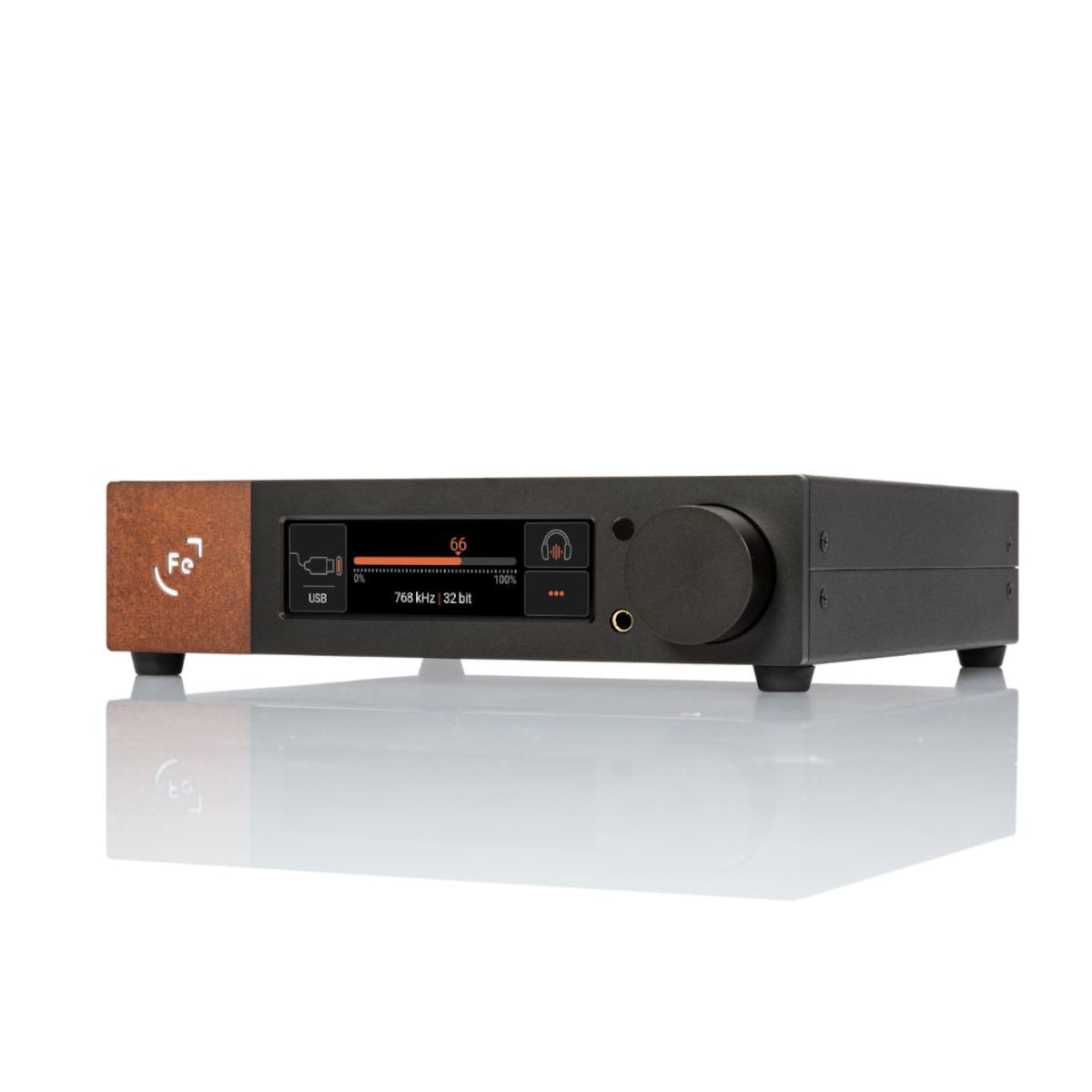

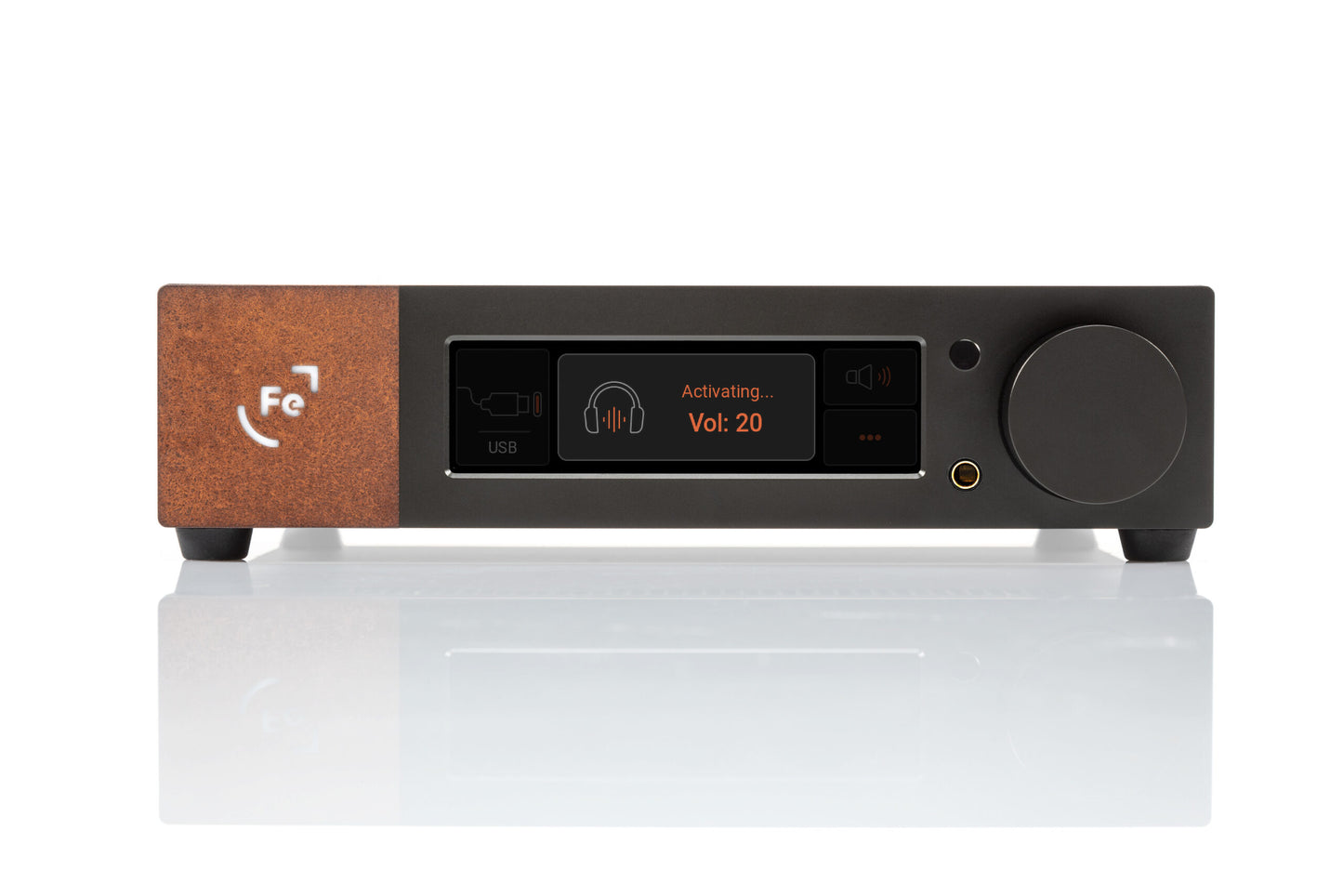

Ferrum Audio WANDLA HP DAC / Pre-Amp with Headphone Amplifier

• WANDLA HP DAC/PREAMP with Headphone AMPLIFIER
• Fully Balanced - WANDLA HP offers a fully balanced, composite IC headphone amplifier design, fine tuned for WANDLA.
• Powerful - WANDLA HP’s headphone amplifier can output a hefty 3.5 Watts at 50 Ω (balanced).
• Dynamic - WANDLA HP’ headphone amplifier has an impressive dynamic range of 122 dB.
• Proprietary optimized ARM chip offers the shortest signal path possible, making 5 chips redundant
• Four proprietary Signalyst filters
• Proprietary 4-pin Ferrum connector for HYPSOS
• Balanced XLR and unbalanced RCA line outputs
• Digital and Analogue volume control
• EES Sabre ES9038PRO with selected filter
• Remote control included

Headphone Section
THD balanced:

• 0.00016 % / -116 dB, 10 mW into 50 Ω;
• 0.00020 % / -114 dB, 100 mW into 50 Ω

THD unbalanced:

• 0.00022 % / -113 dB, 10 mW into 50 Ω;
• 0.00022 % / -113 dB, 100 mW into 50 Ω

Output Power Single Ended: 1 W into 50 Ω
Output Power Balanced: 3.5 W into 50 Ω

Dynamic Range: 122 dB

HP Output impedance: 0.5 Ω unbalanced
HP Output impedance: 1 Ω balanced

Other
Operation: Fully balanced, proprietary IC power amp
DAC chip: ESS Sabre ES9038PRO
DAC resolution:  768 kHz / 32 bit, DSD 512
Digital inputs:

• AES/EBU (up to 192 kHz / 24 bit, DoP 64)
• Optical S/PDIF (up to 96 kHz / 24 bit)
• Coaxial S/PDIF (up to 192 kHz / 24 bit, DoP 64)
• USB-C (up to 768 kHz / 32 bit, DSD 512, DoP 256)
• ARC (up to 192 kHz / 24 bit), TV input with CEC
• I2S (up to 768 kHz / 32bit, DSD 512, DoP 256), PS Audio® compatible

MQA: decoder and renderer (on all digital inputs)
Analog inputs: RCA
Analog input Vmax: 9.5 V RMS (2 – 3.5 V RMS recommended)
Analogue input imp: 47 kΩ
Line outputs: balanced XLR; unbalanced RCA
Volume control: analogue with bypass option / digital for DAC operation only
Line Output level: @0 dBFS, 1 kHz sine 10 V RMS balanced, 5 V RMS unbalanced
Line Output level (RED): @0 dBFS, 1 kHz sine 4 V RMS balanced, 2 V RMS unbalanced
Frequency response  on analog inputs: 10 Hz – 200 kHz +/- 0.1 dB
DAC THD: -121 dB (0,00009 %); THD+N: -115 dB (unweighted)
Analog input THD: -123 dB @ 2 V RMS output level
Dyn. range analog: 127 dB (A-weighted)
Dyn. range digital: 122 dB (A-weighted)
DAC Output Crosstalk: -120 dB for 1 kHz, better than -100 dB for 20 Hz – 20 kHz
Line Output impedance: 22 Ω unbalanced
Line Output impedance: 44 Ω balanced

Power consumption:

• 13 W idle (with amp powered off)
• 18 W idle (with amp powered on)
• 35 W max

Power inputs: 5.5/2.5 mm DC connector center positive proprietary FPL 4-pin DC connector (FPL) 22-30 VDC
Power adapter: 100-240 VAC to 24 VDC
Dimensions: 21.7 x 20.6 x 5 cm / 8.6″ x 8.1″ x 2.0″
(WxDxH)
Remote control: included
Weight: 1.90 kg / 4.19 lb

• Wandla HP
• Power supply
• Manual
• Remote Control
