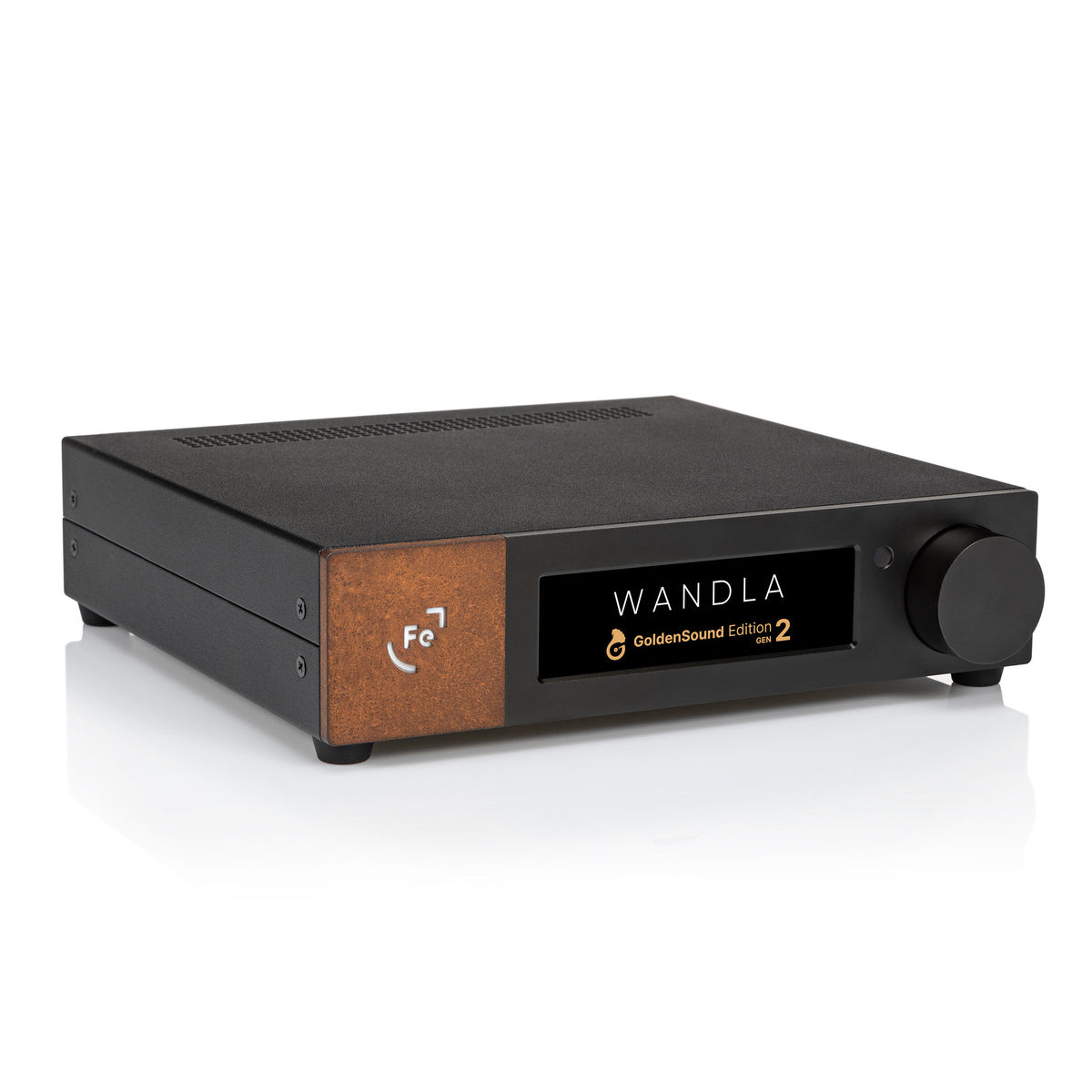

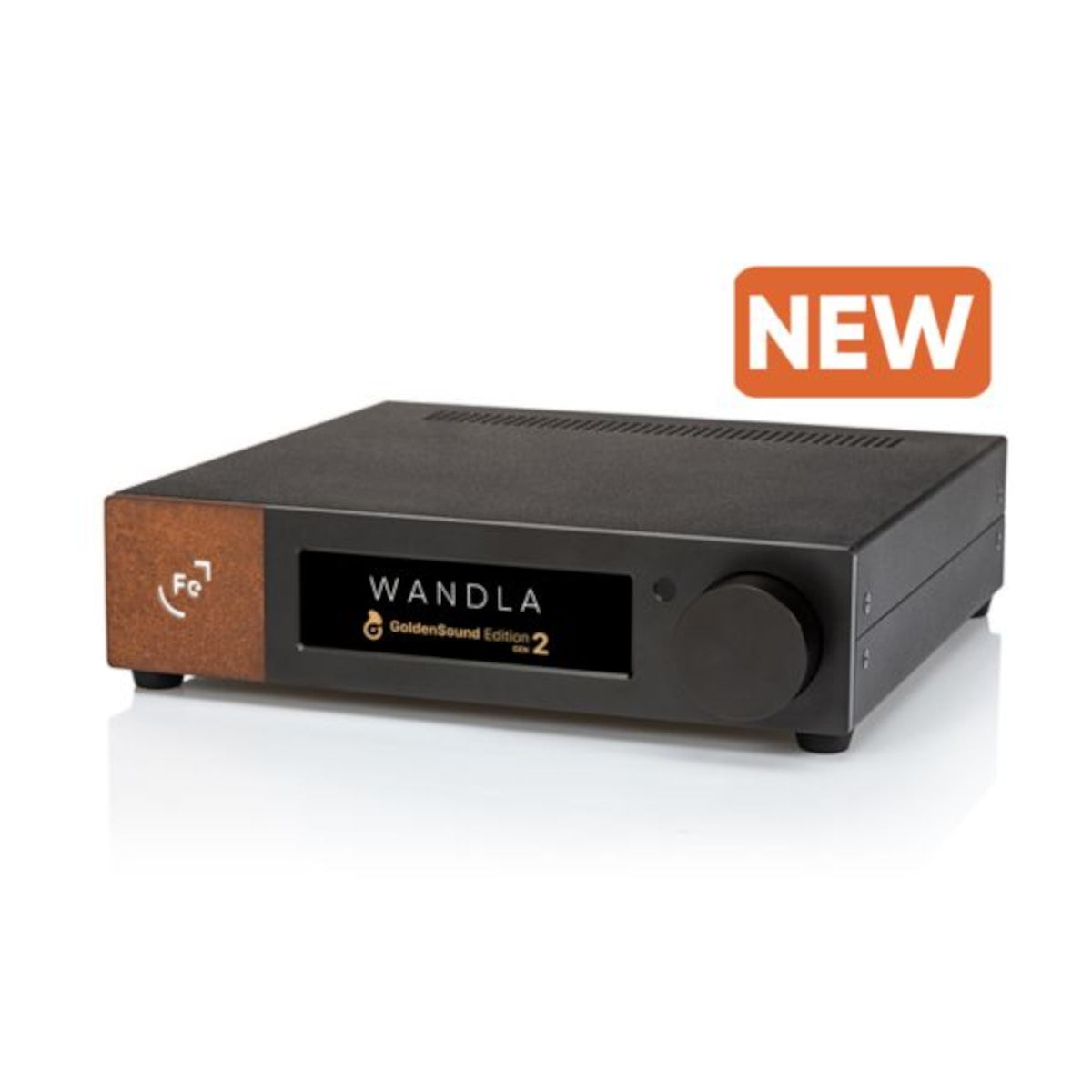

Ferrum Audio WANDLA GoldenSound Edition Gen2

Ferrum Audio WANDLA GoldenSound Edition Gen2

$5,999.00 AUD
$5,999.00 AUD
Sale Sold out
Shipping calculated at checkout.

While keeping all great features of the original, WANDLA GoldenSound Edition Gen 2 manages to improve on three great features, called Impact+, Tube Mode and Spatial Enhancement. In Gen 2 our engineers completely overhauled them and each got their own Ferrum Sweet Spot Tuning! Of course the Gen 2 upgrades include ultimate customization on top of the original settings. Next to these great new features you get to keep all features of the original WANDLA (except MQA), like its SERCE DSP module, WANDLA’s balanced design, the proprietary amplification, optimized digital inputs, finely tuned DA conversion, Dynamic Digital Filtering, ease of use via WANDLA’s touch screen, Ferrum’s Streaming Control Technology and 4TSD voltage sensing capabilities when combined with HYPSOS.
Something great just got even better.

1x Ferrum WANDLA GoldenSound Edition Gen 2 dac/pre-amp
1x power cord
1x remote control
1x USB cable
1x AC/DC power adapter

Features

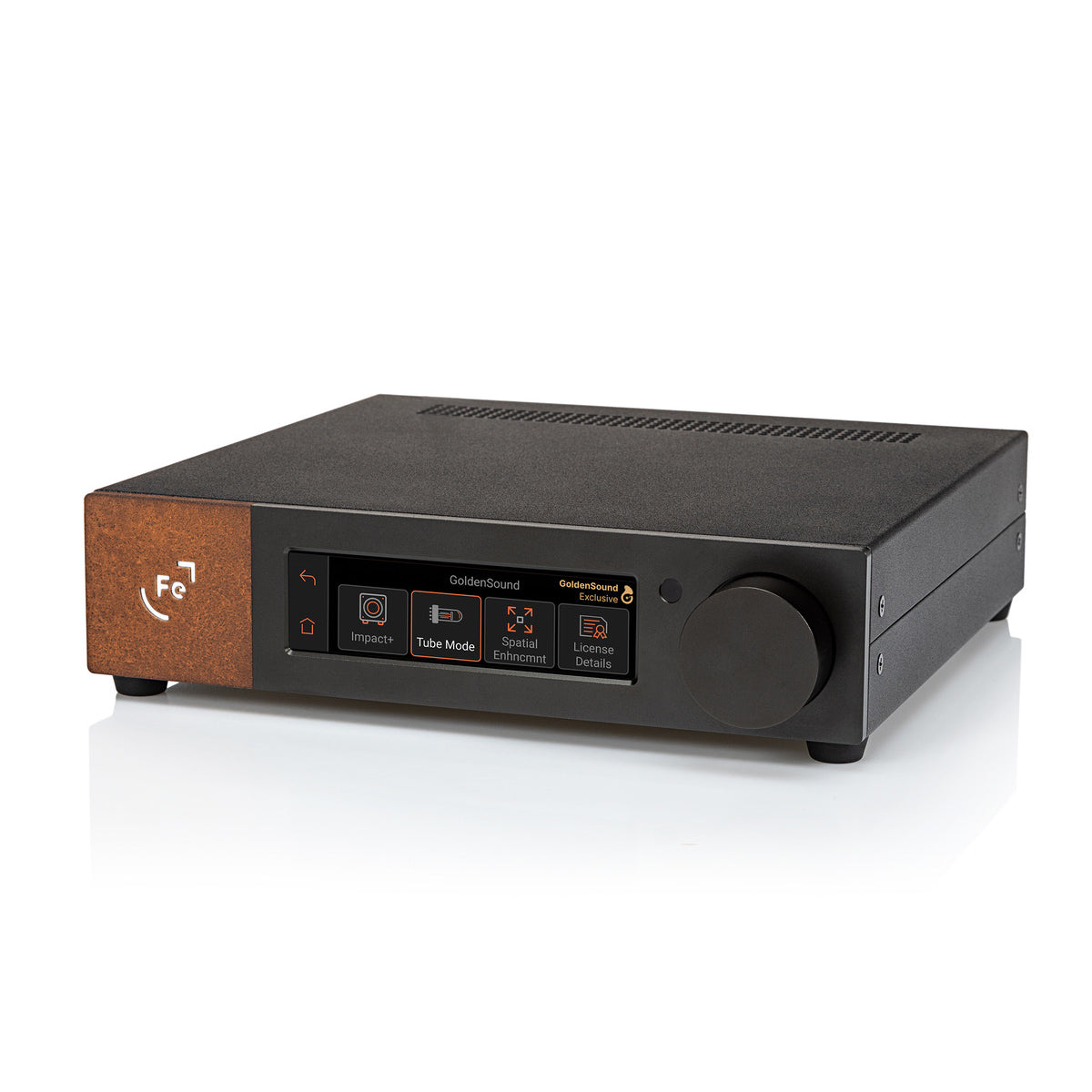

Three great features just got even better. Impact+, Tube Mode and Spatial Enhancement were completely overhauled and each got their own Ferrum Sweet Spot Tuning!

Specifications

  • DAC chip: ESS Sabre ES9038PRO
  • DAC resolution: 768 kHz / 32 bit, DSD 512

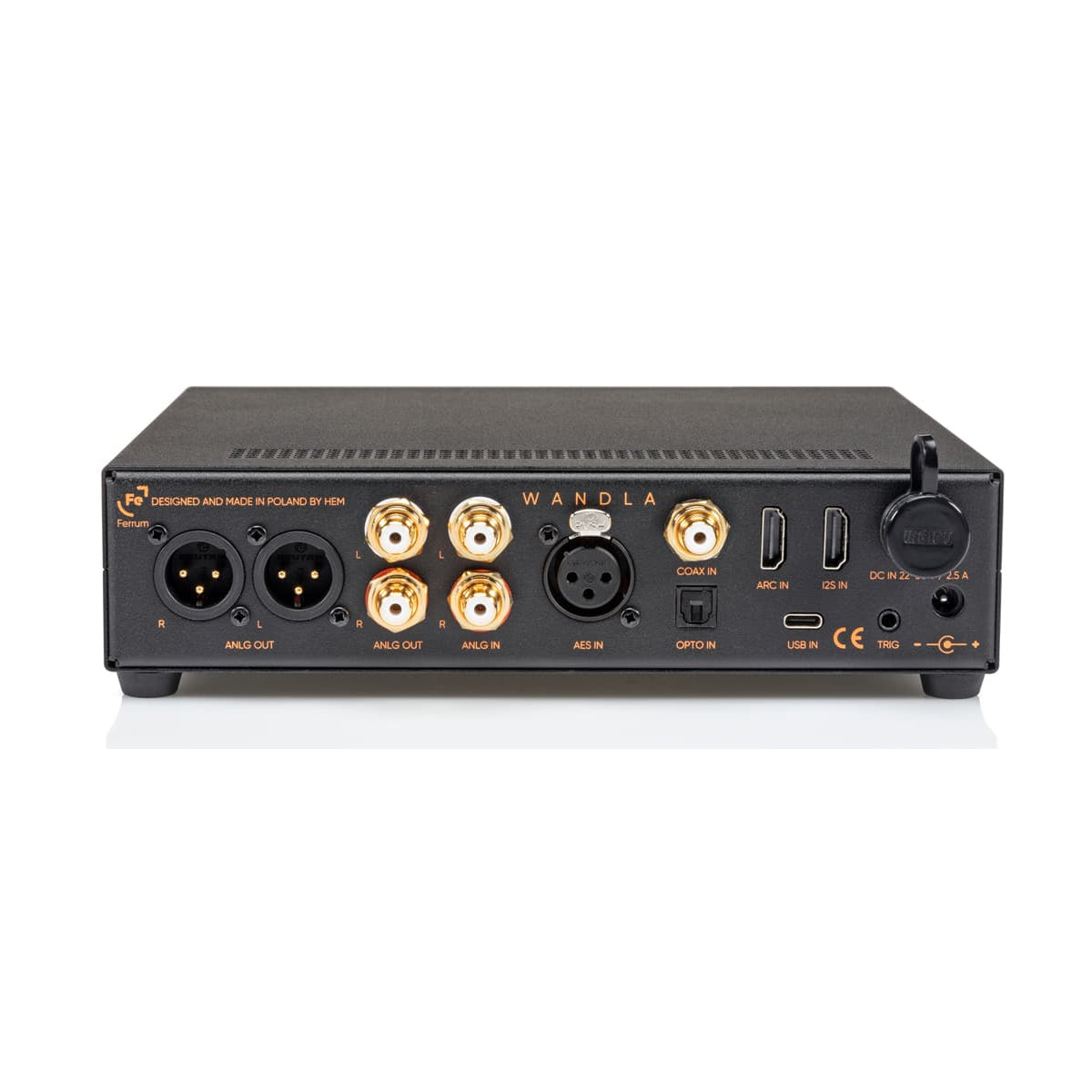

Digital inputs:
 • USB Type-C (up to PCM 768 kHz / 32 bit, DSD 512, DoP 256)
 • I2S (up to PCM 768 kHz / 32 bit, DSD 512, DoP 256), PS Audio® compatible
 • ARC (up to PCM 192 kHz / 24 bit), TV input with CEC
 • AES (up to PCM 192 kHz / 24 bit, DoP 64)
 • Coaxial S/PDIF (up to PCM 192 kHz / 24 bit, DoP 64)
 • Optical S/PDIF (up to PCM 96 kHz / 24 bit*)
 *may work up to PCM 192 kHz and DoP 64 – depending of customer optical cable and transmitter

  • Analog inputs: RCA
  • Analog input Vmax: 9.5 VRMS (2 – 3.5 VRMS recommended)
  • Analog input impedance: 47 kΩ
  • Line outputs: balanced XLR, unbalanced RCA
  • Volume control: analogue with bypass option / digital for DAC operation only

Output level (@ 0 dBFS / 1 kHz sine):
 • PRO: 8 VRMS balanced, 4 VRMS unbalanced
 • Red Book: 3.5 VRMS balanced, 1.75 VRMS unbalanced

  • Frequency response: 10 Hz – 200 kHz +/- 0.1 dB analog inputs
  • DAC THD: -121 dB (0.00009 %), THD+N: -118 dB unweighted
  • Analog input THD: -123 dB @ 2 VRMS
  • Dynamic range (A-weighted): 127 dB analog, 119 dB digital
  • Crosstalk: -120 dB for 1 kHz, better than -100 dB for 20 Hz – 20 kHz
  • Output impedance: 22 Ω unbalanced, 44 Ω balanced
  • Power consumption: 10 W idle, 15 W max
  • Power inputs (22-30 VDC):
     • 5.5/2.5 mm DC connector, center positive
     • proprietary Ferrum Power Link (FPL) 4-pin DC connector
  • Power adapter: 100-240 VAC to 24 VDC
  • Remote control: included
  • Dimensions: 21.7 cm x 20.6 cm x 5 cm / 8.6″ x 8.1″ x 2.0″

Weight: 1.8 kg / 3.97 lbs

What's in the box

Wandla Golden Sound Gen2

Power adapter: 100-240 VAC to 24 VDC

Remote control
