Ferrum Audio WANDLA GoldenSound Edition DAC/Pre-Amp

Ferrum Audio WANDLA GoldenSound Edition DAC/Pre-Amp

$5,999.00 AUD
$5,999.00 AUD
Sale Sold out
Shipping calculated at checkout.

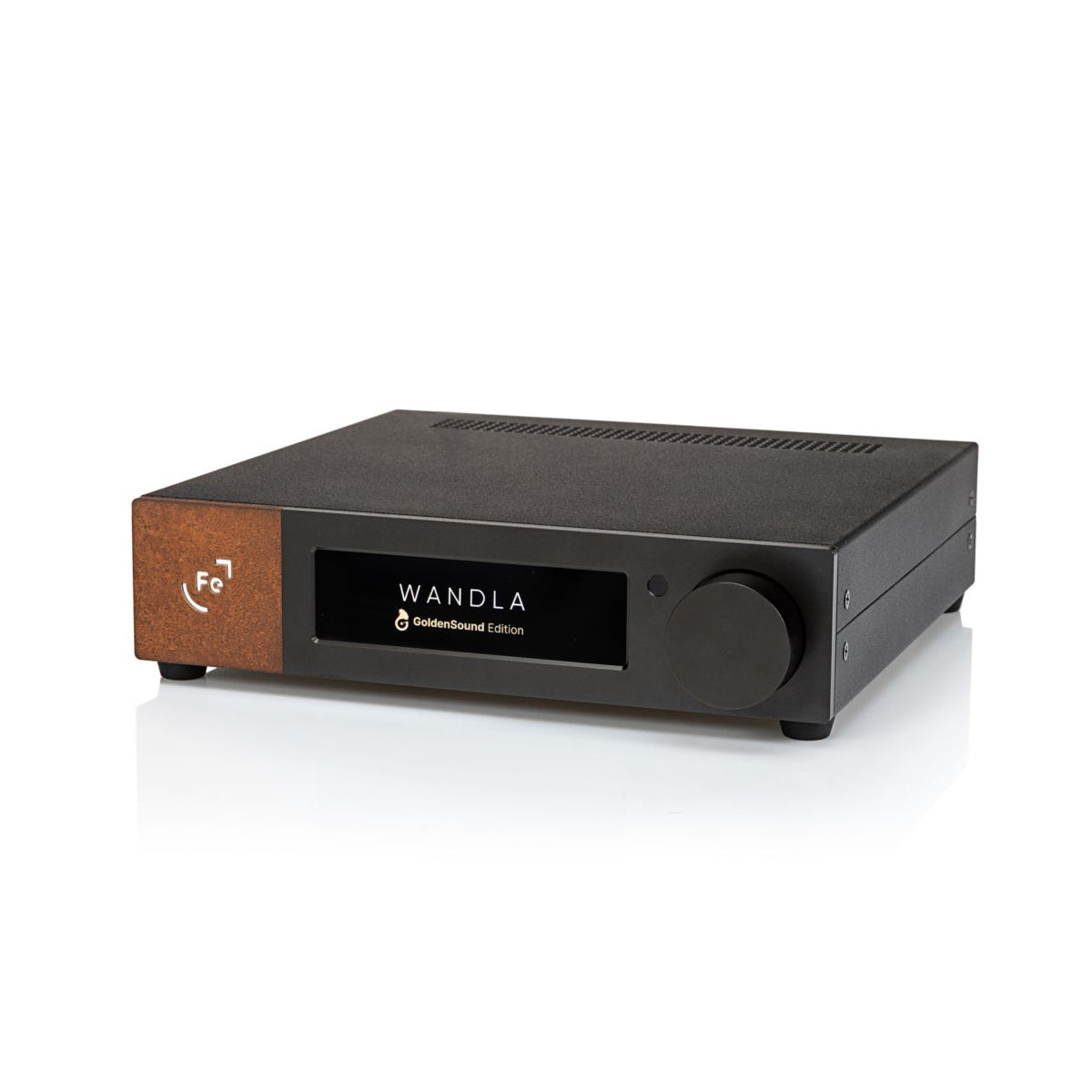

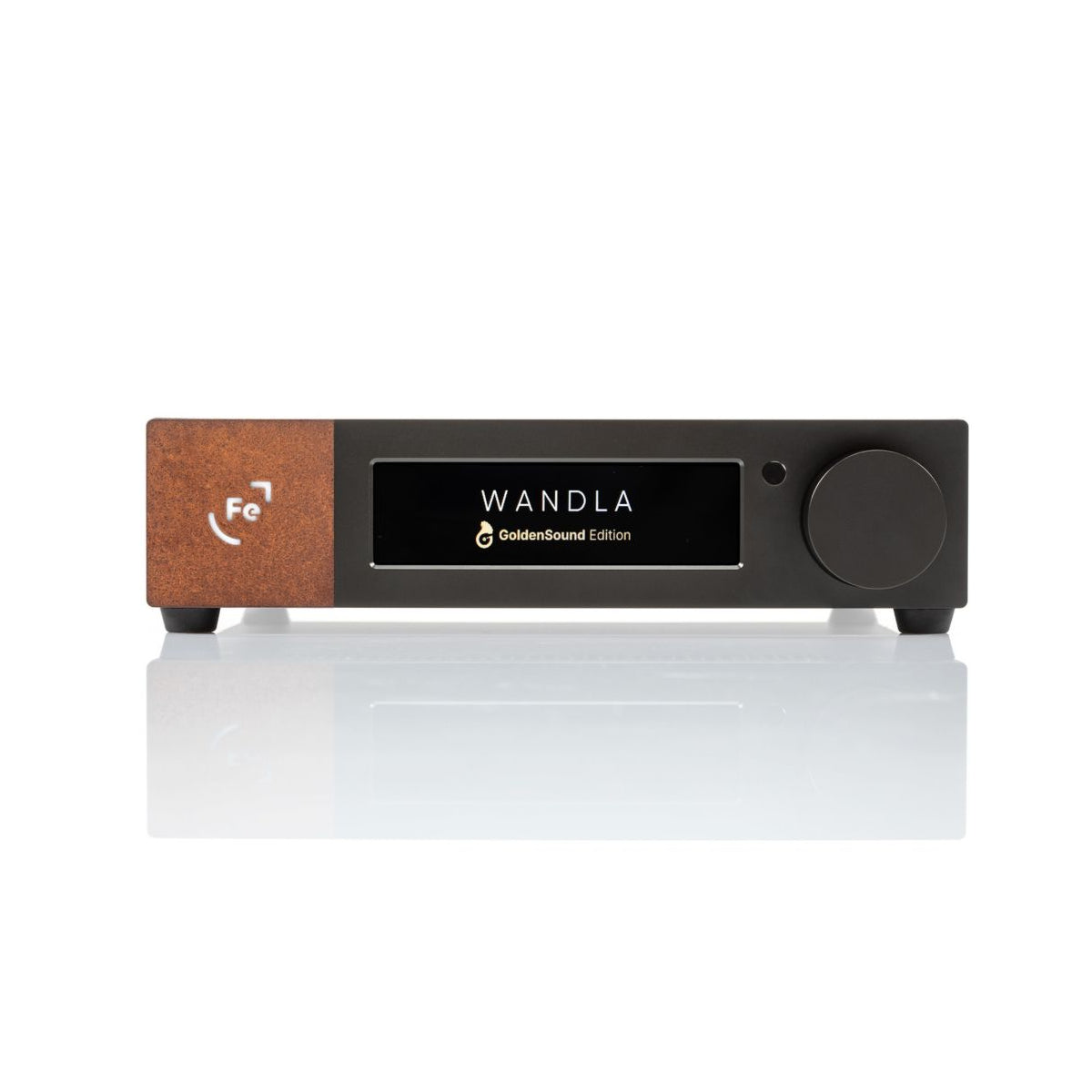

WANDLA GoldenSound Edition DAC / Preamp By Ferrum Audio

The WANDLA GoldenSound Edition digital to analogue converter and pre-amplifier is a fruitful collaboration between the talented team at Ferrum Audio and GoldenSound's Cameron Oatley.   Utilising SERCE, the heart of the WANDLA sought-after software additional features, capabilities and settings were implemented.  This allowed the tailoring of the WANDLA GoldenSound Edition DAC’s sound to match individual needs and requirements.

By reallocating SERCE's processing power, this collaboration allowed the team to create a number of brand new features in the WANDLA GoldenSound Edition including Improved digital headroom, Spatial Enhancement, Tube Mode and Impact+ as well as new voltage adjustments.

PCM was left untouched and bypassed MQA processing entirely to achieve the best performance from the WANDLA’s DSP engine.

In addition, the Ferrum Audio WANDLA GoldenSound Edition has a new output voltage adjustment function, allowing better compatibility with a larger number of amplifiers.

Review: https://headfonics.com/ferrum-wandla-goldensound-edition-review/

Features

  • WANDLA fully balanced DAC/PREAMP
  • Proprietary IC power amp design
  • Proprietary optimised-for-audio digital inputs (USB-C, Optical and Coaxial S/PDIF, ARC, I2S, AES/EBU)
  • Improved digital headroom for music play back without additional distortion
  • Spatial Enhancement for expanded soundstage, improved clarity and separation
  • Tube Mode allows the user to enjoy a warmer, richer sound without directly changing the frequency response
  • Impact + elevates bass in music and provides additional ‘punch’ and dynamic impact
  • New voltage adjustment compatibility with all amplifiers, without a need to use any digital volume control or analog volume control components in the signal path.
  • Proprietary 4-pin Ferrum connector for HYPSOS
  • Balanced XLR and unbalanced RCA line outputs
  • Digital and Analogue volume control

Specifications

Product Type: DAC / Pre-Amp

DAC chip: ESS Sabre ES9038PRO

DAC resolution: 768 kHz / 32 bit, DSD 512

Digital inputs:
 • USB Type-C (up to PCM 768 kHz / 32 bit, DSD 512, DoP 256)
 • I2S (up to PCM 768 kHz / 32 bit, DSD 512, DoP 256), PS Audio® compatible
 • ARC (up to PCM 192 kHz / 24 bit), TV input with CEC
 • AES (up to PCM 192 kHz / 24 bit, DoP 64)
 • Coaxial S/PDIF (up to PCM 192 kHz / 24 bit, DoP 64)
 • Optical S/PDIF (up to PCM 96 kHz / 24 bit*)
 *may work up to PCM 192 kHz and DoP 64 – depending of customer optical cable and transmitter

Analog inputs: RCA

Analog input Vmax: 9.5 VRMS (2 – 3.5 VRMS recommended)

Analog input impedance: 47 kΩ

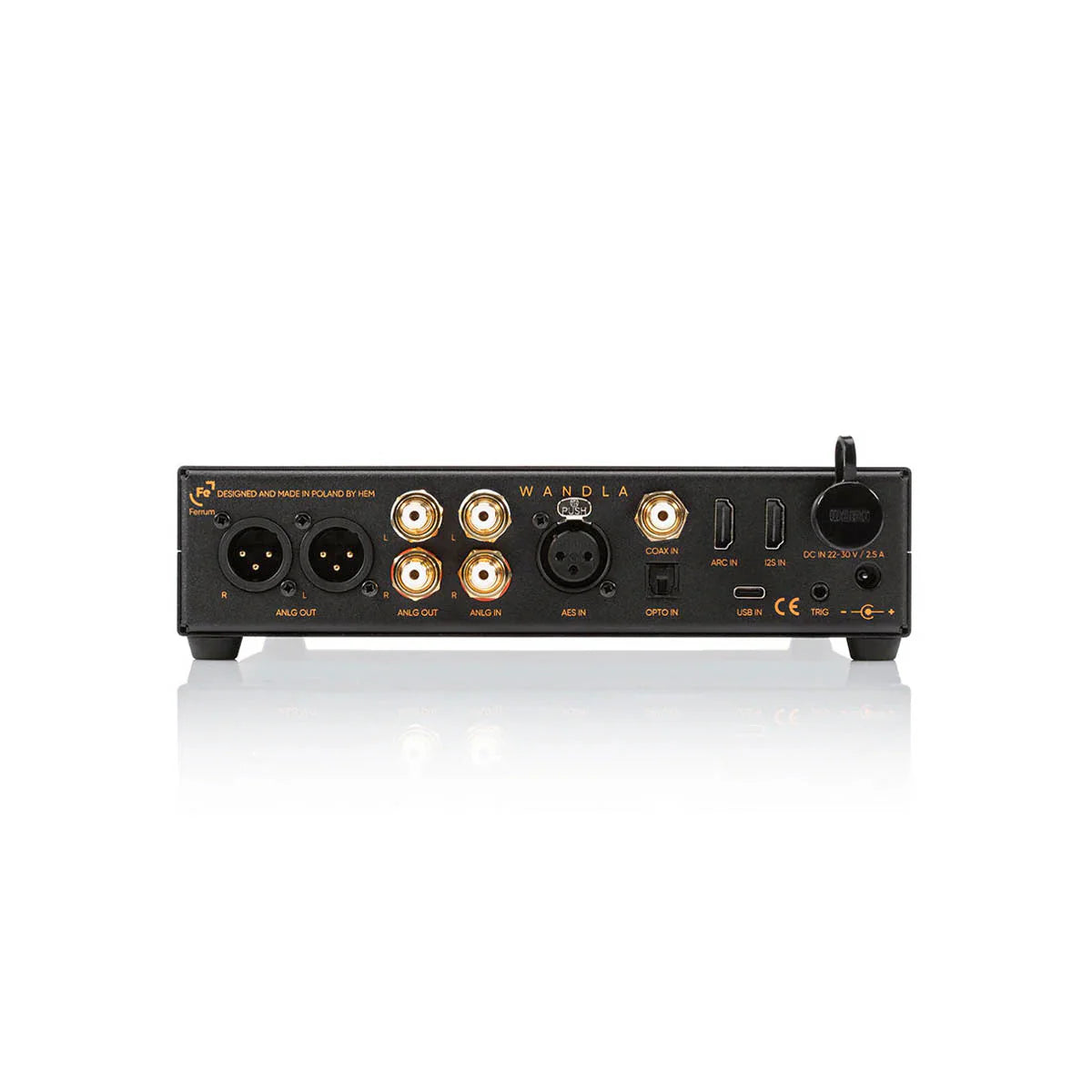

Line outputs: balanced XLR, unbalanced RCA

Volume control: analogue with bypass option / digital for DAC operation only

Output level (@ 0 dBFS / 1 kHz sine):
 • PRO: 8 VRMS balanced, 4 VRMS unbalanced
 • Red Book: 3.5 VRMS balanced, 1.75 VRMS unbalanced

Frequency response: 10 Hz – 200 kHz +/- 0.1 dB analog inputs

DAC THD: -121 dB (0.00009 %), THD+N: -115 dB unweighted

Analog input THD: -123 dB @ 2 VRMS

Dynamic range (A-weighted): 127 dB analog, 119 dB digital

Crosstalk: -120 dB for 1 kHz, better than -100 dB for 20 Hz – 20 kHz

Output impedance: 22 Ω unbalanced, 44 Ω balanced

Power consumption: 10 W idle, 15 W max

Power inputs (22-30 VDC):
 • 5.5/2.5 mm DC connector, center positive
 • proprietary Ferrum Power Link (FPL) 4-pin DC connector

Power adapter: 100-240 VAC to 24 VDC

Remote control: included

Dimensions: 21.7 cm x 20.6 cm x 5 cm / 8.6″ x 8.1″ x 2.0″

Weight: 1.8 kg / 3.97 lbs

What's in the box

  • Ferrum Audio WANDLA DAC/Preamp
  • Remote control
