Exposure

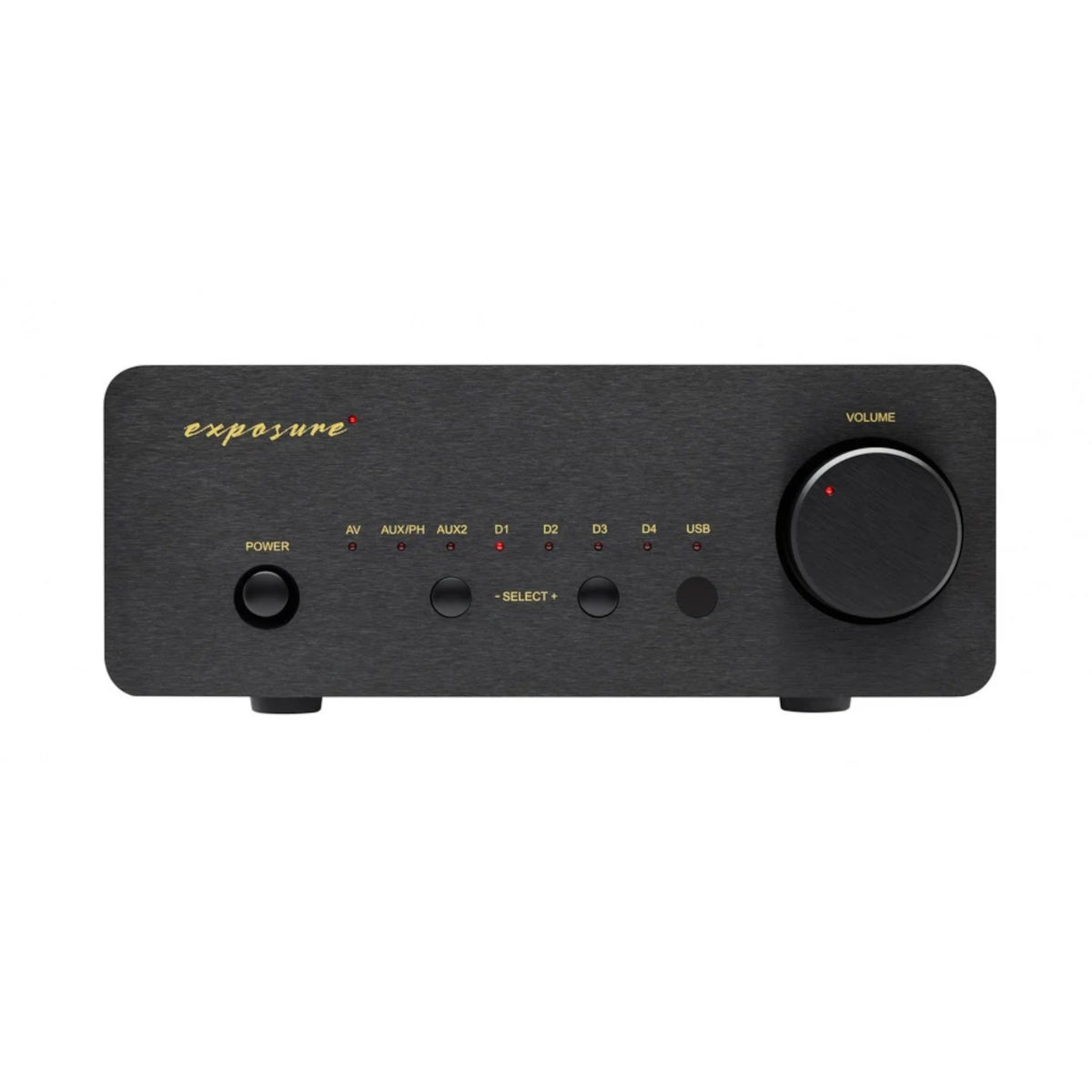

Exposure XM5 Integrated Amplifier

Exposure XM5 Integrated Amplifier

$2,899.00 AUD
$2,899.00 AUD
Sale Sold out
Shipping calculated at checkout.
Color: Black

Features

  1. Large 200VA custom-made toroidal power transformer
  2. High quality all aluminium casework and extruded front panel
  3. High quality resistors & capacitors used in the signal path
  4. Cascode circuitry utilised for improved power supply immunity
  5. Toshiba bipolar output transistors for dynamics and performance
  6. 60 watts per channel into 8 Ohms
  7. Moving magnet phono input, fixed level AV input and one line level input
  8. Two coax ( bnc) and two optical inputs and one class 2 USB input with DSD
  9. Separate pre-amp output
  10. Remote control
  11. Five-year guarantee

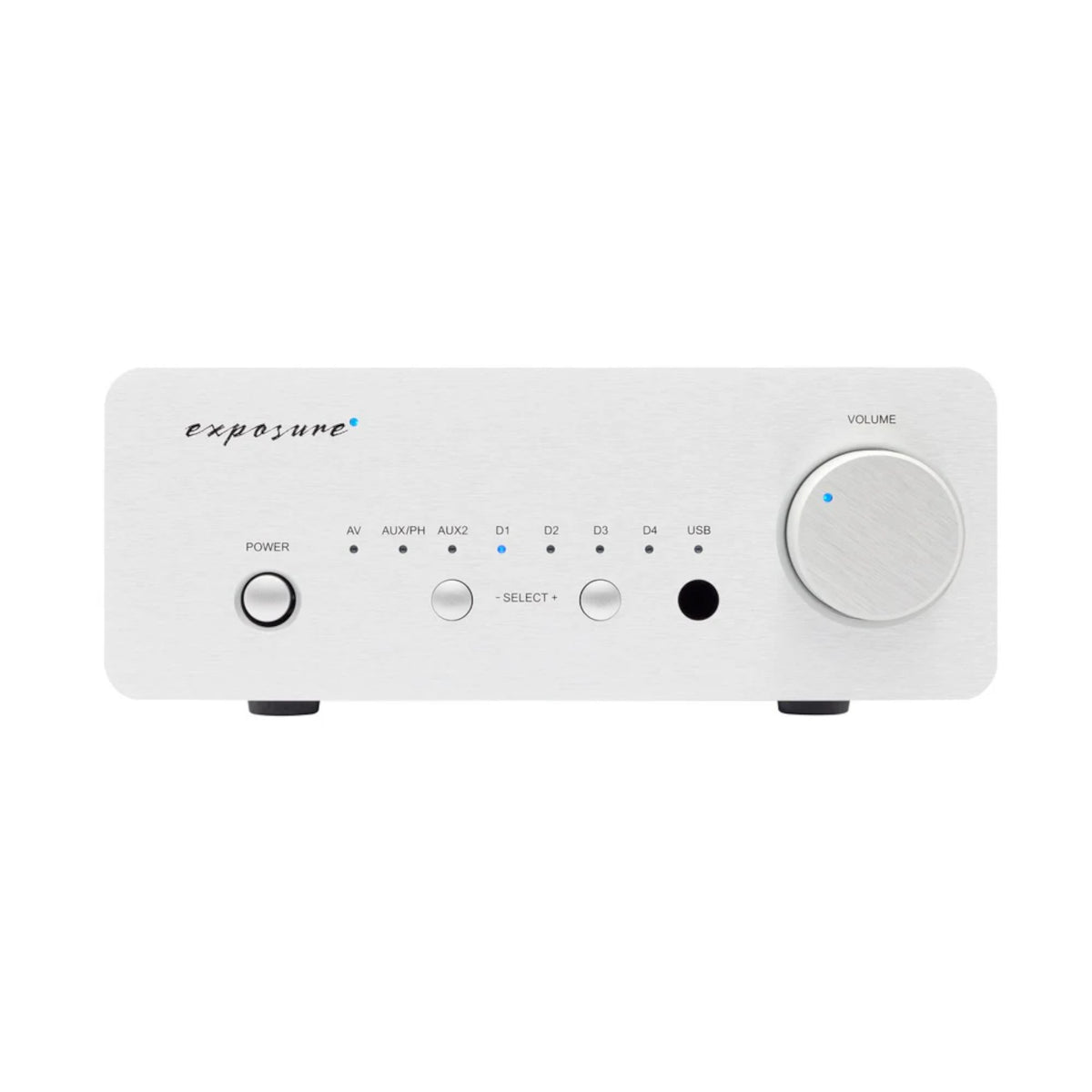

  12. Available in black or titanium

Features

Specifications

Speaker Output Specifications

  • Power Output (1KHz): 60 Watts per channel into 8 ohms
  • Total Harmonic Distortion: 0.01% at 1KHz, rated power
  • Frequency Response: 20Hz - 20KHz 0.5dB
  • Channel Separation: 60dB @ 1KHz AUX 2 input open (shorted 80dB)40dB @ 20KHz AUX 2 input open (shorted 63dB)

Pre Amplifier Specifications

  • Pre Amplifier Ouput: Gain +12dB
  • Frequency Response: 20Hz - 20KHz 0.5dB
  • Total Harmonic Distortion: @ 1KHz: 1V output: 0.002%
  • Signal to Noise Ratio ref 1KHz 1V output: 100dB, A weighted
  • Channel Separation @ 20KHz: 62dB input shorted 41dB input open AUX 2 input

Input Specifications

  • AV input fixed level: 450mV @ 1KHz 12K ohms S/N ; 100dB
  • AUX/PH input MM: 2.5mV @ 1KHz, 47K ohms S/N 70dB
  • AUX 2 input Line: 350mV @ 1KHz 14K ohms S/N 100dB
  • SPDIF inputs BNC Coax Optical: 32 - 192KHz @ 16-24 bits
  • USB input: Linear PCM 44K1 - 192KHz @ 16-24 bits DSD x64 (DoP) Asynchronous transfer from host

General Specifications

  • Mains Supply: 110/120V or 220/240V @ 50/60Hz (factory set)
  • Power Consumption: 200W both channels driven, 8 ohms load
  • Dimensions (WxHxD): 218mm x 89mm x 363mm (inc knob)
  • Net Weight (unpacked): 5kg
  • Gross Weight (packed): 6kg

What's in the box

1x Exposure XM5 Integrated Amplifier
