Exposure

Exposure XM3 Phono Stage

Exposure XM3 Phono Stage

Regular price $1,599.00 AUD
Regular price Sale price $1,599.00 AUD
Sale Sold out
Shipping calculated at checkout.
Color: Black

Features

  1. Large 200VA custom made toroidal transformer for power supply
  2. Multiple power supply capacitors in parallel for low ESR
  3. All discrete transistor audio stages
  4. High quality resistors capacitors used in the signal path

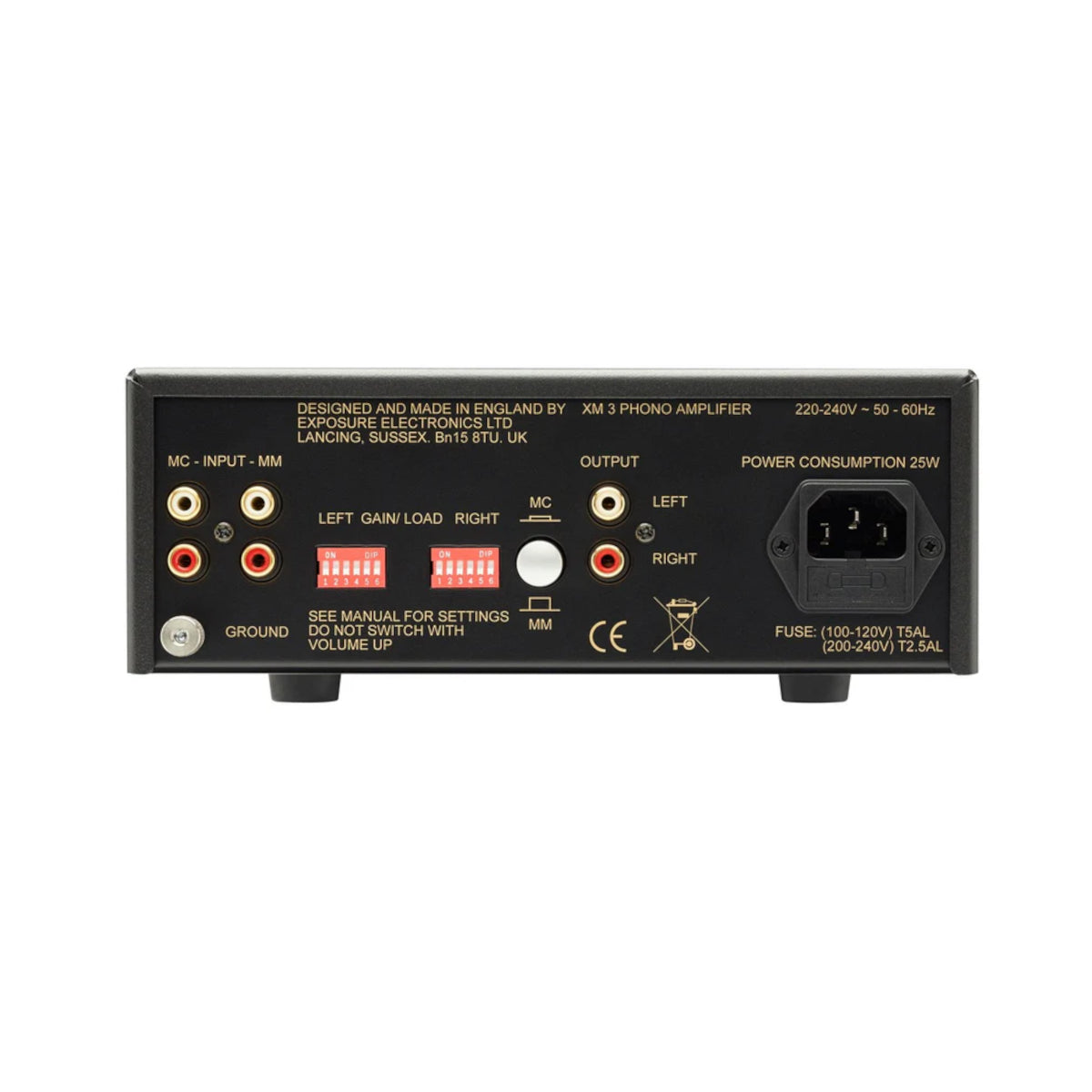

  5. Separate MM MC inputs selectable on the back panel
  6. Adjustable loading gain switches on the back panel
  7. High quality all aluminium case work and extruded front panel
  8. Five year guarantee

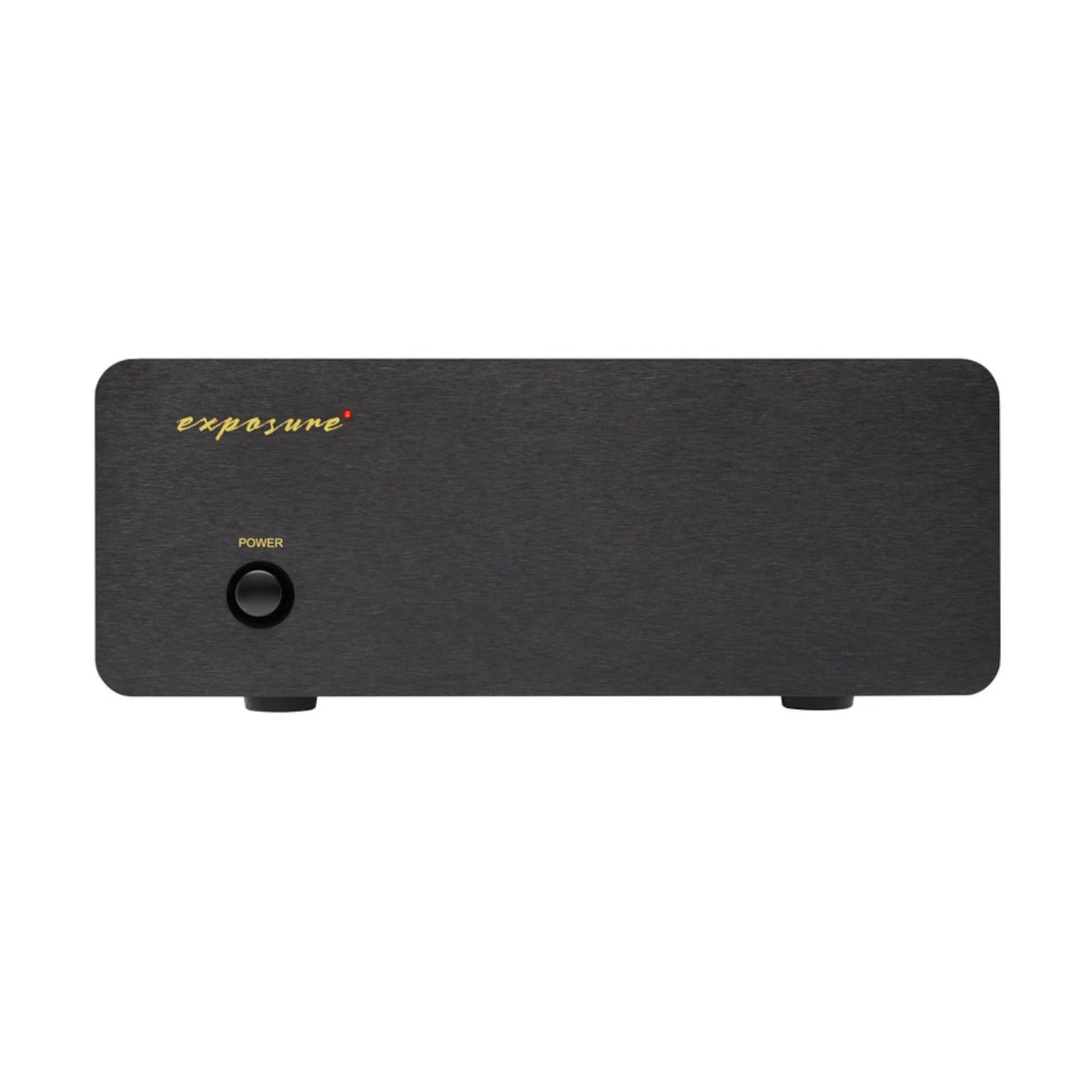

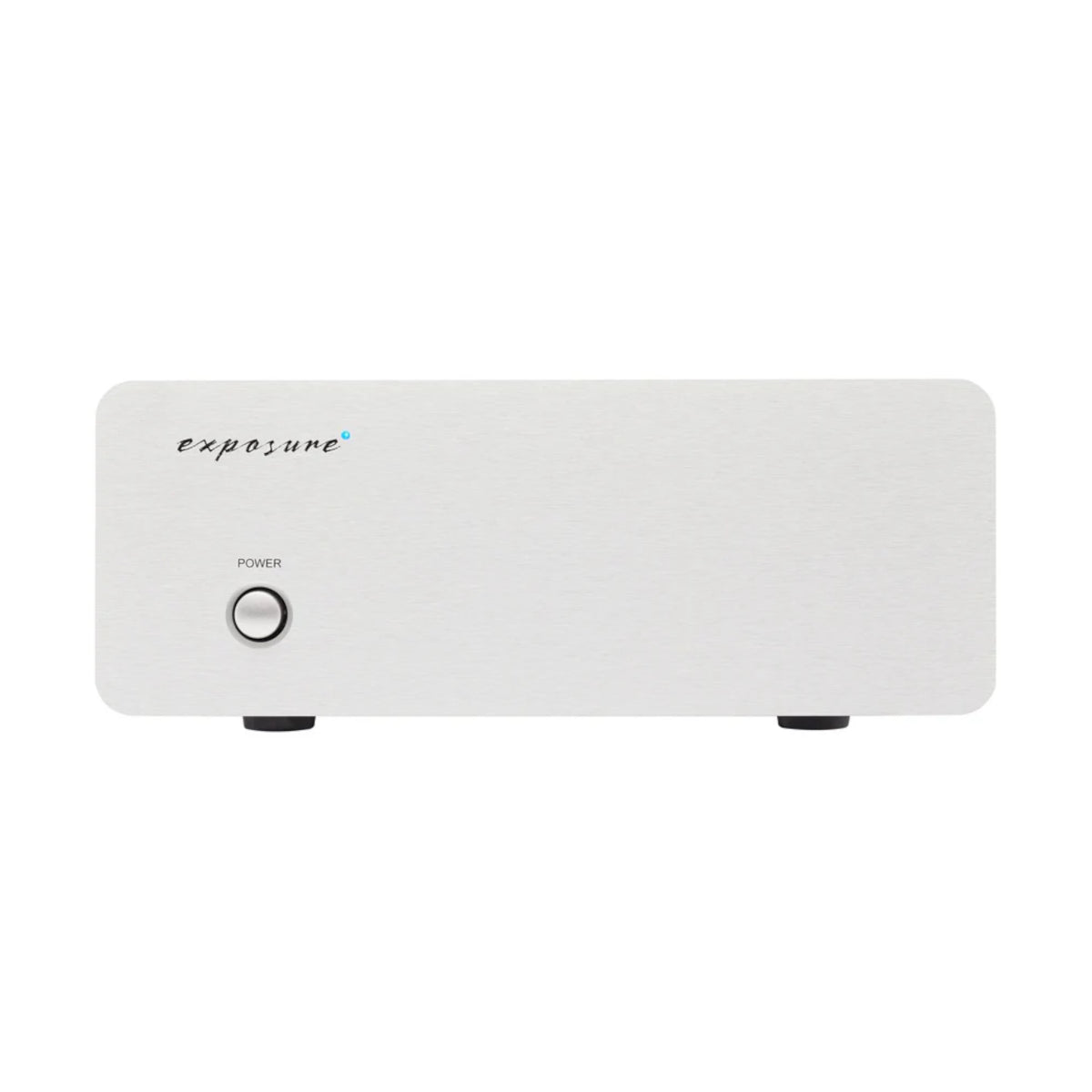

  9. Available in black or titanium

Features

Specifications

Moving Magnet Input

  • Sensitivity: 3.5mV input for 350mV output, 40dB gain setting
  • Signal to Noise ratio, ref 1KHz 350mV out:

- Gain Switch 4 ON: 70dB

- Gain Switch 4 OFF: 78dB

Moving Coil Input

  • Sensitivity: 350uV input for 350mV output, 60dB gain setting
  • Signal to Noise ratio, ref 1KHz 350mV out: 67db A weighted. ALL gain switches (4-6)

General Specifications

  • Frequency Response: 30Hz - 20Hz within 0.25dB ref 1KHz with low frequency roll off below 30Hz
  • Total Harmonic @ 1KHz, ref 350mV out 0.025% MC Input:

- Maximum Ouput Voltage: 7.8V RMS 1KHz

- Output Impedance: 50 ohms

  • Mains Supply: 110/120V or 220/240V @ 50/60Hz (factory set)
  • Power Consumption: 25W
  • Dimensions (WxHxD): 218mm x 89mm x 348mm
  • Net Weight (unpacked): 4kg
  • Gross Weight (packed): 5kg

What's in the box

1x Exposure XM3 Phono Stage
