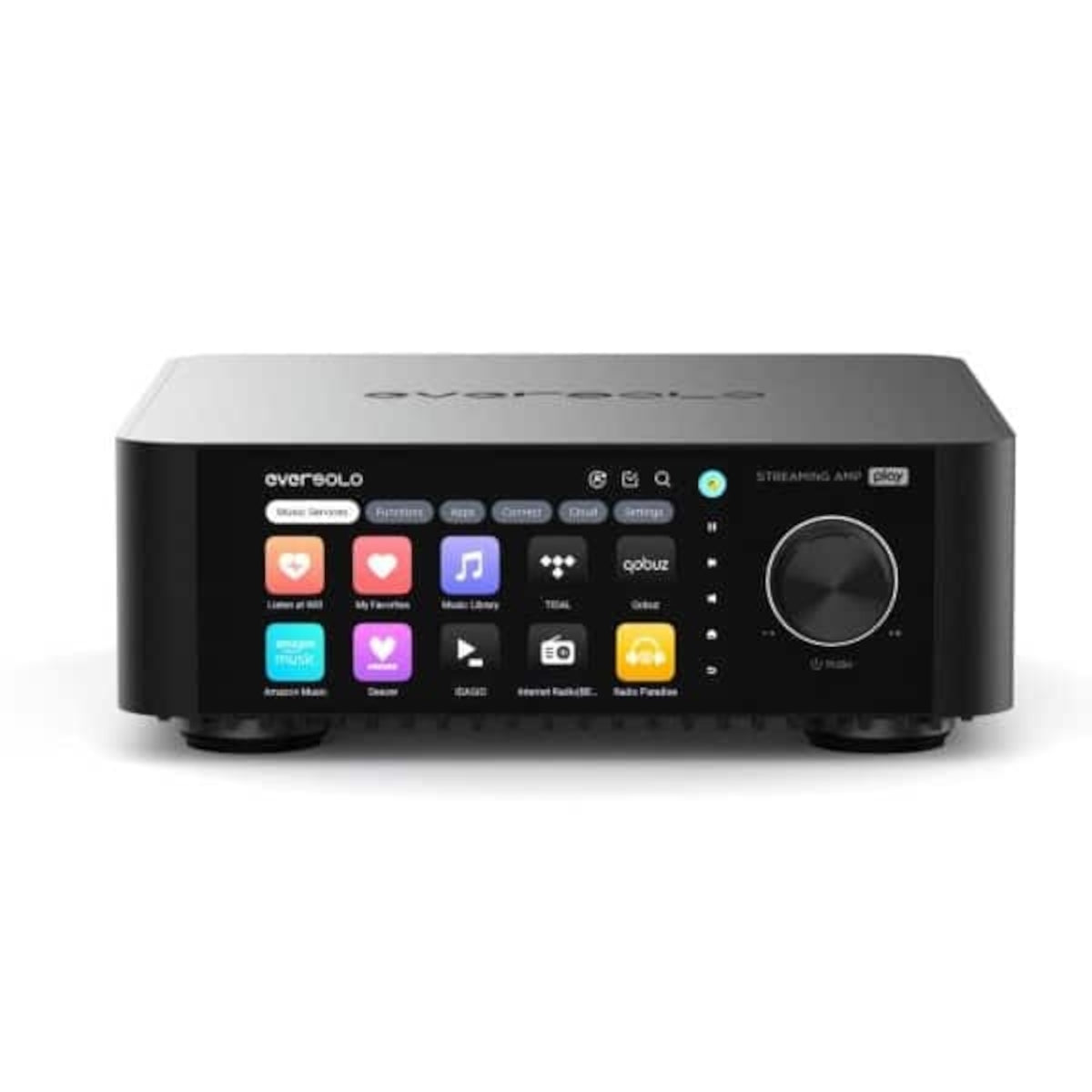

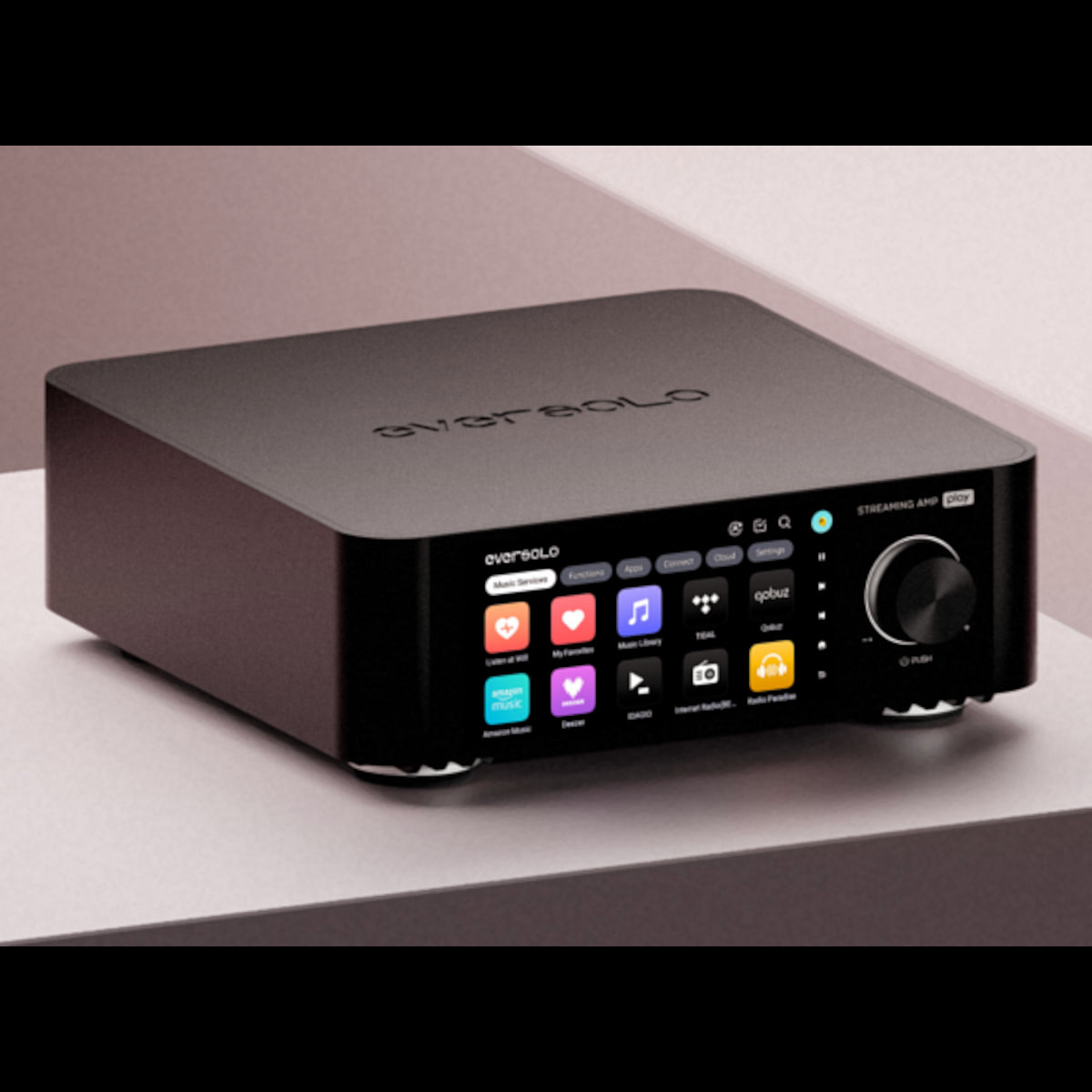

Eversolo Play Streaming Amplifier

• Class-D Amp with 2 x 60W @ 8 Ohms, 2 x 110W @ 4 Ohms and PurePath™ Ultra HD technology

• 5.5-inch vibrant HD touchscreen display with fast response
• 32-bit AKM AK4493SEQ DAC chip with VELVETSOUND™ technology support up to PCM 768KHz resolution
• Eversolo multi-room system seamlessly interconnects multiple devices delivering synchronised music
• Room Correction enables acoustic correction via an external measurement microphone or smartphone mic
• RGB Light Ring volume knob supporting seamless colour switching
• EOS Audio Engine fully bypasses SRC (Sample Rate Conversion) limitations
• EVC Engine uses unique volume adjustment algorithm to precisely eliminate errors
• Supports TIDAL, Qobuz, IDAGIO, Amazon Music, TuneIn Radio, Presto Music, KKBOX, Radio Paradise, Deezer, and other leading platforms
• Roon Ready
• Extensive file format support up to DSD512 and PCM 768kHz/32Bit

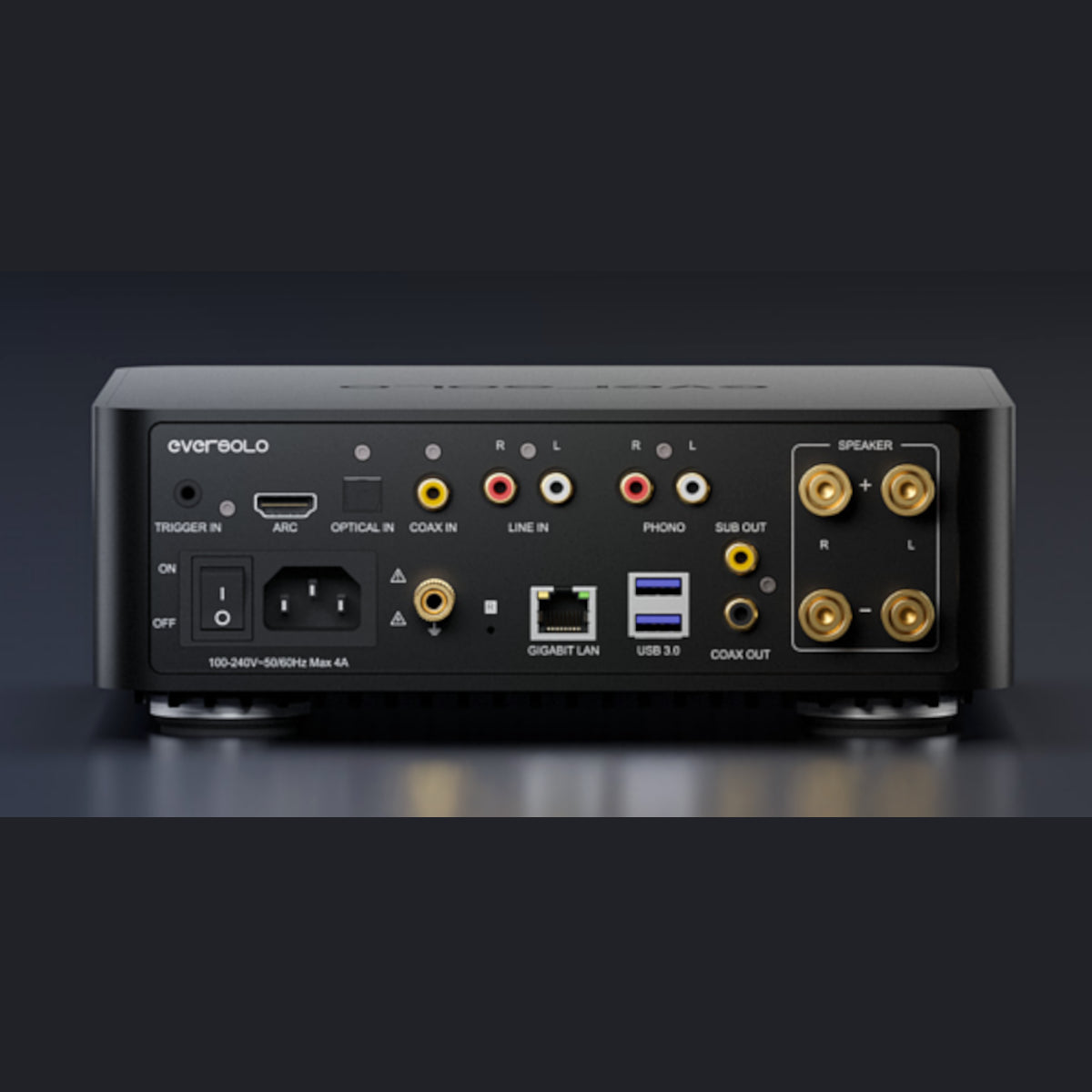

• Multiple input & output ports for connecting other devices including HDMI ARC
• Dedicated Phono pre-amp inputs supports both MM & MC carts
• Dedicated Subwoofer output (RCA pre-out) with Smart Bass Management
• Supports external USB 3.0 OTG hard drives for local media consumption
• USB Audio output supports stereo DSD512 Native & PCM 768kHz/32Bit with USB Audio Class (UAC) protocol standards
• Seamless access to home computers & local NAS via LAN while supporting protocols like UPnP and WebDAV
• WOL network wakeup support (via wired Ethernet)
• CNC-machined unibody construction and high-strength aluminium alloy
• Full-Coverage Heat Sink
• All-new UX design by Eversolo

Only the Play CD Edition includes a CD-ROM drive for playback and ripping.

• Body Material
  Aluminium alloy
• Display
  5.5" LCD Touchscreen
• CD-ROM
  No - Only the CD Edition includes a CD-ROM
• DAC
  AK4493SEQ
• Internal Memory
  4G DDR4 + 32G eMMC
• USB Ports
  2 x USB3.0
• Ethernet
  RJ-45(10/100/1000Mbps)
• WiFi
  2.4G+5G
• DAC Decoding
  Supports up to Stereo DSD512, PCM 768KHz 32Bit
• Music File Formats
  DSD (DSF, DFF, SACD ISO) Support DST up to DSD512, MP3, APE, WAV, FLAC, AIF, AIFF, AAC, NRG, CUE
• Music Services
  TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music etc
• Music Streaming
  Roon Ready, TIDAL Connect, DLNA etc Qobuz Connect
• Control Methods
  On-screen touch control, Android/iPhone/iPad APP control

Audio Input and Output

• Bluetooth Input
  Bluetooth BT5.0, SBC/AAC
• HDMI ARC Input
  Supports up to Stereo PCM 192KHz 24Bit
• Optical/Coaxial Input
  Supports up to Stereo PCM 192KHz 24Bit and DOP64
• Analog Line In
  Maximum input voltage 2VRMS
• PHONO Input
  Supports MM/MC
• USB Audio Output
  Supports up to Stereo DSD512 Native and PCM 768KHz 32Bit (Supports DAC audio devices with UAC standard only)
• Coaxial Output
  Supports up to Stereo PCM 192KHz 24Bit and DOP64
• Subwoofer Output
  Adjustable crossover frequency from 40 Hz to 500 Hz

Audio Characteristics

• Continuous Output Power
  60W RMS@8Ω 110W RMS@4Ω
• Amplifier Type
  Class D Amplifier
• Amplifier Gain
  20.8dB
• Input Sensitivity
  2V
• THD (20Hz-20KHz)
  <0.0037% 5W at 1KHz
• Signal-to-Noise Ratio
  >109dB, @A-wt 4Ω 110W
• Frequency Response
  20Hz-20KHz < ±0.25dB, 20Hz-40KHz < -3dB
• Damping Factor
  >107
• Channel Crosstalk
  <-108dB
• PHONO
  • Amplifier gain: MM 60dB MC 74dB
  • Input sensitivity: MM 5mV MC 0.5mV
  • RIAA: ±0.5dB, 20Hz-20KHz

Other Information

• PSU
  AC 110~240V 50/60Hz Max 4A
• Dimensions (W x D x H)
  230 x 230 x 75 mm
• Weight
  2.6kg
• Packing List
  • Power Cable
  • User Manual

Colour
Black

1 x Eversolo Play

Power cable

Manual
