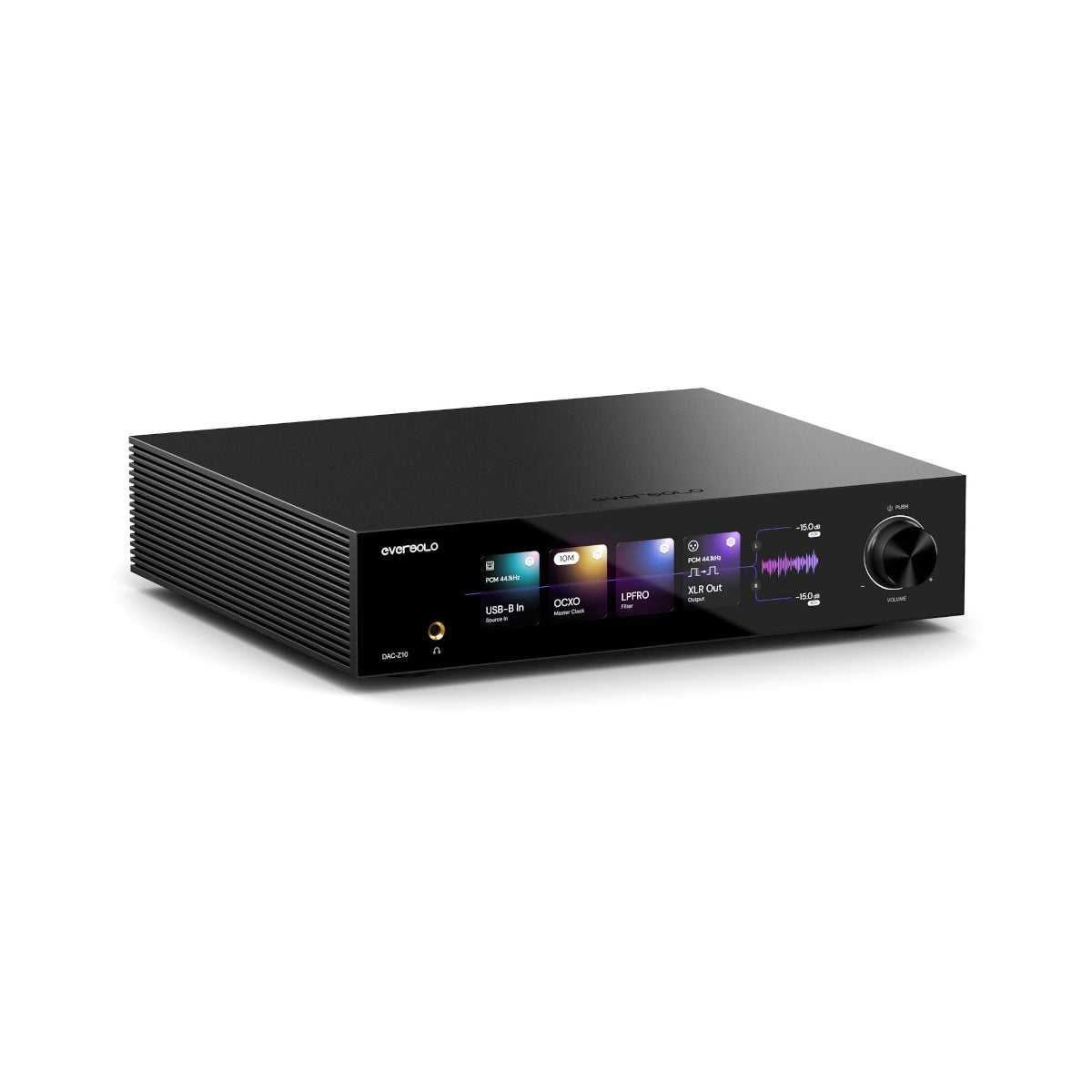

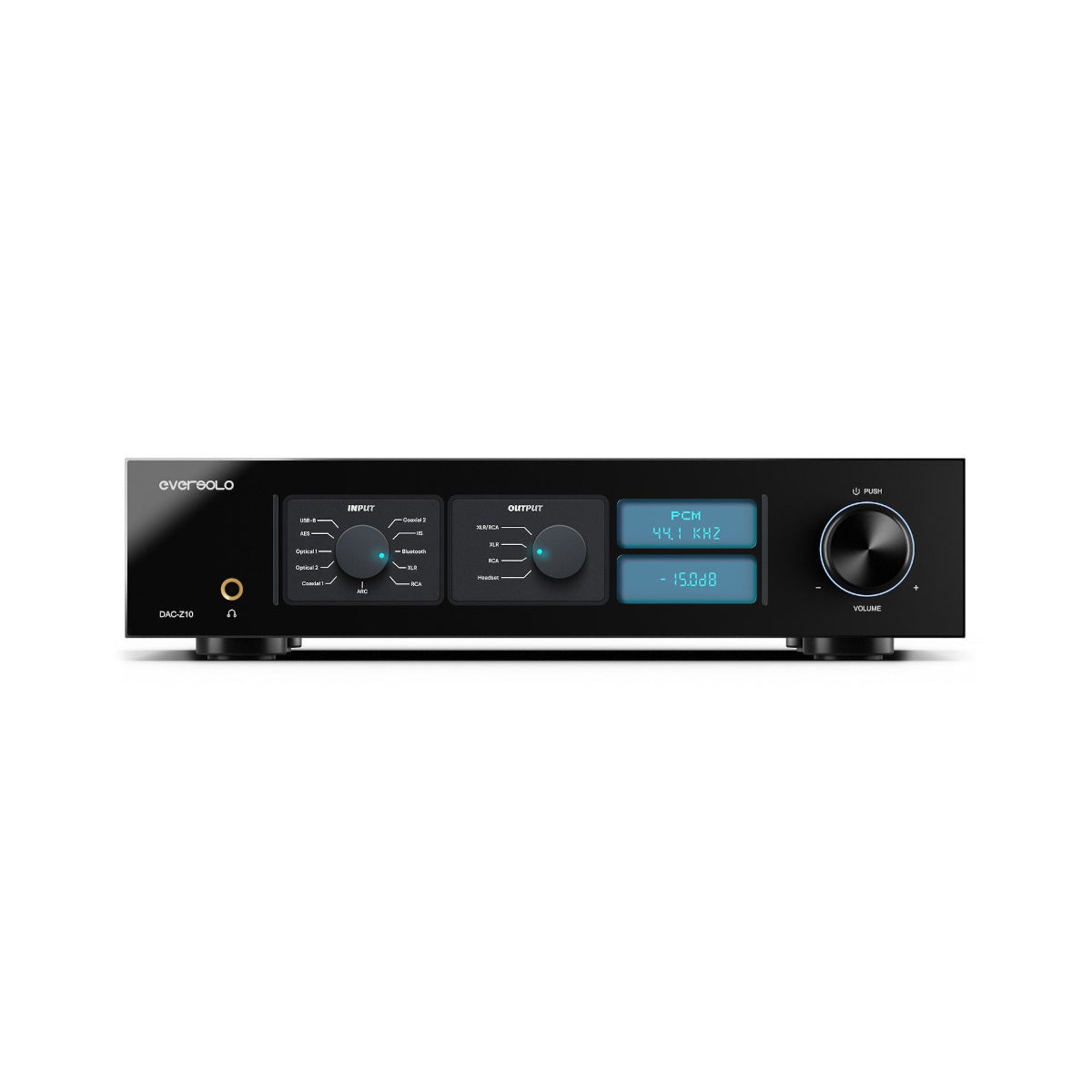

Eversolo DAC-Z10 Audio Decoder Digital to Analogue Converter

Name: Eversolo DAC-Z10 Audio Decoder Digital to Analogue Converter
Brand: EverSolo
Price: 3349.00 AUD
Availability: InStock

$3,349.00 AUD

Sale Sold out

Shipping calculated at checkout.

Quantity

Limited quantity available now

The DAC-Z10 Audio Decoder is a high end digital-to-analogue converter and pre-amp featuring premium components and Eversolo's highly regarded attention to detail and build quality.

Key Features:

• Brand New Flagship DAC / Audio Decoder
• Dual DAC's AKM AK4191EQ + AK4499EXEQ per channel

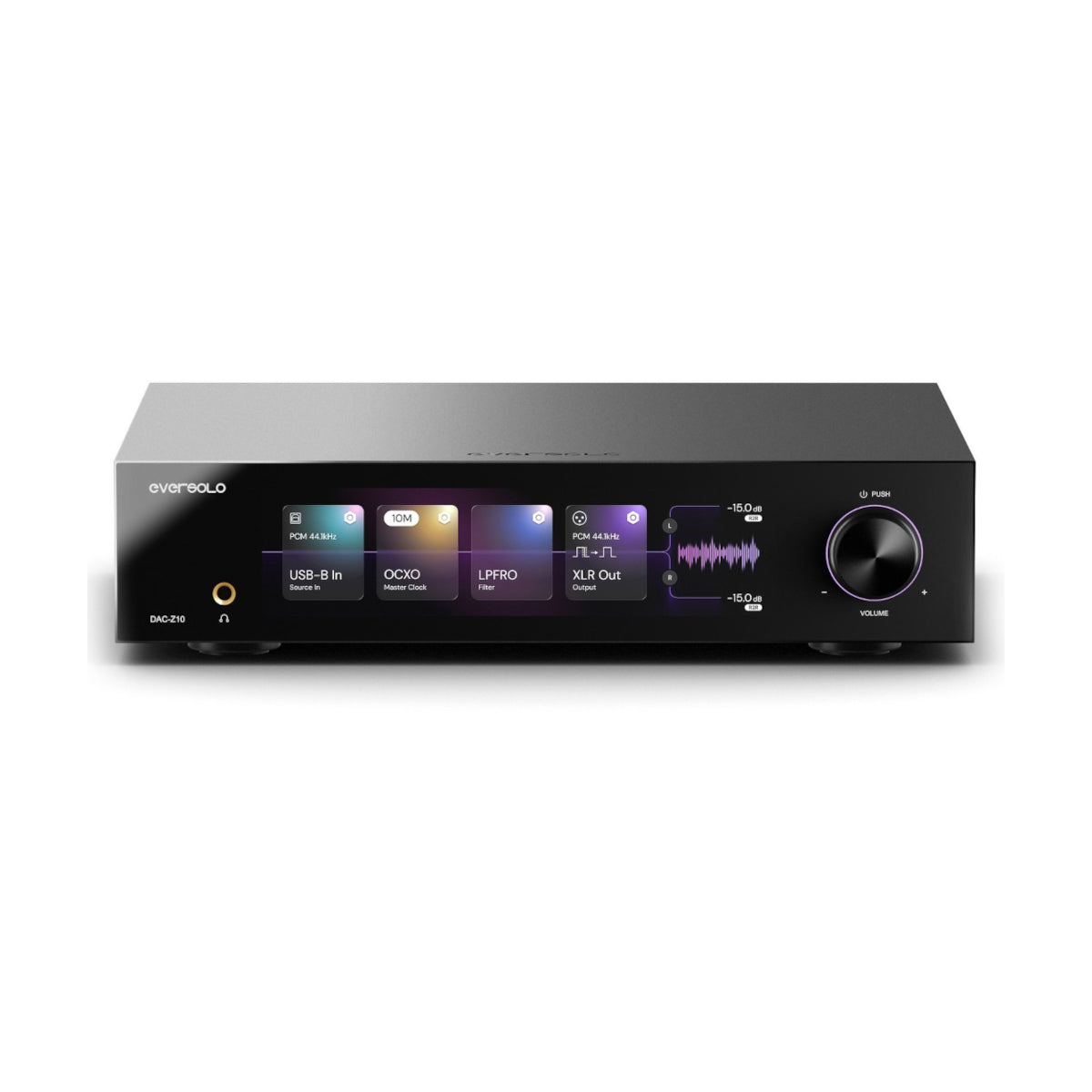

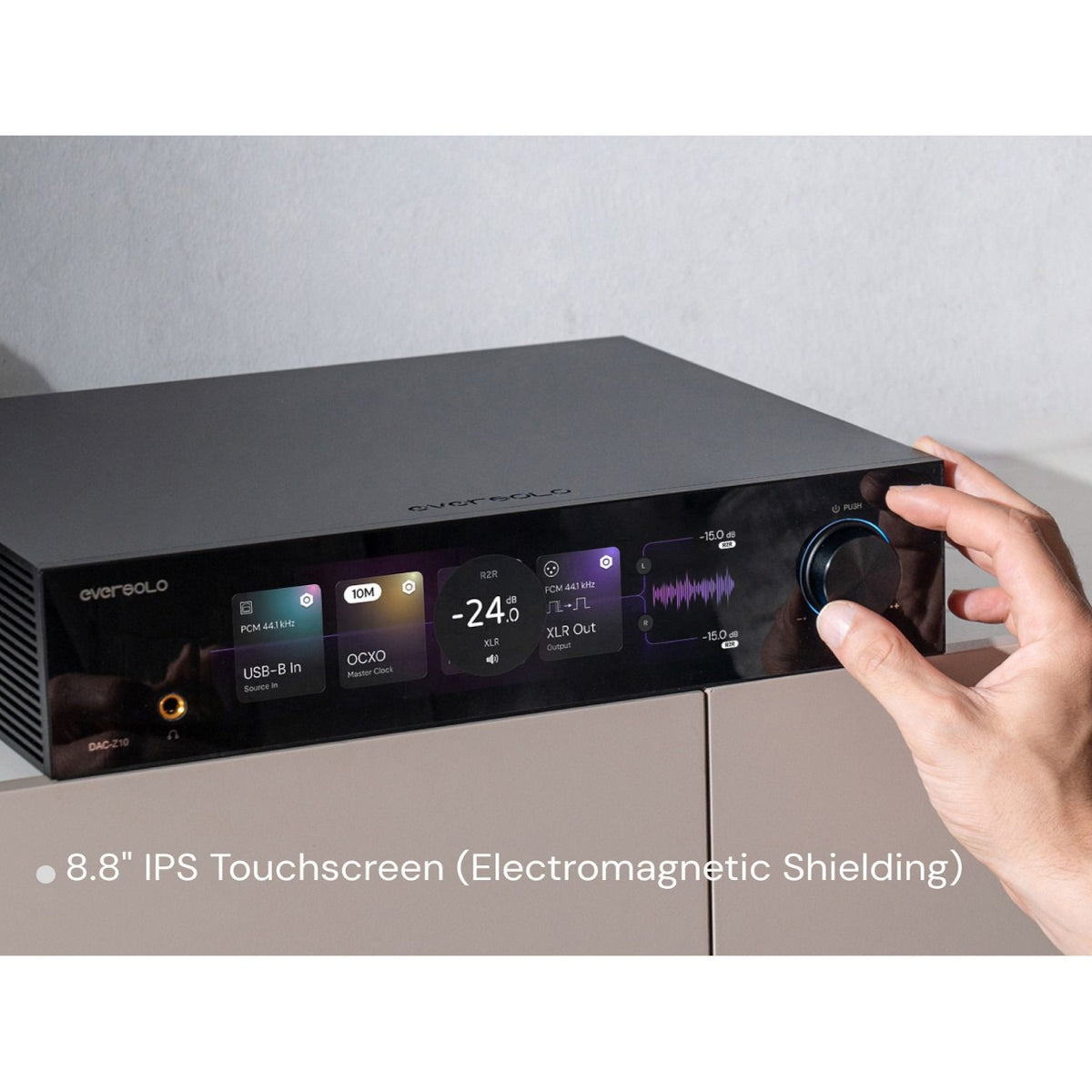

• Large 8.8" Touchscreen Display
• Triple Linear power supplies
• Eversolo FIA™ (Fully Isolated Architecture)
• Eversolo Precision Core™
• Fully Balanced R2R Network
• FPGA Clock Reconstruction
• External 10 MHz & 25 MHz High-Precision Clock Support

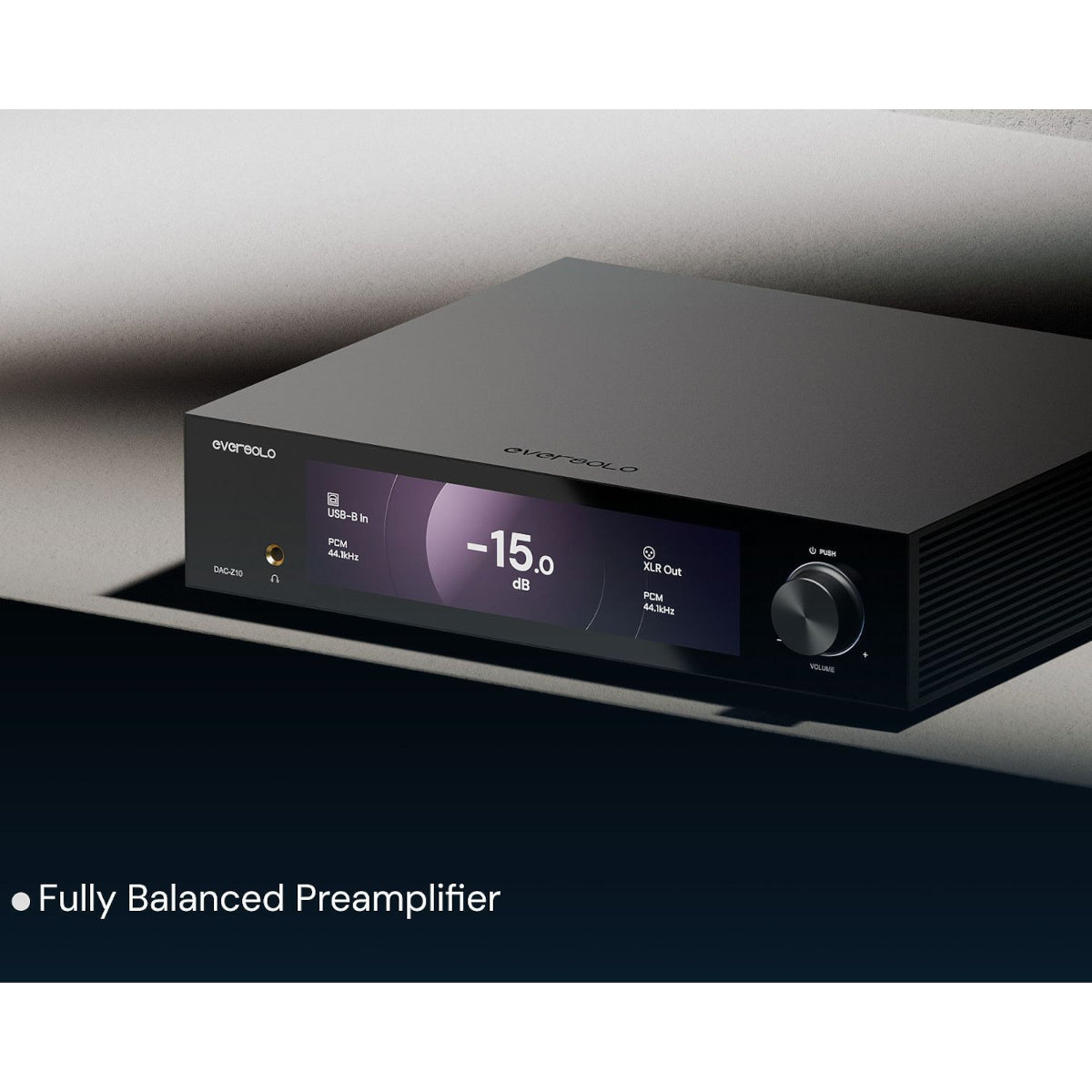

• High-performance Fully Balanced Preamplifier with up to +10dB gain
• 8-Mode IIS Digital Audio Input configuration
• OCXO Temperature-Controlled Crystal Oscillator + Phase-Locked Loop Technology
• Isolated AES/EBU Input + Dual Coaxial, Optical Inputs
• HDMI eARC

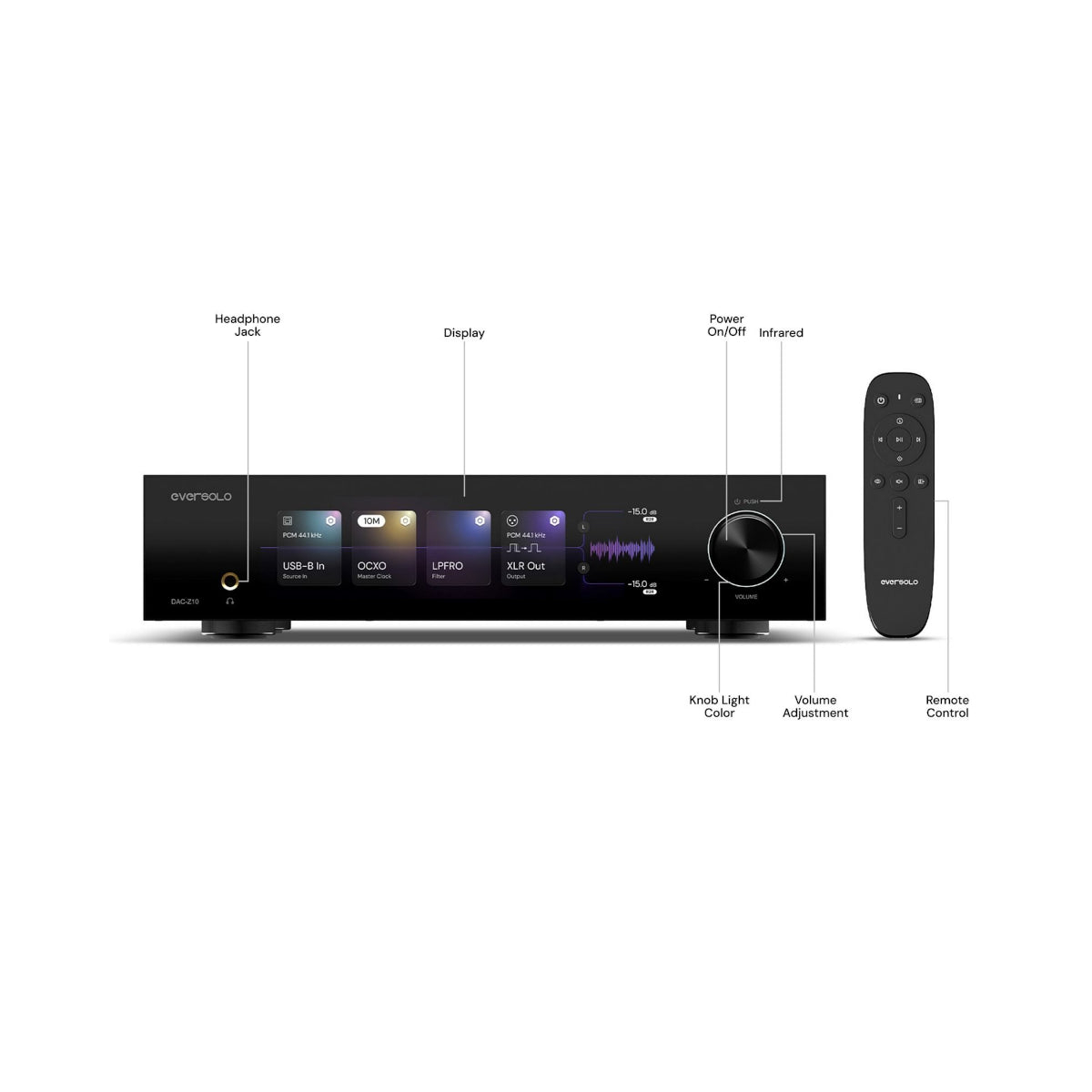

• Dedicated 6.35 mm Headphone Amplifier with High, Medium, and Low gain settings
• Up to 15dB of Left/Right Balance Gain Adjustment
• Intuitive Signal Path Display
• 6 Customisable DAC Filter Options
• Solidly Built Aviation-grade Aluminium Chassis
• TRIGGER IN & OUT for Linked Control

Eversolo FIA™ (Fully Isolated Architecture)

The DAC-Z10 is built on Eversolo’s Fully Isolated Architecture (FIA™), which completely separates the digital and analogue domains to minimise interference and preserve signal purity. Three independent linear power supplies individually power the left channel, system, and right channel, allowing each to operate in an ultra-low-noise environment.

The DAC-Z10's decoding architecture features two sets of AK4191 + AK4499 DACs for independent left and right channels, combined with a fully balanced analogue preamplifier that employs precise dual-channel R2R volume control. This configuration achieves superior DNR and lower THD+N, unlocking the full potential of the music.

Features

Specifications

Display
8.8" IPS
Chassis Material
Aluminium alloy
Main Processor
DCP8568
DAC
• Left Channel: AK4191 + AK4499
• Right Channel: AK4191 + AK4499
Audio Processor
Multi-core USB audio processor
OPA Chip
OPA1612
Power
Triple ultra-low noise linear power supplies

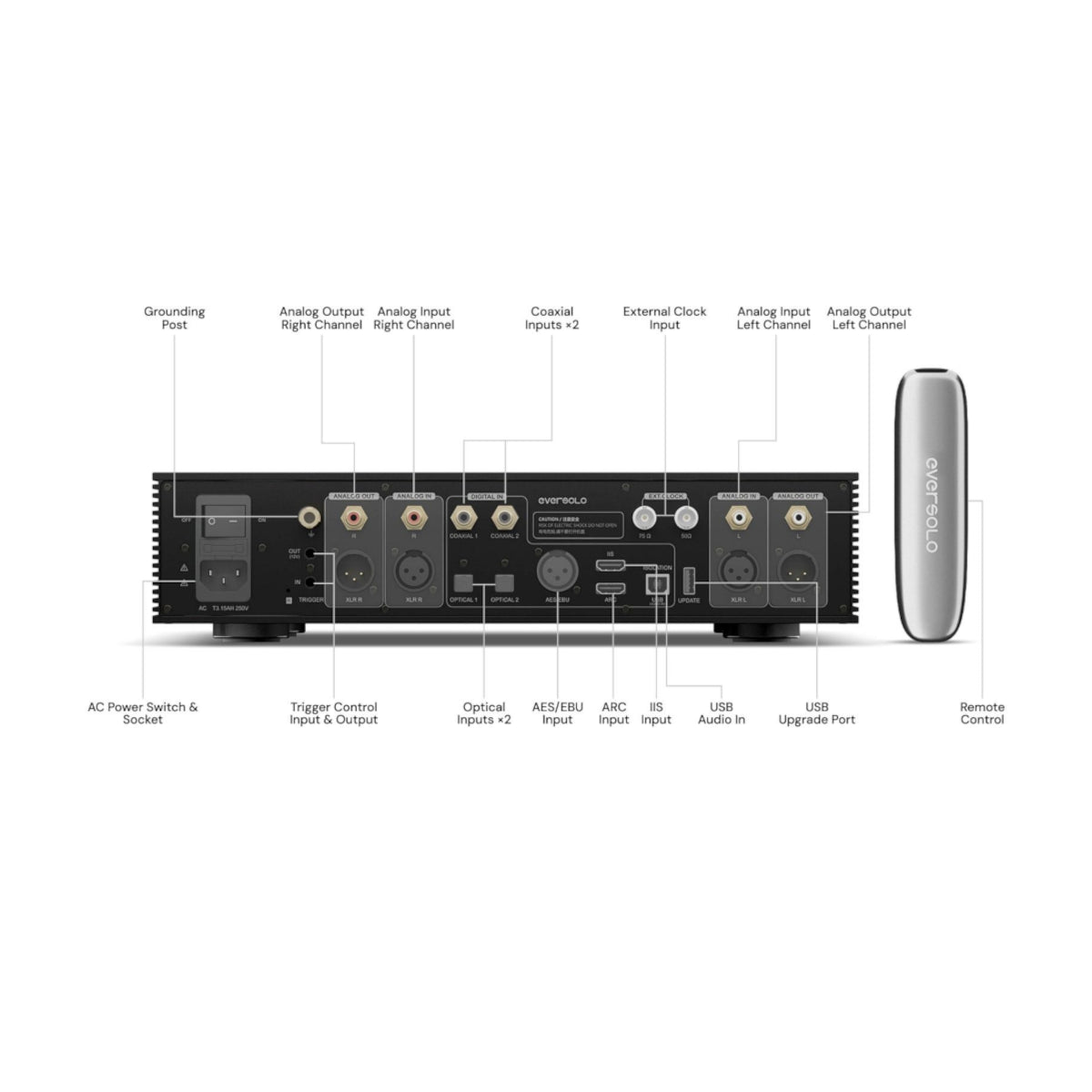

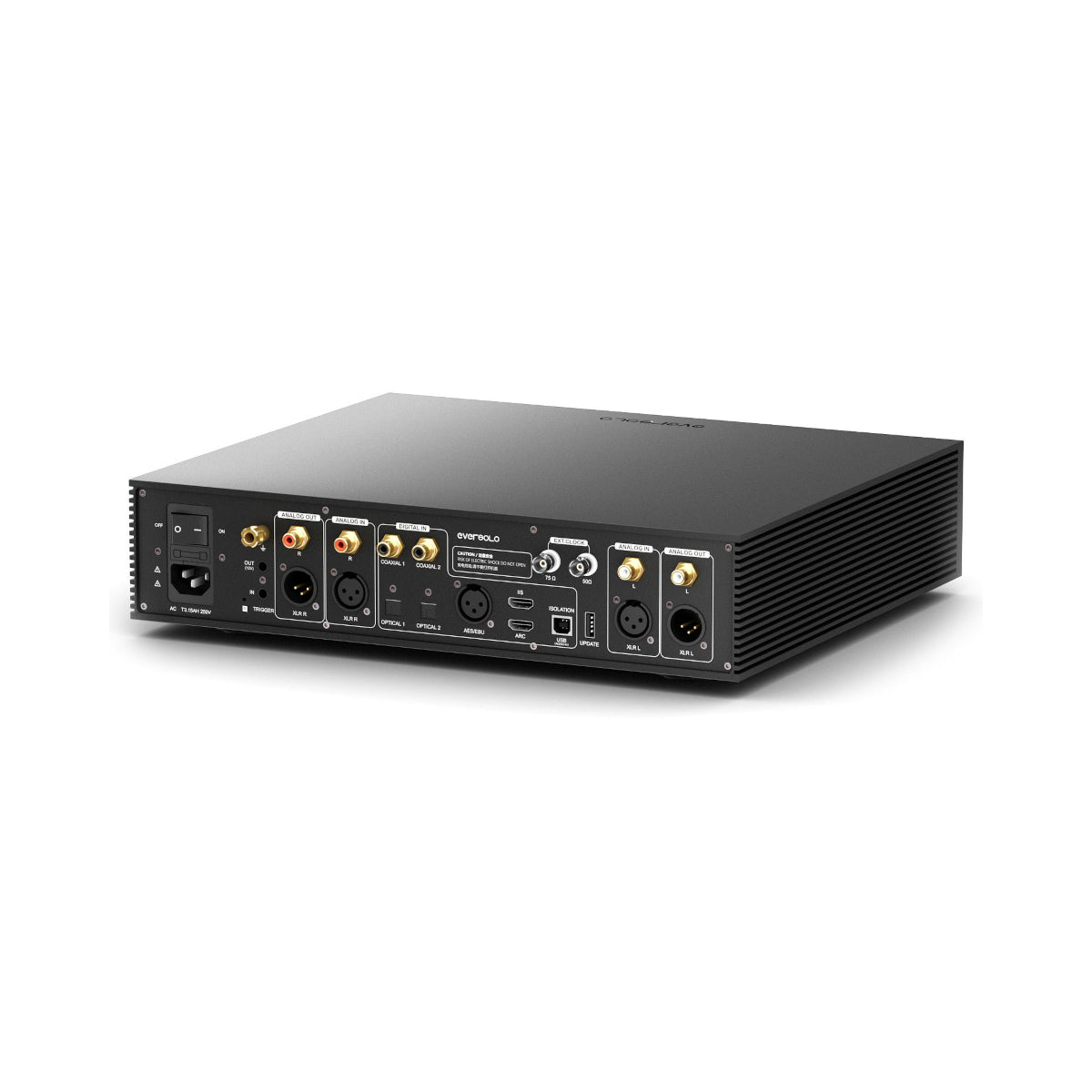

Audio Inputs and Outputs

Bluetooth Audio Input
• Qualcomm QCC5125 Bluetooth module
• Bluetooth version: BT5.0
• Supports SBC/AAC Bluetooth audio protocols

USB-B Audio Input
• Compatible with Windows 10 and above, macOS, Android, and iOS
• Supports up to Stereo DSD512 / PCM 768kHz 32Bit

IIS Input
Supports 8 mode configurations, up to Stereo DSD512 / PCM 768kHz 32Bit

AES/EBU Input
Up to Stereo PCM 192KHz/24Bit / DSD64 DoP

Optical Audio Inputs
• Number of inputs: 2
• Up to Stereo PCM 192KHz/24Bit / DSD64 DoP

Coaxial Audio Inputs
• Number of inputs: 2
• Up to Stereo PCM 192KHz/24Bit / DSD64 DoP

ARC Input
Up to Stereo PCM 192KHz/24Bit

Analogue Audio Inputs
XLR (Balanced), RCA

Analogue Audio Outputs
• Pre-out: XLR (Balanced), RCA
• Headphone out: 6.35mm single-ended

External Clock Input
Supports 10M/25M clock inputs with 50Ω or 75Ω impedance

Recommended Headphone Impedance
16–300Ω (Low Gain: 16–32Ω / High Gain: 32–300Ω)

Audio Characteristics

XLR Output Audio Characteristics
• Output Level (Vrms): 5Vrms @ 0dBFS
• THD+N @ No-wt: 0.00008% @ 1kHz (-122dB @ 1kHz)
• Noise @ No-wt: <1.2uVrms
• SNR @ A-wt: 130dB
• Frequency Response: 20Hz–20kHz (±0.1dB)
• Crosstalk: -130dB
• DNR @ A-wt: 130dB

RCA Output Audio Characteristics
• Output Level (Vrms): 2.5Vrms @ 0dBFS
• THD+N @ No-wt: 0.000097% @ 1kHz (-120dB @ 1kHz)
• Noise @ No-wt: <1.5uVrms
• SNR @ A-wt: 128dB
• Frequency Response: 20Hz–20kHz (±0.1dB)
• Crosstalk: -123dB
• DNR @ A-wt: 128dB

Headphone Audio Characteristics (Low Gain Mode)
• Output Level (Vrms): 4Vrms @ 0dBFS
• THD+N @ No-wt: 0.0003% @ 1kHz (-110dB @ 1kHz)
• Noise @ No-wt: <2.5uVrms
• SNR @ A-wt: 124dB
• Frequency Response: 20Hz–20kHz (±0.1dB)
• DNR @ A-wt: 124dB

Headphone Audio Characteristics (Mid Gain Mode)
• Output Level (Vrms): 5.6Vrms @ 0dBFS
• THD+N @ No-wt: 0.00018% @ 1kHz (-115dB @ 1kHz)
• Noise @ No-wt: <2.5uVrms
• SNR @ A-wt: 126dB
• Frequency Response: 20Hz–20kHz (±0.1dB)
• DNR @ A-wt: 126dB

Headphone Audio Characteristics (High Gain Mode)
• Output Level (Vrms): 7Vrms @ 0dBFS
• THD+N @ No-wt: 0.00013% @ 1kHz (-118dB @ 1kHz)
• Noise @ No-wt: <2.5uVrms
• SNR @ A-wt: 127dB
• Frequency Response: 20Hz–20kHz (±0.1dB)
• DNR @ A-wt: 127dB
