EverSolo AMP-F2 Audio Power Amplifier
EverSolo AMP-F2 Audio Power Amplifier
The EverSolo AMP-F2 is a 2 channel class D power amplifier, designed in collaboration with Starke Sound in California.
Pair with the DMP-A6 or A6 Master for the perfect compact audio system. The size of the AMP-F2 is a perfect match for the DMP-A6 / DMP-A6 Master / DAC-Z8 etc.
Dynamic Power, Detailed Presentation
The Eversolo AMP-F2 is a 2 channel class D power amplifier, designed in collaboration with Starke Sound in California, and is based on the innovative NS600 module created by the Starke Sound team. The AMP-F2 features a high sampling rate of 600kHz and employs an efficient Class D amplification structure, coupled with optimised circuits to maximise audio quality. A newly designed SAPS audio-specific switch mode power supply significantly reduces noise and enhances dynamic performance. The AMP-F2 is also bridgeable, allowing flexible configuration for two channel or single channel setups.
Vigorous Output
The AMP-F2 is equipped with Starke Sound's NS600 amplifier module. Each channel can output a constant 250W RMS (4ohms) @ 1% THD+N. When bridged the AMP-F2 can support up to 450 W RMS (2ohms) with THD+N still below 1%. This ability to handle extremely low-impedance loads ensures ample energy even in large and challenging speaker setups, particularly during high-dynamic low-frequency outputs.
Accurate Sound, NS600 Module
The NS600 module by Starke Sound employs PurePath™️ Ultra-HD technology and advanced integrated feedback design, featuring high speed gate driver error correction functions. This technology achieves ultra-low distortion across the entire audio frequency range, delivering perfect high-end audio.
Powerful Drive
Featuring a 600W high-efficiency, low-ripple, low-EMI switch mode power supply, the AMP-F2 delivers consistent and powerful output, extremely low noise and enhanced dynamic performance across the system.
Environmentally Friendly Power Consumption
The AMP-F2 has an extremely low standby power draw (0.5W) and idle power consumption (14W) meaning it is kinder to your energy bill.
Aluminium Body, Shielded Design
The AMP-F2's chassis is made from aluminium with complete self-protection and an anti-interference design to avoid disturbances from various electrical environments.
The AMP-F2 is also designed to perfectly match the size of the DMP-A6, DMP-A6 Master, and DAC-Z8. IT is also compatible with the DMP-A8 and DAC-Z6.
One-touch Activation, Seamless Control
The AMP-F2 is equipped with standard 12V TRIGGER IN and TRIGGER OUT functions, allowing it to be synchronised with other devices that support the standard TRIGGER interface for power on and off; using the USB to TRIGGER adaptor cable provided with the AMP-F2, you can connect the USB Type-A interface of the DMP-A6 to the TRIGGER IN of the AMP-F2 to achieve synchronisation.
Warranty: All of our products include a minimum 12 month Australian warranty.
Features
Features
- 145W @ 8Ω (1% THD), 250W @ 4Ω (1% THD)
- 2 channel Class D power amplifier
- Bridgeable for mono applications
- Compact chassis is a perfect match for DMP-A6 / A6 Master / DAC-Z8 etc
- Developed in collaboration with Starke Sound
- NS600 amplifier module with PurePath™️Ultra-HD technology
- Low-ripple, low-EMI switch mode power supply
- 12V trigger function works seamlessly with other EverSolo products
Specifications
Specifications
Output Power
- 145W RMS at 8Ω (1% THD+N)
- 250W RMS at 4Ω (1% THD+N)
- 280W RMS at 4Ω (1% THD+N, BTL)
- 450W RMS at 2Ω (1% THD+N, BTL)
- Gain: 21.5dB
- Channels: 2
- Amplifier Type: Class D
- Frequency Response: 10Hz-20kHz -1dB
- Maximum Output Current Per Channel: 16.5A/33A(Bridge)
- Signal-To-Noise Ratio (SNR): >110dB, "A" weighted at 4Ω 250W
- THD: 0.003% 10W at 1kHz

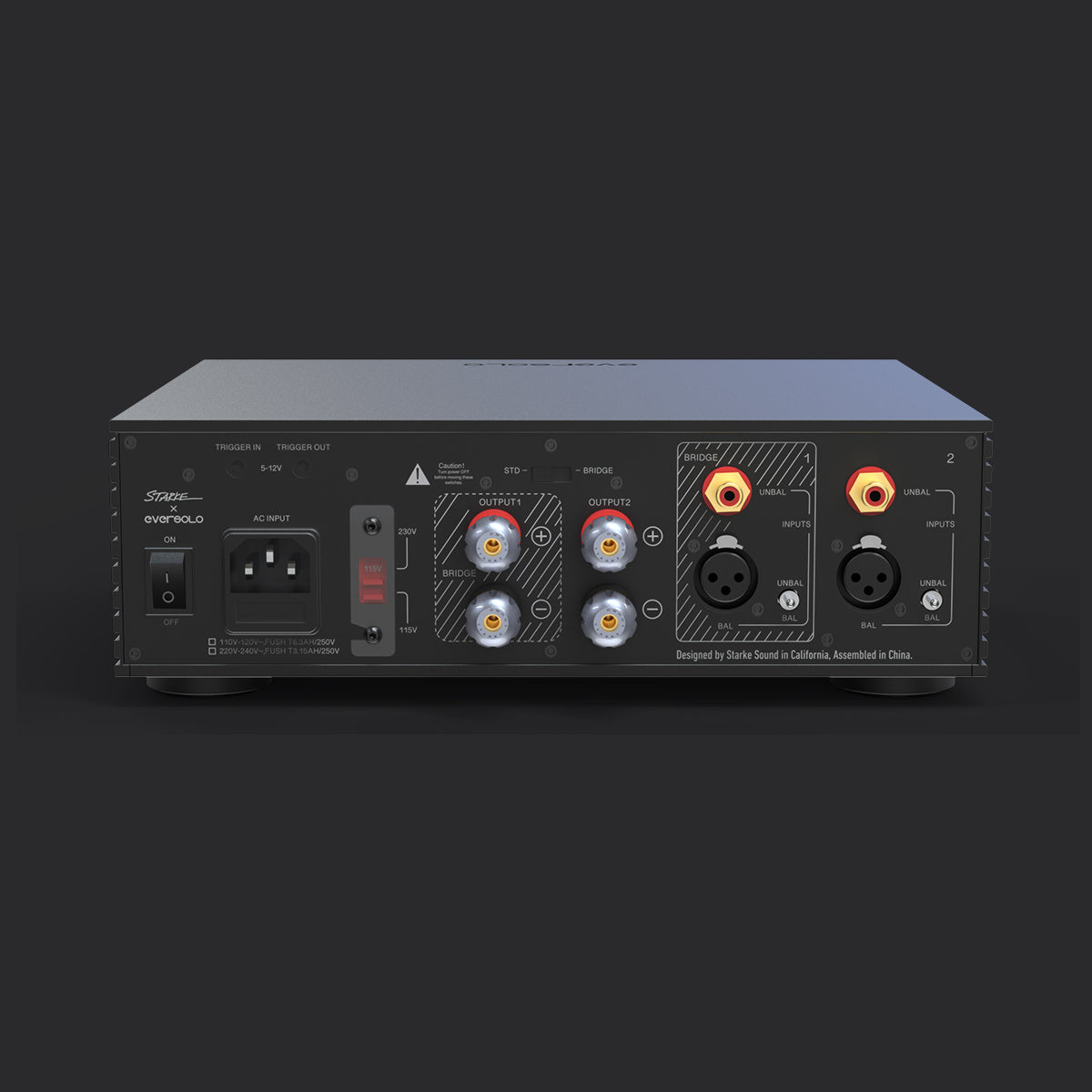

- Input Terminals: 2 x RCA, 2 x XLR
- Input Impedance (RCA): 11KΩ
- Input Impedance (XLR): 22KΩ
- Input Sensitivity: 2.7V
- Output Terminals: 2 pairs of Beryllium Copper binding posts, custom made by Starke Sound
- Output Impedance: 0.136Ω (5 Hz to 100 kHz)
- Minimum Load Impedance: 0.8Ω
- True Balance Circuit: Yes
- Heat: 65 BTU / hr
- Cooling: Passive
- Power Consumption: Standby ≤0.5W, Idle ≤14W maximum 900W
- Control Option: 12V trigger input & output
- Cabinet: Aluminium
- Colour:Black
What's in the box
What's in the box
- EverSolo F2
- Power cable
- Trigger cable
