Benz Micro

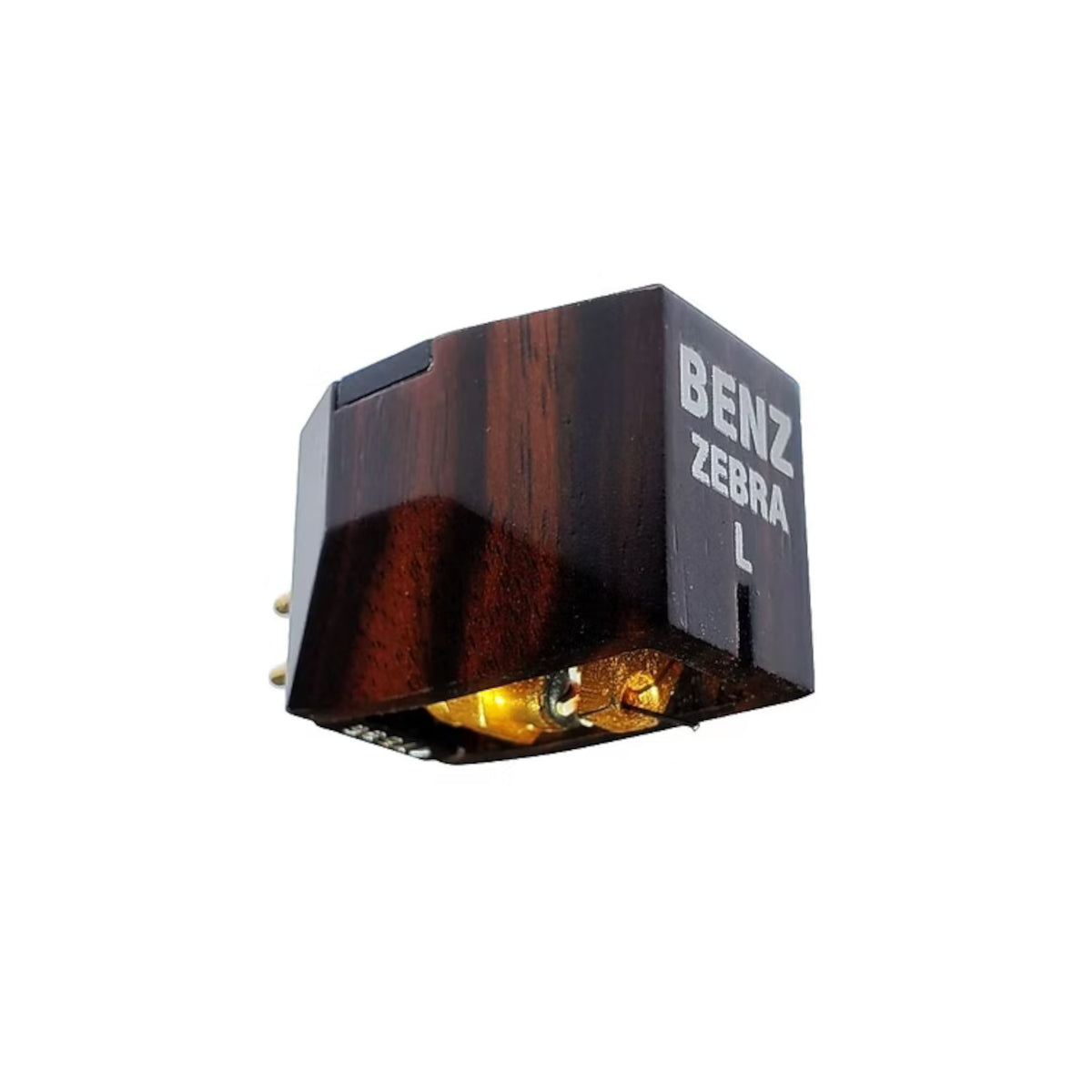

Benz Micro Zebra Wood Moving Coil (MC) Cartridge

Benz Micro Zebra Wood Moving Coil (MC) Cartridge

$2,350.00 AUD
$2,350.00 AUD
Sale Sold out
Shipping calculated at checkout.

The first new cartridge model from Benz Micro in over a decade, the Zebra L offers a stunning combination of performance and value. Combining external materials from the Ruby Z, specifically the namesake zebra wood body, and internal generator of the Wood series cartridges, the Zebra L represents the continuation of the Benz Micro legacy. The denser, more expensive zebra wood material further enhances resonance control, while the classic iron cross generator provides the warm, sweet sound that has always been associated with this legendary Swiss brand. Like its predecessor the Wood SL, the Zebra-L is widely compatible and will perform beautifully on a wide range of systems and musical styles. Now available in three outputs: Low (Zebra L), medium (Zebra M), and high (Zebra H).

Warranty: 2 years manufacturing defects.

Features

Specifications

MC Zebra Series Specifications

  • Body: Vented machined Zebra wood
  • Cantilever: Solid boron rod: 0.28 mm diameter
  • Stylus: Nude line-contact diamond, mirror polished
  • Stylus tip radius: 3 x 60 µm
  • Vertical tracking angle (VTA): 20 degrees
  • Coil: Pure iron cross
  • Weight: 9.6 grams
  • Output voltage (at 3.54 cm/s): 0.4 mV (Low), 0.8mV (Medium), or 2.5mV (High)
  • Internal impedance: 12 ohms (Low) 24 ohms (Medium) or 95 ohms (high)
  • Frequency response: 20 – 20,000 Hz ± 1 dB
  • Channel balance: Better than 0.5 dB
  • Channel separation: Better than 35 dB at 1 kHz
  • Tracking ability at 315 Hz at a tracking force of 2 grams: 80 µm
  • Dynamic compliance: 15 µm/MN
  • Recommended loading: 100 - 47k ohms (Low, Medium) 1000 - 47k ohms (High)
  • Recommended tracking force: 1.7 – 2.0 grams
  • Optimum tracking force: 1.7 – 1.8 grams
  • Recommended tonearm mass: Medium to high
  • Optimum working temperature: 23°C
  • Break-in period: 40 hours
  • Warranty 2 years manufacturing defects
  • Specifications subject to change without notice

What's in the box

1x Benz Micro Zebra Wood Moving Coil (MC) Cartridge
