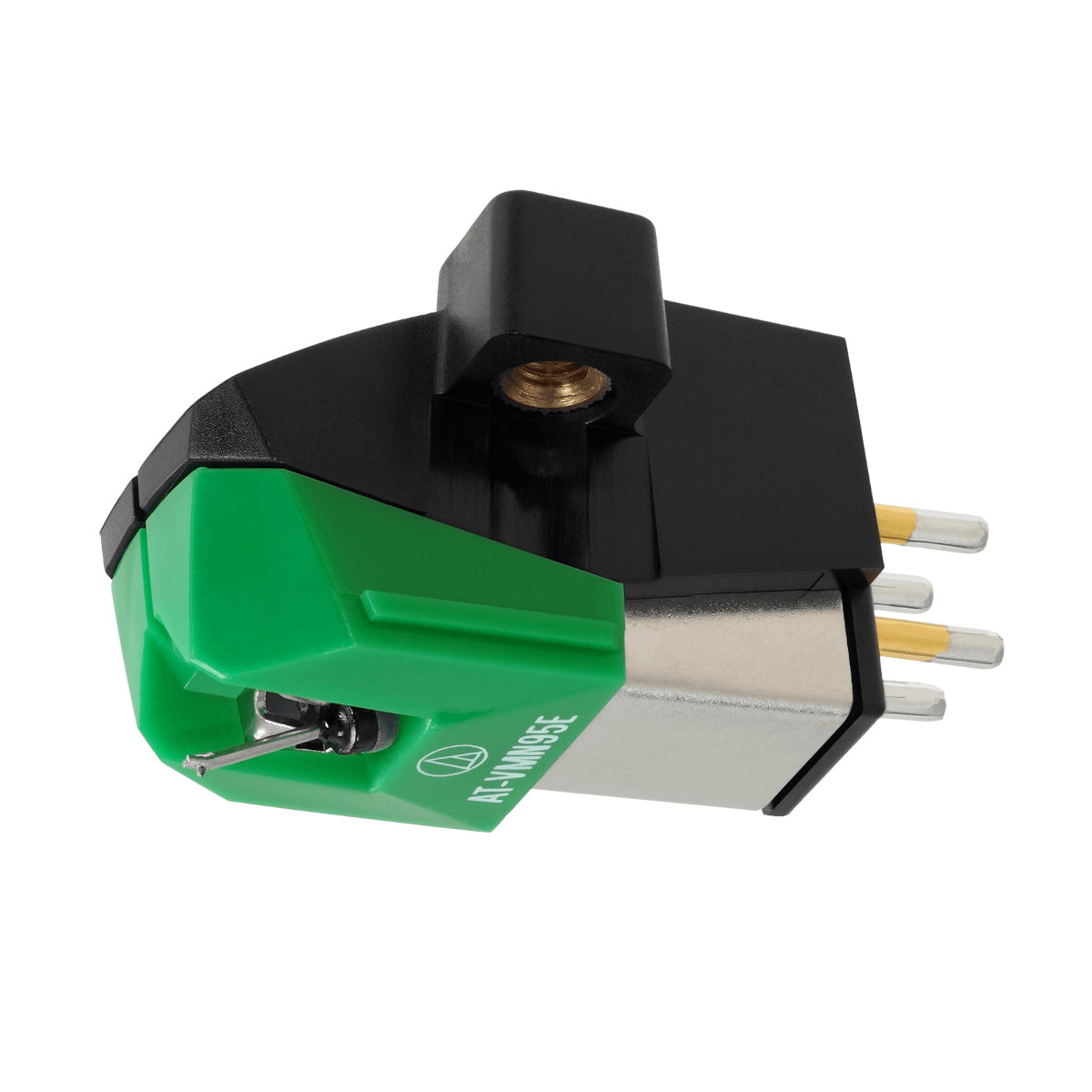

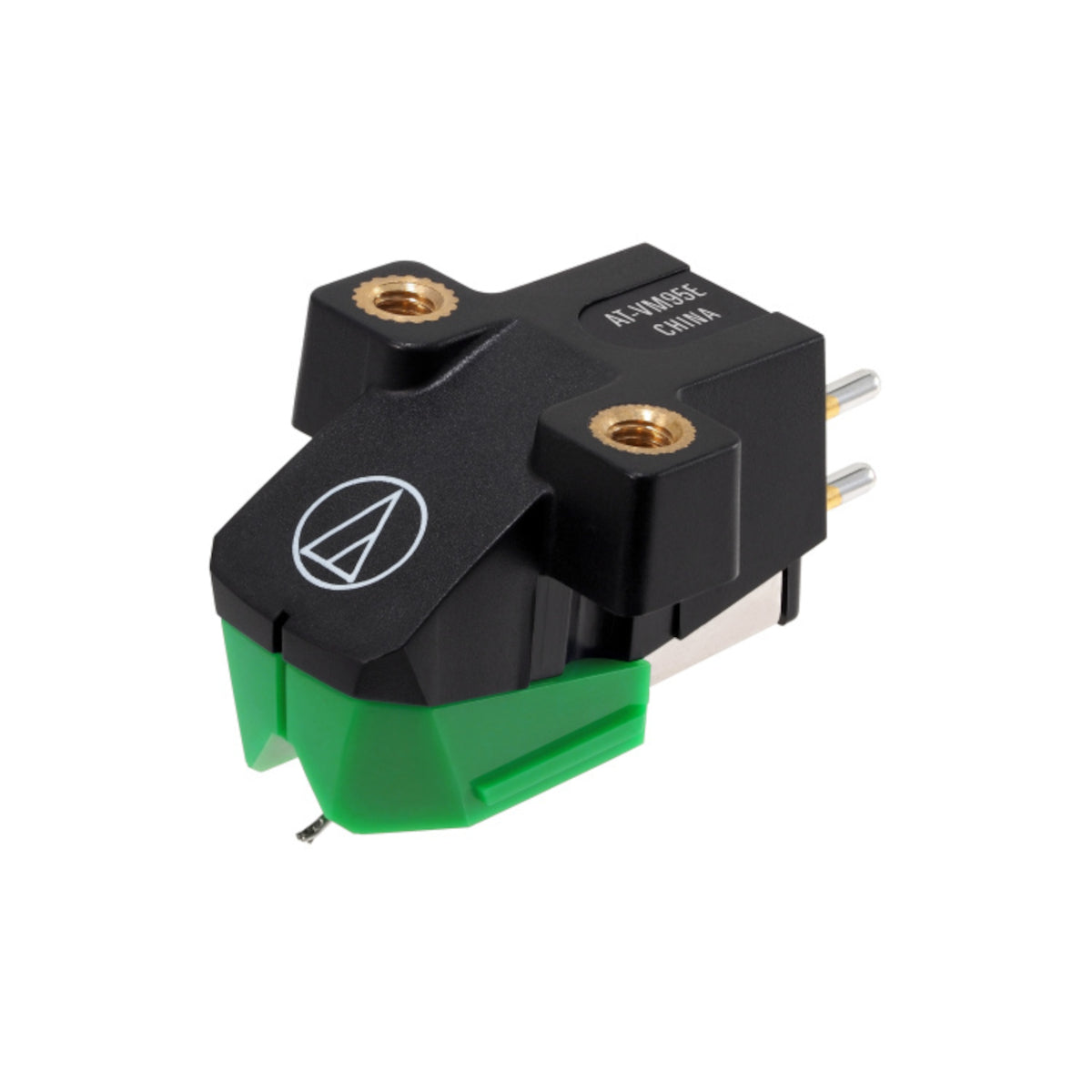

Audio Technica VM95E Cartridge (Elliptical Stylus Included)
Audio Technica VM95E Cartridge (Elliptical Stylus Included)
We recommend it as a replacement cartridge for a wide variety of turntables - in particular all the Japanese brands from the 70s and 80s like Apan, Hitachi, JVC, Kenwood, Luxman, Marantz, National Panasonic Technics, Onkyo, Pioneer, Sansui, Sanyo, Sharp, Sony, Teac, Toshiba, Yamaha etc.

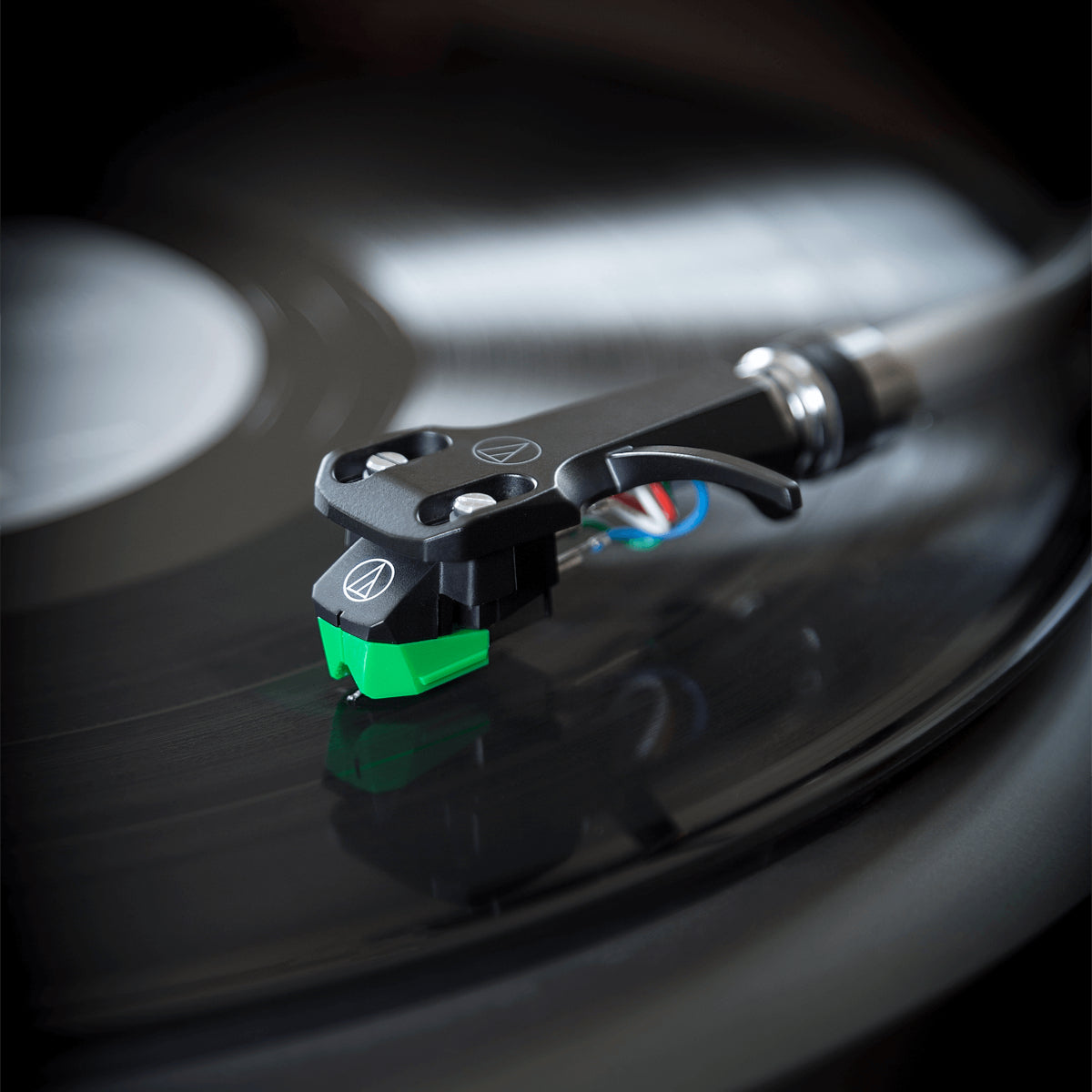

When mounted in a headshell it needs to be correctly aligned and the tracking force and anti-skating set to 2gm. An Ortofon alignment template and stylus force gauge are useful tools to help do this correctly.
- VM95 Series dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus
- Aluminium cantilever
- Specially wound coils increase output voltage
- Durable low-resonance polymer housing
- Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required
- Compatible with any AT-VMN95 replacement stylus
This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
Features
Features
This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
Specifications
Specifications
- Frequency Response: 20-22,000 Hz
- Channel Separation: 20 (dB at 1 kHz)
- Vertical Tracking Force: 1.8-2.2g (2.0g standard)
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Output: 4.0 mV (1 kHz, 5 cm/sec.)
- Channel Balance: 2.0 dB (1 kHz)
- Stylus Shape: 0.3 x 0.7 mil elliptical
- Cantilever: Aluminium pipe
- Mount: Half-inch
- Replacement Stylus: AT-VMN95E
- Coil Impedance: 3.3 k ohms (1 kHz)
- DC Resistance: 485 ohms
- Load Capacitance: 100 to 200 pF
- Coil Inductance: 550 mH (1 kHz)
- Vertical Tracking Angle: 23°
- Dimensions: 17.2mm H × 18.9mm W × 28.3mm D
- Weight: 6.1g
- Accessories Included: Two 11mm installation screws, two 8mm installation screws, two washers
