Audio Technica

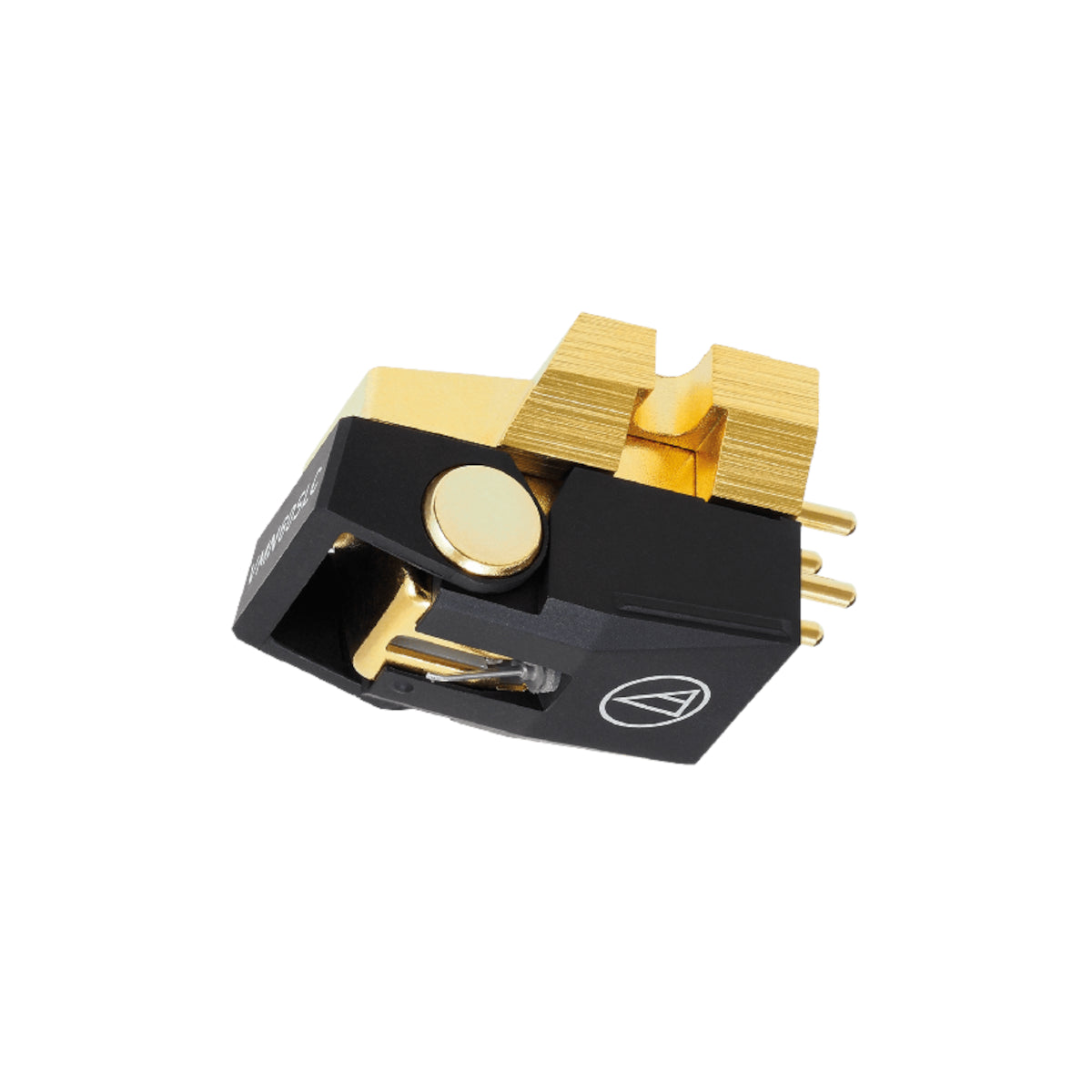

Audio Technica VM760SLC Dual Moving Magnet (MM) Cartridge

Audio Technica VM760SLC Dual Moving Magnet (MM) Cartridge

Regular price $1,199.00 AUD
Regular price Sale price $1,199.00 AUD
Sale Sold out
Shipping calculated at checkout.

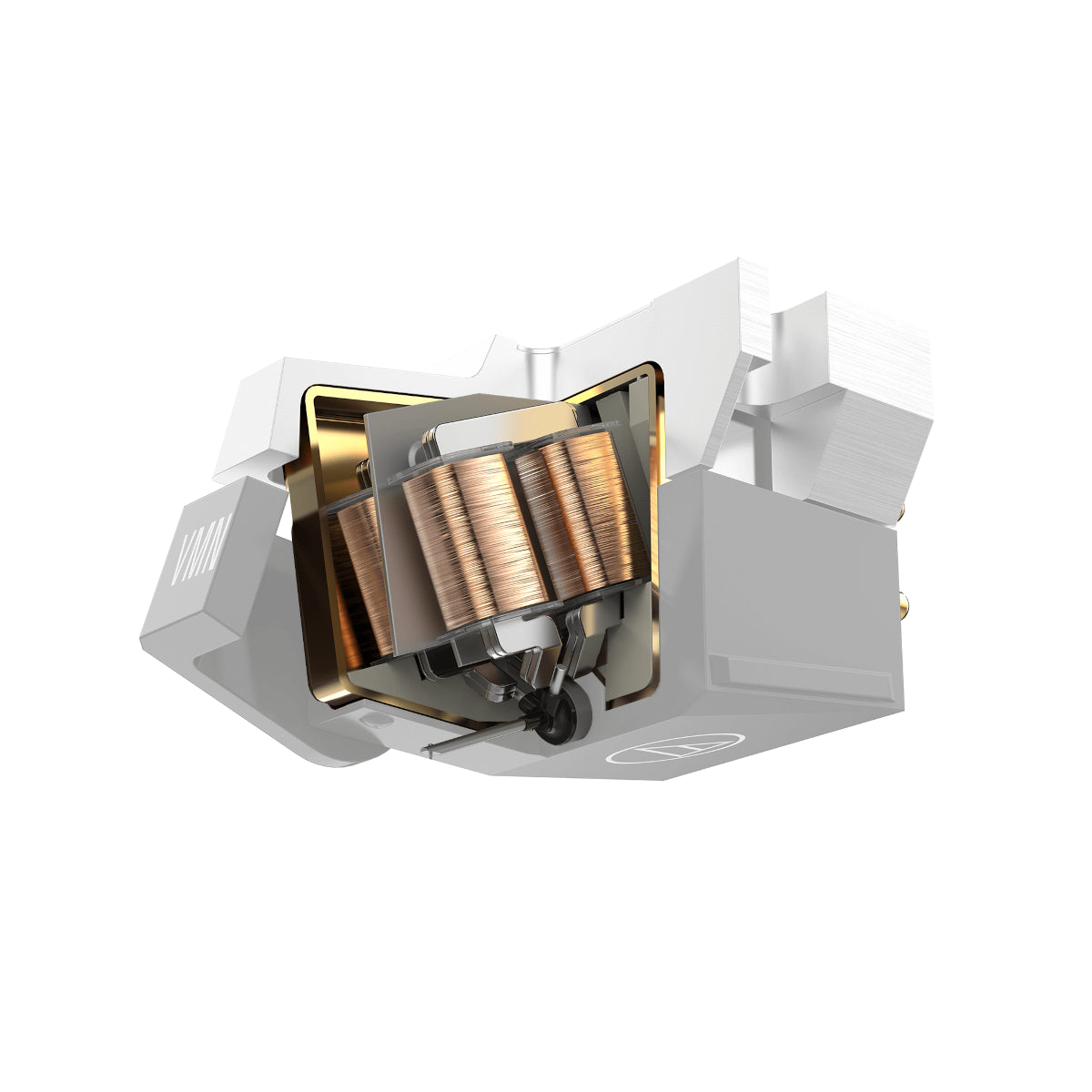

The VM760SLC special line contact stylus cartridge is the flagship model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM760SLC is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s ultra-lightweight special line contact stylus allows it to trace the record groove with incredible accuracy and minimum abrasion, resulting in nuanced audio reproduction, low distortion and low record wear. Includes mounting hardware.

Features

The VM760SLC special line contact stylus cartridge is the flagship model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM760SLC is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s ultra-lightweight special line contact stylus allows it to trace the record groove with incredible accuracy and minimum abrasion, resulting in nuanced audio reproduction, low distortion and low record wear. Includes mounting hardware.

Specifications

  • Frequency Response: 20 - 30,000Hz
  • Channel Separation: 30dB (1kHz)
  • Vertical Tracking Angle: 23˚
  • Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
  • Stylus Construction: Nude Rectangular Shank
  • Recommended Load Impedance: 47,000Ω
  • Coil Impedance: 2,700Ω (1kHz)
  • Output Voltage: 4.0mV (1kHz, 5cm/sec.)
  • Output Channel Balance: 1.0dB (1kHz)
  • Stylus Shape: Special Line Contact
  • Cantilever: Aluminium Tapered Pipe
  • Static Compliance: 40 x 10-6 cm/dyne
  • Dynamic Compliance: 10 x 10-6 cm/dyne (100Hz)
  • Mounting: 1/2” centres
  • Dimensions: 17.3 (H) x 17.0 (W) x 28.2 (L) mm
  • Accessories Included: Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1
  • Recommended Load Capacitance: 100 – 200pF
  • Replacement Stylus: VMN60SLC
  • Stylus Size: 0.28 x 1.5 mil
  • Type: VM Type
  • Weight: 8.0g

What's in the box

1x Audio Technica VM760SLC Dual MM Cartridge
