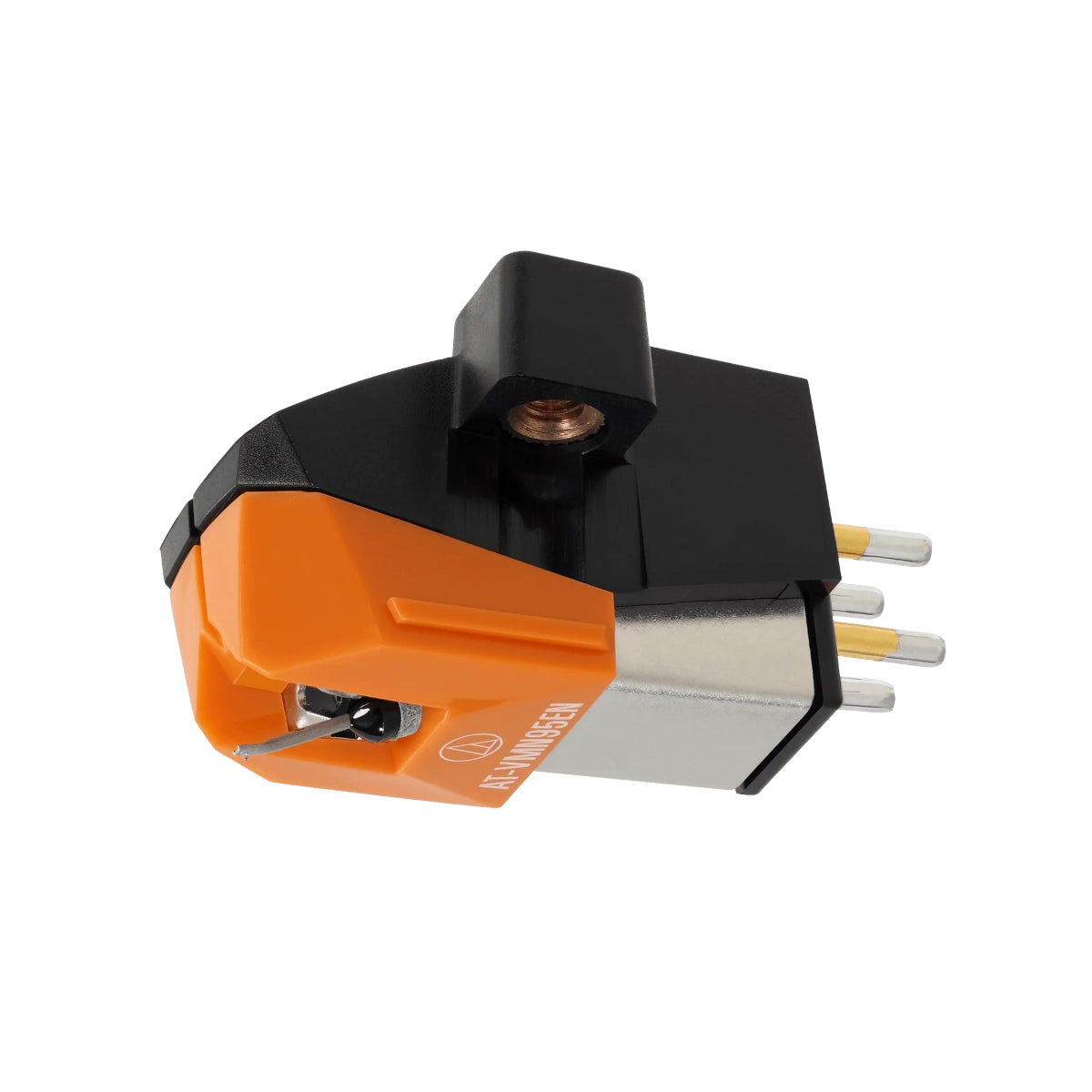

Audio Technica Dual Moving Magnet Cartridge AT-VM95EN

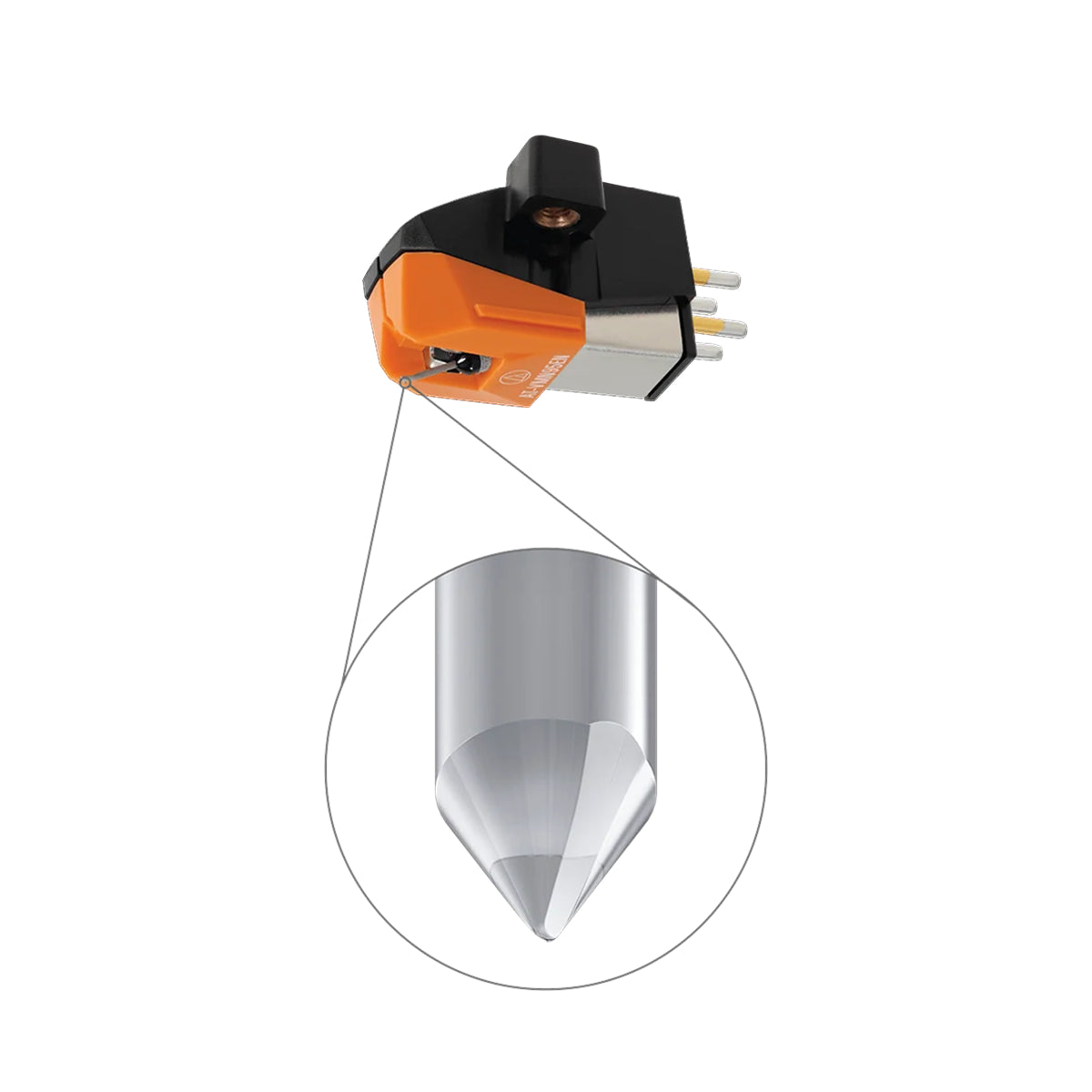

This VM95 Series cartridge with 0.3 x 0.7 mil elliptical nude stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

• Frequency Response : 20 - 23,000 Hz
• Channel Separation : 22 dB (1 kHz)
• Vertical Tracking Angle : 23°
• Vertical Tracking Force : 1.8 to 2.2g (2.0g standard)
• Stylus Construction : Nude Round Shank
• Recommended Load Impedance : 47,000 Ω
• Coil Impedance : 3.3 kΩ (1 kHz)DC
• Resistance : 485 Ω
• Coil Inductance : 550 mH (1 kHz)
• Output Voltage : 3.5 mV (@ 1 kHz, 5 cm/sec)
• Output Channel : Balance2.0 dB (1 kHz)
• Stylus Shape : Elliptical
• Cantilever : Aluminium Pipe
• Static Compliance : 20 x 10 – 6 cm / dyne
• Dynamic Compliance : 7 x 10 – 6 cm / dyne (100 Hz)
• Mounting : 1/2” centres
• Cartridge Weight : 6.1g
• Dimensions : 17.2 x 18.9 x 28.3 ( H x W x D mm)
• Accessories Included : Two 11 mm installation screws; Two 8 mm installation screws; Two washers Non-magnetic screwdriver
• Model : AT-VM95EN
• Recommended Load Capacitance : 100-200 pF
• Replacement Stylus : AT-VMN95EN
• Stylus Size : 0.3 x 0.7 mil
• Type : VM Stereo Dual Magnet
• Wire Used for Coil : T.P. Copper
