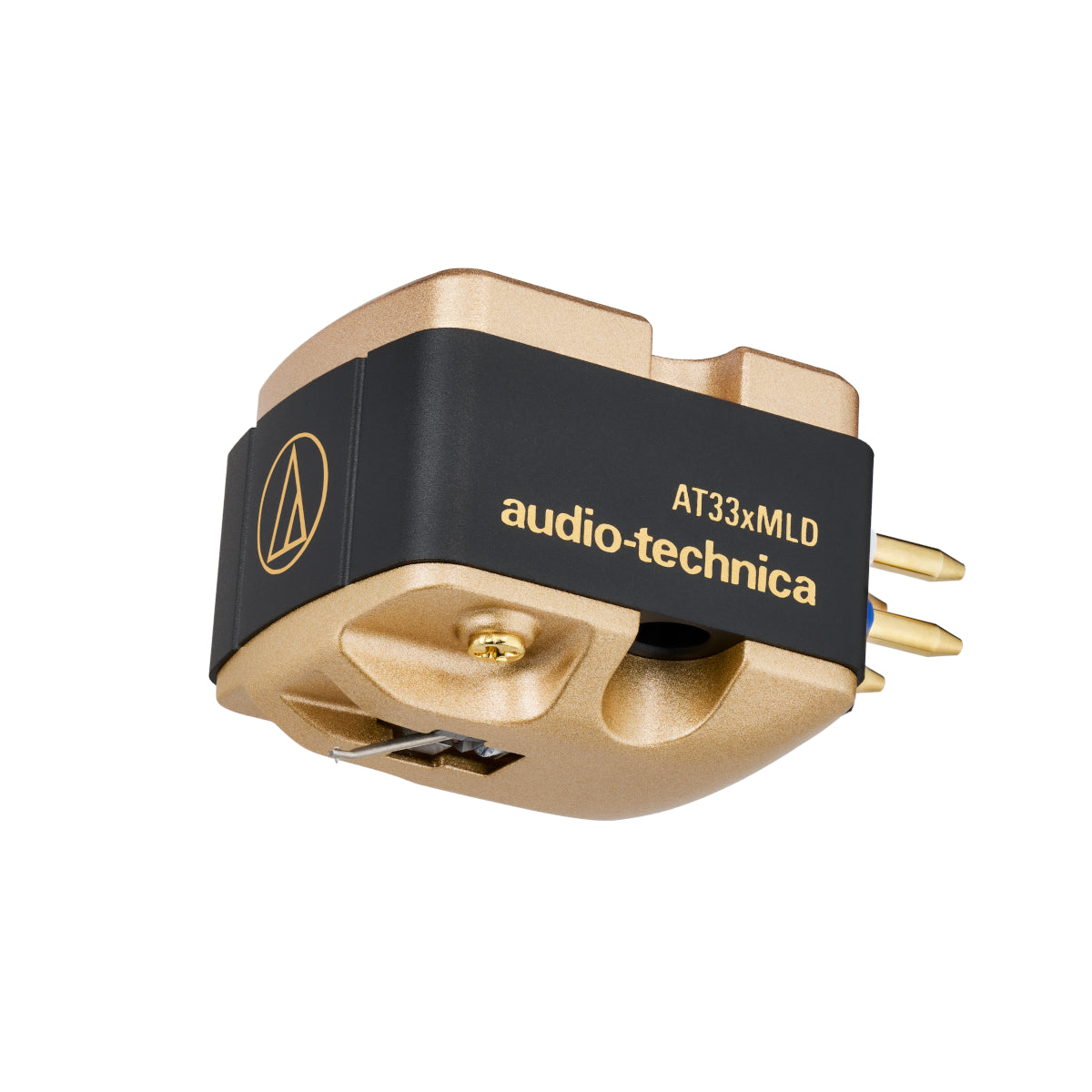

Audio Technica AT33xMLD Dual Moving Coil Stereo Cartridge (Pre-Order)

• AT33x Series dual moving coil stereo cartridge with microlinear nude stylus

• Brings out the warmth in instruments and the human voice; an excellent choice for playing rock and jazz records, particularly those recorded in the 1950s, ’60s and ’70s

• Dual moving coil design, featuring independent left and right coils, provides outstanding channel separation

• PCOCC (Pure Copper by Ohno Continuous Casting) coils provide pure, smooth signal transmission

• Neodymium magnet and permendur yoke maximize energy efficiency for high-resolution, responsive playback

• Composite cartridge body (die-cast zinc, aluminium, and high-rigidity polymer) reduces resonance throughout the body for balanced, natural sound reproduction

• Highly rigid and dense die-cast zinc material is used at the base of the cartridge to suppress unwanted vibrations and improve the expressiveness of the mid-to-low frequency range

• Threaded mounting holes make it easier to mount the cartridge to a headshell, especially one integrated into a tonearm

• Microlinear nude stylus tracks the record groove with incredible accuracy, providing more nuanced sound reproduction than elliptical and conical styli

• High-hardness duralumin tapered pipe cantilever enhances high-frequency control

• Newly developed suspension mechanism and rubber damper design (with lower dynamic compliance than other A-T cartridges) enable the cartridge to be used with a variety of tonearms

• Thick gold plating on the terminal pins reduces contact resistance and enhances sound quality

• Crafted and hand-finished by artisans in Japan

Please Note: AT33xMLD’s stylus assembly is not field-replaceable, but Audio-Technica offers a fee-based service. Please contact Groove Audio for more details.

• Frequency Response : 20 to 42,000 Hz
• Channel Separation : 27 dB (1 kHz)
• Vertical Tracking Force : 19°
• Tracking Force : 1.8 to 2.2 g (2.0 g standard)
• Recommended Load Impedance : ≥ 100 ohms (when head amplifier connected)
• Coil Impedance : 12 ohms (1 kHz)
• DC Resistance : 12 ohms
• Coil Inductance : 26 μH (1 kHz)
• Output Voltage : 0.4 mV (1 kHz, 5 cm/sec.)
• Output Balance1.0 dB (1 kHz)
  Stylus Shape : Nude Microlinear
• Cantilever : Duralumin tapered pipe
• Static Compliance : 21 × 10-6 cm/dyne
• Dynamic Compliance : 6 × 10-6 cm/dyne (100 Hz)
• Dimensions16.1 mm (0.63”) × 16.6 mm (0.65”) × 26.1 mm (1.0”) (H × W × D)
• Accessories Included : Non-magnetic screwdriver; Brush; Washer* × 2; Cartridge installation screws* (M2.6) (8.0 mm (0.31”) × 2, 10.0 mm (0.39”) × 2, 13.0 mm (0.51”) × 2); ProtectorThreaded HoleM2.6 × 2Stylus Curvature Radius2.2 × 0.12 mil
• Type : MC
• Weight : 10.1 g (0.36 oz)
• Notes* Washers × 2 and screws (8.0 mm (0.31”)) × 2 are used to secure the cartridge in the box at the time of purchase. Be sure to keep and not lose these after removing the cartridge from the box.For product improvement, the product is subject to modification without notice.

AT33xMLD

• Accessories Included : Non-magnetic screwdriver; Brush; Washer* × 2; Cartridge installation screws* (M2.6) (8.0 mm (0.31”) × 2, 10.0 mm (0.39”) × 2, 13.0 mm (0.51”) × 2); ProtectorThreaded HoleM2.6 × 2Stylus Curvature Radius2.2 × 0.12 mil
