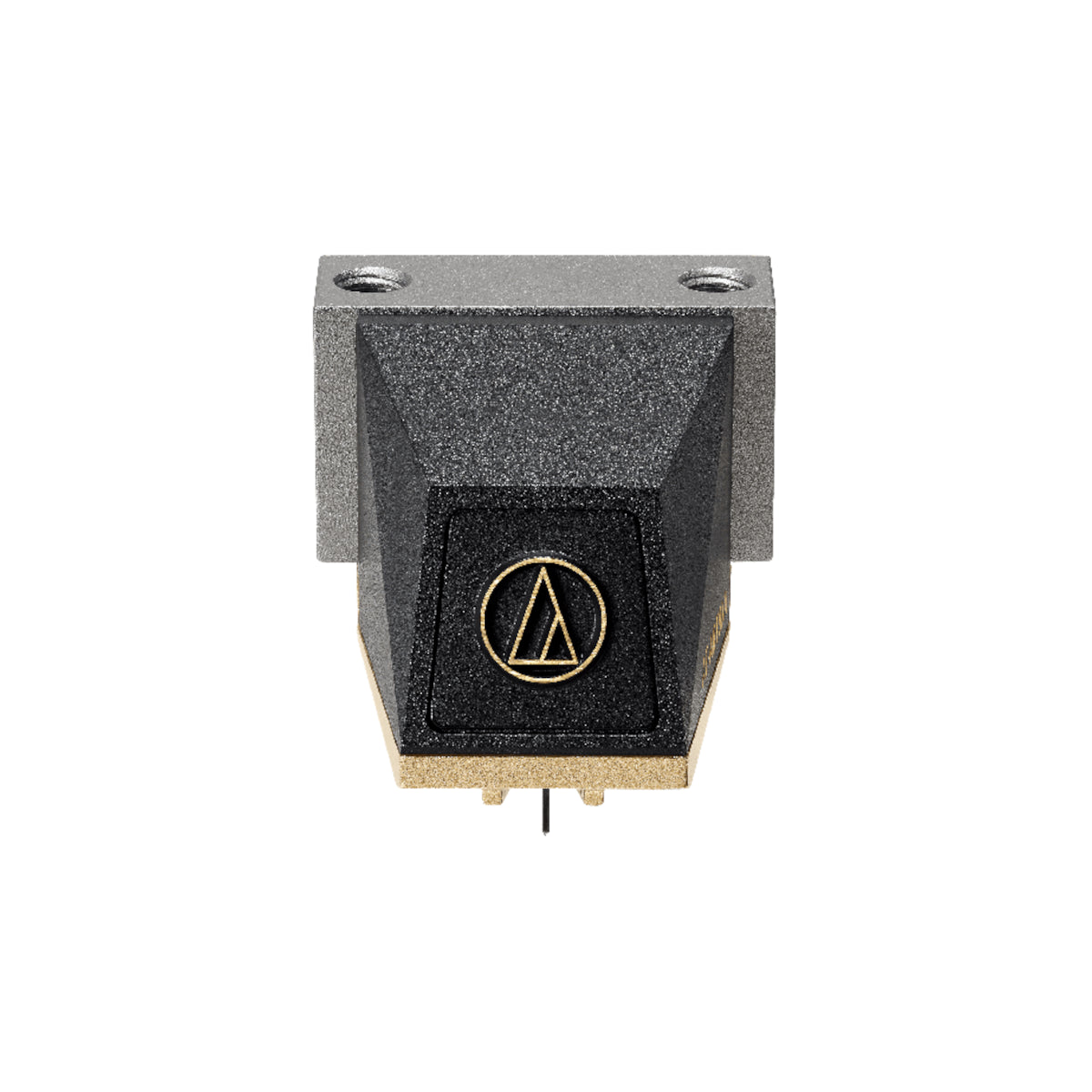

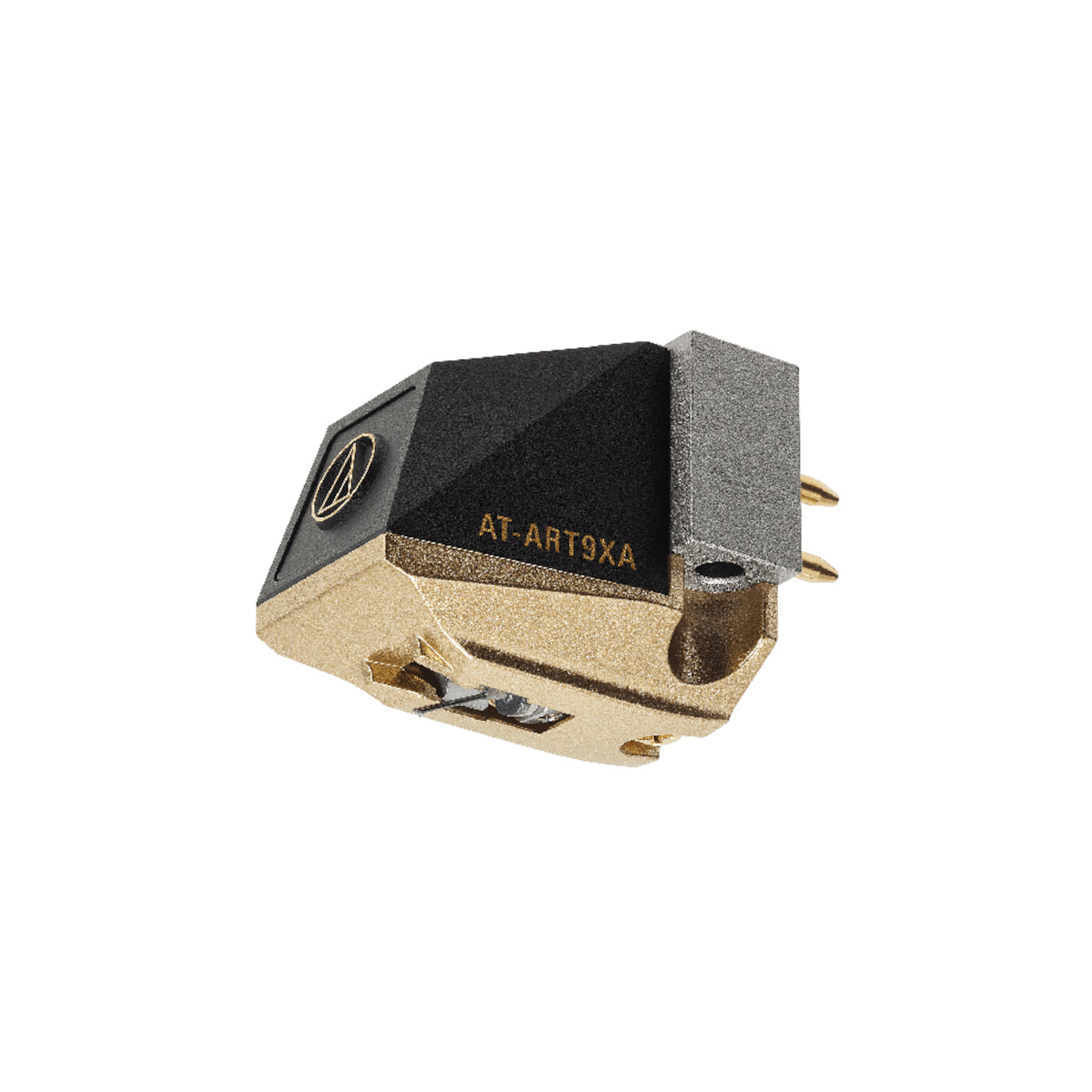

Audio Technica AT-ART9XA Dual Moving Coil (MC) Cartridge (Non-Magnetic Core)
Audio Technica AT-ART9XA Dual Moving Coil (MC) Cartridge (Non-Magnetic Core)
Couldn't load pickup availability
An update of the AT-ART7, the AT-ART9XA non-magnetic core MC cartridge features a Shibata stylus on a 0.28 mm diameter solid boron cantilever.
The “ART” in the model number stands for Audio-Technica Reference Transducer, a designation that we give only to our flagship phono cartridges. Compared with the magnetic core used in most MC cartridges, non-magnetic core cartridges are free from magnetic distortion, allowing for natural timbre and a precise sound field.
Although conventional non-magnetic cores struggle with output voltage, the AT-ART9XA features a newly designed coil armature with an improved output voltage of 0.2 mV (1 kHz, 5 cm/sec). The dual moving coils (fashioned from high-performance PCOCC wire) are aligned in an inverted V shape to provide high separation and wide response. Threaded cartridge mounting holes make installation to a headshell or integrated tonearm incredibly easy.
Features
Features
- Non-magnetic core moving coil cartridge offers superior spatial representation
- Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion
- Shibata stylus ensures accurate high and mid-low range reproduction, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics
- Neodymium magnet and permendur yoke significantly increase magnetic energy
- Redesigned coil armature provides an output voltage of 0.2 mV (1 kHz, 5 cm/sec)
- PCOCC coils ensure high-fidelity transmission
- Machined aluminium base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability
- Hybrid body of machined aluminium and high-rigidity plastic reduces undesirable parasitic resonance

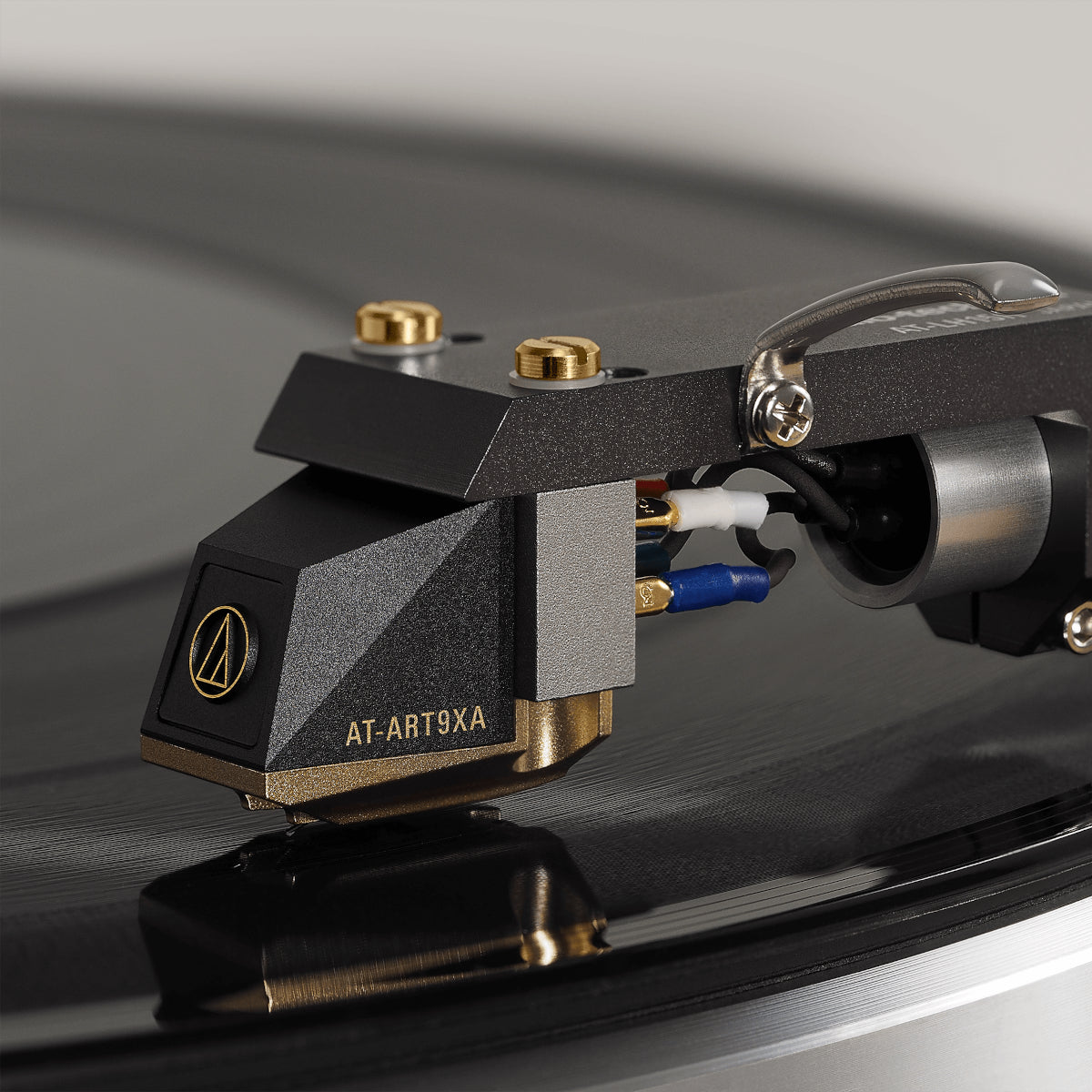

- Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm
Specifications
Specifications
- Frequency Response: 20-50,000 Hz
- Channel Separation: 30 (dB at 1 kHz)
- Vertical Tracking Angle: 20°
- Vertical Tracking Force: 1.6-2.0 g (1.8 g standard)
- Stylus Construction: Nude
- Recommended Load Impedance: Min. 100 ohms (when head amplifier connected)
- Coil Impedance: 12 ohms (1 kHz)
- DC Resistance: 12 ohms
- Coil Inductance: 2.5 µH (1 kHz)
- Output Voltage: 0.2 mV (1 kHz, 5 cm/sec.)
- Output Channel Balance: 0.5 dB (1 kHz)
- Stylus Shape: Shibata
- Cantilever: 0.28 mm diameter solid boron
- Static Compliance: 20 x 10-6 cm/dyne
- Dynamic Compliance: 10 x 10-6 cm/dyne (100 Hz)
- Mounting: Half-inch
- Cartridge Weight: 8.5 g (0.30 oz)
- Dimensions: 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D
- Accessories Included: Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2); protector; brush
- Threaded Hole: M2.6 x 2Notes
- Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
What's in the box
What's in the box
- 1x AT-ART9XA Cartridge
- Accessories Included: Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2); protector; brush
