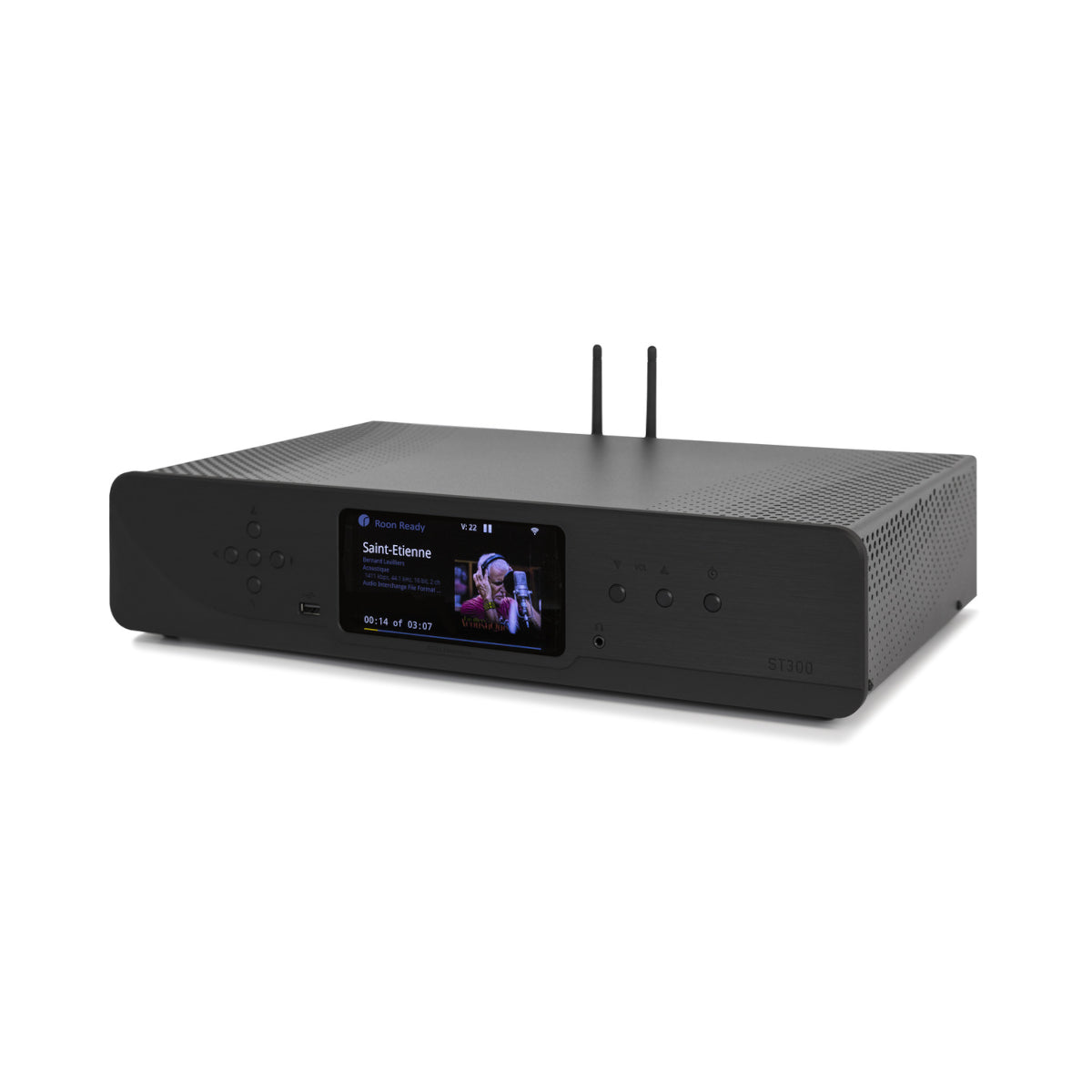

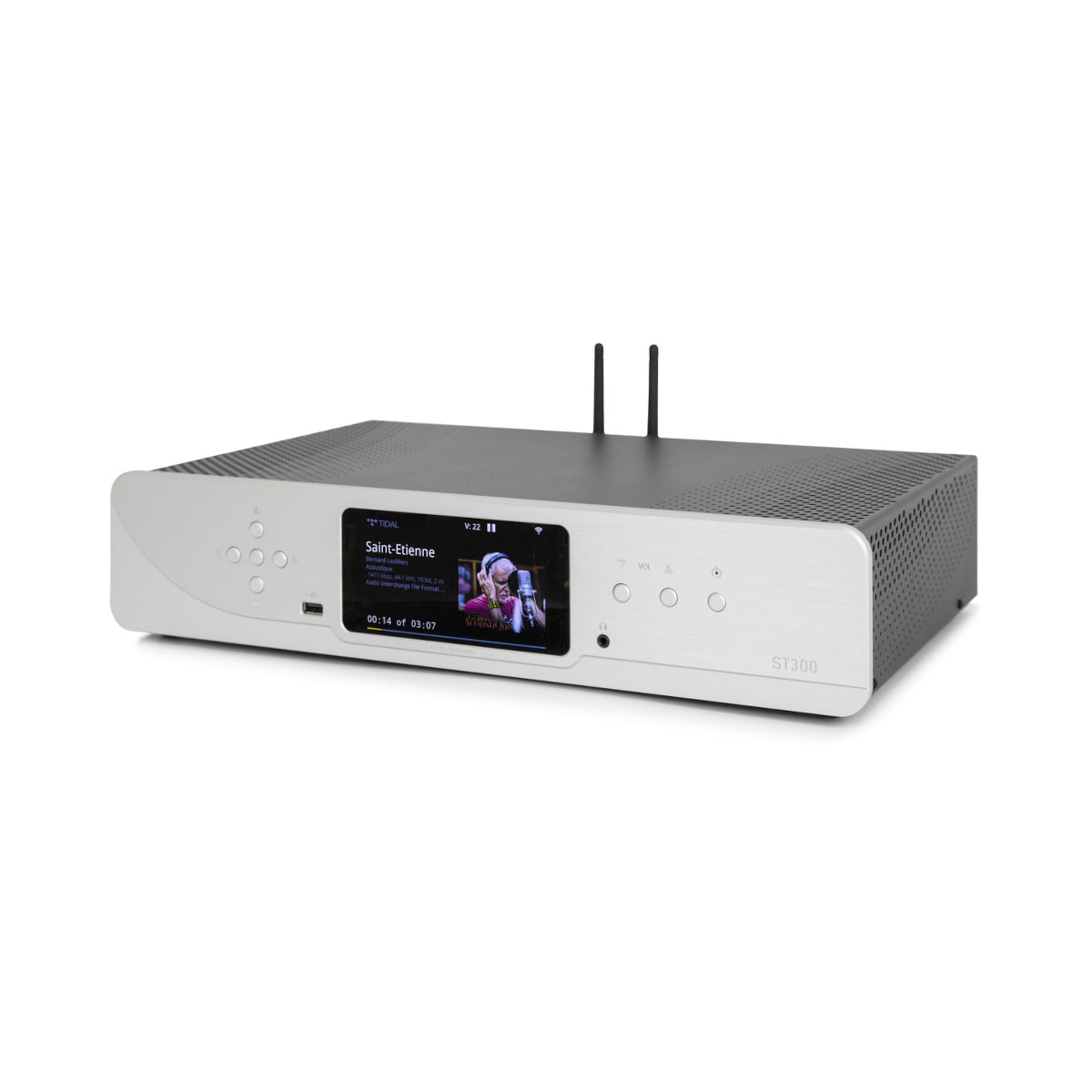

Atoll Electronique ST300 Signature Network Player / DAC / Preamplifier

Atoll Electronique ST300 Signature Network Player / DAC / Preamplifier

$5,799.00 AUD
$5,799.00 AUD
Sale Sold out
Shipping calculated at checkout.
Color: Black

Whether you're streaming high-definition music locally from your network, a USB drive, a hard drive, via Bluetooth®, or through your favorite internet radio stations, our ST300 Signature network player is perfectly suited to today's needs for playing digital music files. It features a high-performance converter and can be used as a pure source or as a preamplifier.

FAQ

What are the differences between ST200 and ST300?

ST300 is Flagship streamer/DAC/preamp with heavier supply, 3 transformers 69,000 µF total capacitance. Analogue stage is Fully discrete Class A, more refined. Higher-grade analog resistor-switched volume. Output RCA + XLR balanced

ST200 is Mid-tier streamer/DAC with simplifier power supply, digital preamp volume control and RCA output.



Features

  • 8mm brushed aluminum front panel.
  • 1 linear transformer 30 VA + 2 low noise toroidal transformers of 10 VA (audio).
  • Total capacitance: 69,000 µF.
  • MKP audio CLARITY CAP ESA series coupling capacitors.
  • BURR BROWN PCM1792A dual converter:
              – Dynamic range: 132 dB.
              – Signal-to-noise ratio: 132 dB.
  • 5″ TFT LED color graphic display (800*480).
  • Discrete component audio stages without negative feedback, biased in pure class A.
  • Analog volume control (switched resistors) that can be bypassed.
  • Dedicated power supply for the audio stages.
  • Dedicated power supply for the digital-to-analog audio converter.
  • Supported resolutions: PCM up to 24 bits/192 kHz and DSD64 and DSD128.
  • Playback of audio files present on the network (DLNA and UPnP compatible) via wired RJ45 connection or Wifi.
  • Displaying names, tags, resolutions and album covers.
  • "Gapless" system (no break between pieces).
  • Ability to create playlists.
  • USB-A compatible with FAT32, NTFS, EXT2/3/4.
  • ATOLL "streamer" remote control supplied as standard.
  • “ATOLL Signature 2” application (Android and IOS).

Specifications

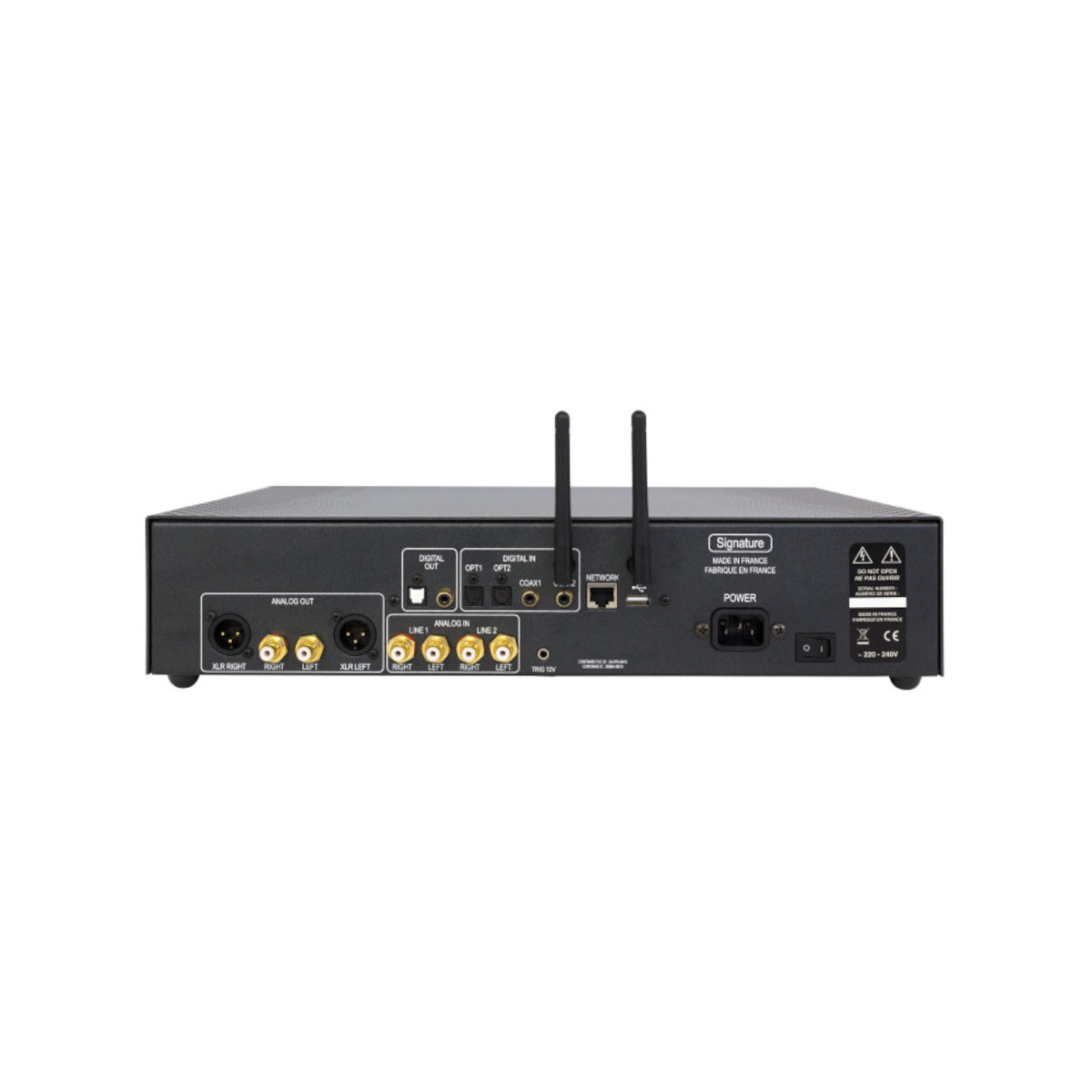

Audio Inputs:
2 Stereo analog inputs.
4 Digital Inputs: 2 Coaxial, 2 Optical.
1 Bluetooth® input.
2 USB-A inputs: 1 on the front panel and 1 on the rear panel.

Audio outputs:
1 stereo analog RCA output.
1 stereo analog XLR output.
2 digital outputs: 1 coaxial and 1 optical.

Miscellaneous:
1 RJ45 input (network).
1 12V trigger output.
1 WIFI antenna.
1 Bluetooth® antenna.

  • Power supply:30 VA + 2×10 VA (audio)
  • Total capacitance:69,000 µF
  • Output stages:4 Class A biased discrete component stages with no negative feedback
  • Dynamic range:132 dB
  • Output impedance:5.6 Ω
  • Maximum input level:3.5 Vrms
  • Output level:2.0 Vrms
  • Signal-to-noise ratio:132 dB
  • Distortion at 1 kHz:0.0004%
  • Bandwidth:5 Hz – 20 kHz
  • Rise time:1.5 µs
  • Digital-to-analog converter:2×BURR-BROWN PCM1792A
    24-bit/192 kHz
  • Dimensions:440×284×95 mm
  • Weight:7 kg

What's in the box

  • ST300
  • Remote Control
  • Antenna
  • Manual
