Atoll

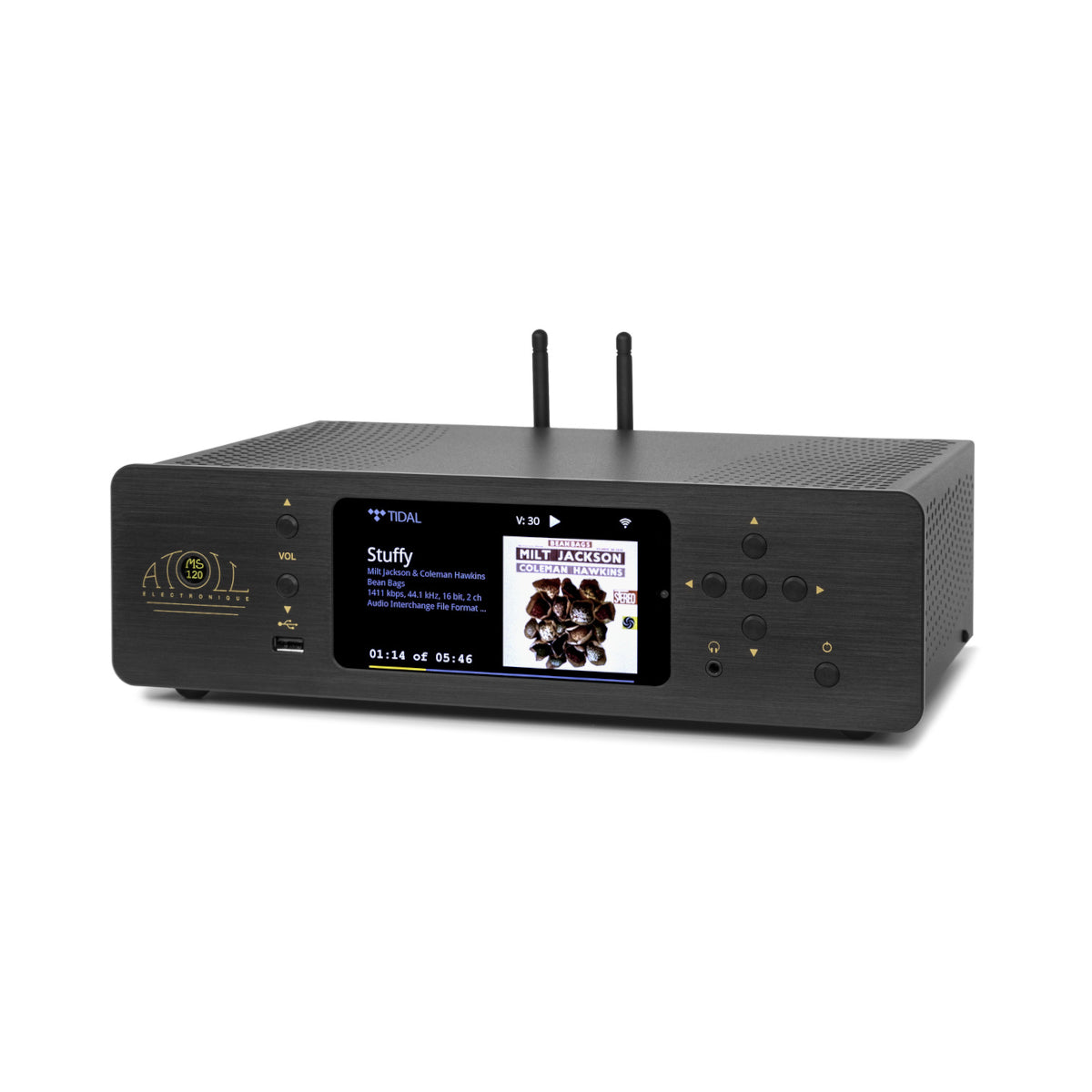

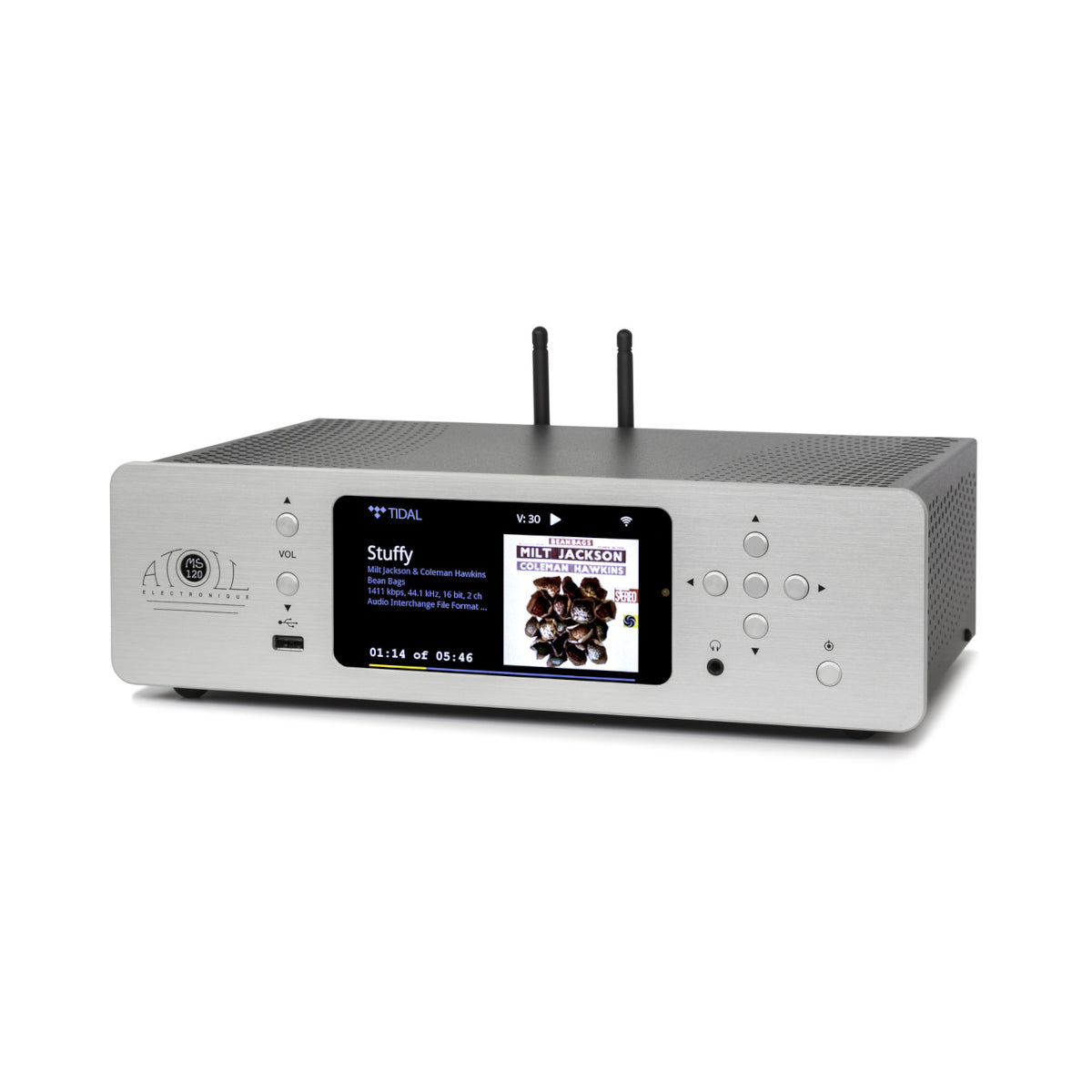

Atoll Electronique MS120 Mini Streamer

Atoll Electronique MS120 Mini Streamer

Regular price $2,599.00 AUD
Regular price Sale price $2,599.00 AUD
Sale Sold out
Shipping calculated at checkout.
Color: Black

Overview

  • Reading all audio files in the network (compatible DLNA and UPnP) connected on Wifi or wired RJ45.
  • Displays the name, tags, album cover, resolution.
  • “gapless” system (uninterrupted playback of consecutive audio tracks).
  • Possibility to create Playlists.
  • External control (with Qobuz, Audirvana…) with RTSP protocole.

Compatibility Roon

  • This product is certified Roon Ready.

Music Streaming Services

  • Direct access from the ATOLL app to streaming portals: Qobuz, Tidal, Deezer Hifi

Streaming Spotify Connect

  • Direct access to Spotify with Spotify Connect

Streaming Tidal Connect

  • Direct access to Tidal with Tidal Connect

Internet Radio

  • Access to all internet radios with Airable system in high quality: choices of more than 100 000 stations, podcasts…
  • Displays logos stations and further information: titles, artists, resolution…
  • Possibility to add radios to a « favourite » menu.

Audio

  • Symmetrical outputs stages with no feedback and discrete components polarized in A class.
  • Analog volume control (with commutated resistors) with possible By-Pass.
  • Transformer specifically dedicated to audio stages.
  • High Quality MKP link condensators.
  • Burr-Brown PCM1796 converter.

End User

  • 5″ TFT led display (800*480).
  • Serial remote control.
  • Apple® and Androïd® free app.
  • Readable files: MQA, DSF, LPCM, FLAC, ALAC, AIFF, WMA, OGG, WAV, AAC, MP3.
  • Acceptable resolution: PCM up to 24bits/192kHz & DSD 64 & 128.
  • USB-A format: FAT32, NTFS, EXT2/3/4.

Pre-amp/Connections

  • Inputs:
  • 2 analog
  • 2 S/PDIF coaxial (PCM 24bits/192kHz)
  • 2 S/PDIF optical Toslink (PCM 24bits/192kHz)
  • Outputs:
  • 1 Line-out
  • 1 S/PDIF coaxial
  • 1 S/PDIF optical Toslink
  • 2 USB-A Inputs
  • 1 Bluetooth® receiver
  • 1 RJ45 network
  • 1 Wifi antenna (802.11b/g/n)
  • 1 trigger 12V output
  • 1 headphones output front (3,5mm)

Features

Direct access from the ATOLL app to streaming portals: Qobuz, Tidal, Deezer Hifi

Specifications

  • Audio supplies: 4,6VA + 3,6VA
  • General supply: Topology flyback 4,5w + 4,5W
  • Total of capacitors: 5 435 µF
  • Dynamic: 123 dB
  • Output Impedance: 22 Ohm
  • Output level: 2,8 VRMS
  • Signal/Noise ratio: 123 dB
  • Distortion at 1kHz: 0,005%
  • Bandwidth: 5Hz – 20kHz
  • Rising Time: 1,7µs
  • Converter digit/analog: Burr-Brown PCM1796 24 bits/192 kHz – DSD128
  • Dimensions: 320x230x94mm
  • Weight: 3 Kg

What's in the box

1 x MS120 Mini Streamer

1 x Remote Control

Manual

View full details
