Atoll

Atoll Electronique IN300 Evolution Integrated Amplifier

$5,999.00 AUD

Sale Sold out

Shipping calculated at checkout.

Color: Black

Optional Board No Board DAC 100 DAC 200 P50 P100 DAC 200 and P100

Quantity

The IN300 Evolution integrated amplifier features reworked power supplies, improved audio performance, and a low-power mode. DAC boards are now optional.

Atoll's balanced MOS-FET amplifier circuits offer excellent harmonic gradients and have no memory effect. Every moment, the current is immediately delivered to your speakers. This is one of the secrets of the musicality that ATOLL amplifiers enjoy.

OUTPUT STAGES:

Double mono stages with 2 toroidal transformers of 440 VA.
Specific low-consumption power supply (5VA) for managing the display and logic circuits.
High-quality, low-ESR filter capacitors are made to ATOLL specifications.
Output stages with very little feedback provide a lot of dynamics and a very natural sound.
Specific stages to avoid current peaks on ignition.
High-end specific internal power wiring.

INPUT STAGES:

MKP Mundorf shielded capacitors.
Volume by double attenuator: 1 per channel.
Bipolar symmetric stages with discrete components.

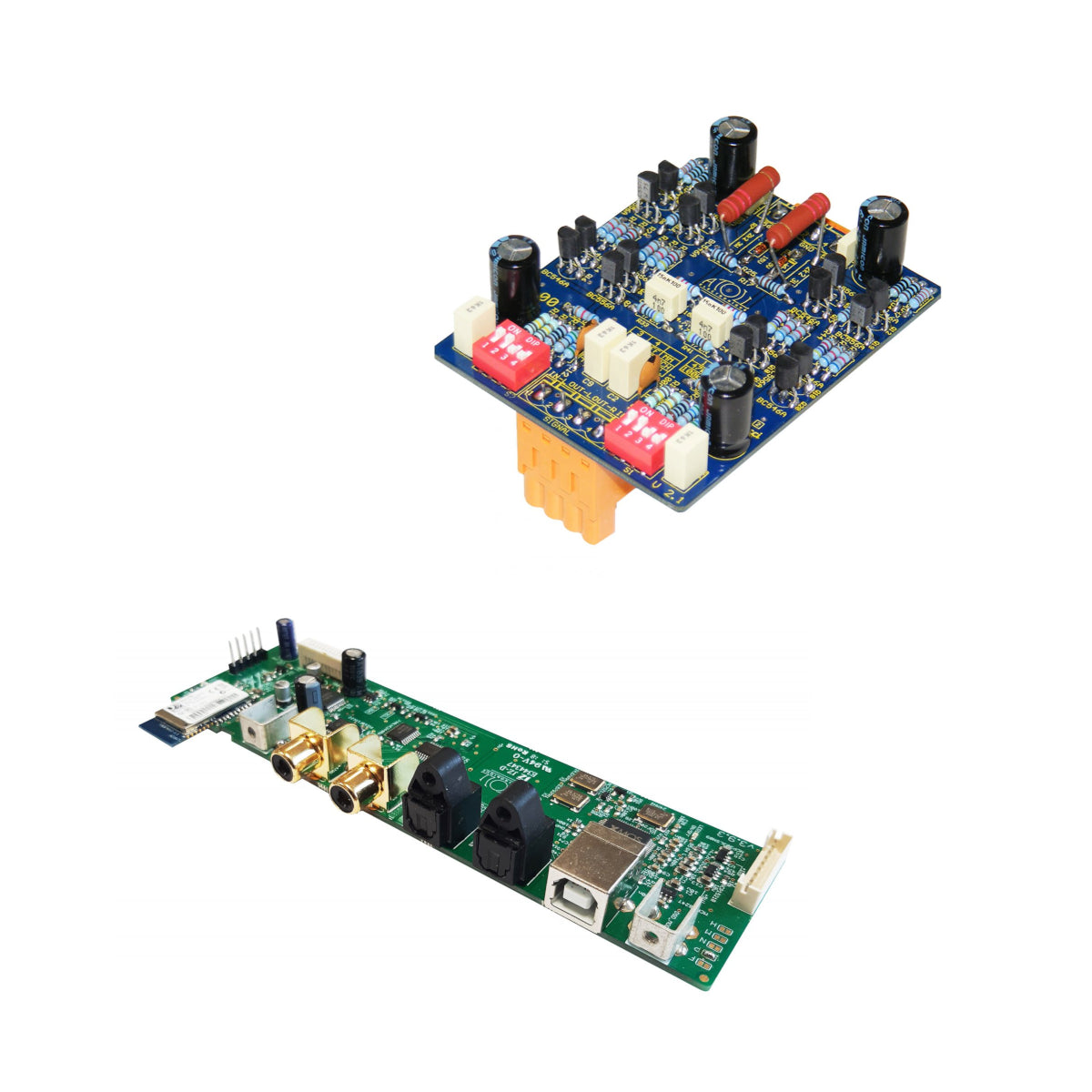

OPTIONAL BOARDS AVAILABLE

1 Digital board (of your choice):

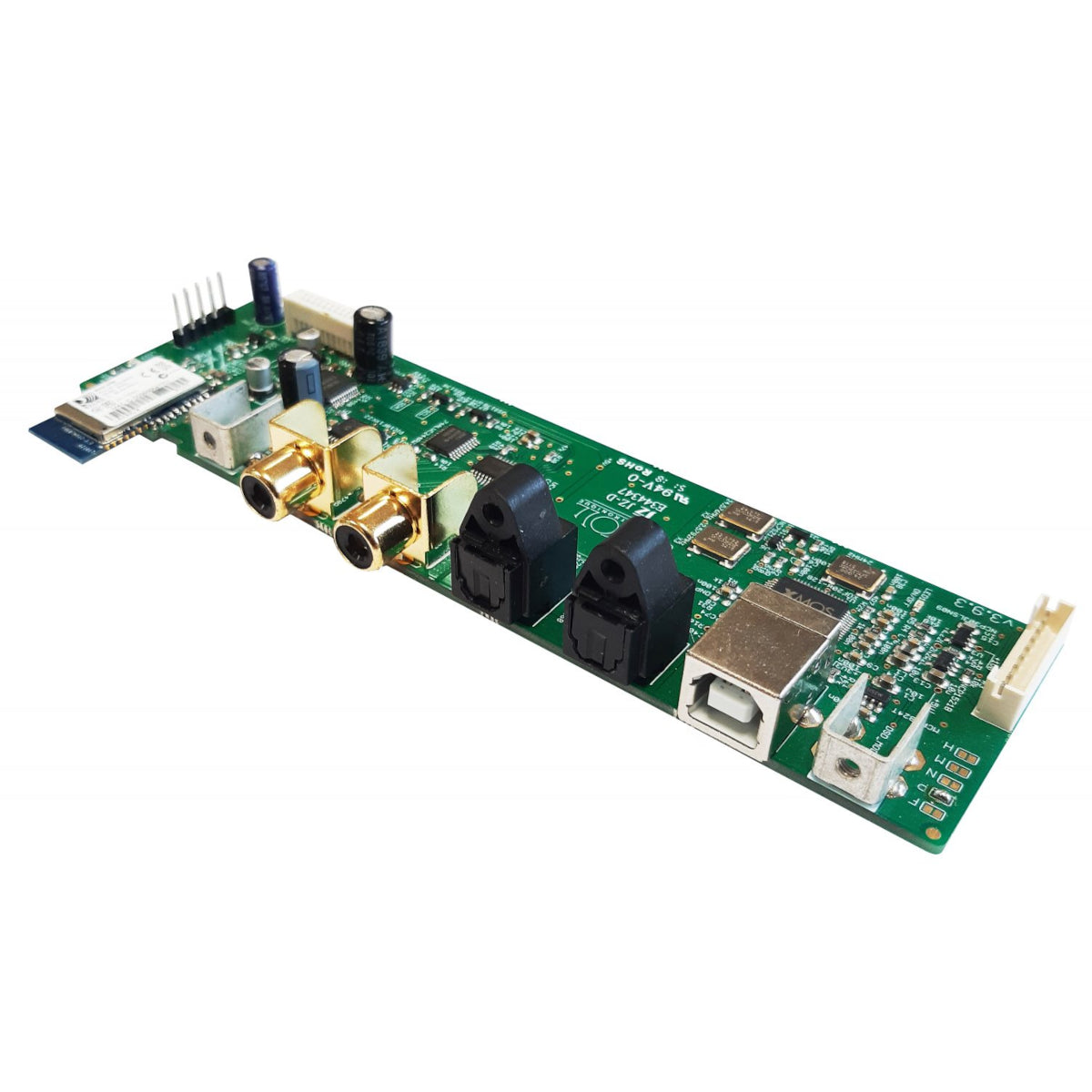

DA200
2 Coaxial inputs (24 bits/192 kHz)
2 Optical inputs (24 bits/192 kHz).
1 Bluetooth receiver.
1 USB-B input: PCM & DSD.

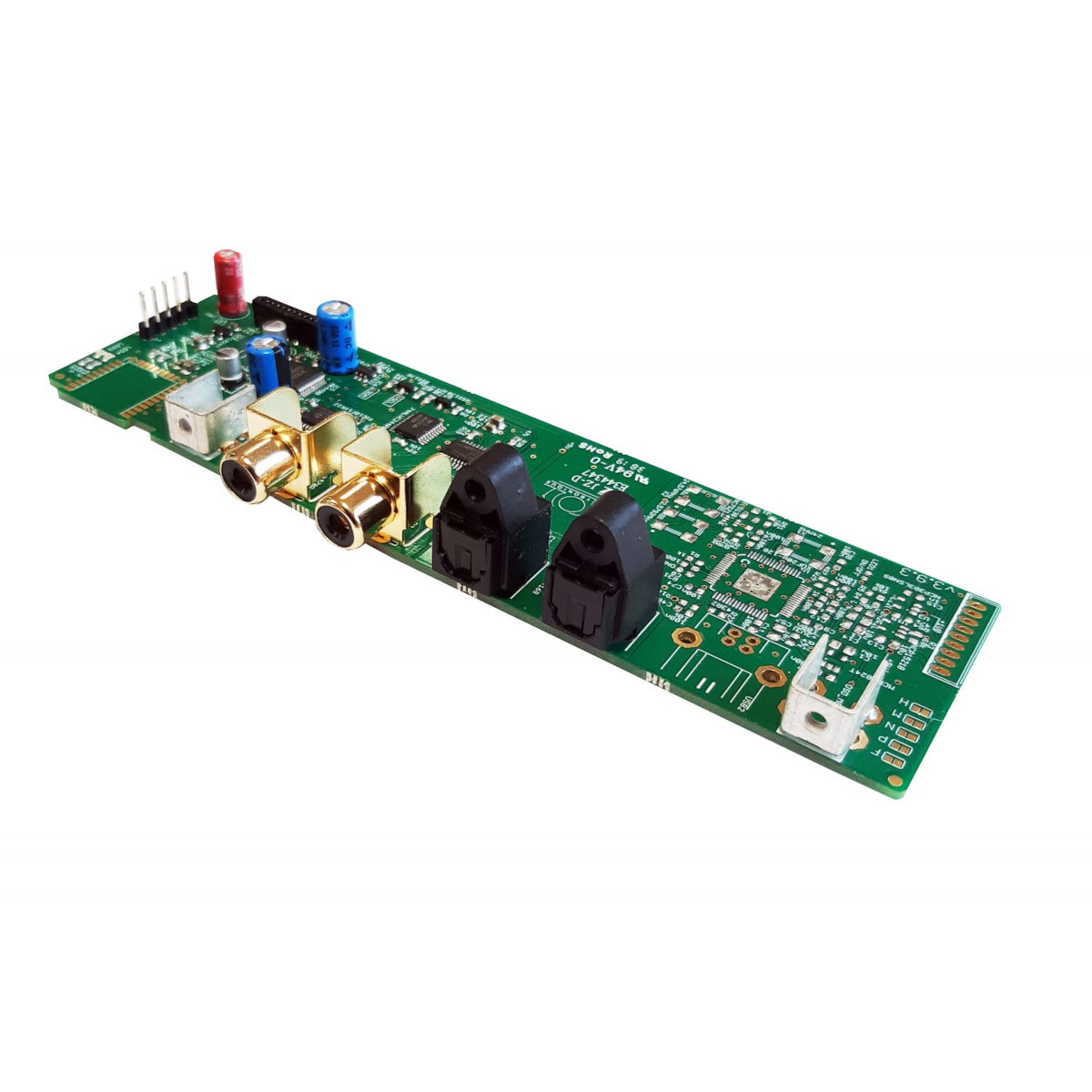

DA100
2 Coaxial inputs (24 bits/192 kHz).
2 Optical inputs (24 bits/192 kHz).

———————————

1 Phono board on the AUX input (of your choice):

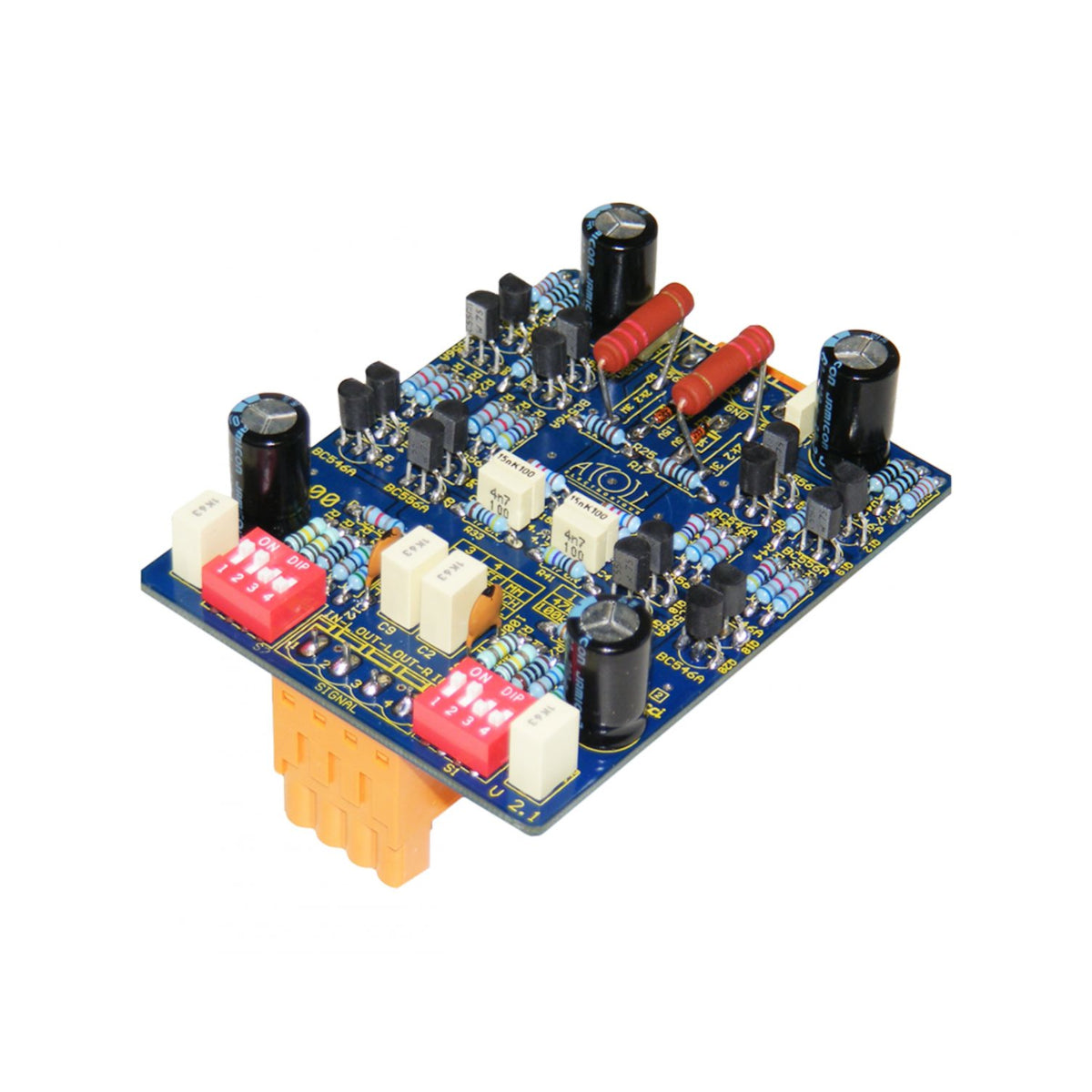

P100 (configurable MM or MC).

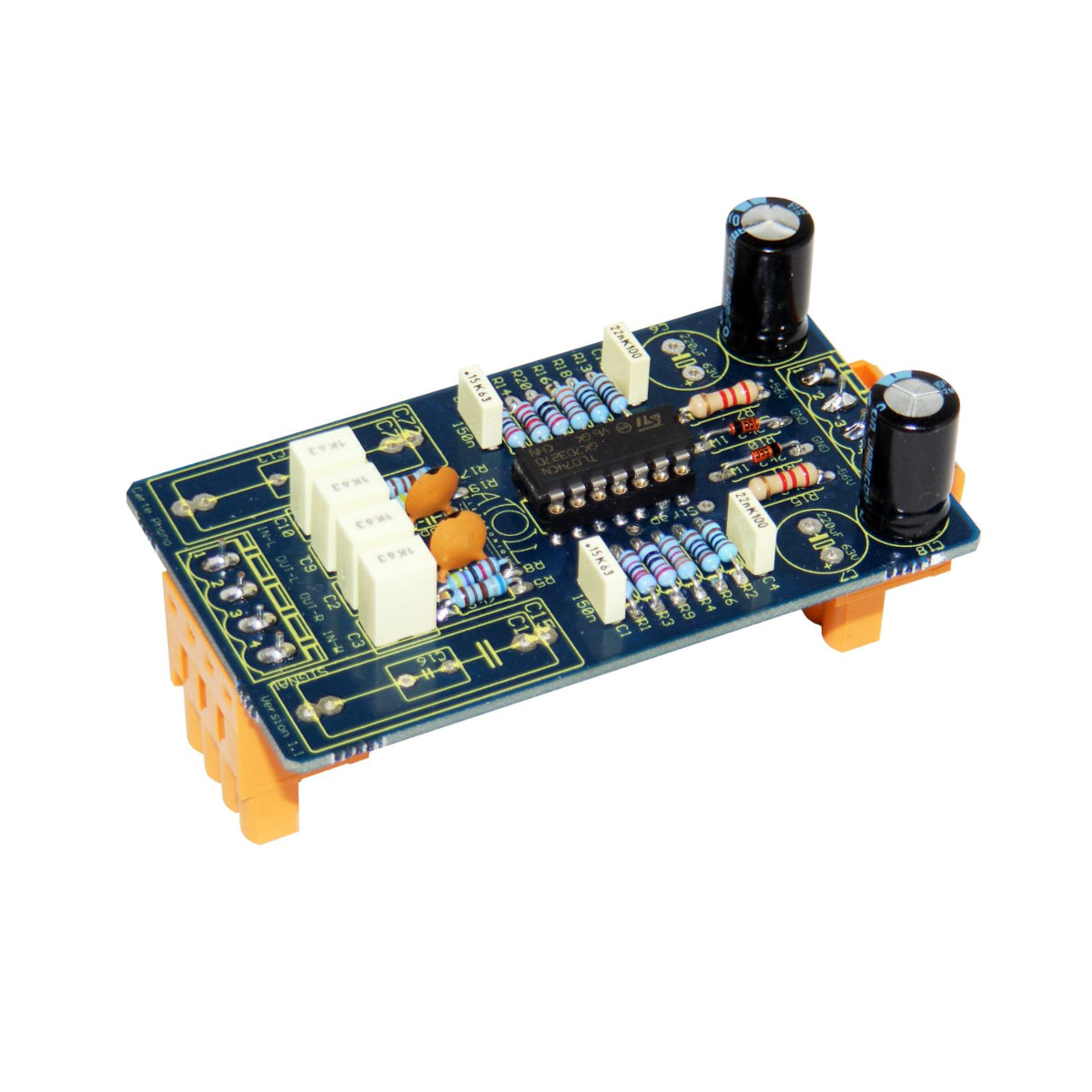

P50 (MM).

Even if these boards can be installed by the user at any time, it is preferable to install them at the time of purchase by your authorised dealer.

XMOS SPECIFIC DRIVER

Important: Using the DAC card’s USB input requires downloading a specific driver for Windows computers. The driver is not necessary for MAC and Linux. The driver can be downloaded below.

Download it here:

XMOS-Stereo-USB-Audio-Class2-Driver-30BB_v4.13.0.exe

Features

8 mm brushed aluminium front panel, micro-blasted and anodised, with high-precision engraving.
2 x 150 Wrms / 8Ω.
1.5mm thick steel chassis.
Two 440 VA toroidal transformers for the audio stages plus 10 VA for the digital stages.
Soft start stage to avoid power surges.
High-end ABSOLUTE CREATIONS internal wiring on the power supply side.
Filter capacitors: 12 x 6800 μF high-quality capacitors with a low ESR specifically designed for ATOLL.
High-quality, shielded MKP coupling capacitors.
Bipolar transistor and LED current sources to ensure perfect voltage stability.
Triple push-pull MOS-FET power stage.
Polarisation of the output stages in class A/B.
Possibility of choosing standby mode: Low consumption or preheating.
2 volume attenuators: 1 per channel to maintain the dual mono architecture.
Possibility to manage balance and memorise it.
Possibility to rename the inputs.
High contrast OLED display (on or off mode after 5 seconds of inactivity).
Double-sided printed circuits with nickel/gold finish.
ATOLL global remote control supplied as standard.
The IN300 EVO can receive the following optional boards:
– DAC boards: DA100 and DA200.
– PHONO boards: P50 and P100 (can be combined with DAC boards).

Specifications

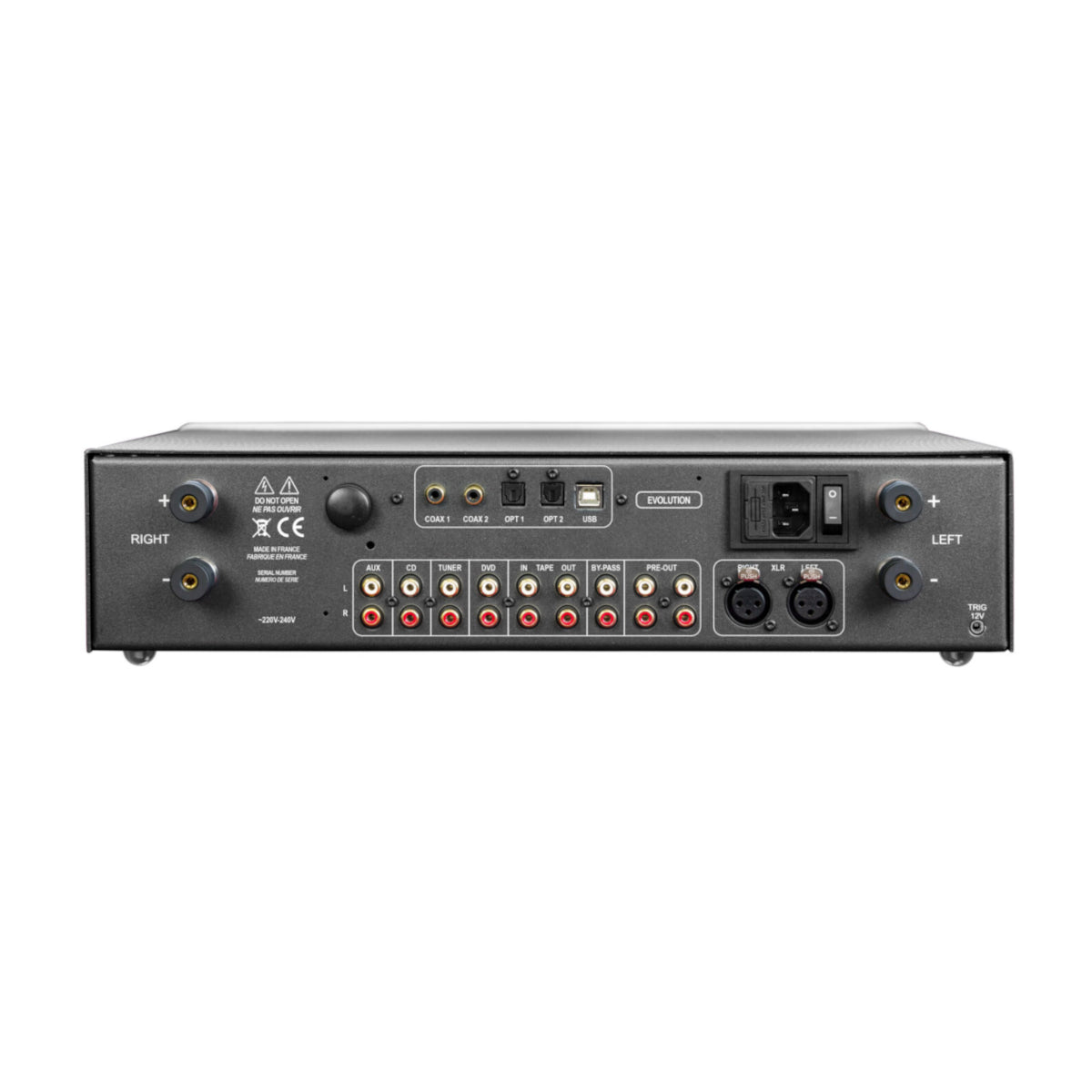

Analog Inputs
5 Line Inputs (including 1 AUX input for optional PHONO board).
1 BY-PASS Input.
1 XLR Input.

Outputs
1 Pair of Speaker Outputs.
2 Pre-Out Outputs.
1 Ø 6.35 mm headphone jack output.
1 12V Trigger Output.

Various
Optional DA100 and DA200 digital boards can be added.

Power in Wrms/channel/8Ω (230v): 150 W
Power in Wrms/channel/4Ω (230v): 260 W
Power supply: 2×440 VA + 10 VA
Total of capacitors: 86 150 µF
Number of inputs: 5+1 BY-PASS
Consumption with switch off: 0 W
Consumption in standby (low consumption): <0.5 W
Consumption in preheating mode: 27 W
Consumption in operation:29 W – 700 W
Input impedance: 220 kΩ
Maximum input level:
3.5 Vrms / 4.7 Vrms XLR
Sensitivity: 450 mV
Signal/noise ratio: 100 dB
Distortion at 1 kHz: 0.05% / (10 W)
Bandwidth: 5 Hz – 100 kHz
Rise time: 2.0 µs
Dimensions: 440×365×103 mm
Weight: 16 Kg
